Key Features
- 1/4" TRS Stereo Plug
- Nickel Metal Handle
- Nickel Plated Contacts
- Cable O.D. up to 7 mm
- Full Box of 100 Connectors
Description

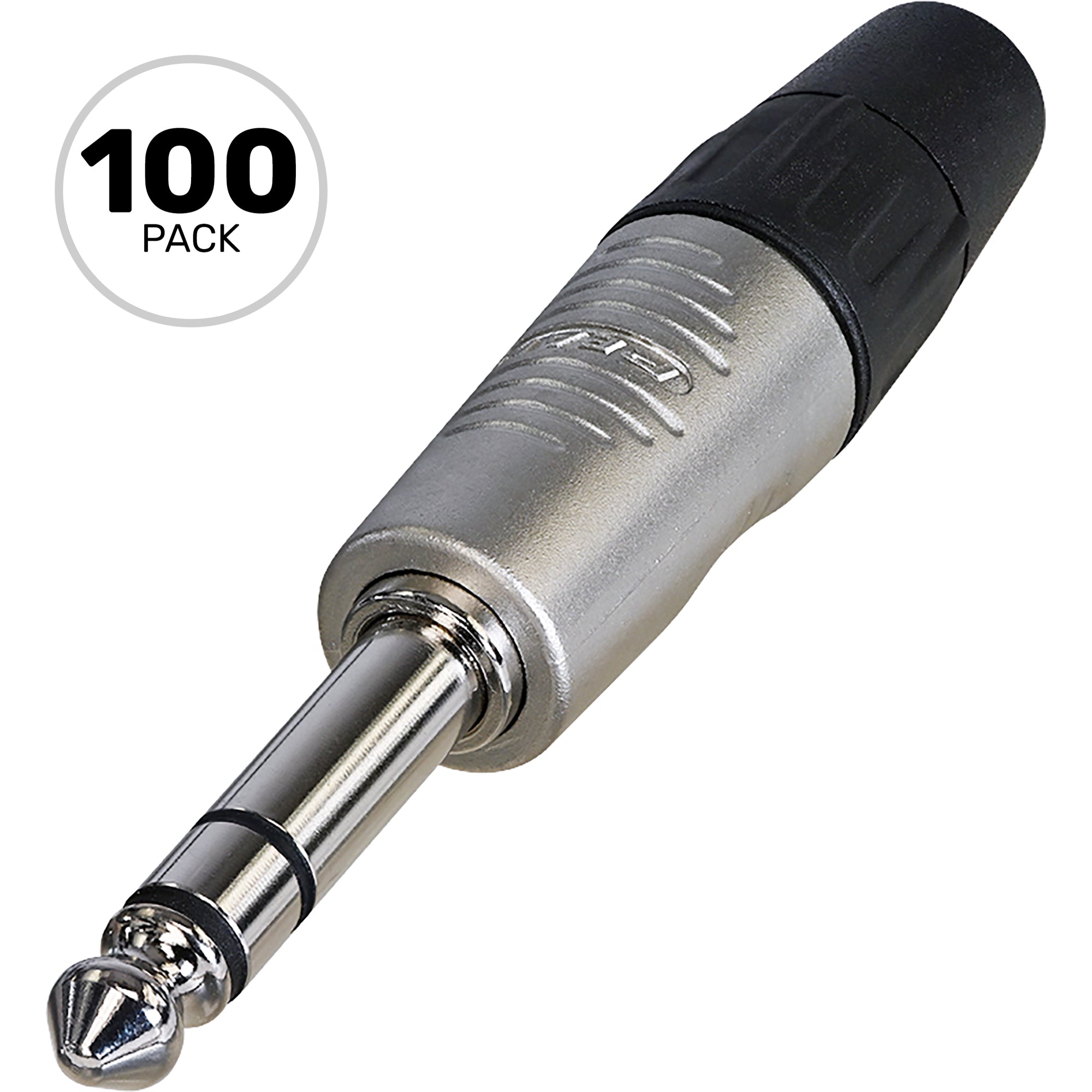

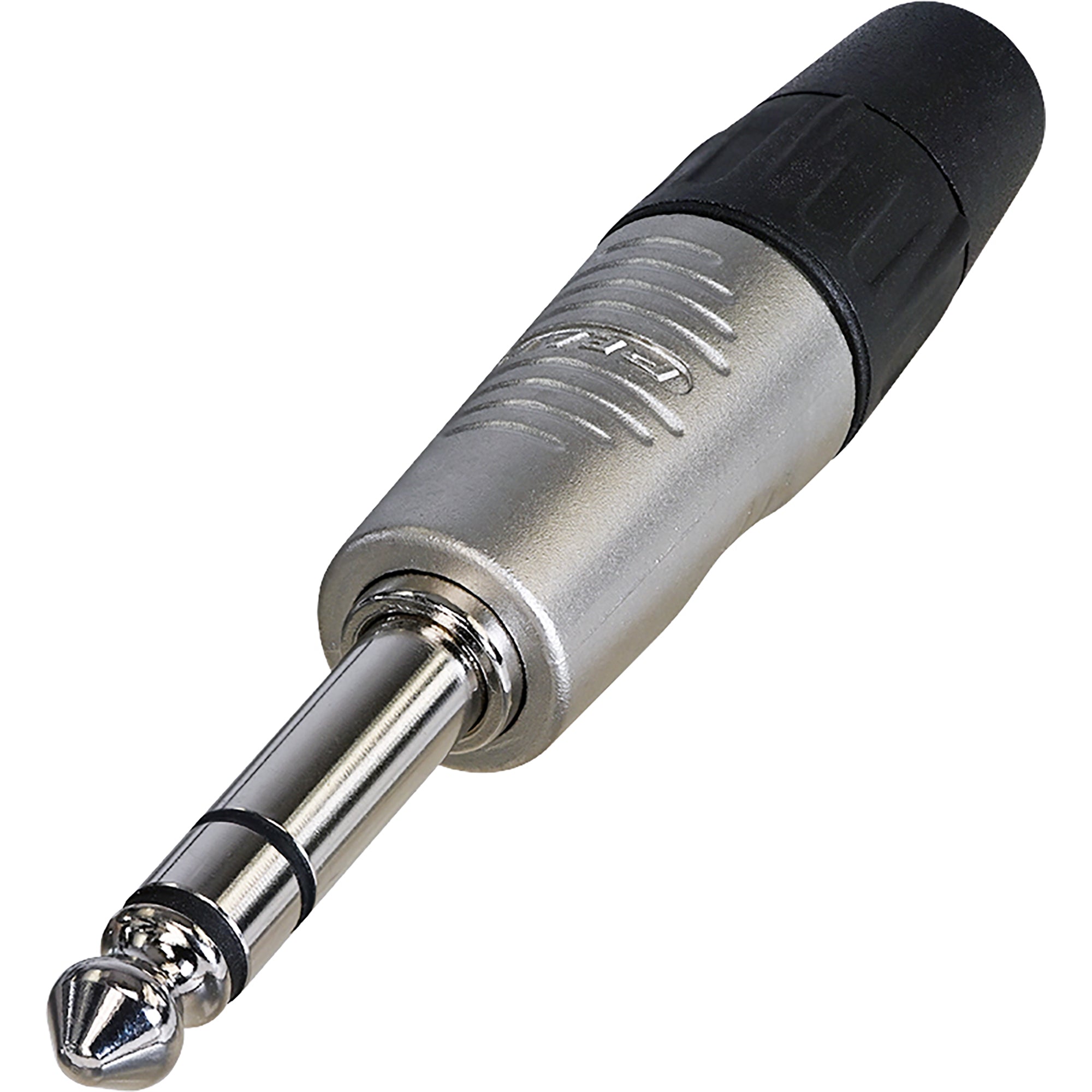

Stereo 1/4" TRS Straight Plug - Nickel Handle, Nickel Contacts - Full Box of 100 Connectors
3 pole 6.35 mm straight plug, nickel metal housing, nickel plated contacts. Single packed.
Features:
- 1/4" stereo or balanced mono plug
- Available with nickel or black handle
- Finger groove plugs
- Cable O.D. up to 7 mm
Specifications:
- Product:
- Title: RP3C
- Connection Type: Plug
- Electrical:
- Contact rated current: depends on mating connector mΩ
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kV dc
- Insulation resistance: > 1.5 GΩ
- Mechanical:
- Lifetime: > 1000 mating cycles
- Cable O.D.: 4 - 7 mm
- Wiring: Solder contacts
- Wiresize (max.): 1.0 mm² / 18 AWG
- Material:
- Boot: PA6+30% GF
- Contact: Brass ( CuZn39Pb3)
- Contact plating: Nickel / Au
- Shell: Zinc alloy
- Shell plating: Nickel / Black
- Strain relief: POM
- Environmental:
- Temperature range: -20 °C to +70 °C
- Flammability: UL 94 HB
- Solderability: complies with IEC68-2-20
Details
- Manufacturer: Neutrik
- MPN: RP3C
- Model Number: RP3C
