Neutrik Rean NYS231BG 3.5mm Stereo Phone Plug (Black/Gold, Box of 100)

Male 1/8" (3.5mm) TRS Stereo Plug with 4mm Cable Outlet, Cable End, Black Housing, Gold Contacts - Full Box of 100 Connectors

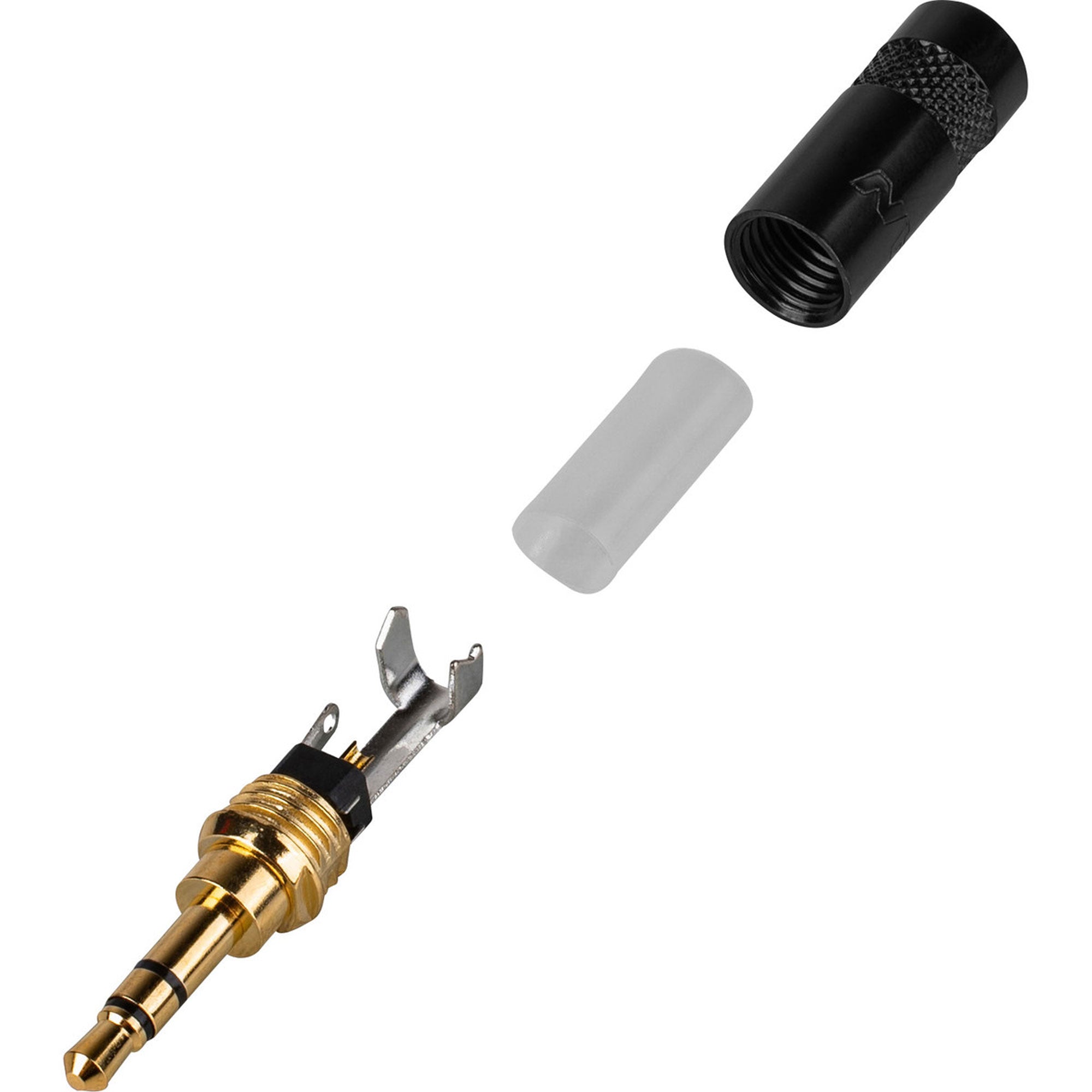

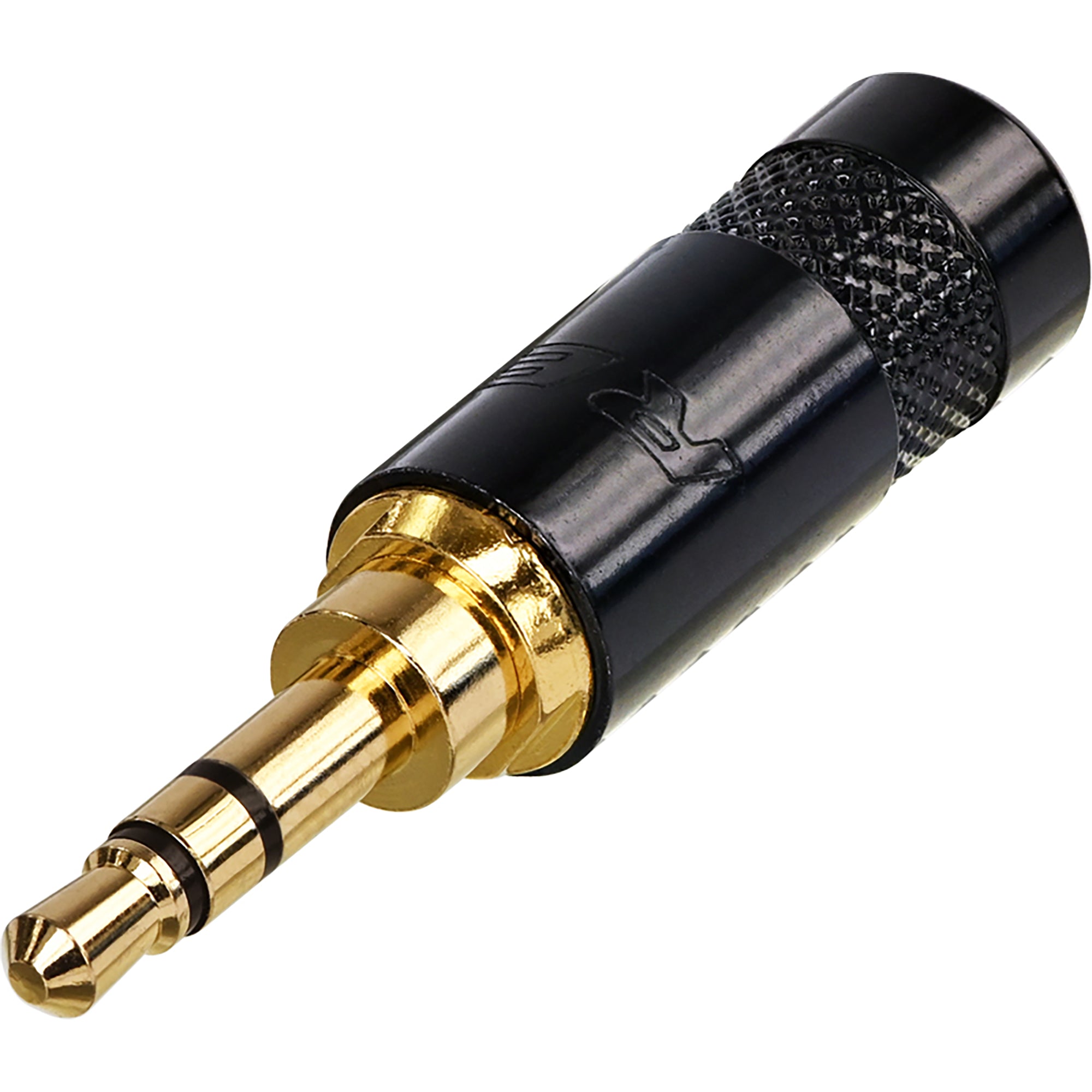

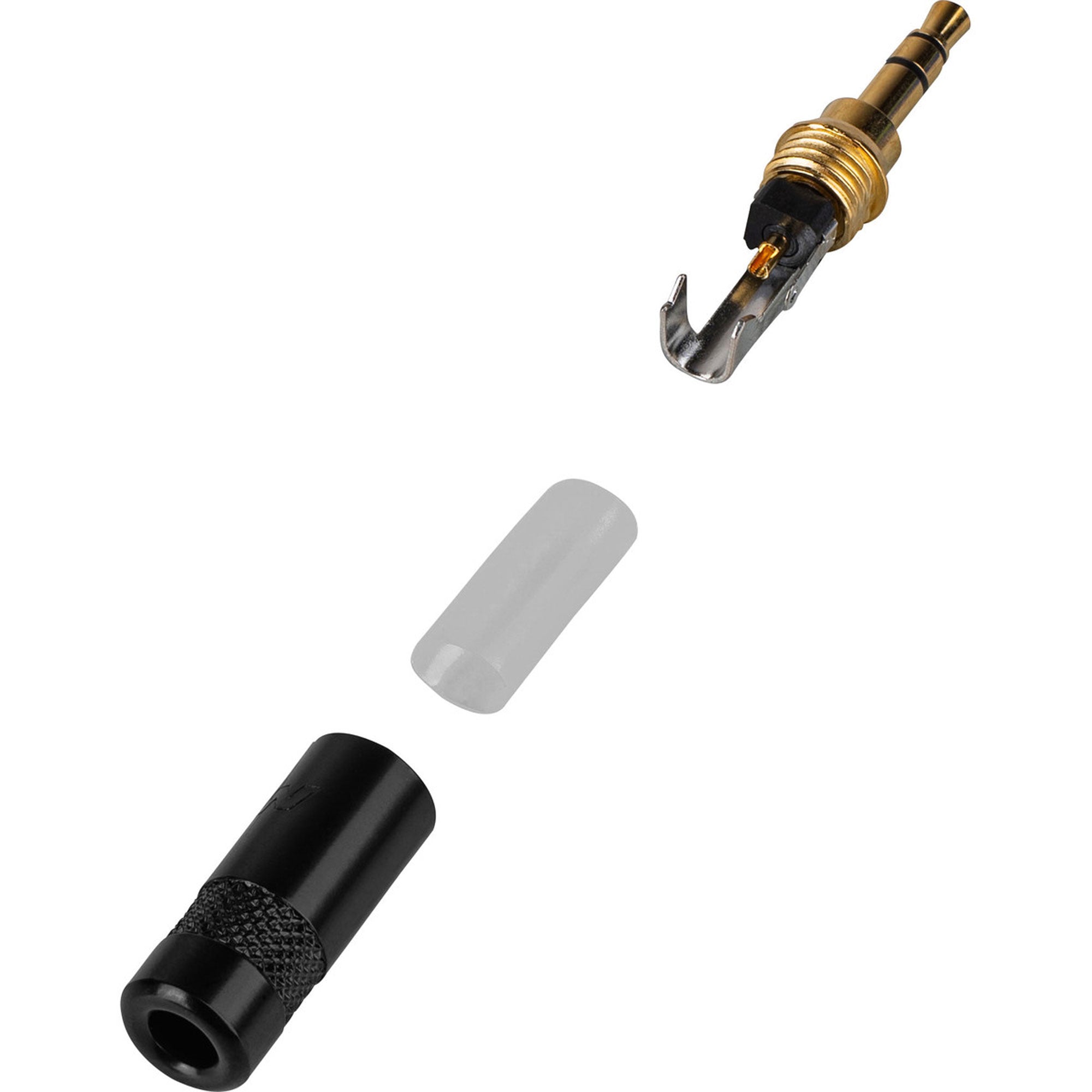

Neutrik REAN NYS231 3.5mm 3-pole TRS stereo male plug audio connector features a diecast metal shell and heavy-duty crimp strain relief. This connector features a black finished metal housing, and gold-plated machined brass contacts. Easy to assemble with oversized solder contacts. This connector will accept up to 4 mm OD cable.

REAN - a brand of Neutrik AG

Introducing REAN, a global brand from the Neutrik Group, marrying over 45 years of precision engineering know-how with our own dedicated state-of-the-art production facilities.

REAN offers designers of audio, video and lighting products a comprehensive range of connectors featuring ultra-robust, high-reliability designs, that promise unrivalled cost-performance ratios, backed by a truly global supply chain and experienced regional sales network.

An extensive worldwide portfolio of connectors incorporates a full range of 'standard' professional XLR, 1/4" Jack, XLR/Jack combo, Ethernet, Power Connector, 3.5mm, Phono, DIN, and Dual Banana plug solutions, and the new Z Series of IP65 rated XLR and RJ45 Ethernet connectors. These are specified for outdoor applications, resistant to water and dirt, and optimised for use in lighting and digital signage applications.

Product Variations

• NYS231: metal handle
• NYS231B: black plated metal handle
• NYS231BG: black plated metal handle, gold plated contacts
• NYS231G: metal handle, gold plated contacts
• NYS231L: metal handle, large cable outlet
• NYS231LBG: black plated metal handle, gold plated contacts, large cable outlet
• NYS231LL: metal handle, x-large cable outlet
• NYS231BG-LL: black plated metal handle, gold plated contacts, x-large cable outlet

Features:

• 1/8" stereo (TRS) mini plug
• Make your own cables to the perfect length
• Repair your own cables and save money
• Rugged construction
• Black and Gold finish

Specifications:

• Product
• Title: NYS231
• Connection Type: Plug
• Electrical
• Contact Resistance: ≤ 10 Ω
• Insulation Resistance: ≥ 200 Ω (Initial)
• Dielectric Strength: 0.5 KVdc 50HZ
• Mechanical
• Lifetime: > 5,000 Mating Cycles
• Insertion and Withdrawal Force: 5 - 40 N
• Cable O.D.:
  max 4.5 mm for standard outlet
  max 6.4 mm for large outlet (*L)
  max 8.5 mm for large outlet (*LL)
• Material
• Plug finger: Brass
• Sleeve: Zinc
• Retainer ring: PA66+30%GF
• Soldering Contact: Phosphor Bronze
• Cable Clamp: Steel
• Insulation: PP
• Housing: Zinc
• Plug finger plating: Nickel
• Sleeve plating: Nickel
• Soldering Contact plating: Tin
• Cable Clamp plating: Tin
• Housing plating: Nickel
