Key Features
- Male 1/4" Stereo Phone Plug
- Tip, Ring, Sleeve (TRS) Connections
- Long Barrel
- Solder Cups
- Nickel Metal Housing
- Silver Contacts
Description

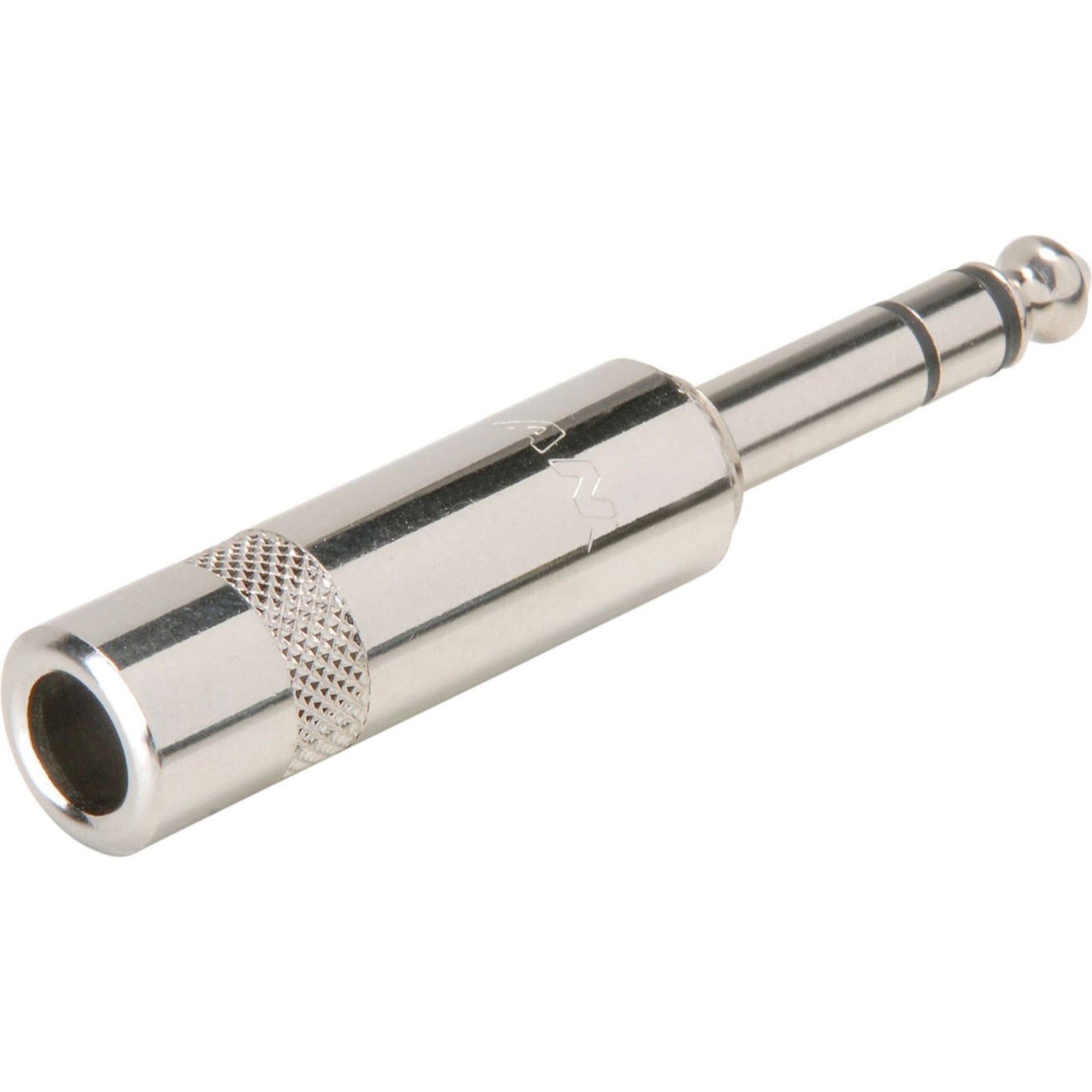

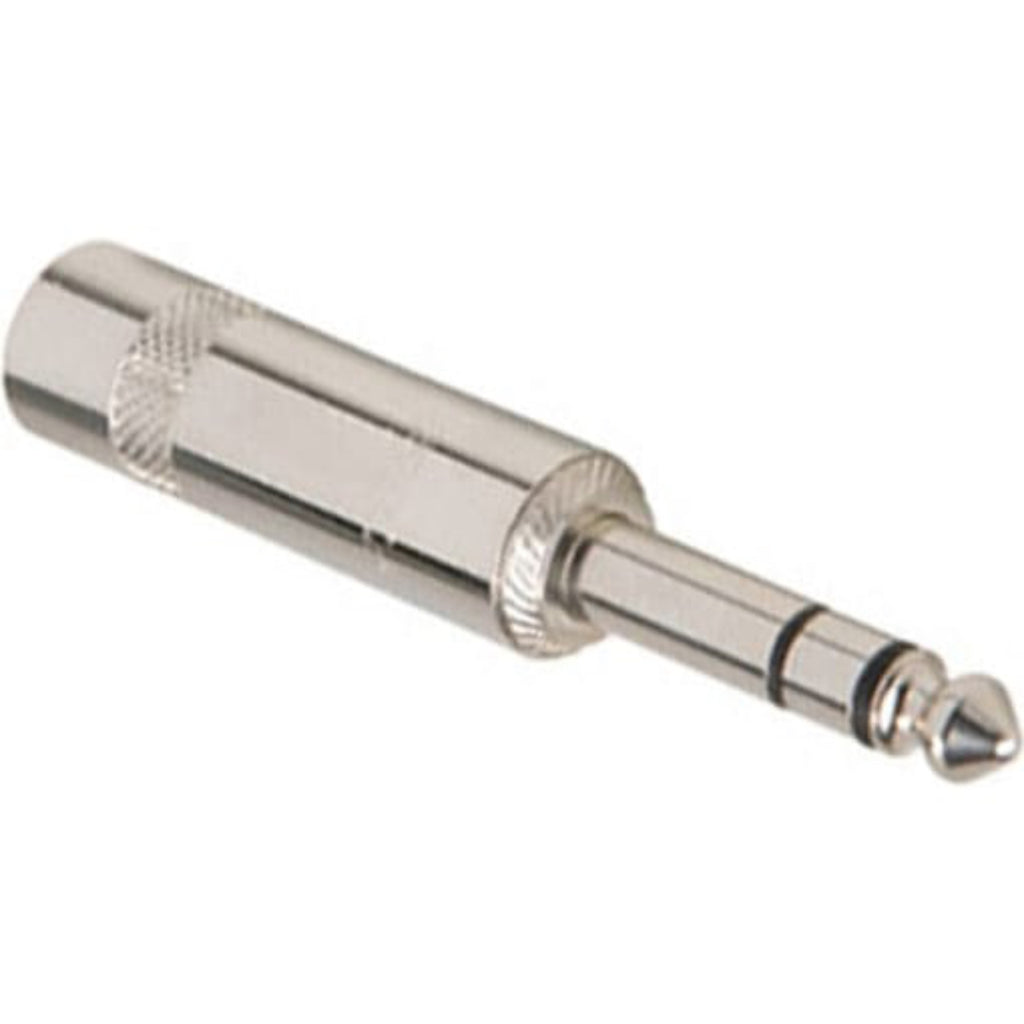

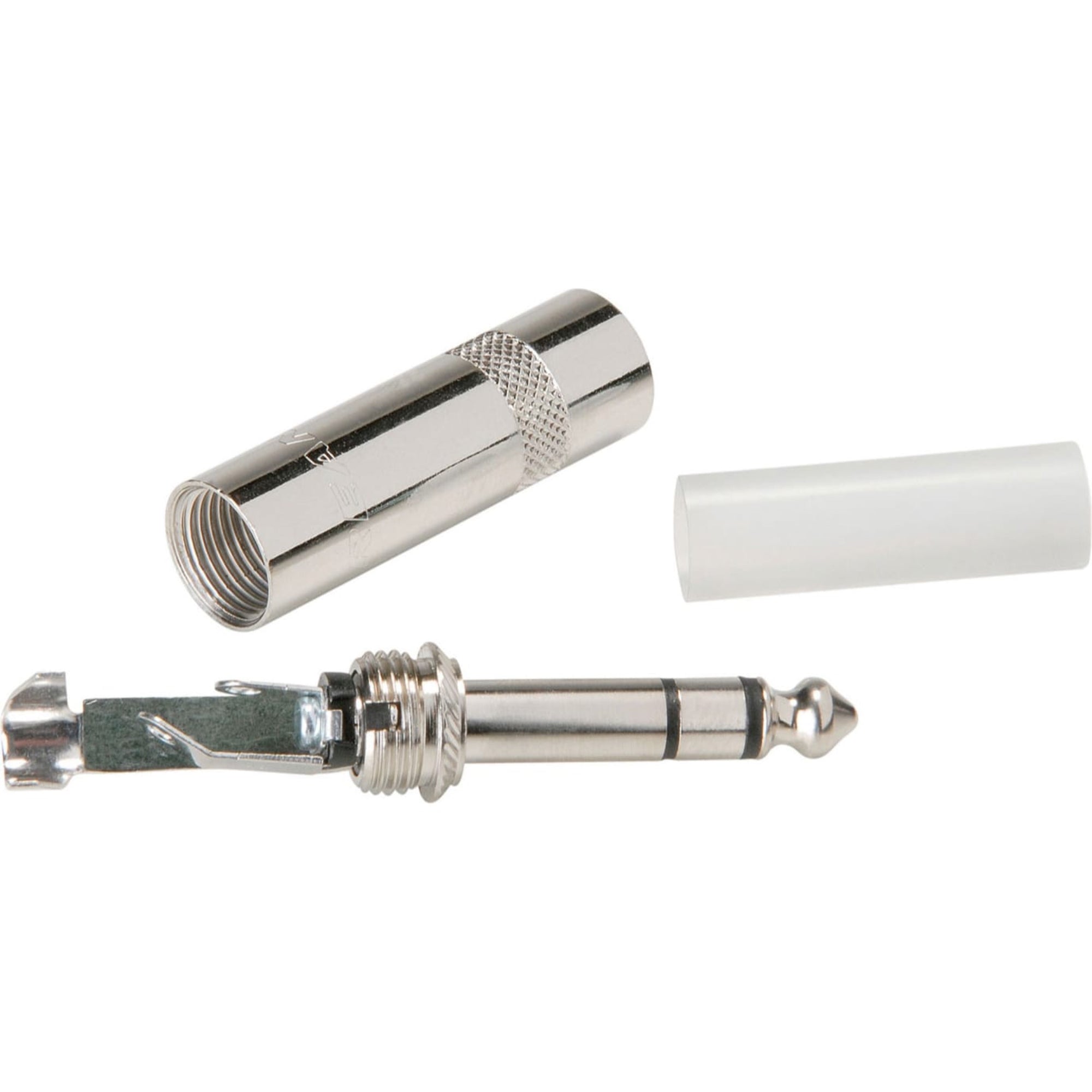

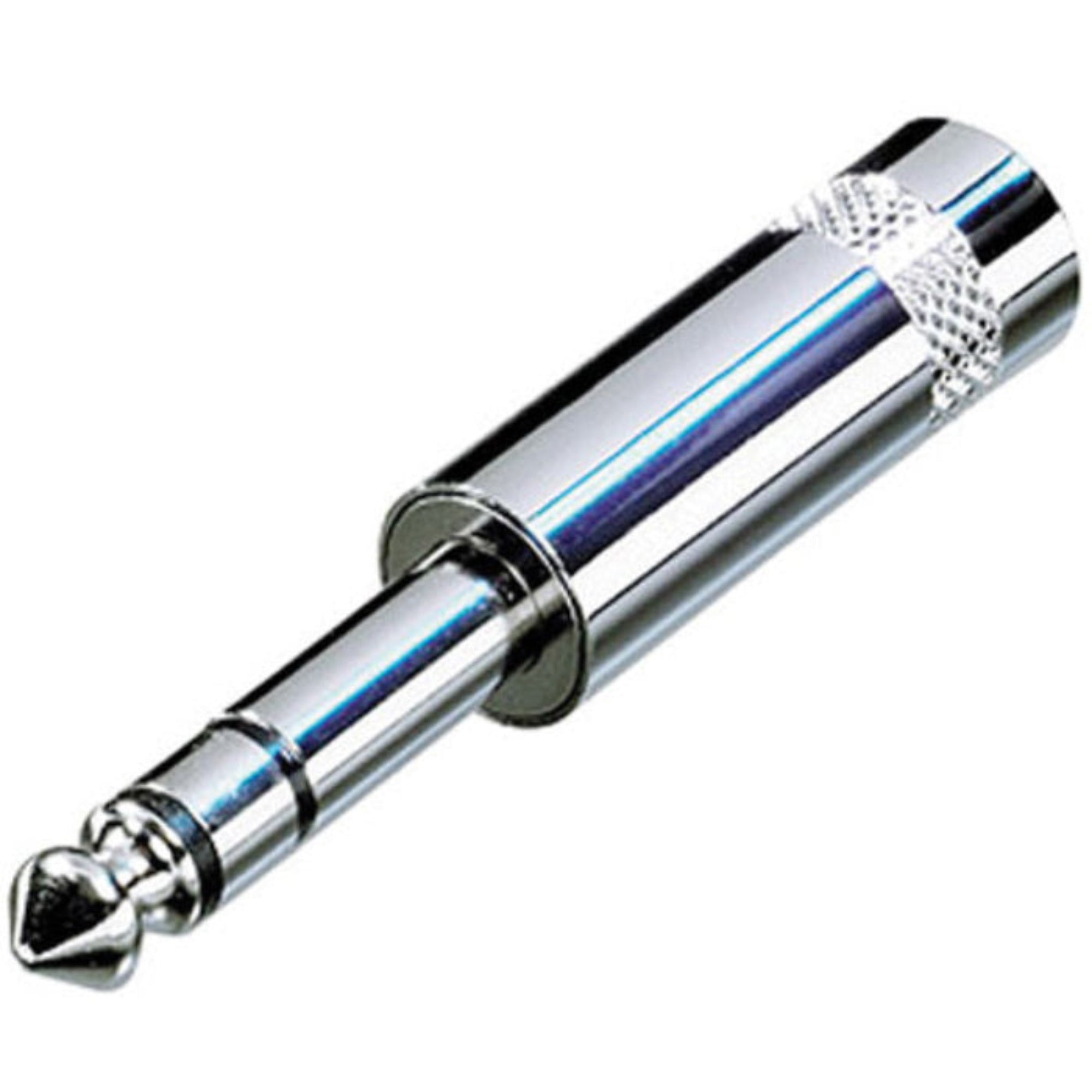

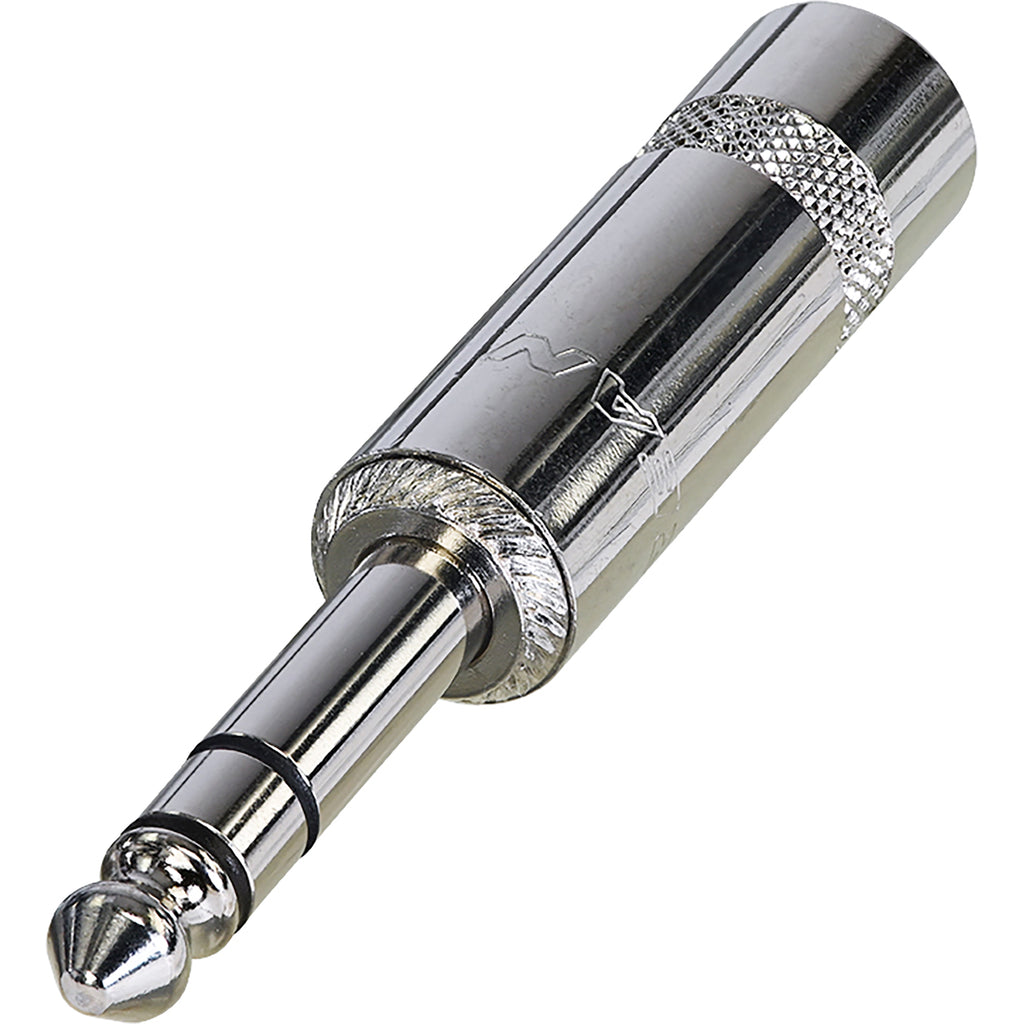

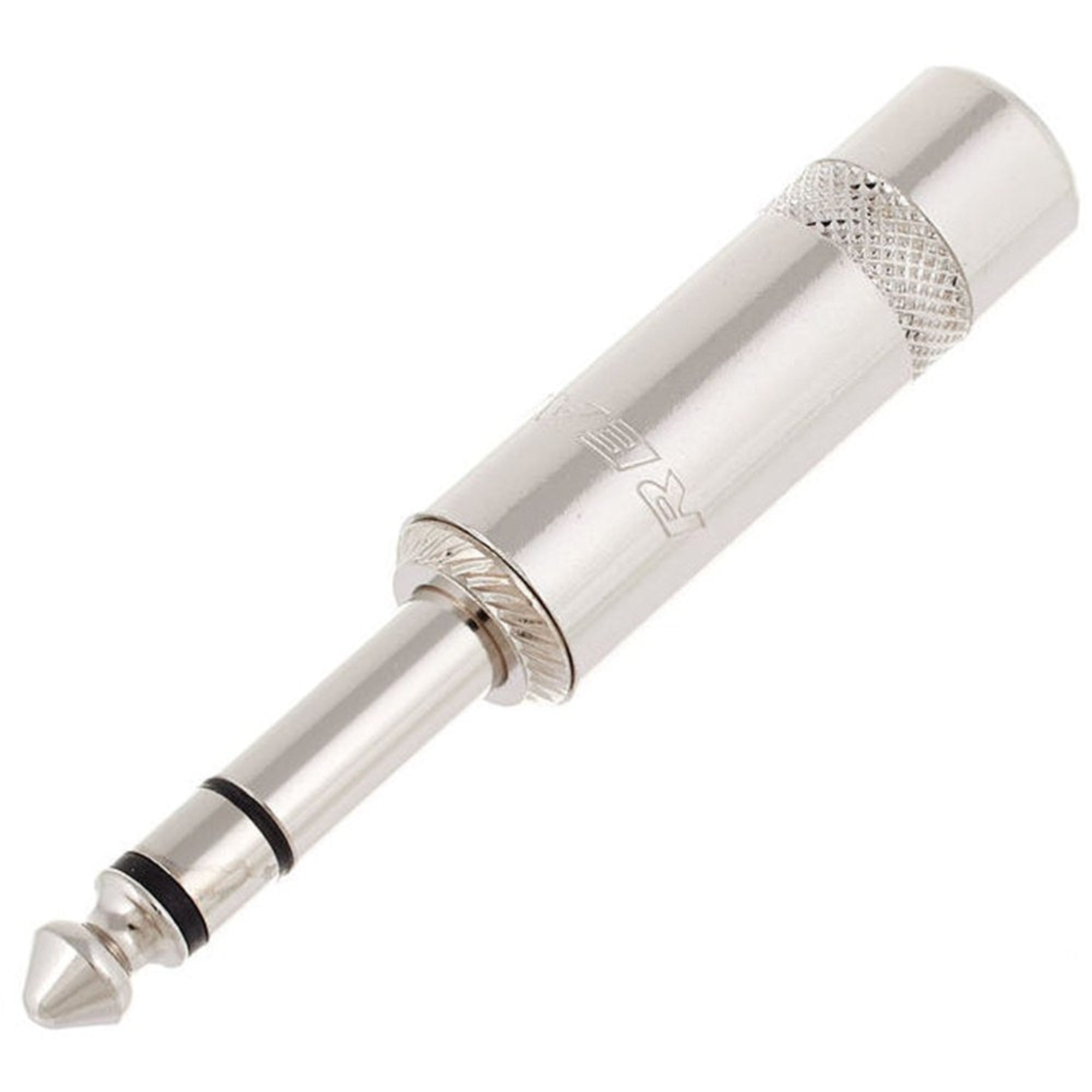

Male 1/4" TRS Stereo Long Barrel Plug, Cable End, Nickel Housing, Silver Contacts
The Neutrik Rean NYS228 is a stereo 3-Pole 1/4" TRS Phone Plug. It features a long die-cast metal handle with nickel shell-plating. Its contacts are nickel-plated and are fashioned according to the EIA RS-453 / IEC 60603-11 standards. It's suitable for commercial use.
3 pole 1/4" plug, long diecast handle, no rivet
Excellent cost-performance ratio, attractive design, and reliable functionality are the strengths of REAN.
Features:
- 1/4" stereo (TRS) phono plug
- Make your own cables to the perfect length
- Repair your own cables and save money
- Rugged construction
- Nickel finish
Specifications:
- Product
- Title: NYS228
- Connection Type: Plug
- Gender: male
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Contact resistance: depends on mating connector
- Rated current: depends on mating connector
- Mechanical
- Cable O.D.: ≤ 6 mm
- Lifetime: 1000 mating cycles
- Wiresize: 24 AWG
- Material
- Contact plating: Nickel
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Crimp type SnCe plated
- Insulation: Thermoplastic
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS228
- Model Number: NYS228
- UPC: 844632004612
