Key Features
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Large Shell
- Solder Cups
- Nickel Metal Housing
- Silver Contacts

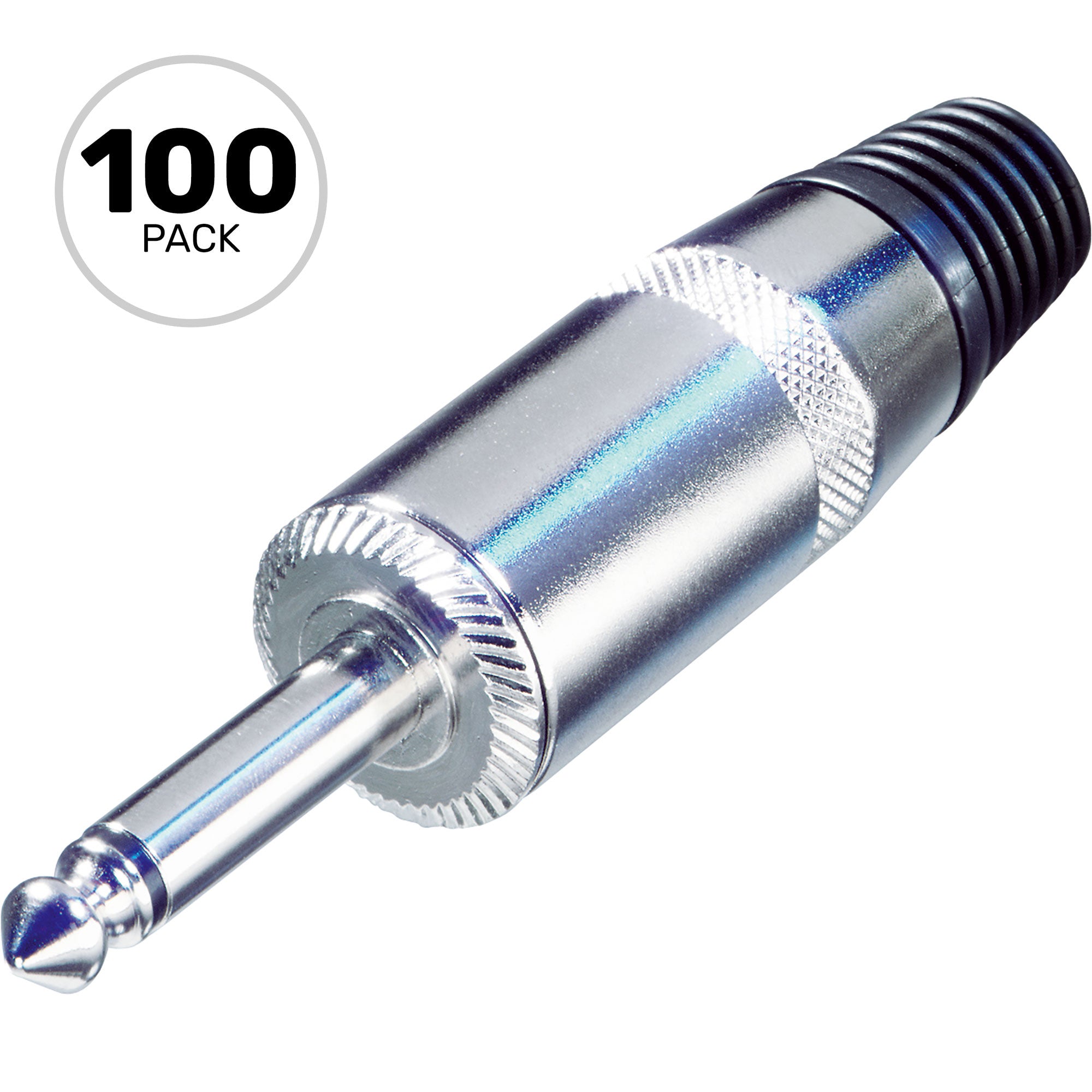

- Full Box of 100 Connectors
Description

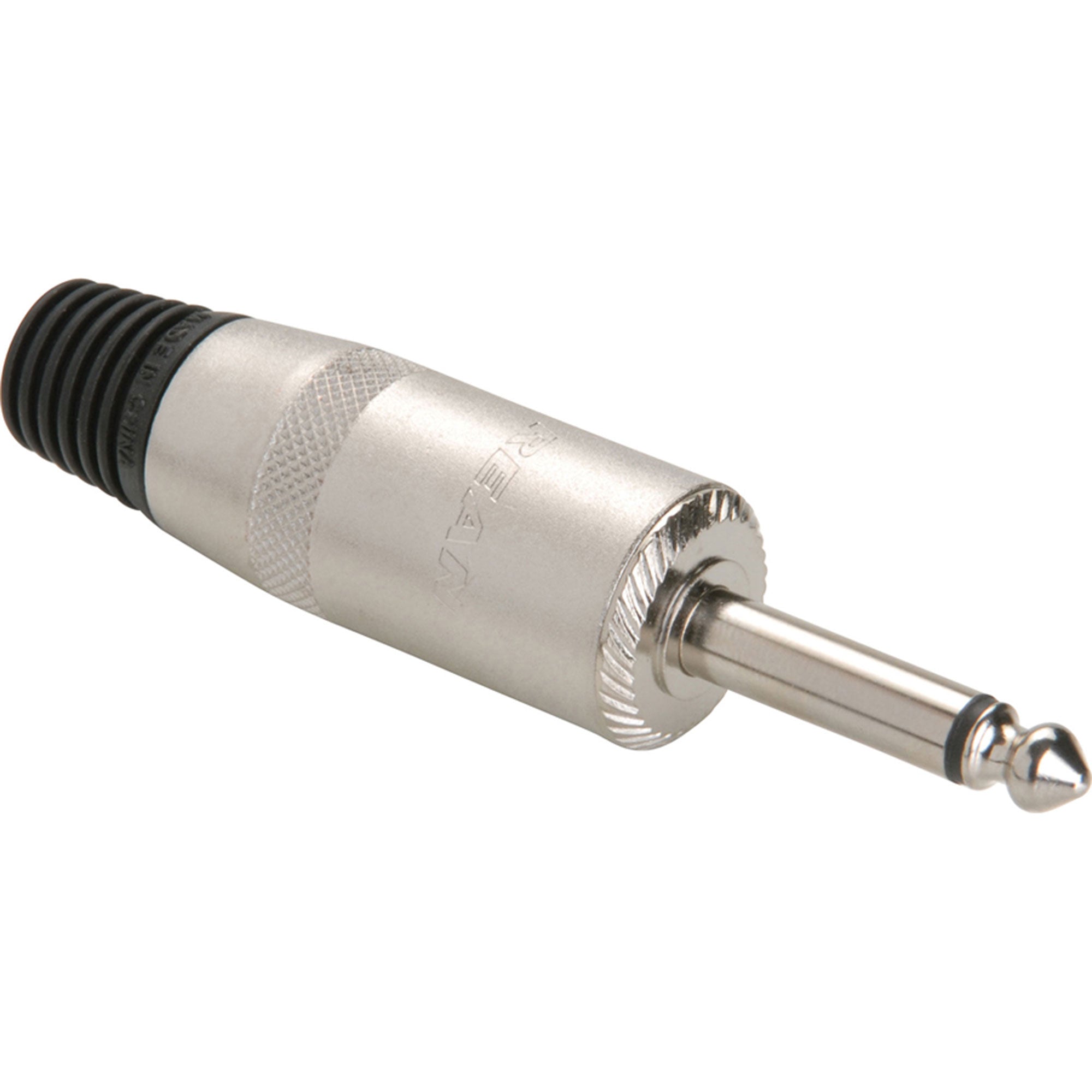

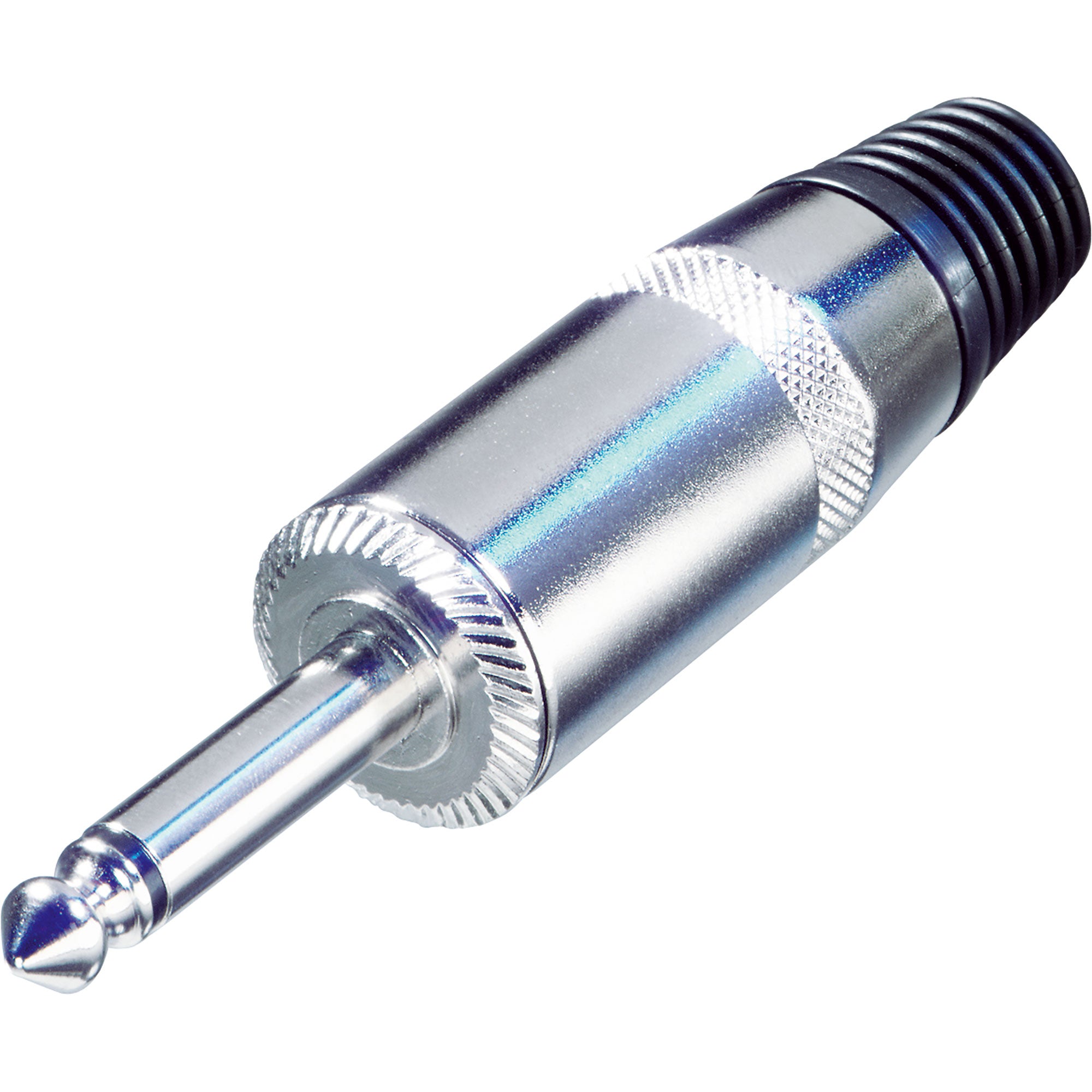

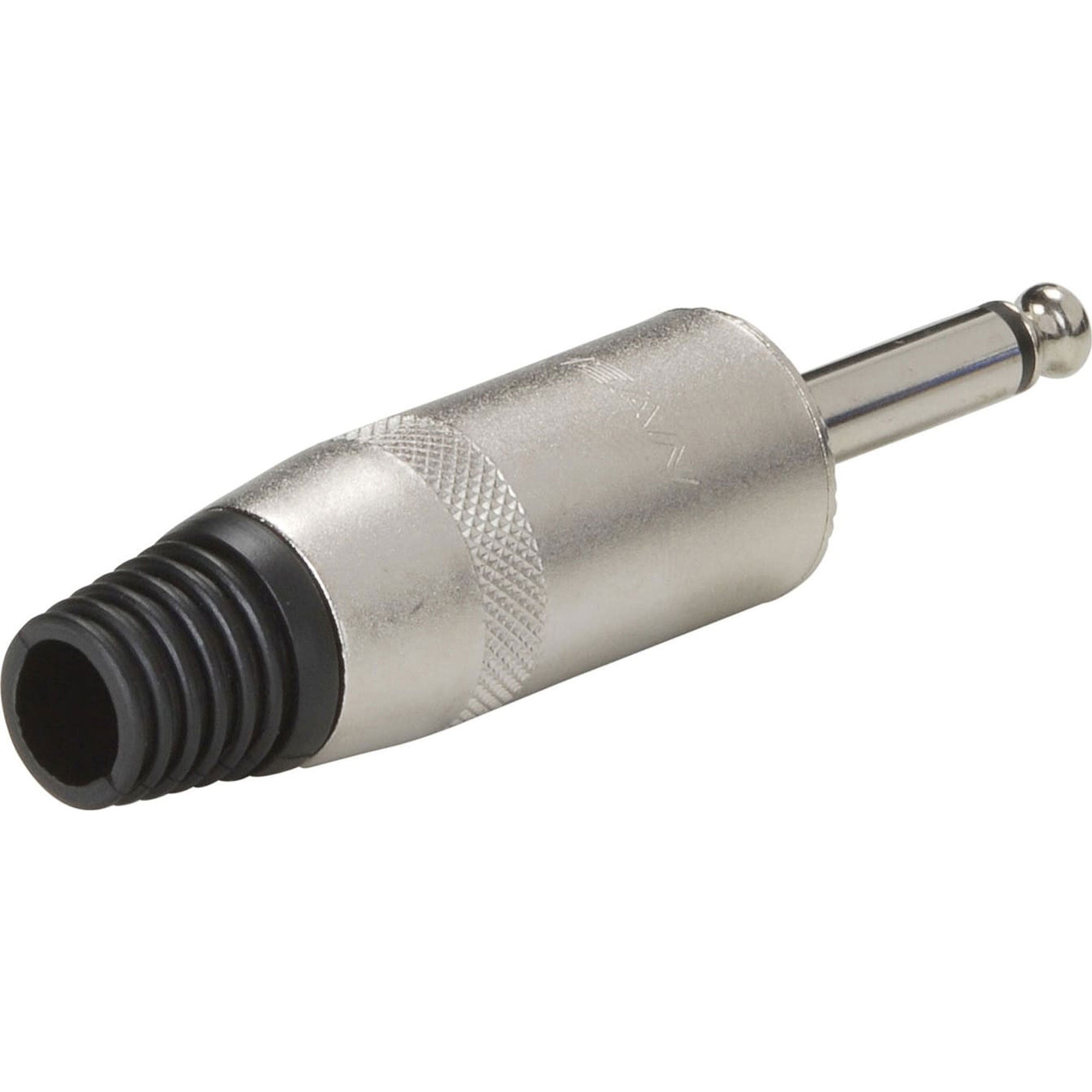

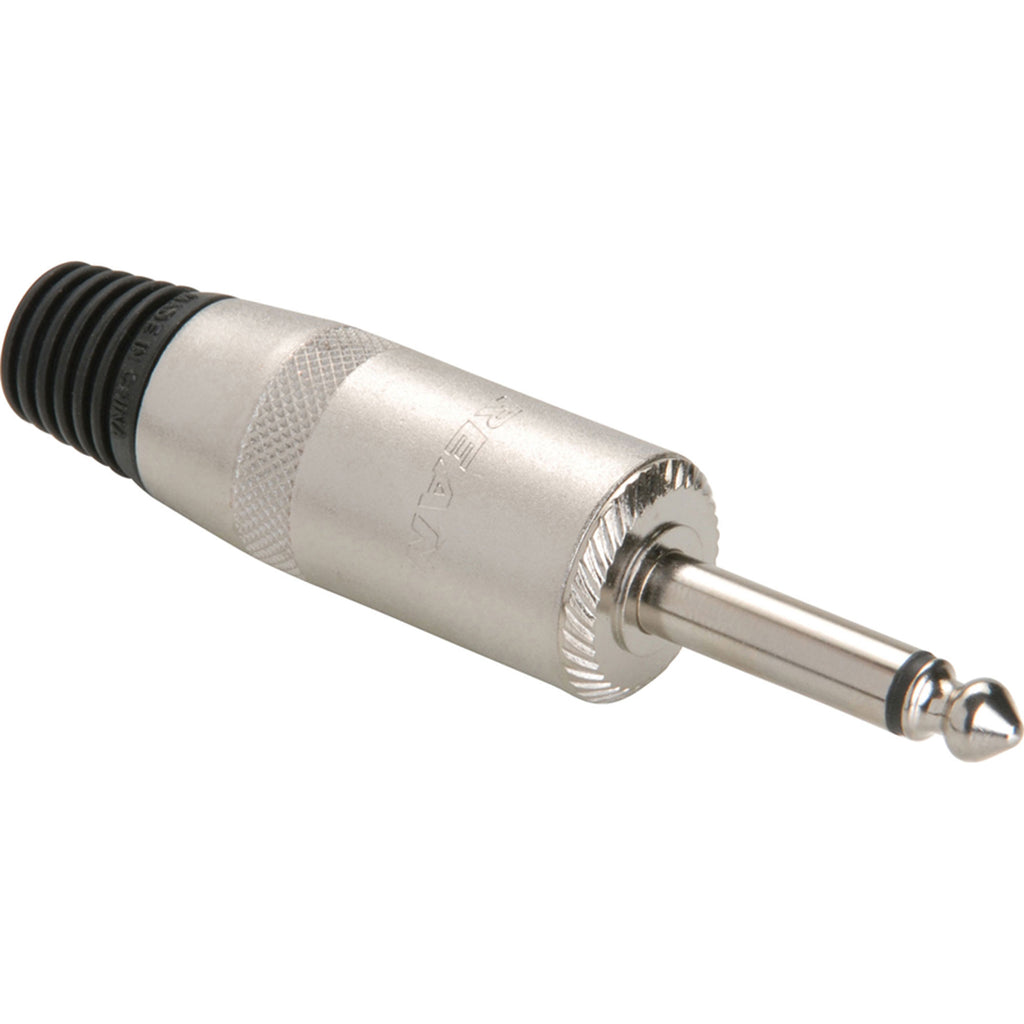

Male 1/4" TS Mono Large Shell Plug, Cable End, Nickel Housing, Silver Contacts - Full Box of 100 Connectors
2 pole 1/4" plug, large shell for speaker cable, large metal handle, rubber bushing

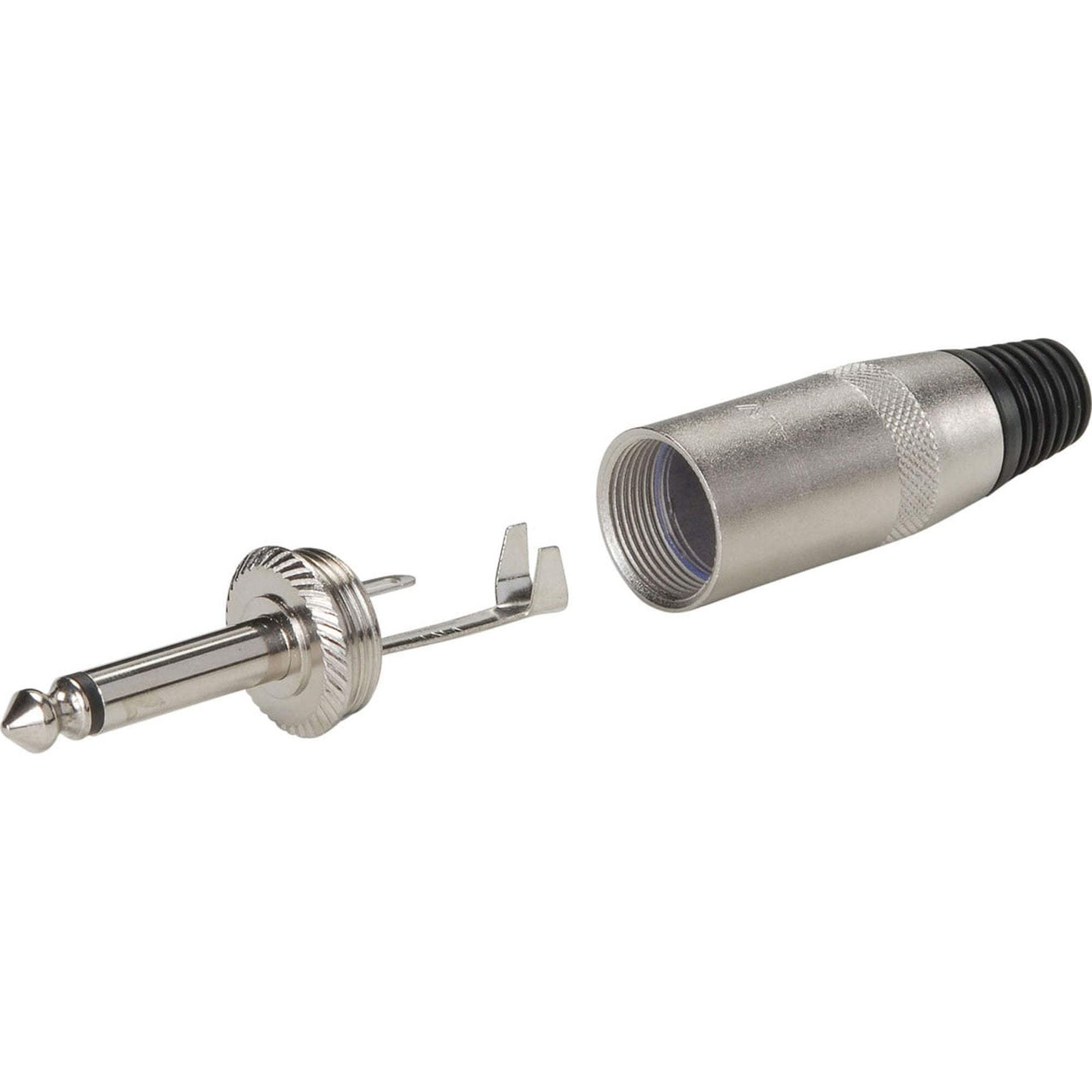

Commercial wide-body 1/4" mono phone plug designed specifically for use with heavy-gauge speaker wire. Features machined turned brass construction, a larger-than-typical crimp cable clamp, a larger cable outlet, rubber bushing, and oversized solder tabs that accept up to 12 gauge wire.
Features:
- 1/4" mono (TS) phono plug
- Make your own cables to the perfect length
- Repair your own cables and save money
- Rugged construction
- Nickel finish
Specifications:
- Product
- Title: NYS225
- Connection Type: Plug
- Gender: male
- Electrical
- Dielectric strength: 0.5 kVdc
- Insulation resistance:>200 MΩ (Initial)
- Contact resistance: depends on mated connector
- Rated current: depends on mated connector
- Mechanical
- Cable O.D.: ≤ 8 mm
- Lifetime: 1000 mating cycles
- Wiresize: 12 AWG
- Material
- Contact plating: Nickel
- Contacts: Brass (CuZn39Pb3)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: SnCe plated, Crimp type
- Insulation: Thermoplastic
- Bushing: PVC
- Environmental
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20°C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: NYS225
- Model Number: NYS225
