Key Features
- Avoid Pops & Squeals
- Male 1/4" Mono Phone Plug
- Tip, Sleeve (TS) Connections
- Integrated Silent Switch
- Hermetically Sealed Switching Contacts
- Red Metal Housing with Rubber Cushion
- Gold-Plated Contacts
- Solder Cups

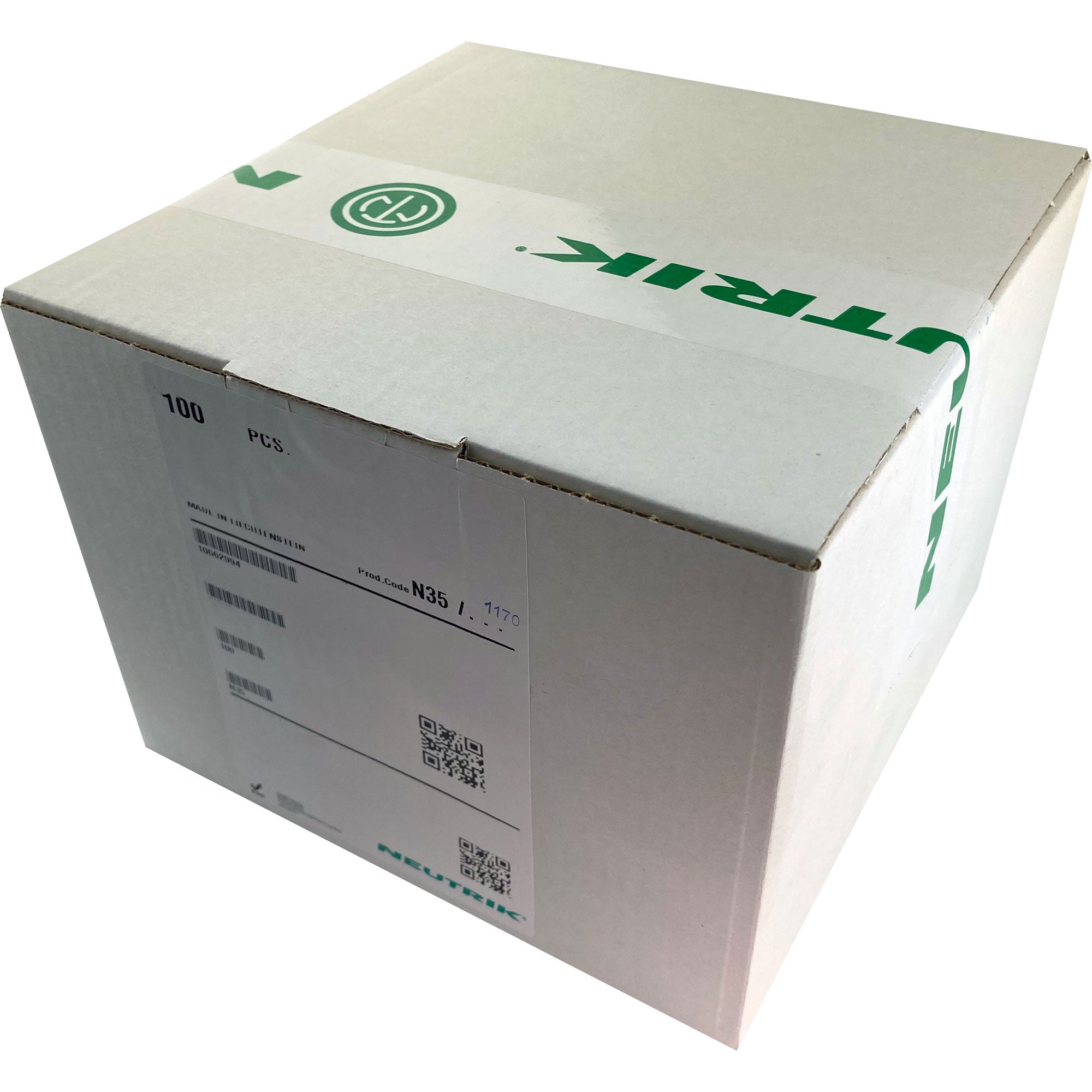

- Full Box of 100 Connectors
Description

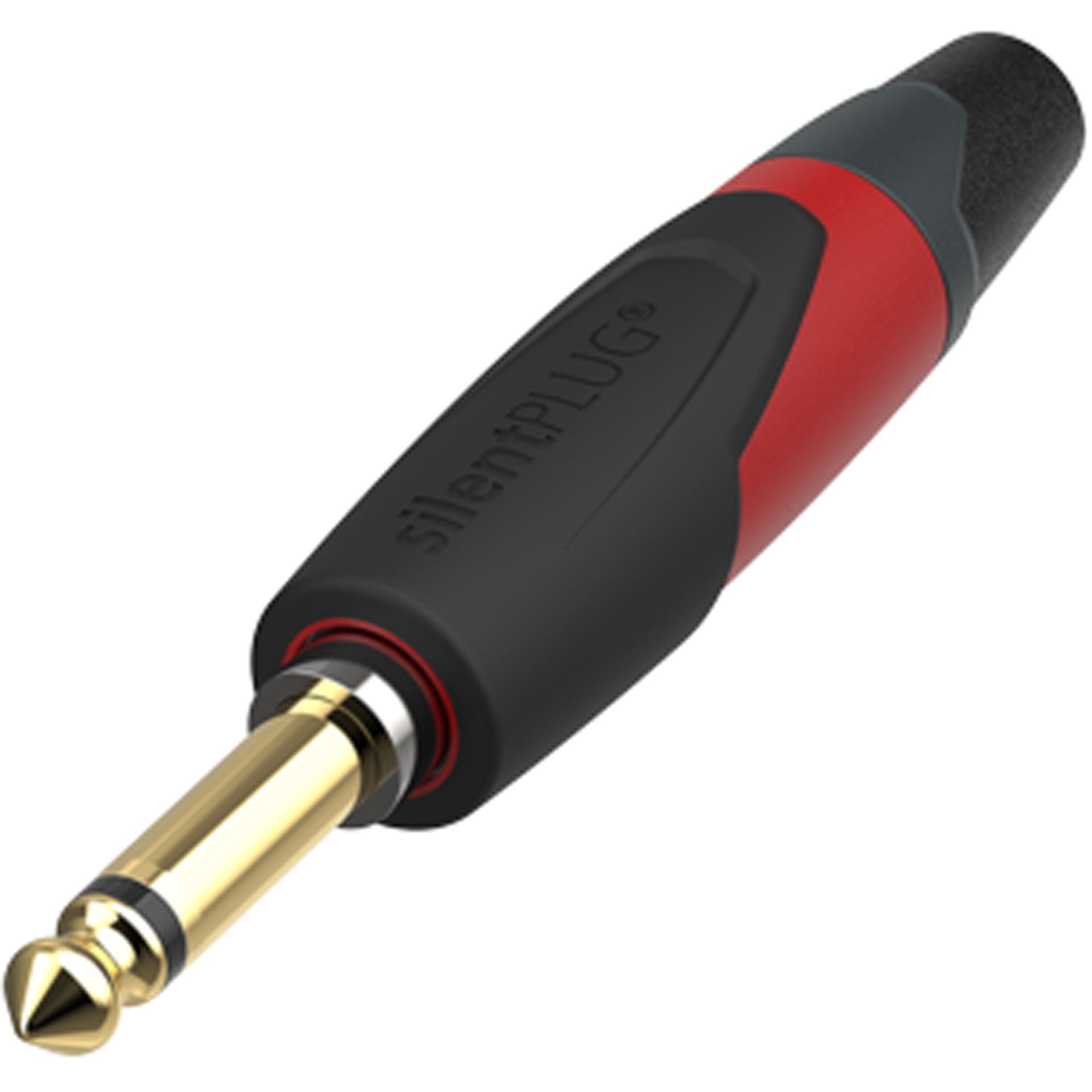

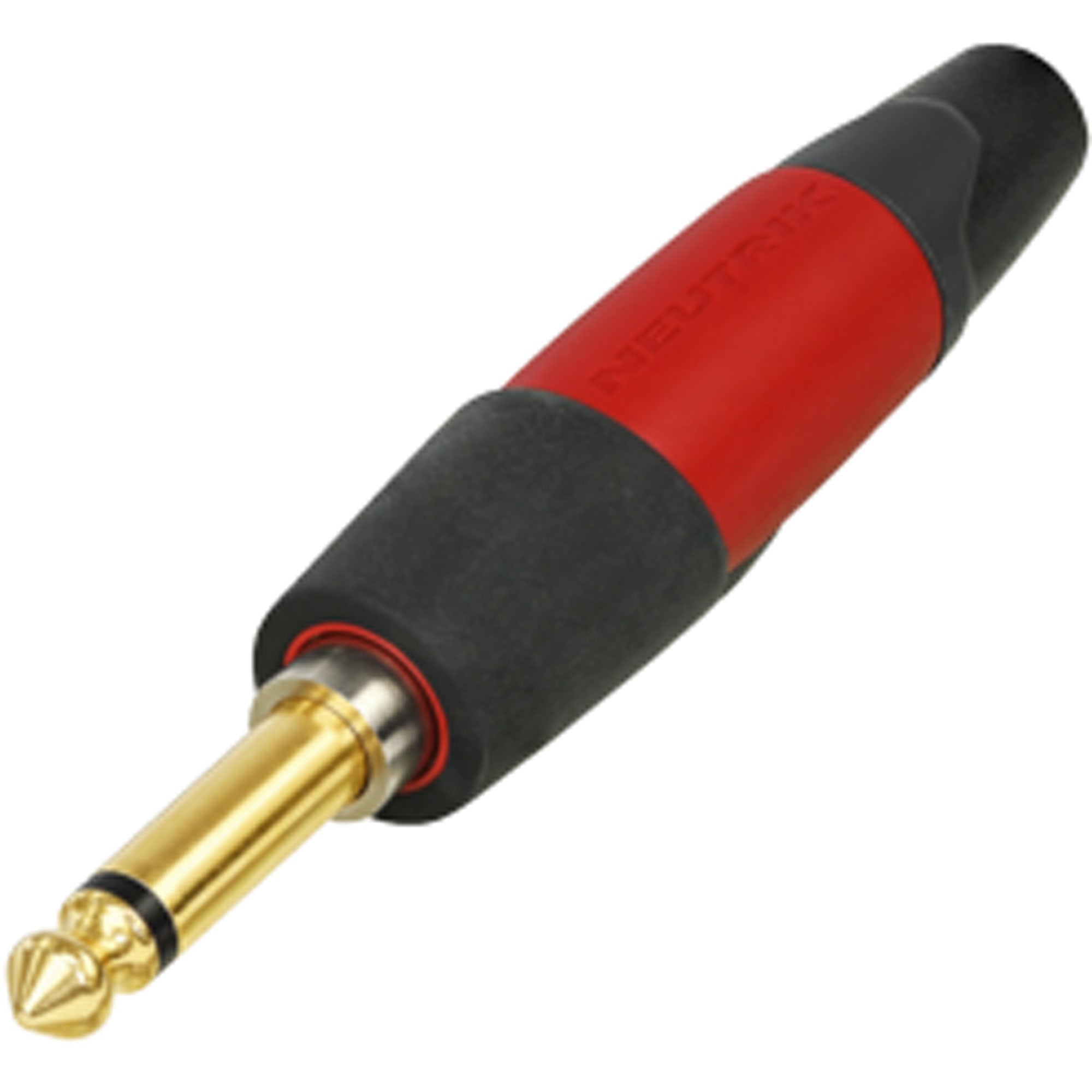

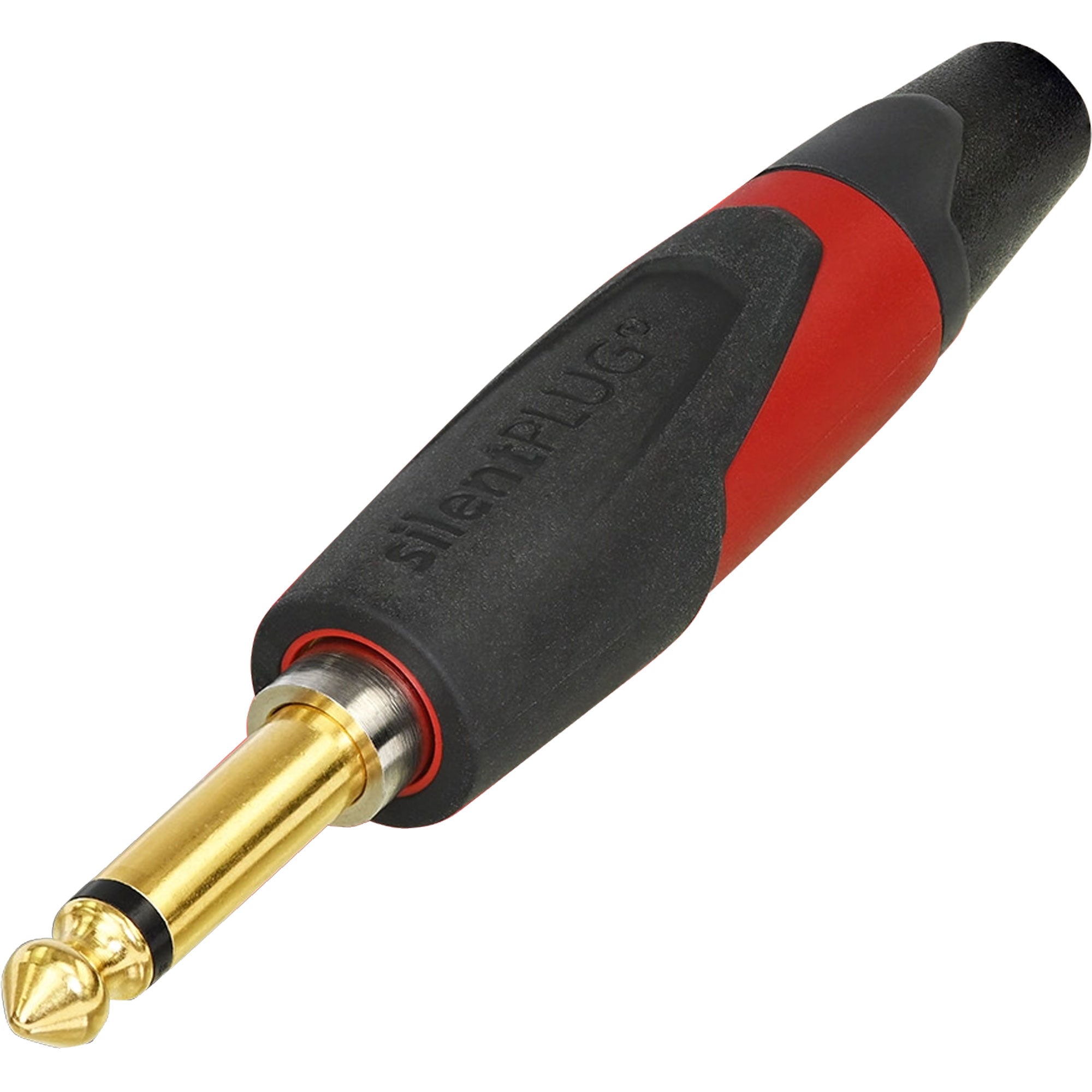

Male 1/4" TS Mono Phone Plug with Silent Switch, Cable End, Red Housing with Rubberized Surfaces, Gold Contacts - Full Box of 100 Connectors
2 pole 1/4" (6.35 mm) professional phone plug, gold plated contacts, rubberized surfaces for best haptic experience, "silent switch"

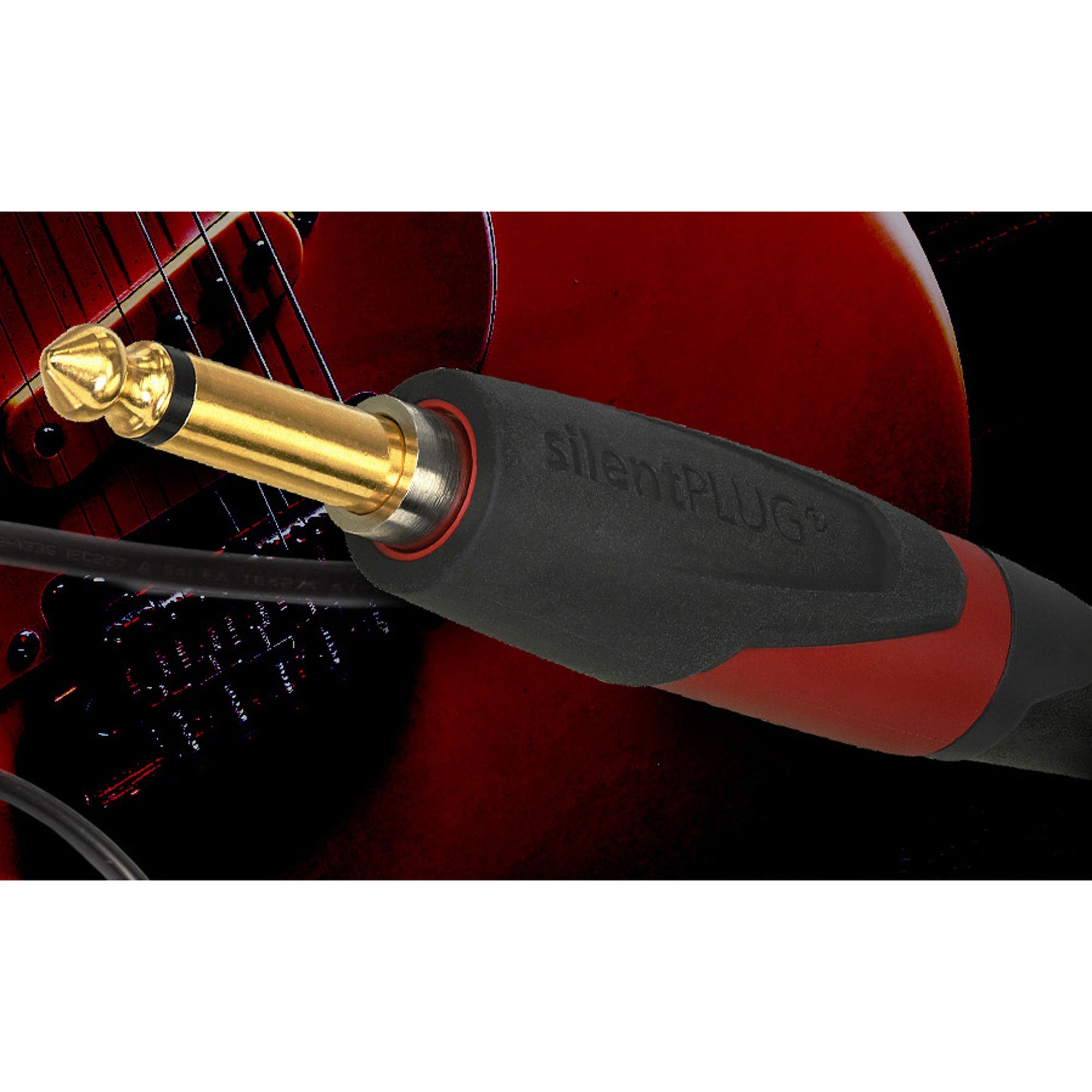

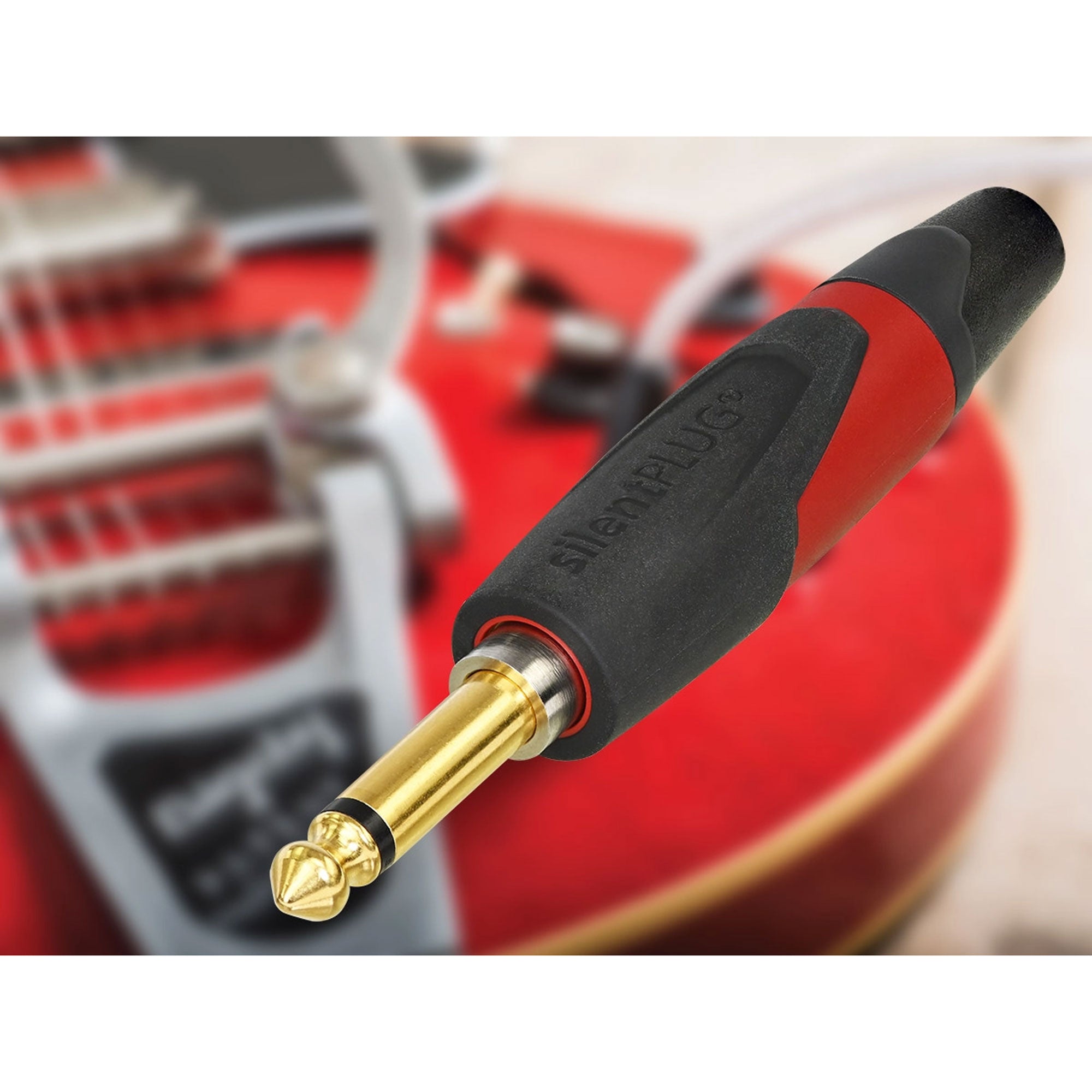

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1,000 mating cycles.
Features & Benefits
- Avoid pops and squeals
- Hermetically sealed switching contacts
- Lifetime beyond 1,000 mating cycles
- Slim plug with industry proven and reliable chuck type cable strain relief
- Rubberized surfaces for best haptic experience
Specifications
- Product:
- Title: NP2XX-SILENT
- Connection type: plug
- Gender: male
- Electrical:
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 0.2 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Mechanical:
- Cable O.D.: 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize (mm / AWG): 1 mm² / 18 AWG
- Wiring: Solder contacts
- Material:
- Bushing: PP + PA6
- Contact plating: 0.2 μm Au
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: TPE + PA6
- Strain relief: Polyacetal (POM)
- Environmental:
- Standard compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +65 °C
- Manufacturer: Neutrik
- MPN: NP2XX-SILENT
- Model Number: NP2XX-SILENT
