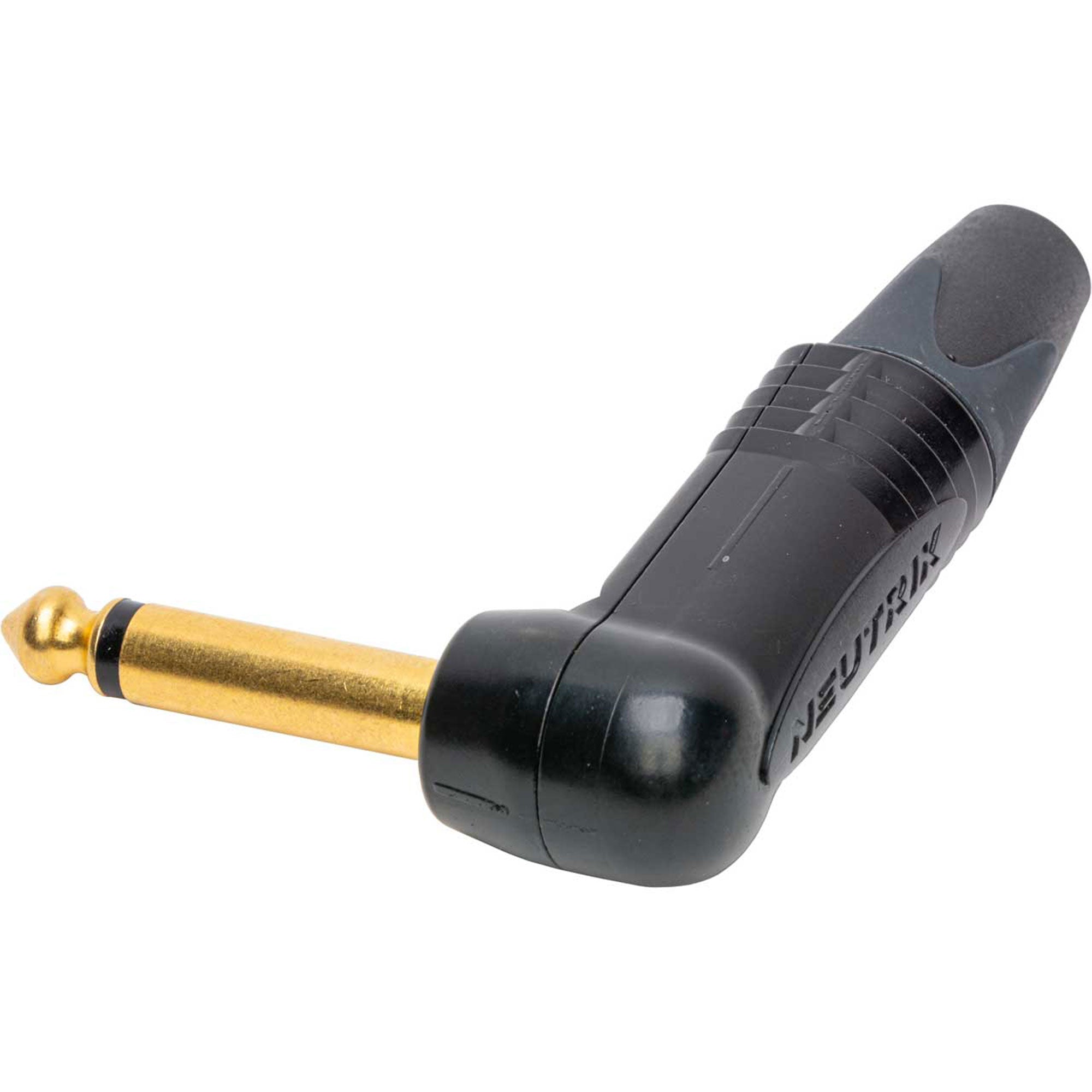

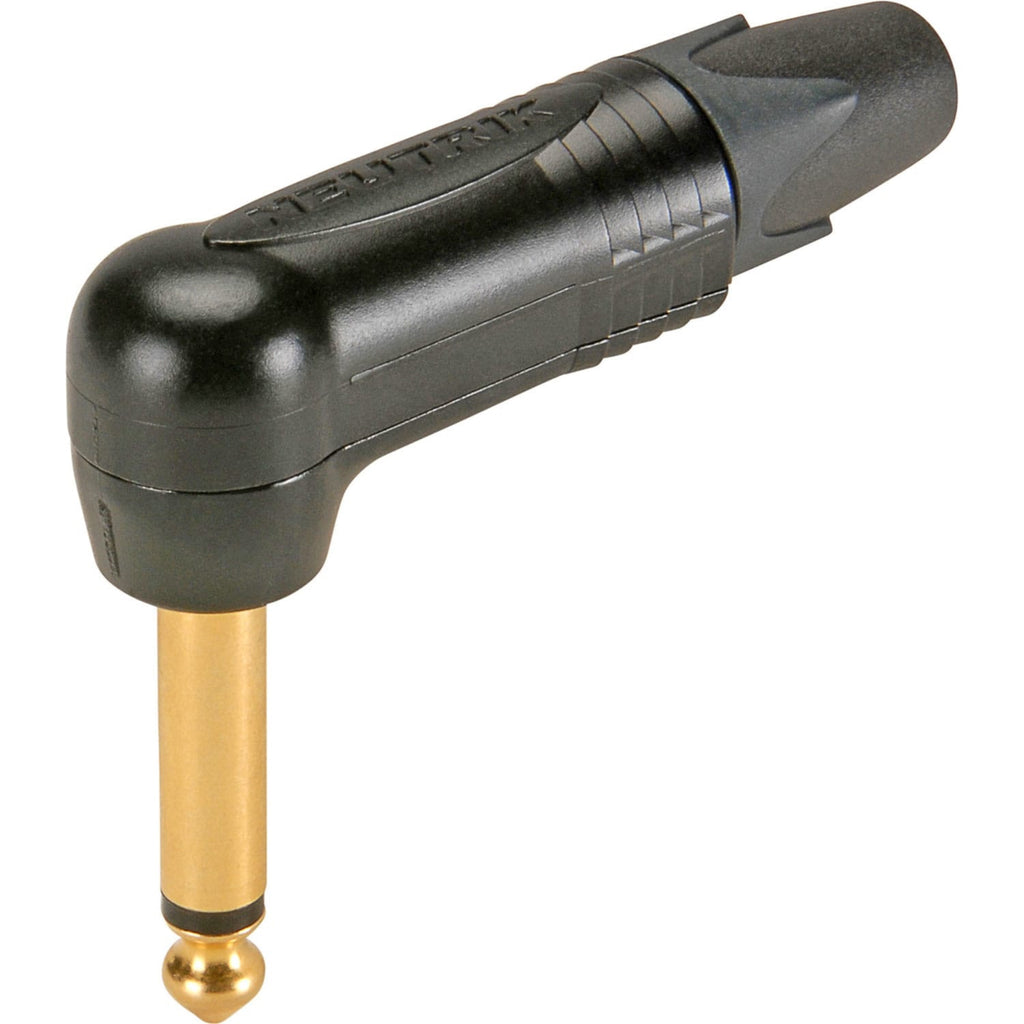

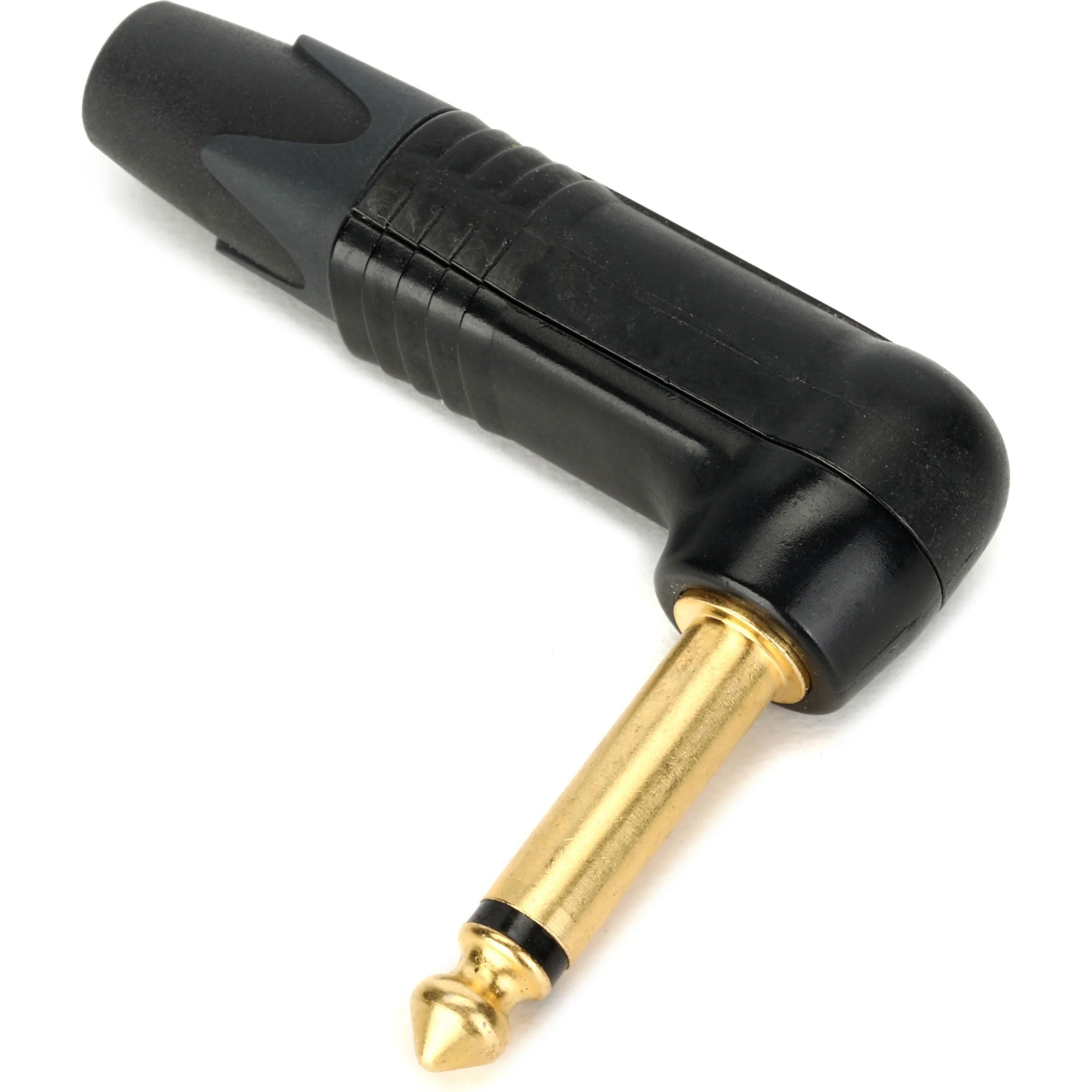

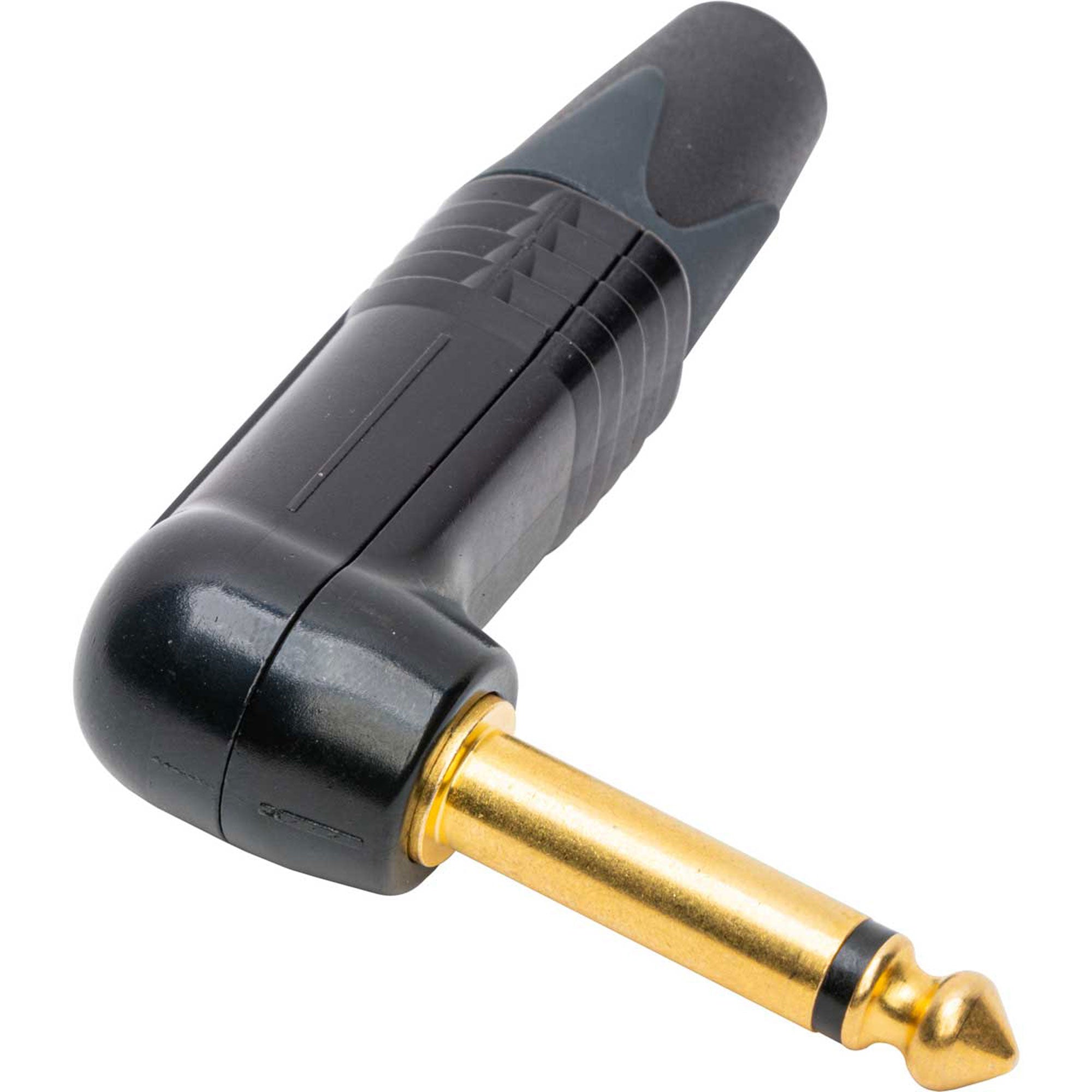

Neutrik NP2RX-B Professional Right-Angle 1/4" TS Mono Phone Plug (Black/Gold)

Male 1/4" Right-Angle TS Mono Phone Plug, Cable End, Black Housing, Gold Contacts

2 pole 1/4" professional right-angle phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features:

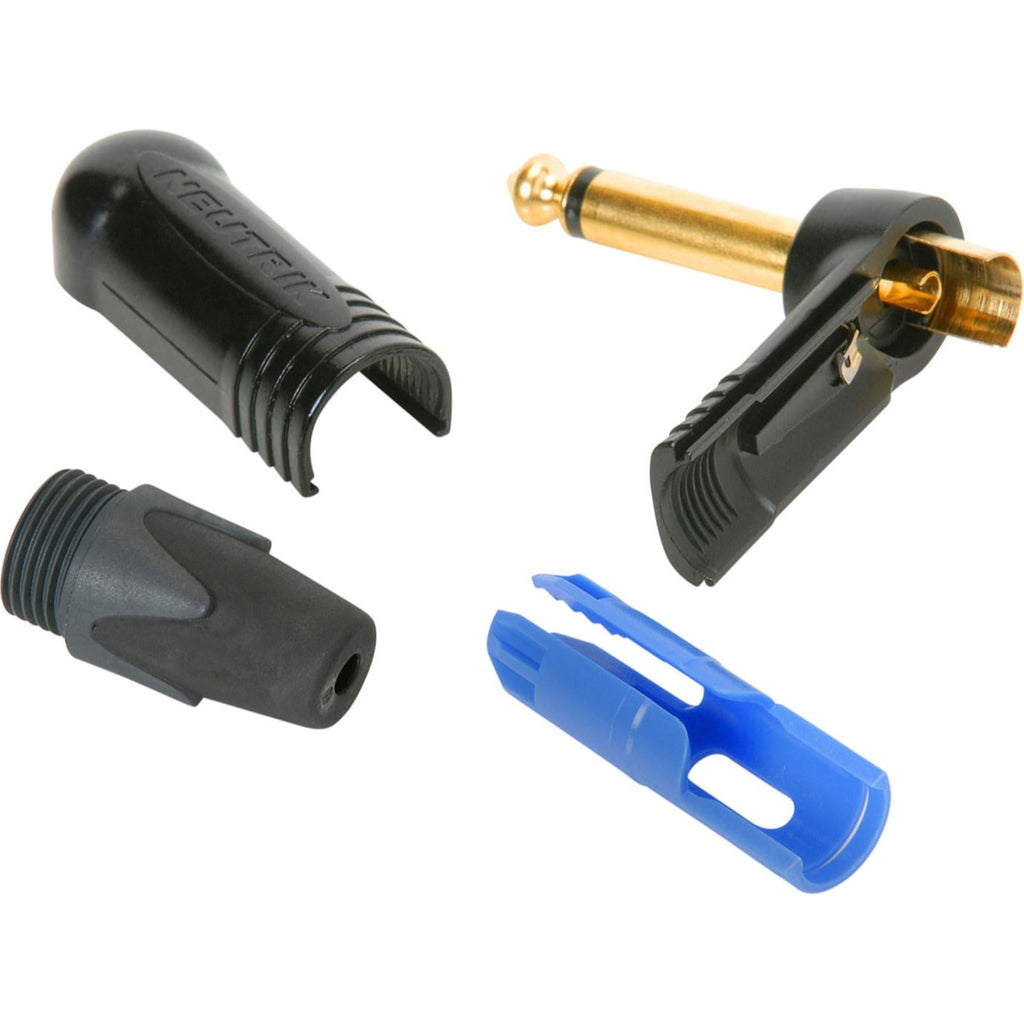

• All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Specifications:

• Product
• Title: NP2RX-B
• Connection Type: Plug
• Gender: male
• Electrical
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage: 50 V
• Mechanical
• Cable O.D.: 4 - 7 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm-
• Wiresize: 18 AWG
• Wiring: Solder contacts
• Material
• Bushing: Polyacetal (POM) + PU
• Contact plating: 0.2 -m Au
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)
• Environmental
• Standard compliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
