Key Features
- LC Feedthrough Design
- Push-Pull Locking Mechanism
- Automatic Sealing Shutter
- IP65 Waterproof Rating
- Color-Coded Rubber Sealing
Description

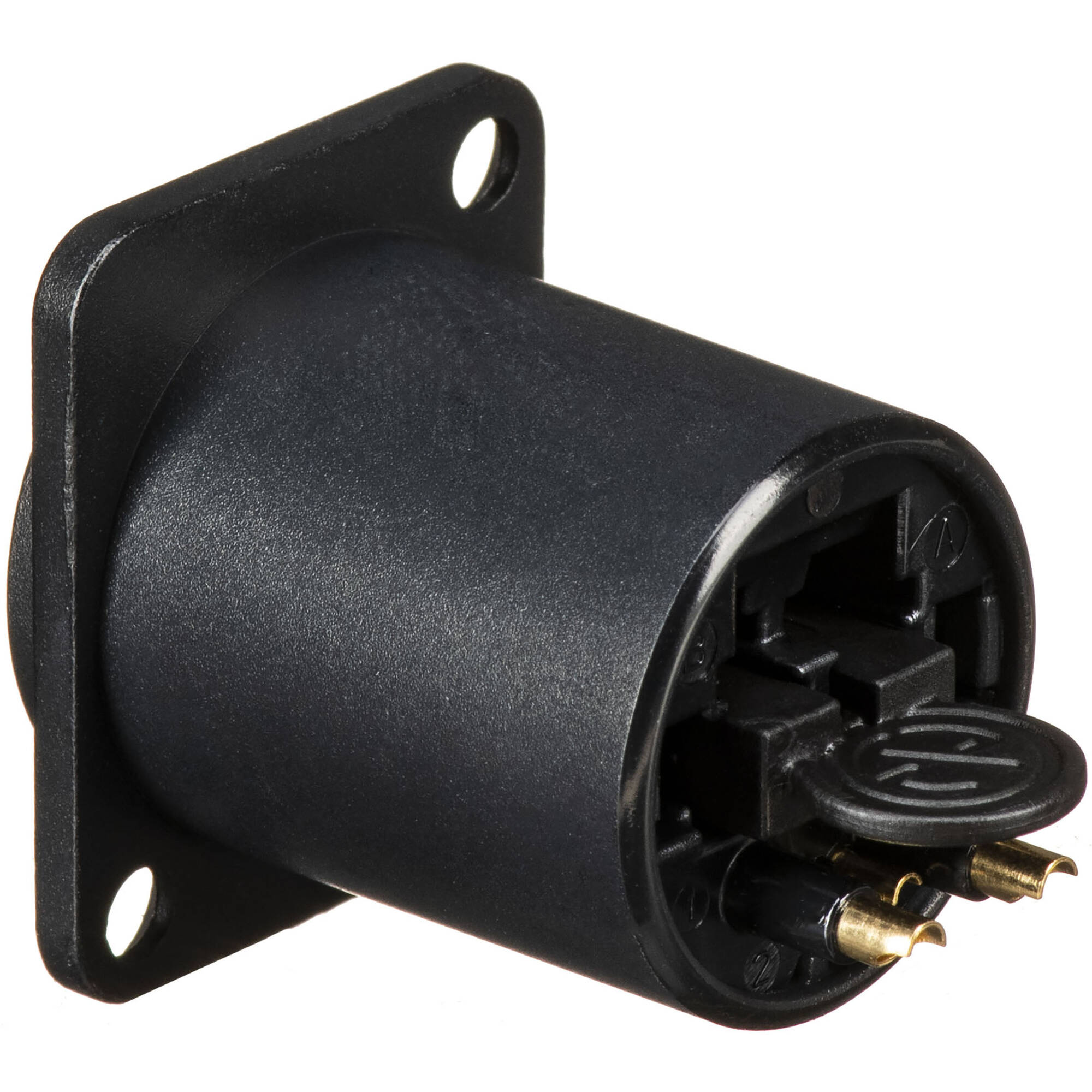

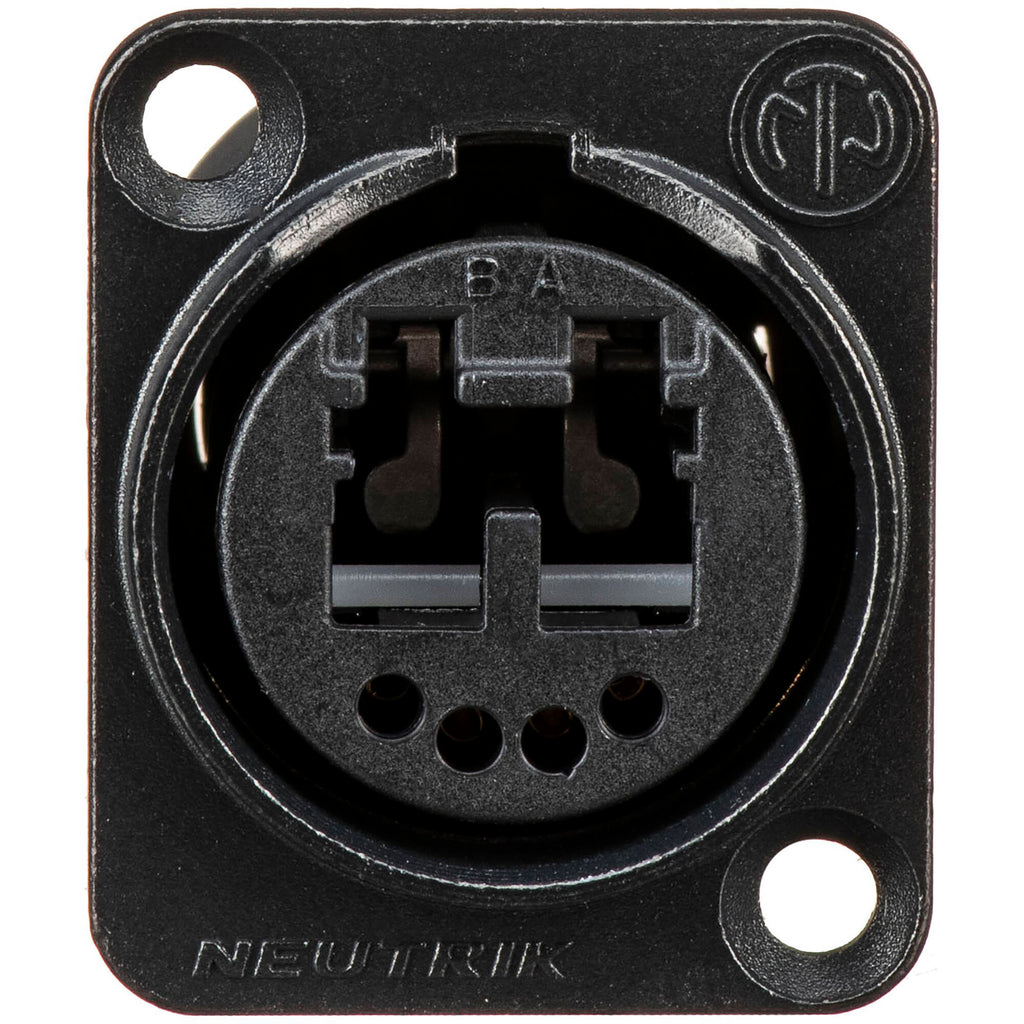

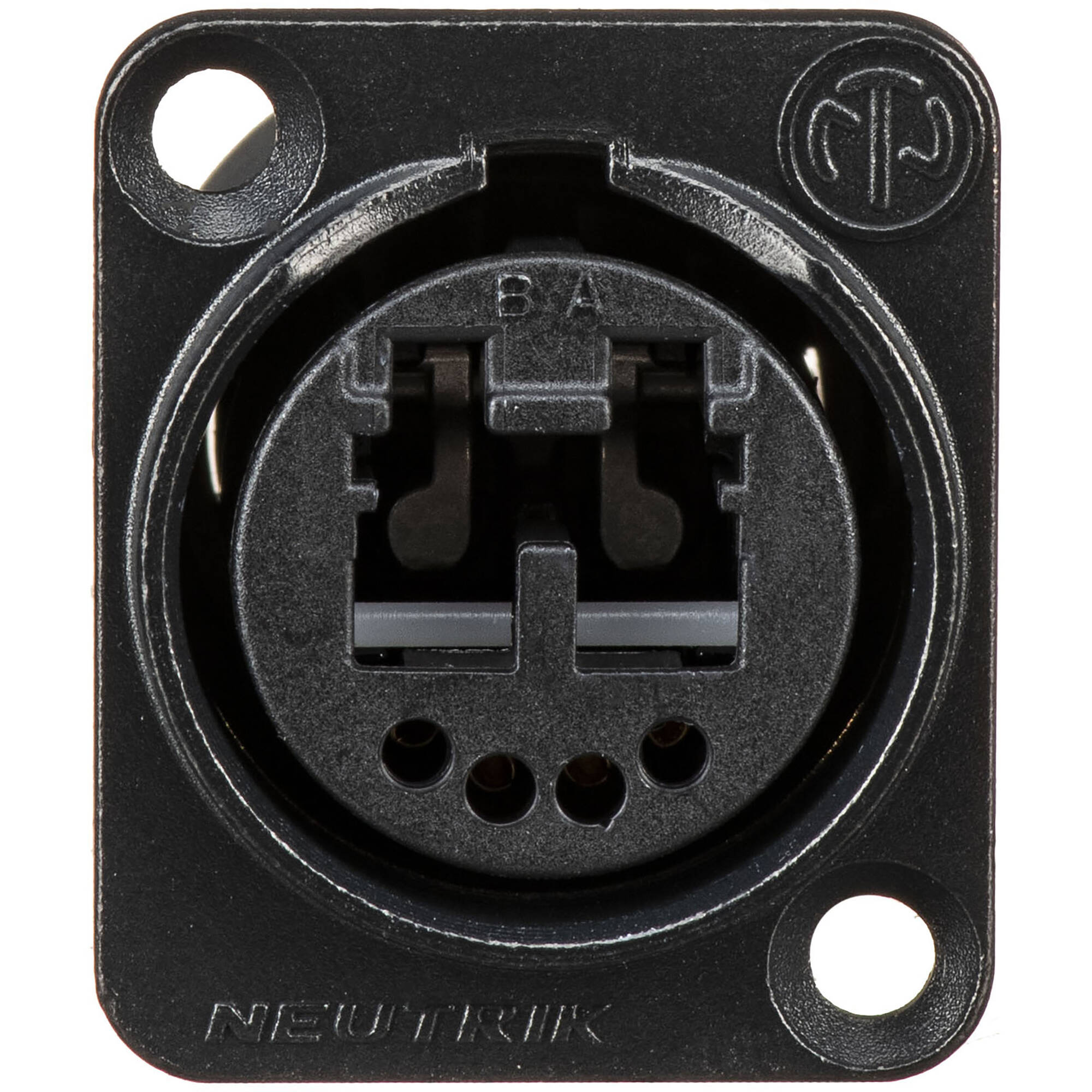

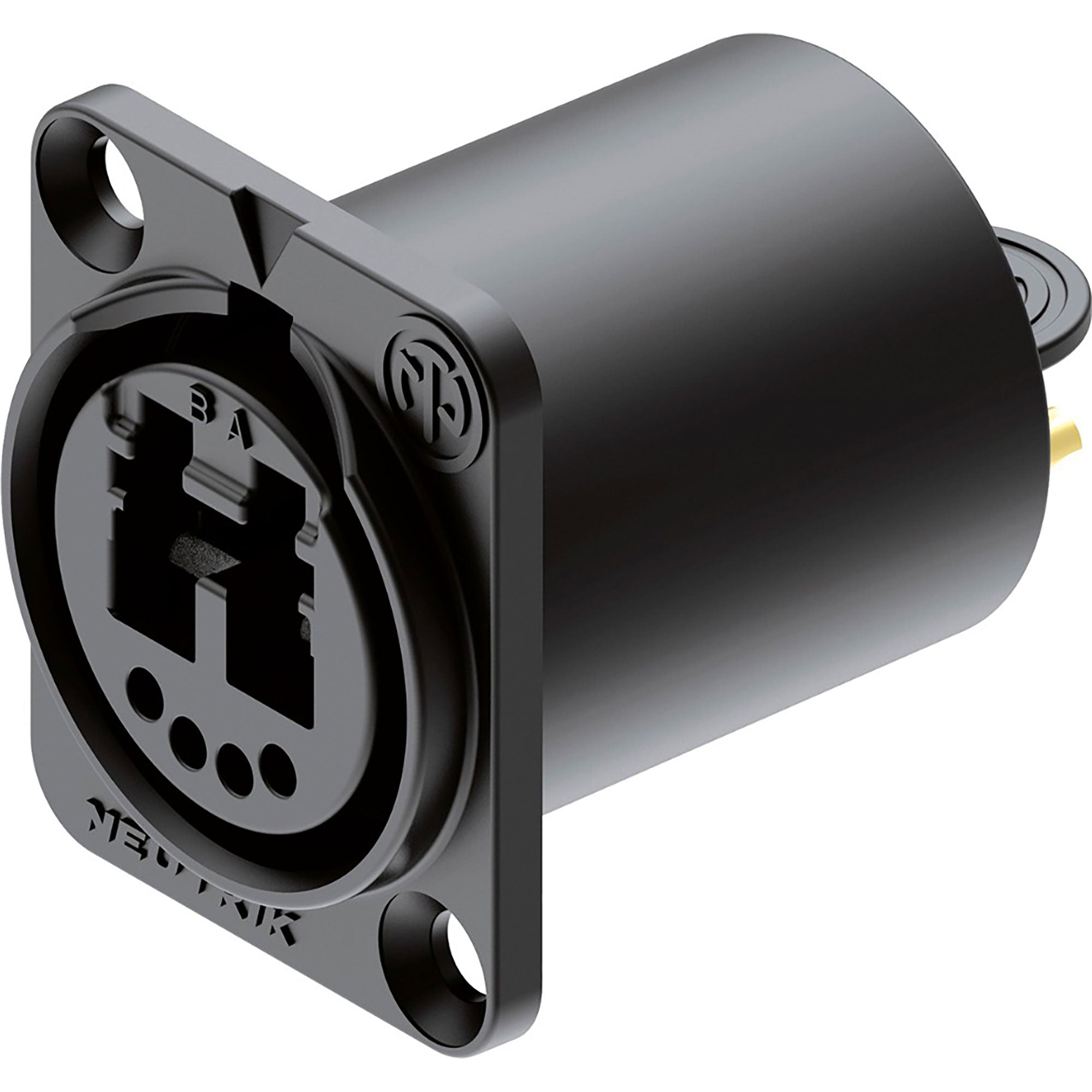

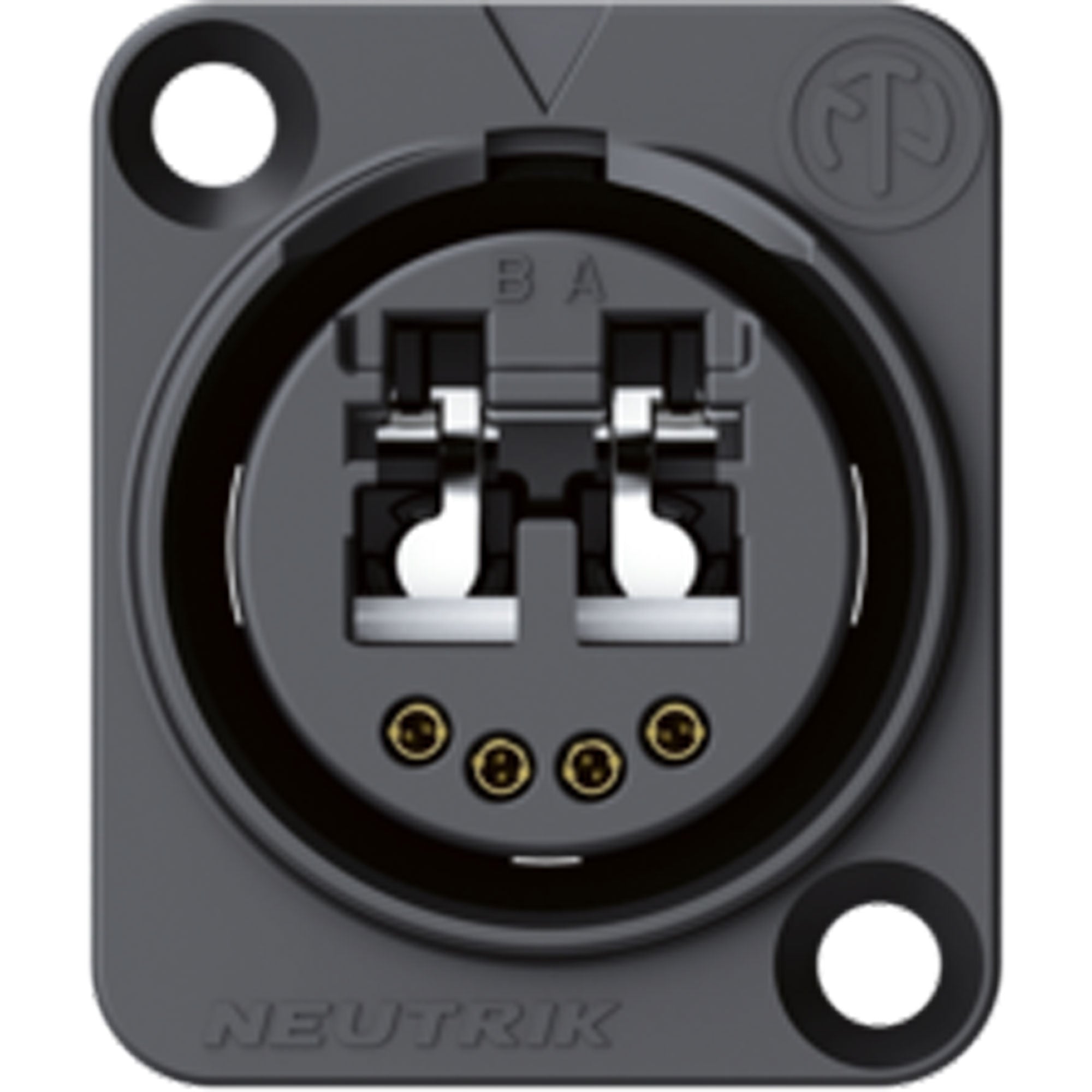

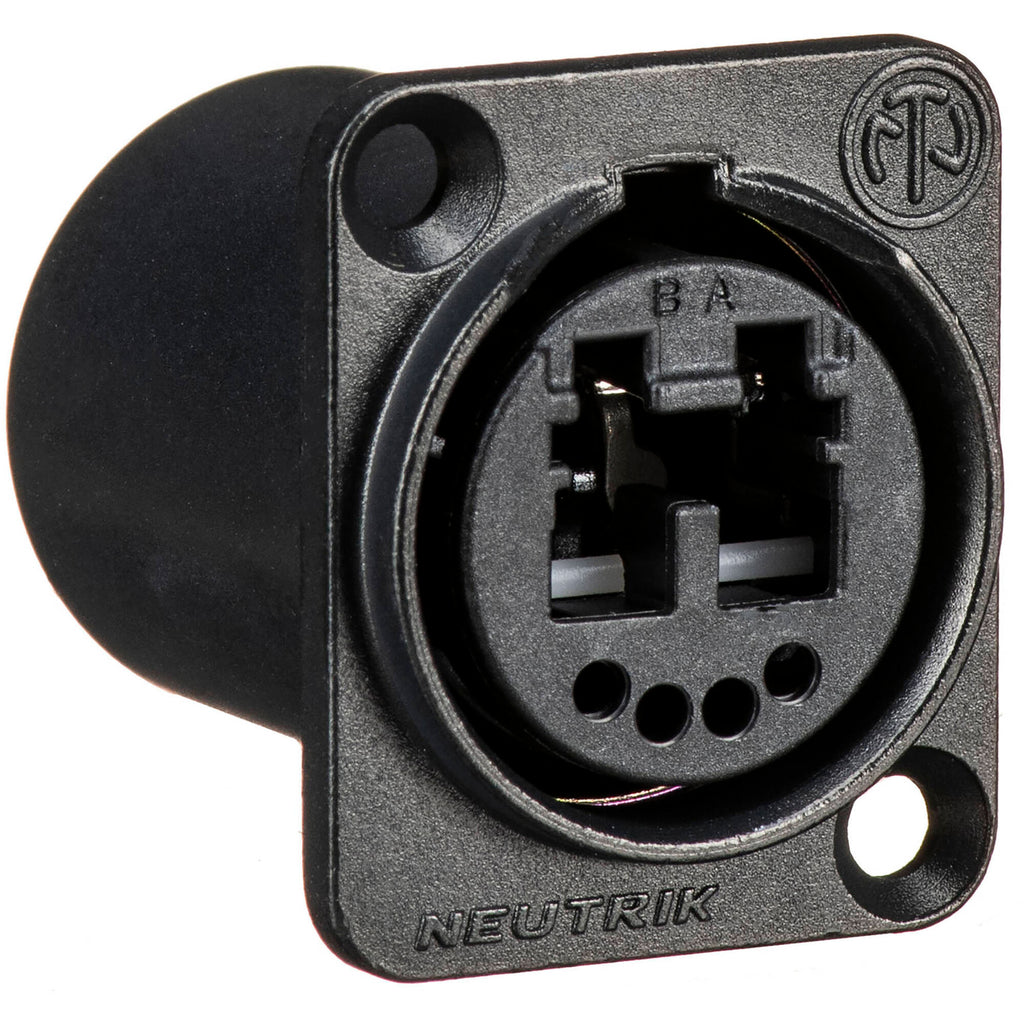

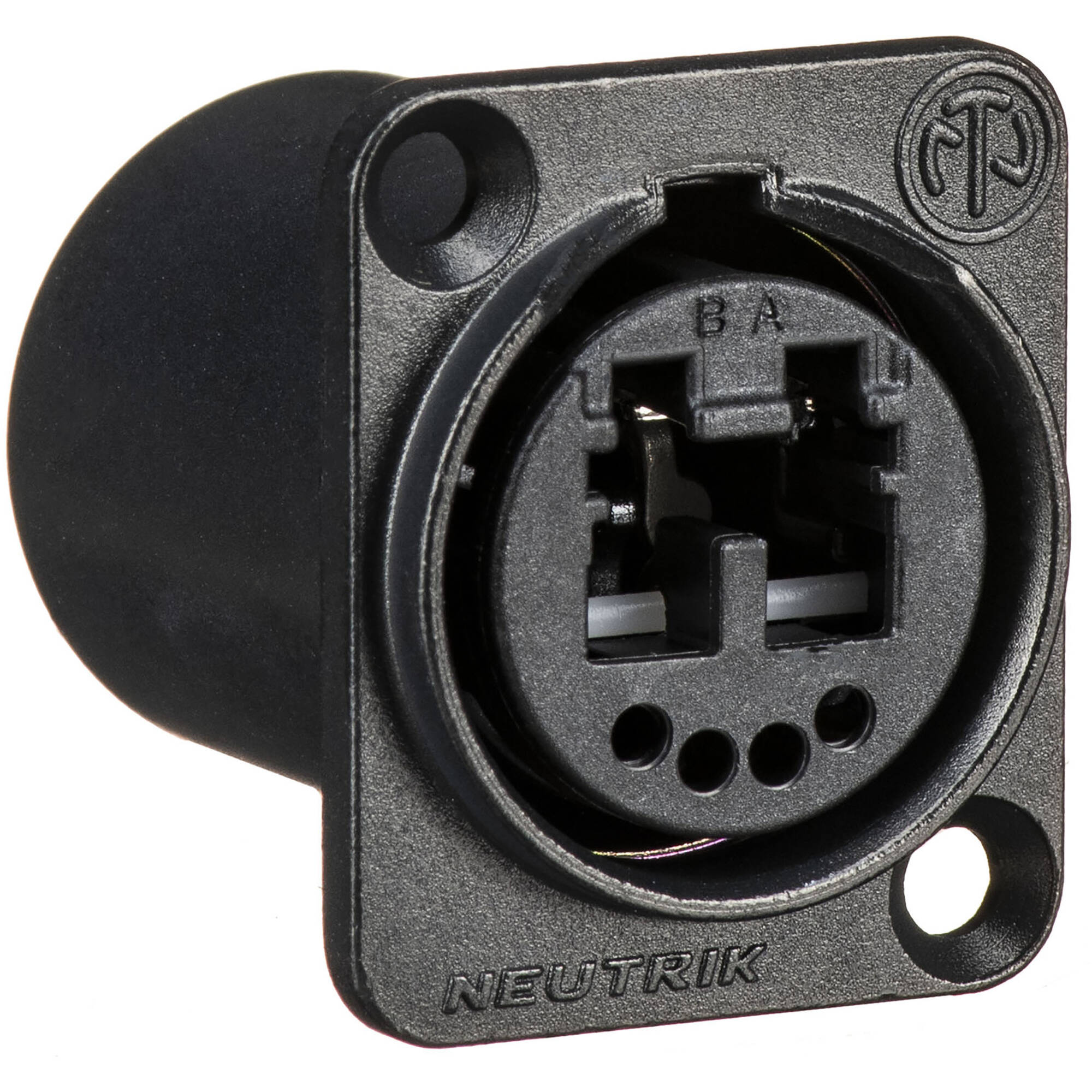

Multimode opticalCON Duo Panel Mount Chassis Jack - Black
Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.
Features:
- Suggested OEM equipment connector due to LC front compatibility
- Designed as feed-through with automatic sealing shutter
- Shutter with silicone gasket protects optical connection from dust and dirt
- Accommodates standard LC connectors on the rear for simple installation
- Connection on the front side either by rugged OpticalCon or standard LC connector
- The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
- Water resistant according to IP65 ingress protection in mated condition
- In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP 52
Specifications:
- Product:
- Title: NO2-4FDW-A
- Gender: female
- Electrical:
- Contact resistance: < 7 m
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 G (initial)
- Rated current per contact: 6 A
- Rated voltage: < 50 V (1)
- Mechanical:
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 5000 mating cycles
- Locking force: 1000 N
- Wiresize:
- Locking device: Push-Pull
- Mounting direction: Front mounting
- Chassis shape: D
- Material:
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Split sleeve: ceramics
- Environmental:
- Temperature range: -40-C to +75-C
- Optical:
- Optical connector: LC-Duplex Feedthrough
- Manufacturer: Neutrik
- MPN: NO2-4FDW-A
- Model Number: NO2-4FDW-A
- UPC:
