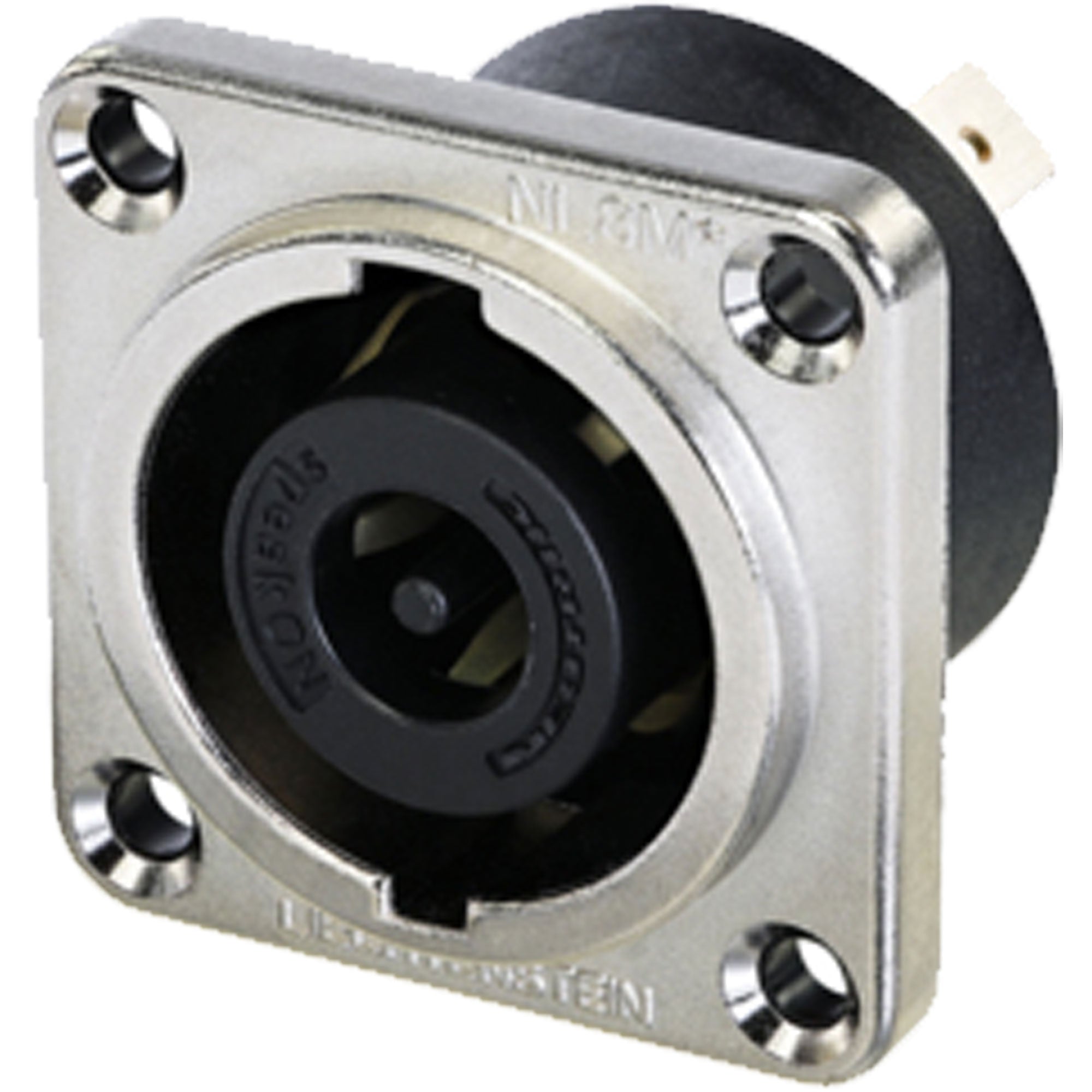

Neutrik NLT8MPXX 8-Pole Male speakON Panel Mount Chassis Connector (Nickel/Silver, Box of 40)

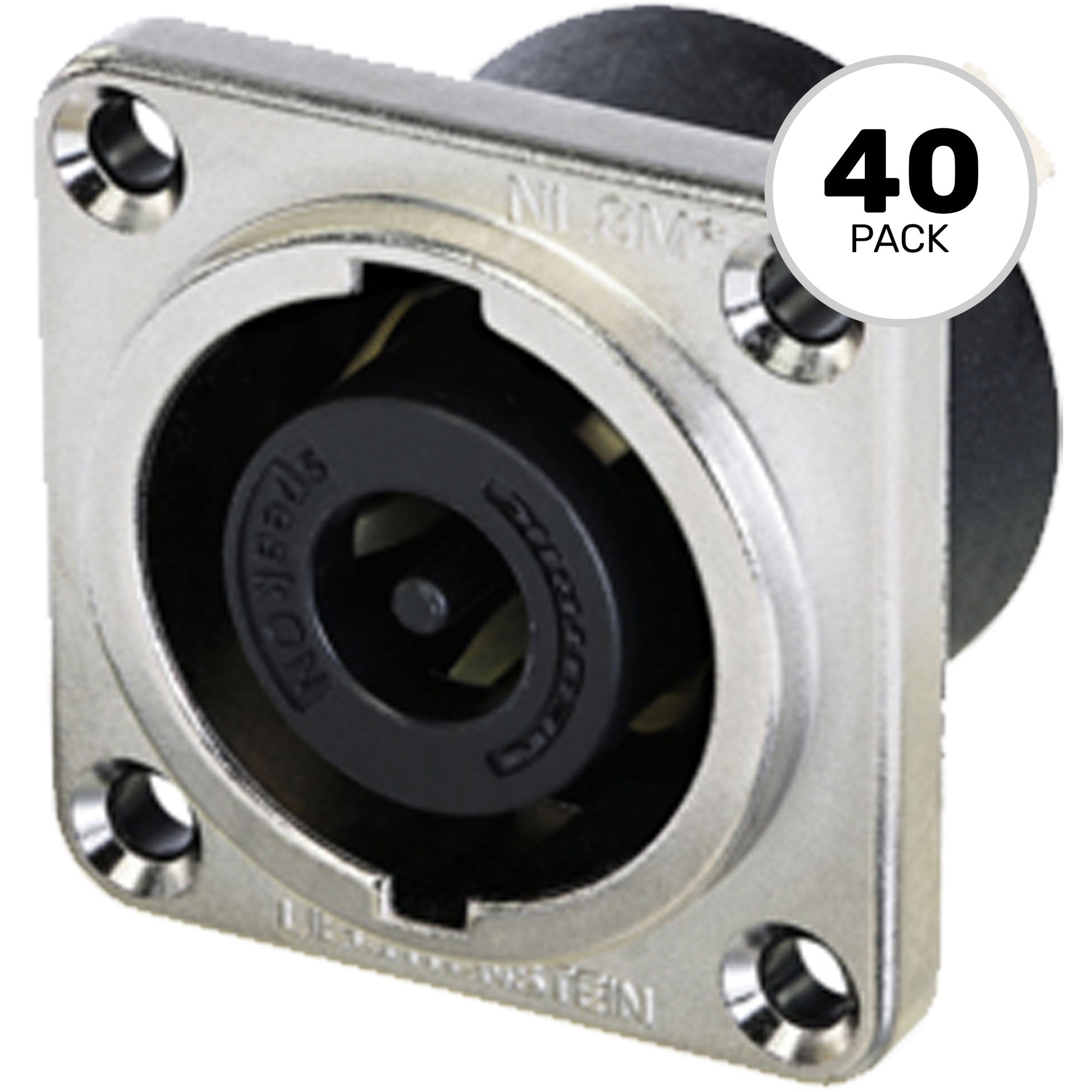

8 Pole Male STXX Series speakON Chassis Connector, Nickel Metal G-Size Housing, 1/4" Flat Tabs, Countersunk Thru Holes - Full Box of 40 Connectors

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features:

• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Current rating 30 A rms
• Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
• Uses precise "Quick Lock" system
• Airtight design - optimized for speaker applications
• Compatible with complete speakON 8 pole product series

Specifications:

• Product:
• Title: NLT8MPXX
• Gender: male
• Electrical:
• Contact resistance: < 2 mΩ
• Dielectric strength: 1.5 kVac
• Insulation resistance: > 0.1 GΩ (after dampheat)
• Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!
• Mechanical:
• Lifetime: > 5000 mating cycles
• Termination: 1/4" flat tabs
• Locking device: Quick Lock
• Mounting direction: Rear / front mounting
• Chassis shape: square G-size flange
• Layout: four thru holes
• Material:
• Contact plating: Ag
• Contacts: Copper Alloy
• Shell: Zinc diecast, Nickel plated
• Insert: Polyamide (PA 6.6)
• Environmental:
• Temperature range: -30 °C to +80 °C
• Flammability: UL 94 V-0
• Protection class: IP 50 (mated condition)
