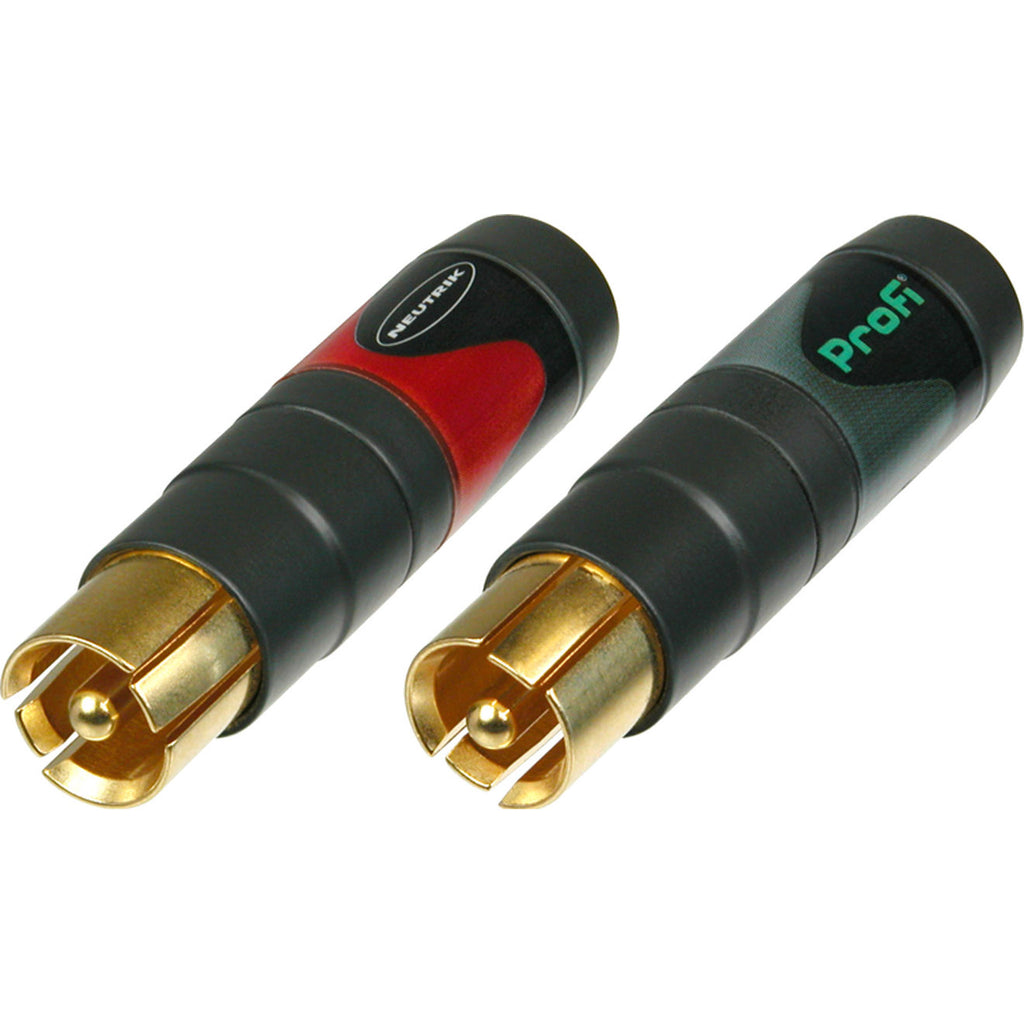

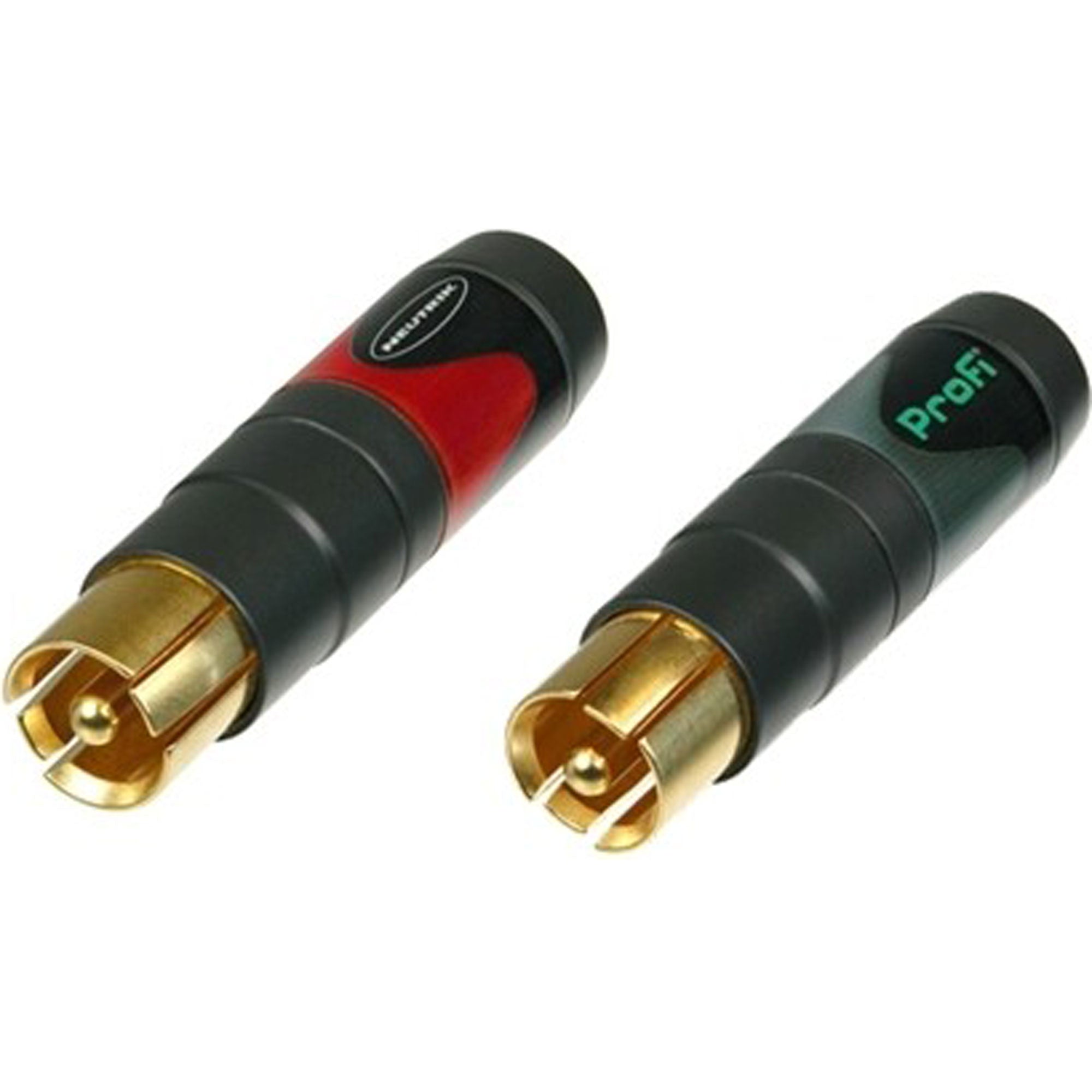

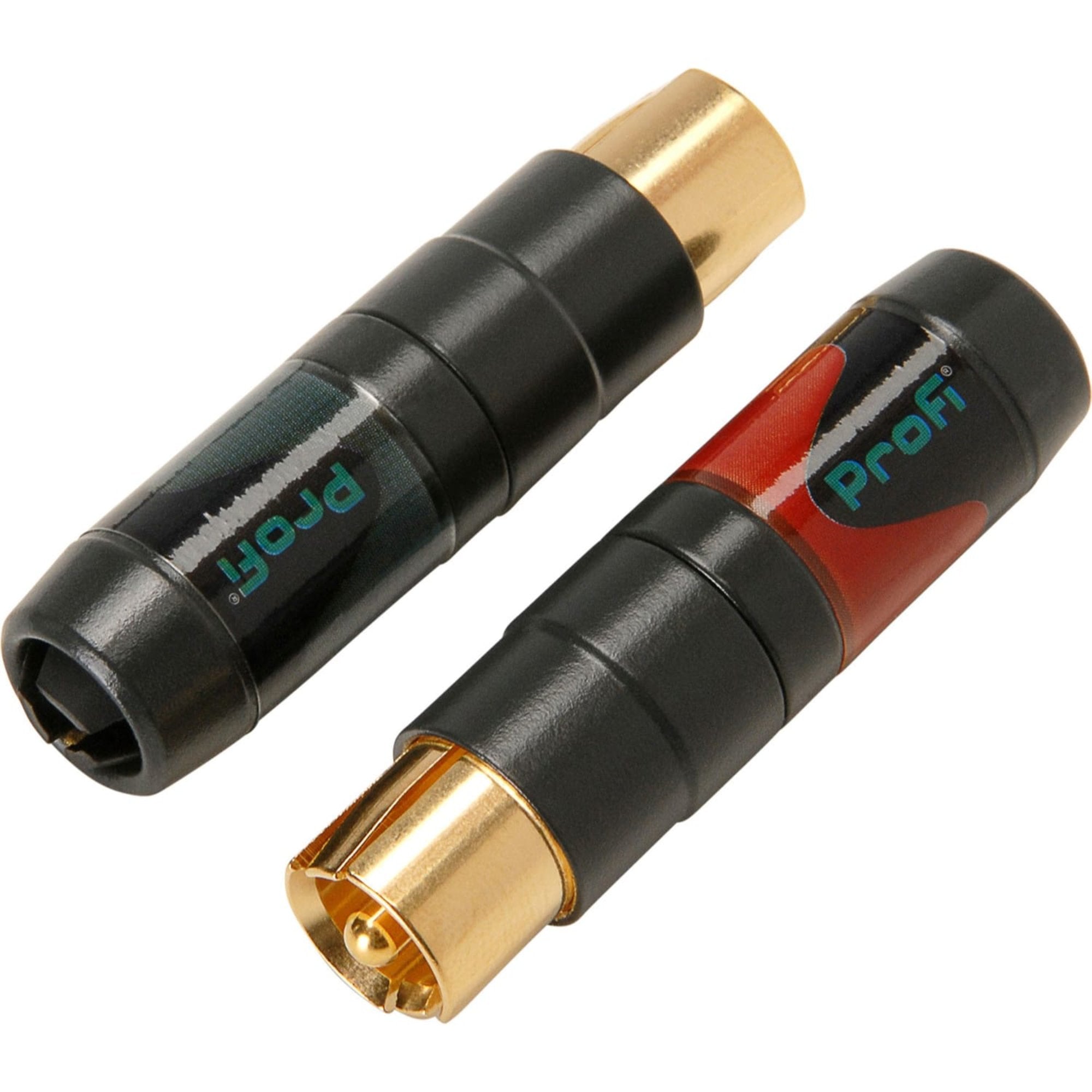

Neutrik NF2C-B/2 ProFi Professional RCA Plugs (1 Pair, Red & Black)

Pair of Professional Spring Loaded RCA Plugs, 1 Black, 1 Red

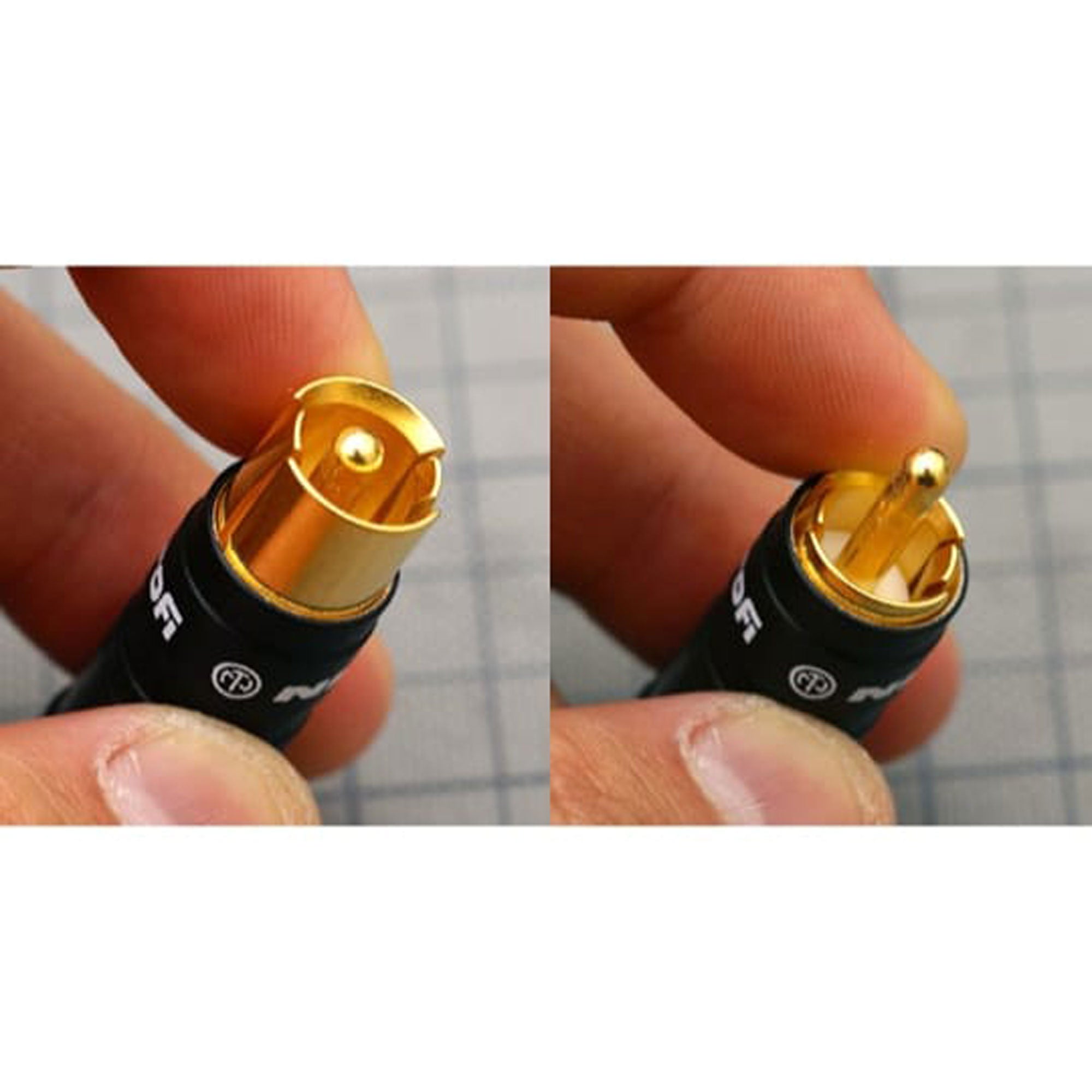

You will not find a higher quality RCA plug. Featuring a retractable sleeve, the Profi connectors make ground before signal contact and vice-versa.

Pair of professional 'Phono Plug' ('RCA'- or 'CINCH'- type) - marked red and black.

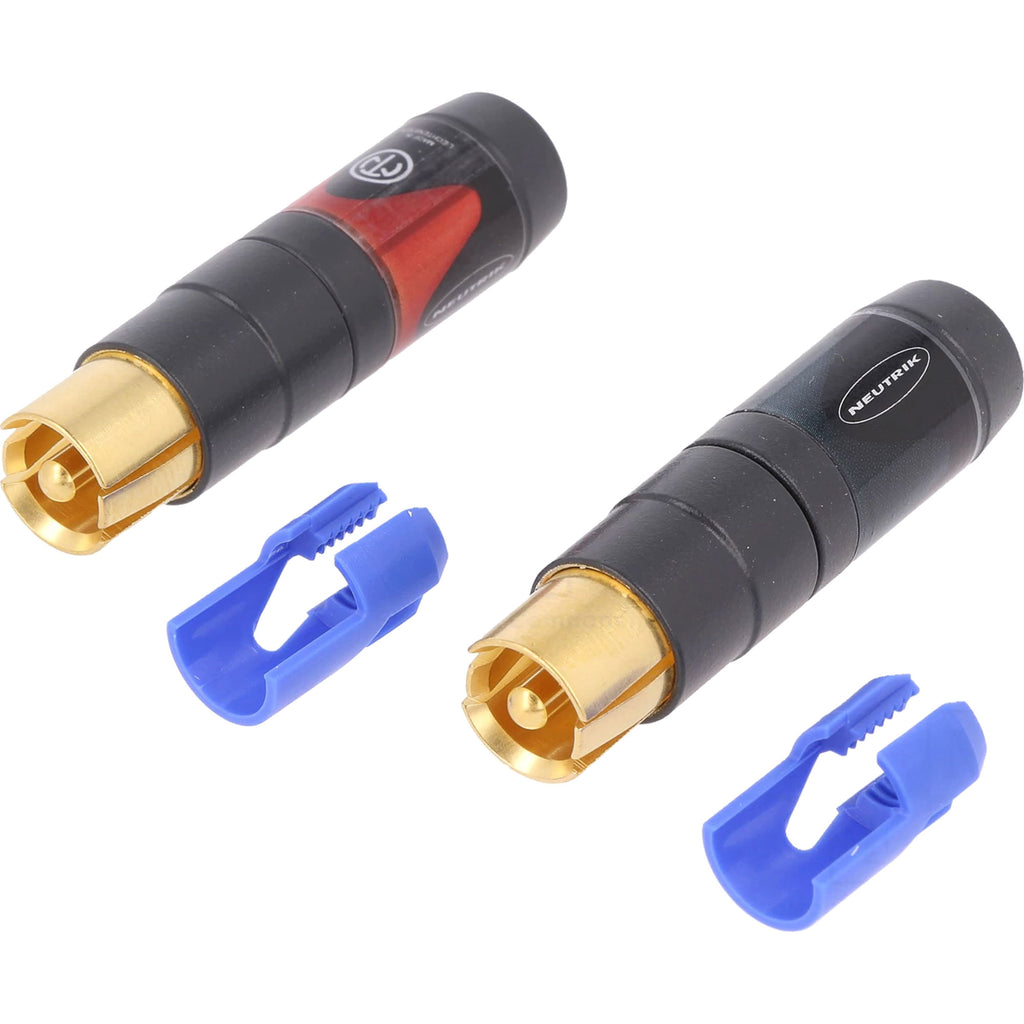

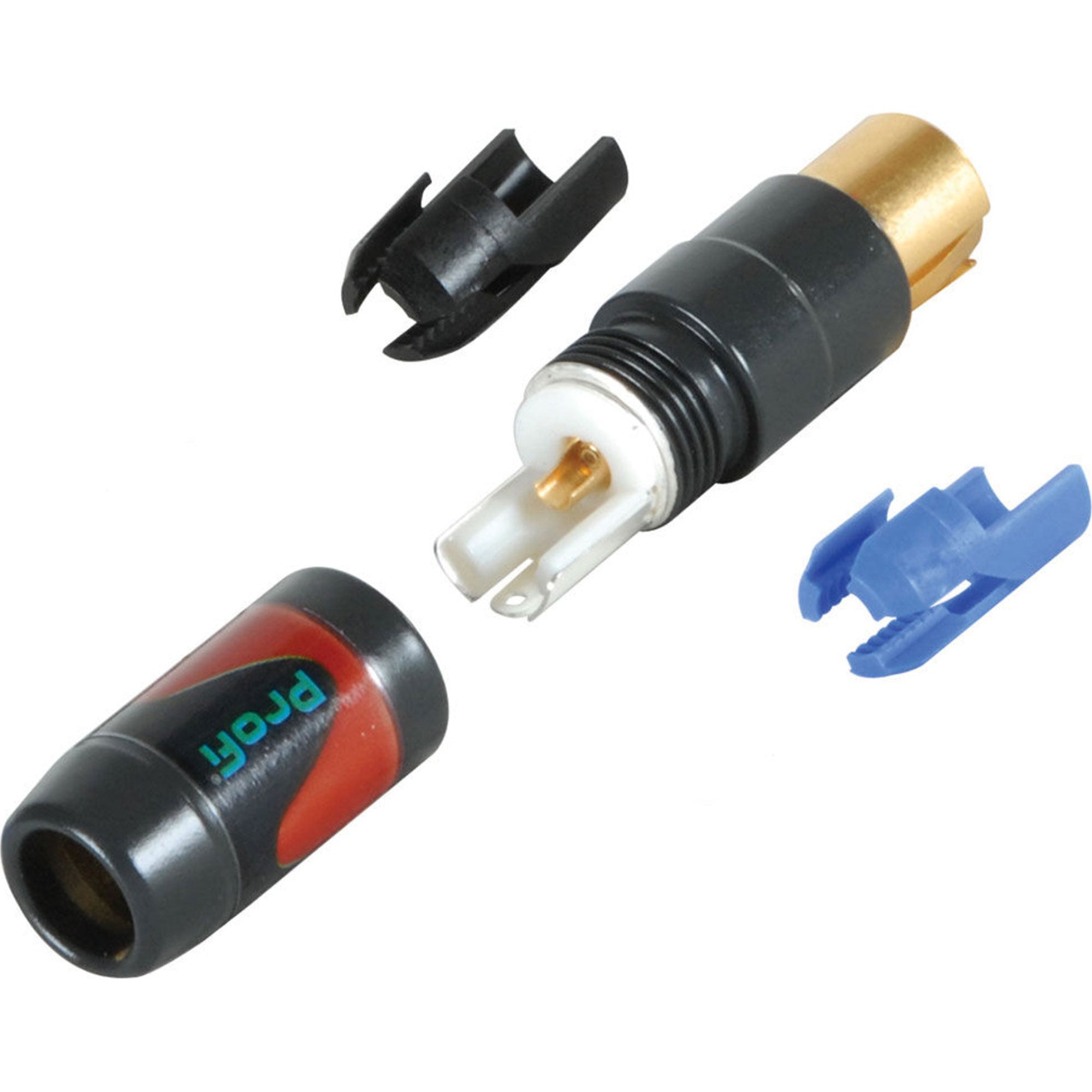

Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.

Features:

• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to our demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug for ease soldering

Specifications:

• Product:
• Title: NF2C-B/2
• Connection Type: Profi
• Gender: male
• Electrical:
• Capacitance between contacts: ≤ 7 pF
• Contact resistance: >10G mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 5 GΩ
• Rated current per contact: depends on mating connector / A
• Rated voltage: < 50 V
• Mechanical:
• Cable O.D.: 3.0 - 7.3 mm
• Lifetime: > 2000 mating cycles
• Wiresize: 1,5 mm²
• Wiresize: 16 AWG
• Wiring: Solder contacts
• Dimensions: 0.51" x 2"
• Material:
• Contact plating: 5 µm Au over 5 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20 % GR
• Shell: Brass (CuZn39Pb3)
• Strain relief: Polyacetal (POM)
• Environmental:
• Flammability: UL 94 HB
• Standard compliance: IEC 601-14
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30°C to +80°C
