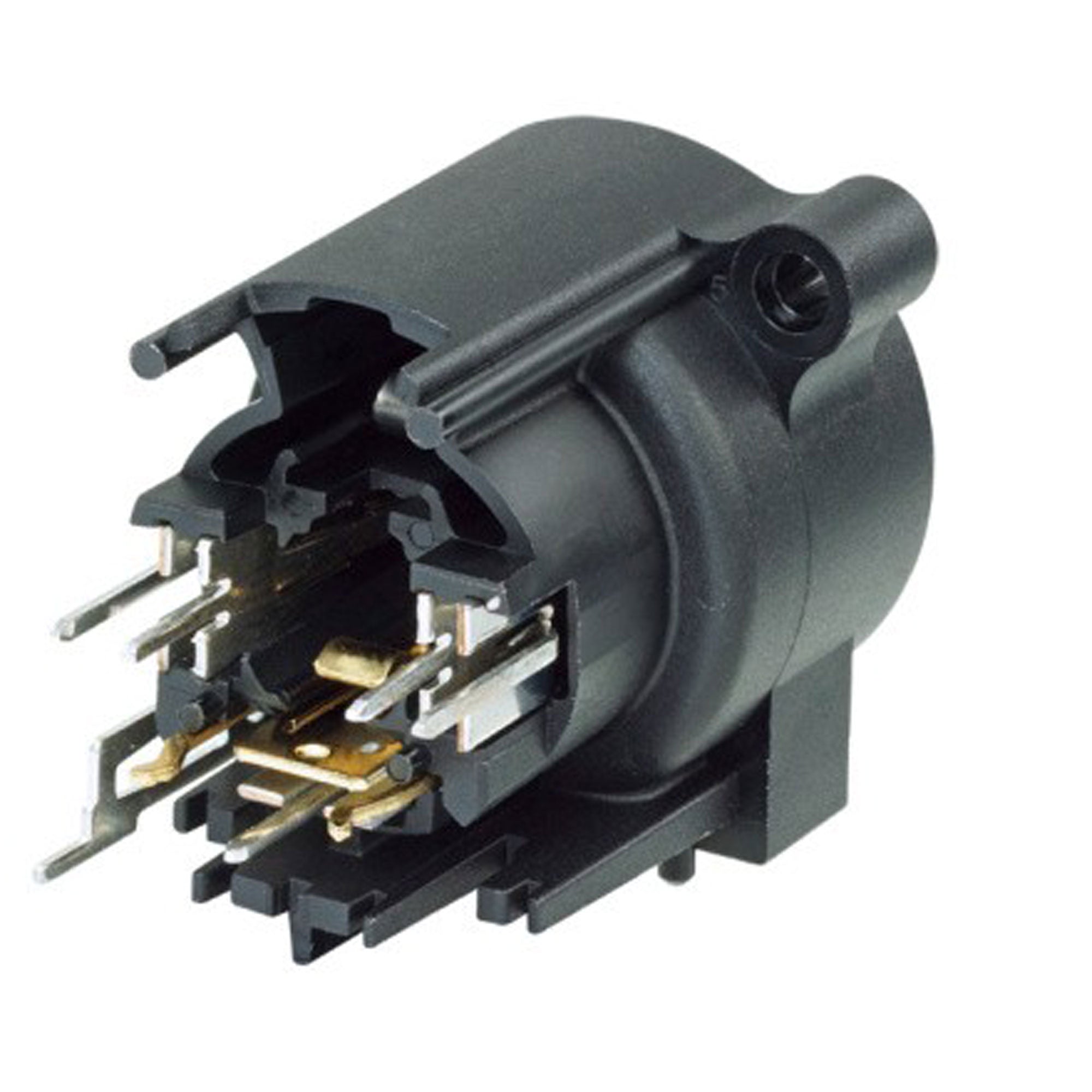

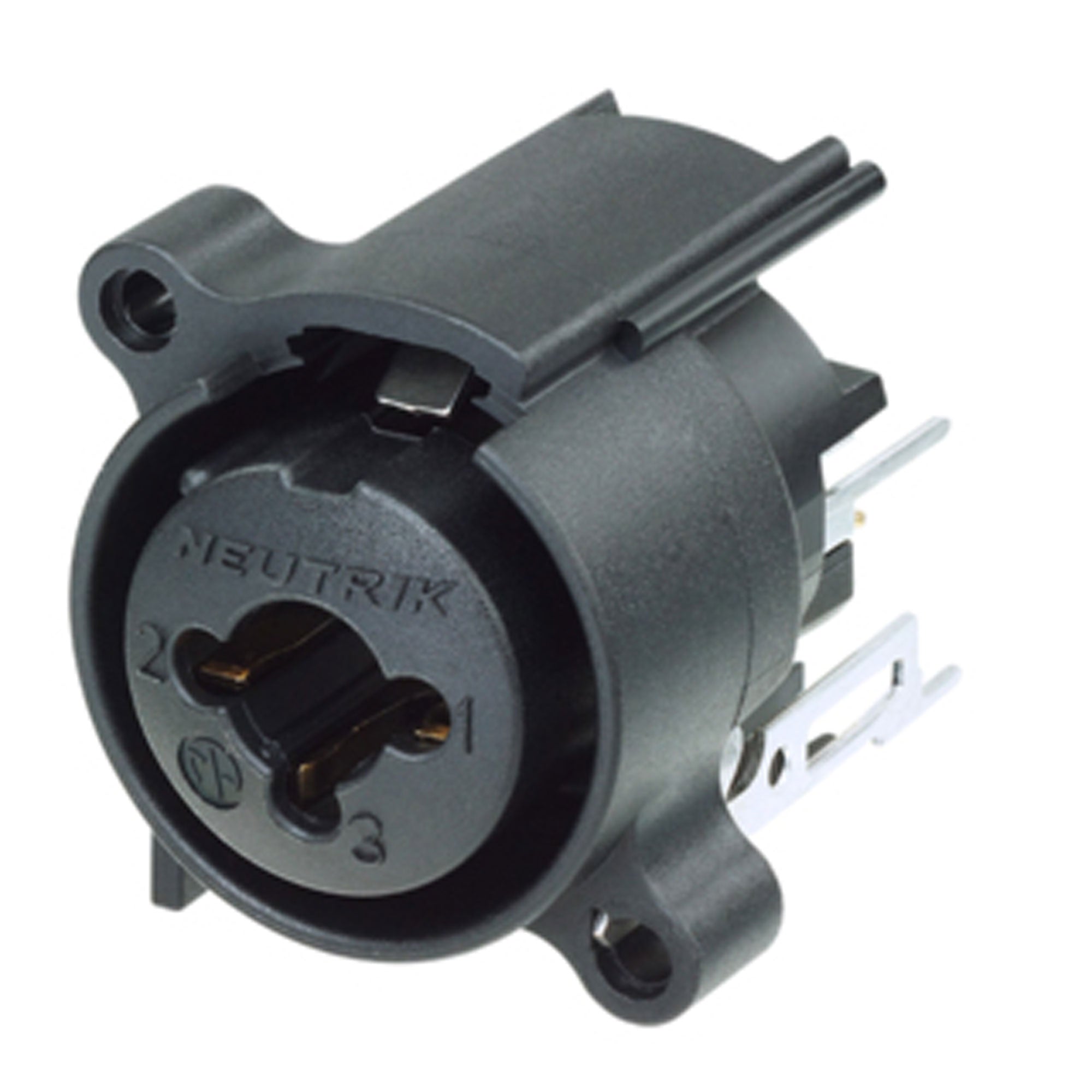

Neutrik NCJ6FA-V-0 Combo XLR & 1/4" Stereo Jack, Latchless (Vertical PCB, Box of 100)

Combination Female 3-Pin XLR Receptacle and 1/4" Stereo Jack, Vertical PCB Mount, Retention Spring - Full Box of 100 Connectors

3 pole XLR female receptacle with 1/4" stereo jack, vertical PCB mount, retention spring

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack in the smallest available XLR housing.

Features:

• Combined 3 pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
• Dramatic space saving - 15% over the predecessor Combo
• Two connectors in one housing - substantial cost, material and labour saving
• Very low conductor capacitance - ideal for digital audio
• Front panel cut-out compatible with Neutrik XLR A Series
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications:

• Product:
• Title: NCJ6FA-V-0
• Connection Type: Combo
• Gender: female
• Electrical:
• Contact resistance: < 10 m&ohm; (XLR)
• Contact resistance: < 10 m&ohm; (jack)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 G&ohm; (initial)
• Rated current per contact: 3 A (XLR)
• Rated current per contact: 3 A (Jack)
• Rated voltage: < 50 V
• Mechanical:
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Locking force: > 20 N separating force
• Panel thickness: max. 3 mm (0.12'')
• Wiresize:
• Wiring: vertical PCB mount
• Locking device: Retention spring
• Mounting direction: Rear mounting
• Mounting screw: A-screw
• Material:
• Contact plating: gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA66)
• Locking element: Steel Ck67
• Environmental:
• Flammability: UL 94 V-0
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30°C to +80°C
