Key Features
- Female 5-Pin XLR Connector
- Industry Standard
- Solder Cups
- Black Metal Housing
- Gold Contacts
- Full Box of 100 Connectors
Description

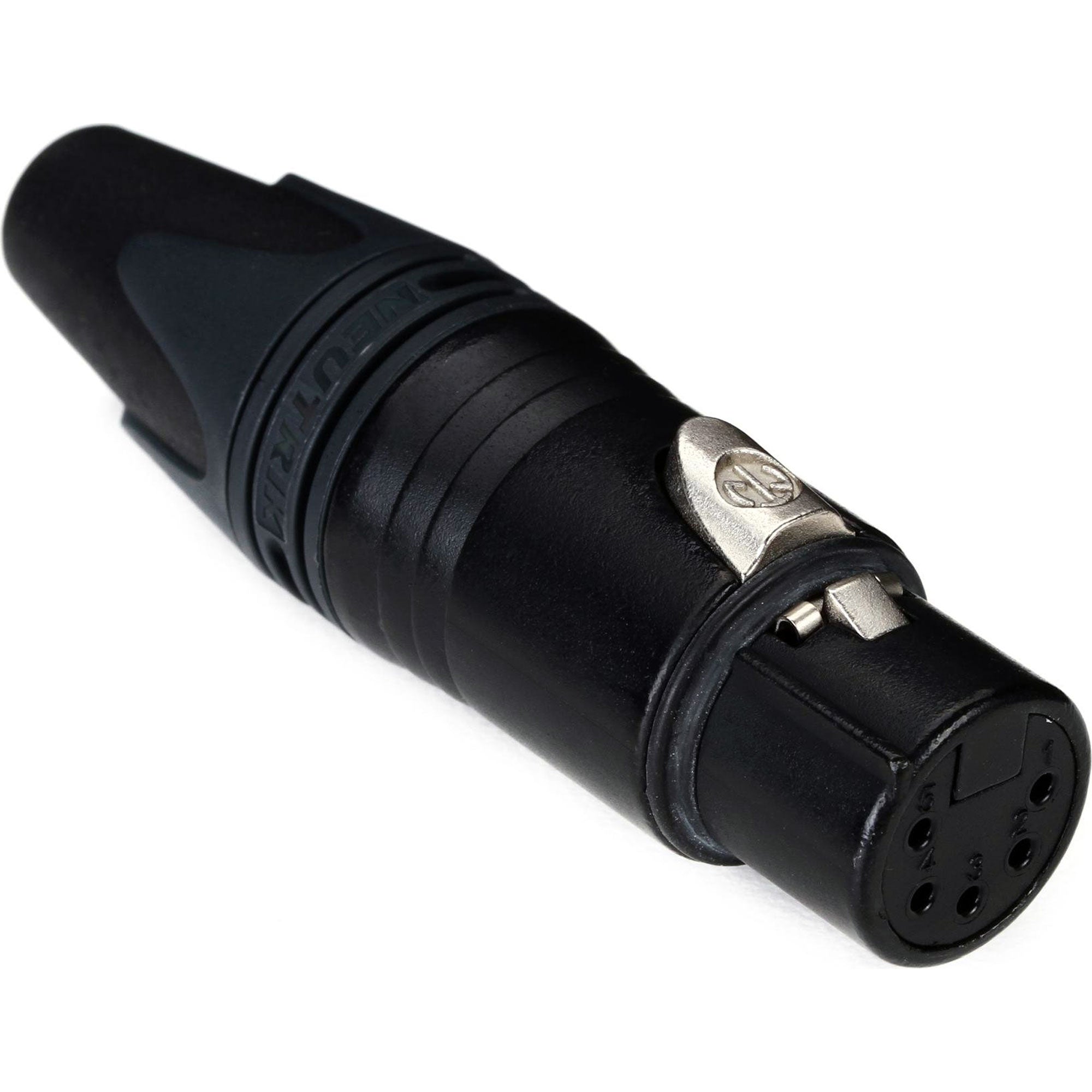

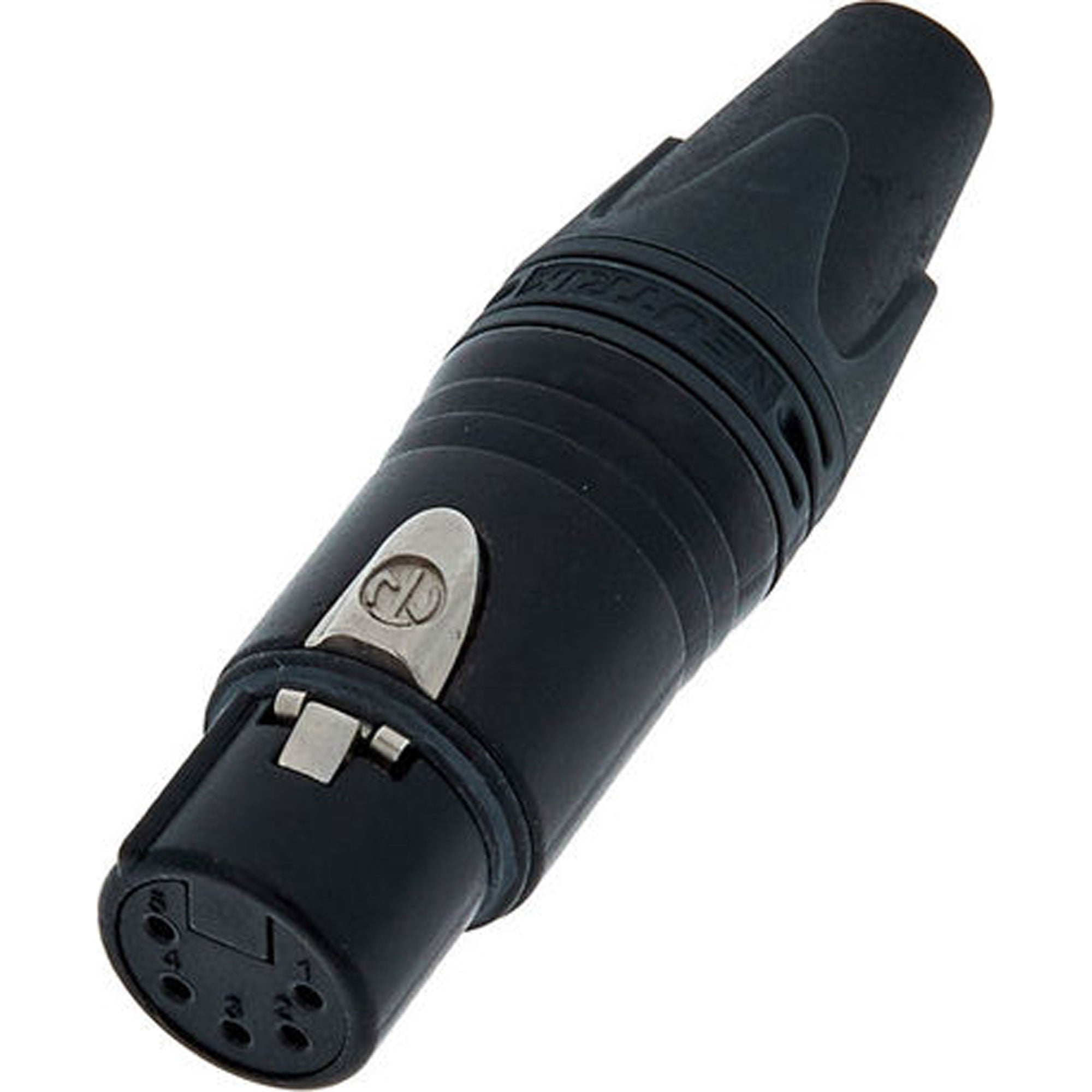

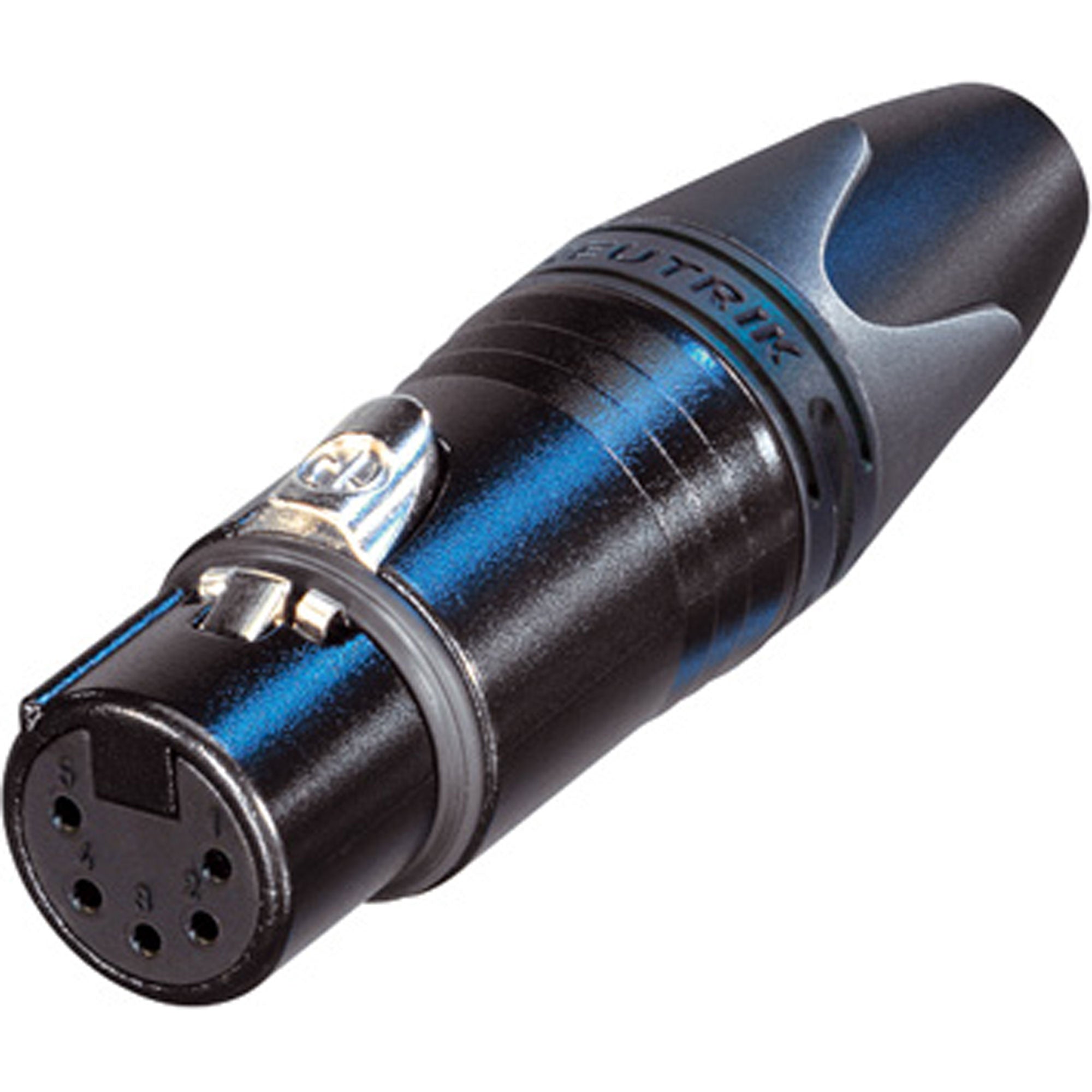

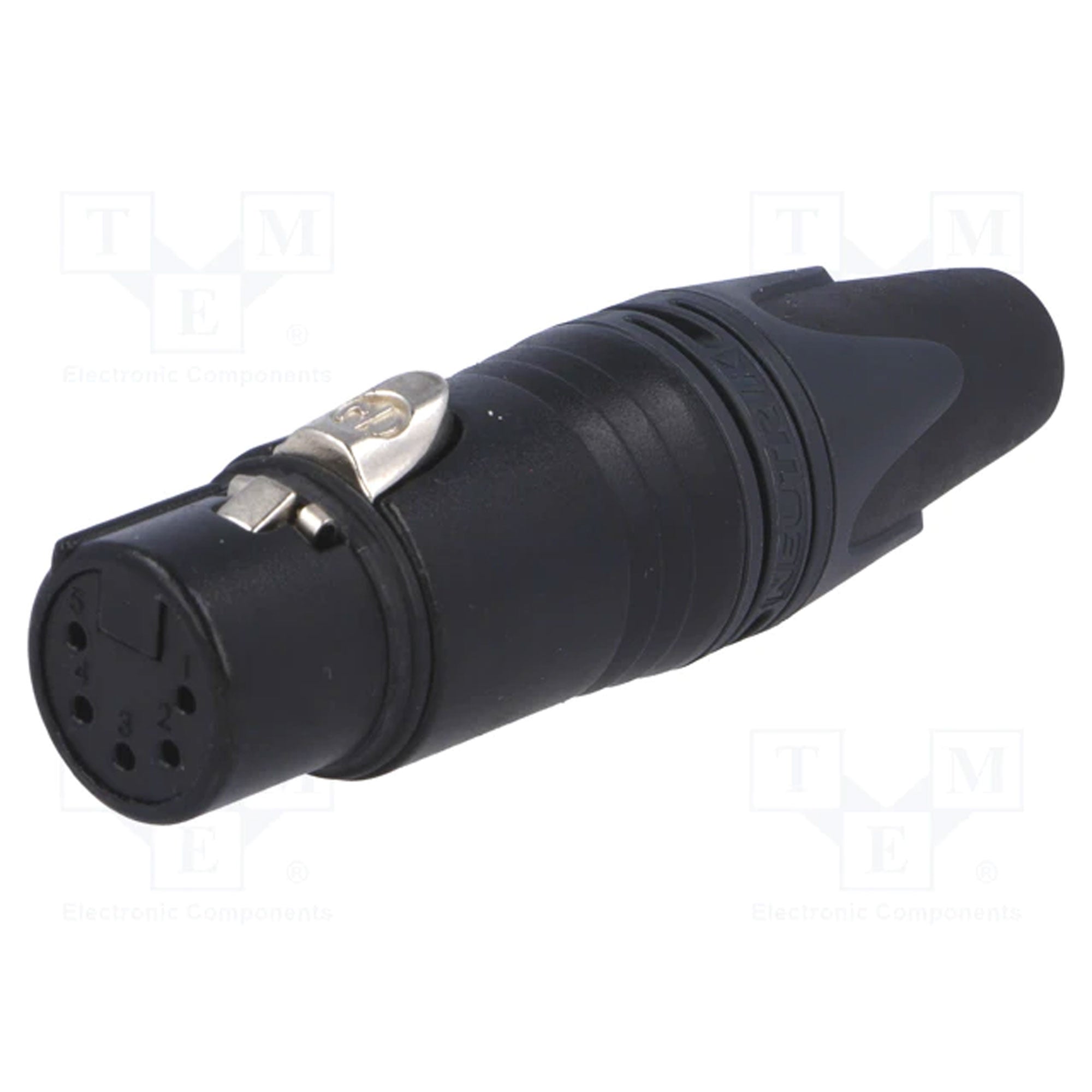

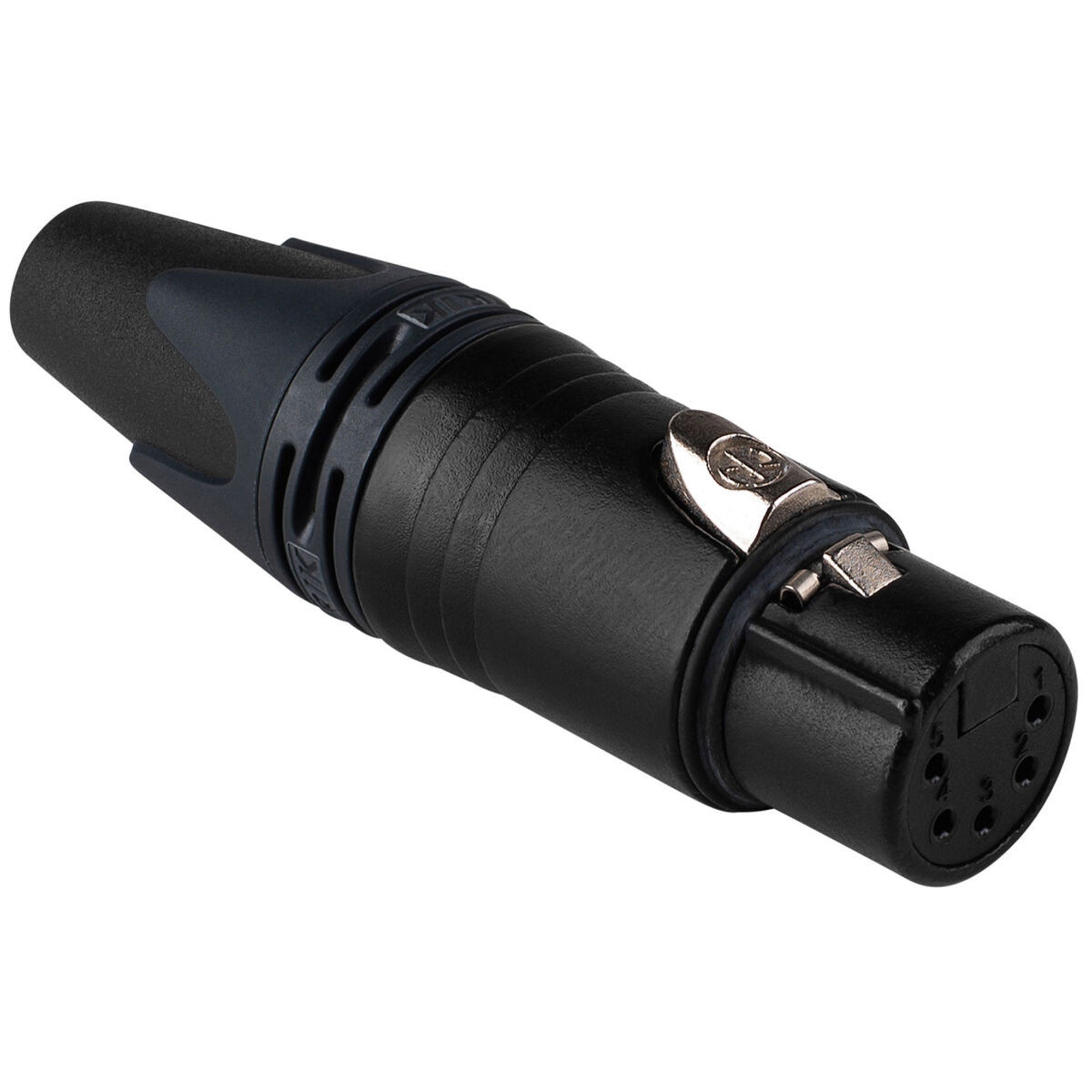

Female 5-Pin XLR Cable End Connector, XX Series, Black Housing, Gold Contacts - Full Box of 100 Connectors
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
5 pole female cable connector with black metal housing and gold contacts.
Features:
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
Specifications:
- Product
- Connector Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 7 pF
- Contact resistance: <= 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Insulation resistance: > 1 GΩ (after damp heat test)
- Rated current per contact: 7,5 A
- Rated voltage: 50 V
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wire size: max. 1.0 mm(2)
- Wire size: max. 18 AWG
- Wiring: Solder contacts
- Locking device: latch lock
- Material
- Boot: Polyuretan
- Bushing: Polyamide (PA 6 15% GR)
- Contact plating: 0.2 m Au hard alloy over 2 m Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 C to +80 C
Details
- Manufacturer: Neutrik
- MPN: NC5FXX-B
- Model Number: NC5FXX-B
