Key Features
- Female 3-Pin XLR Connector
- Noiseless On/Off Switch
- Solder Cups
- Nickel Metal Housing
- Gold Contacts

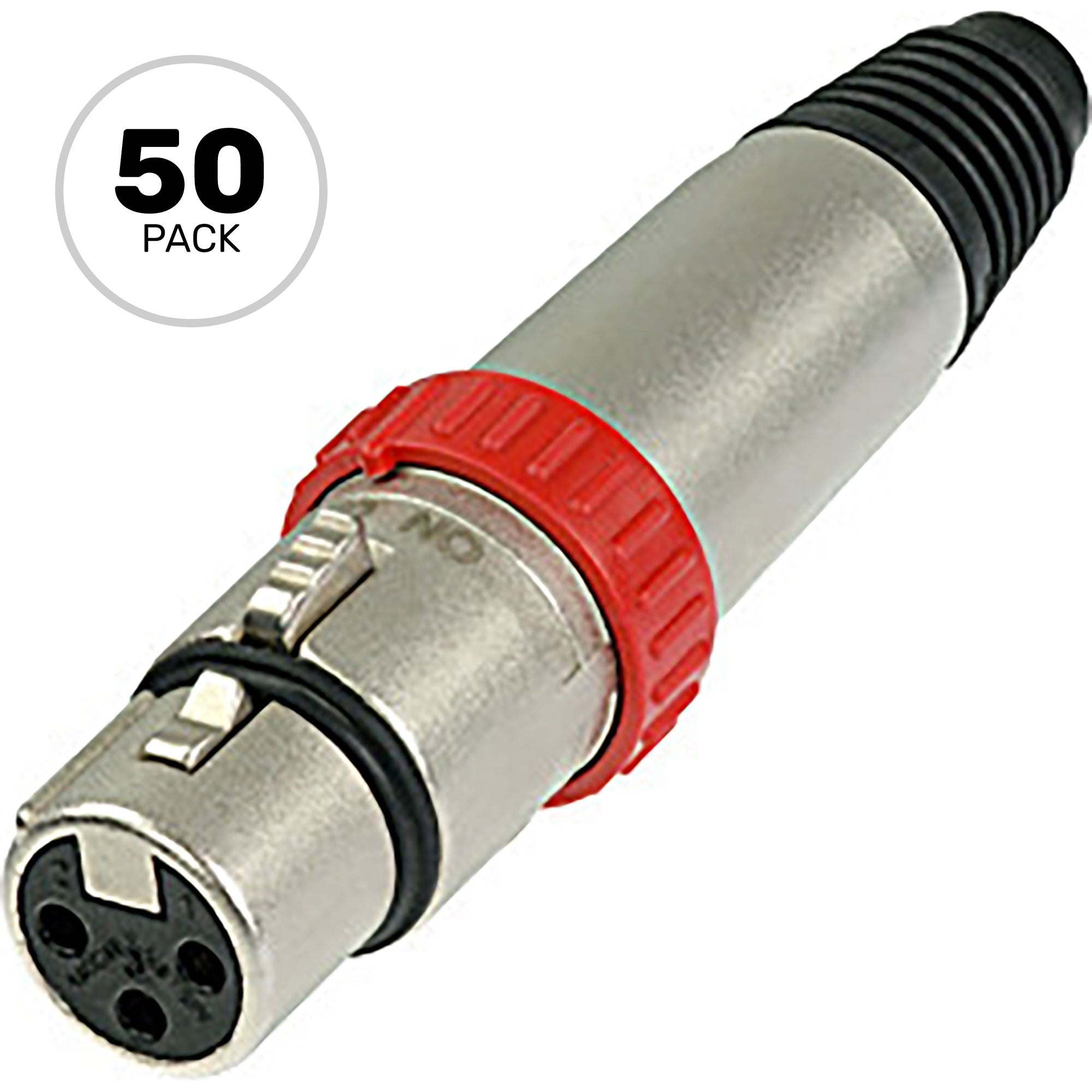

- Full Box of 50 Connectors
Description

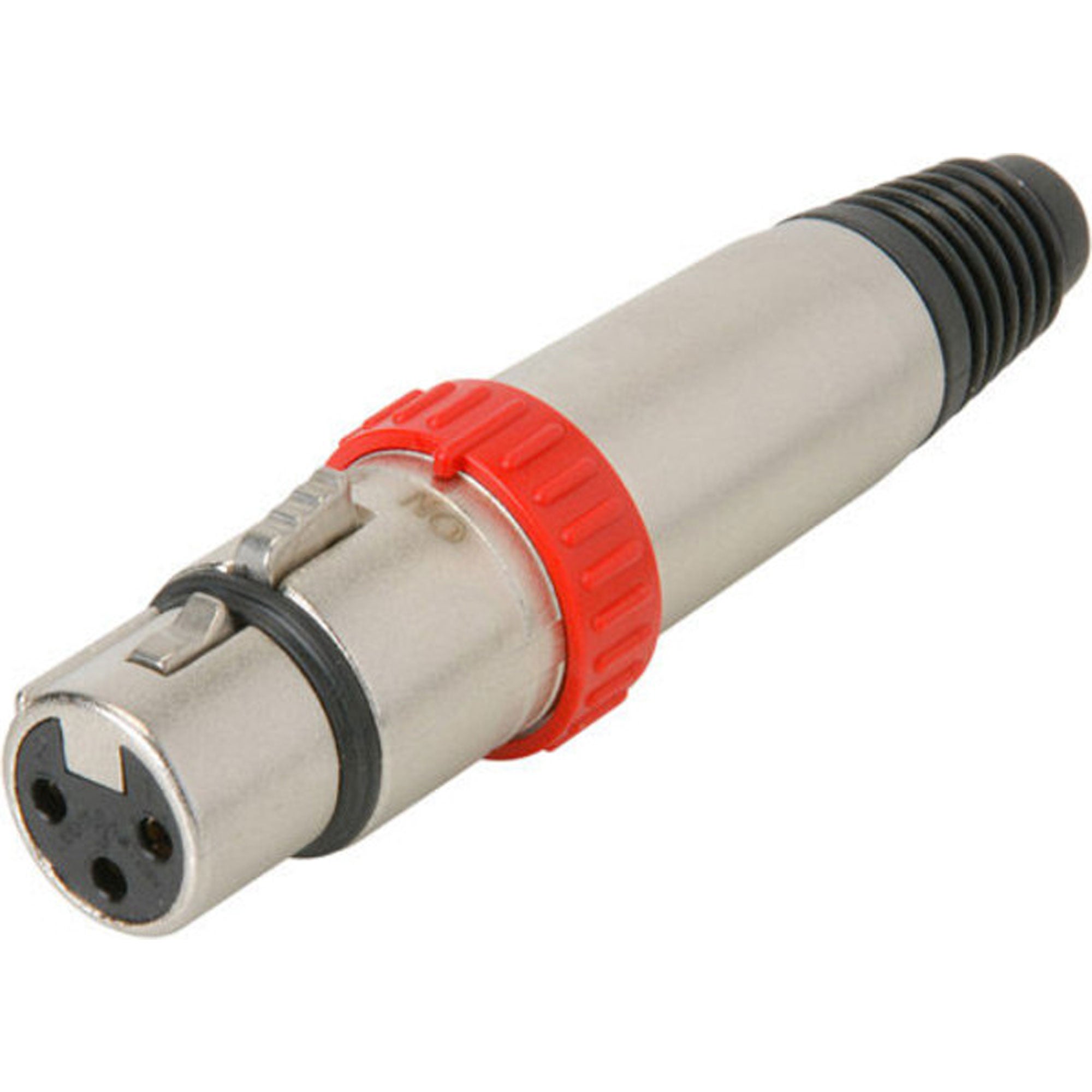

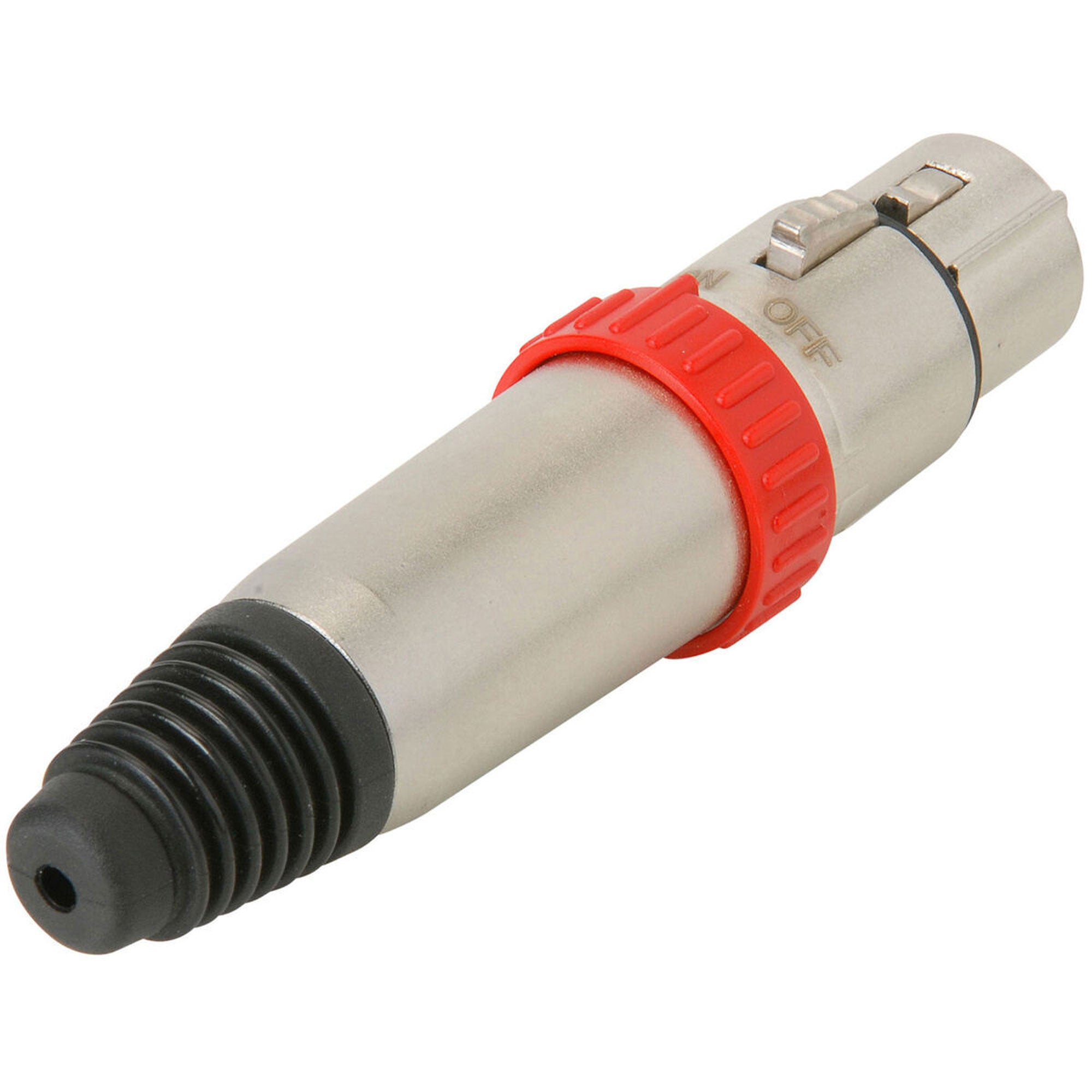

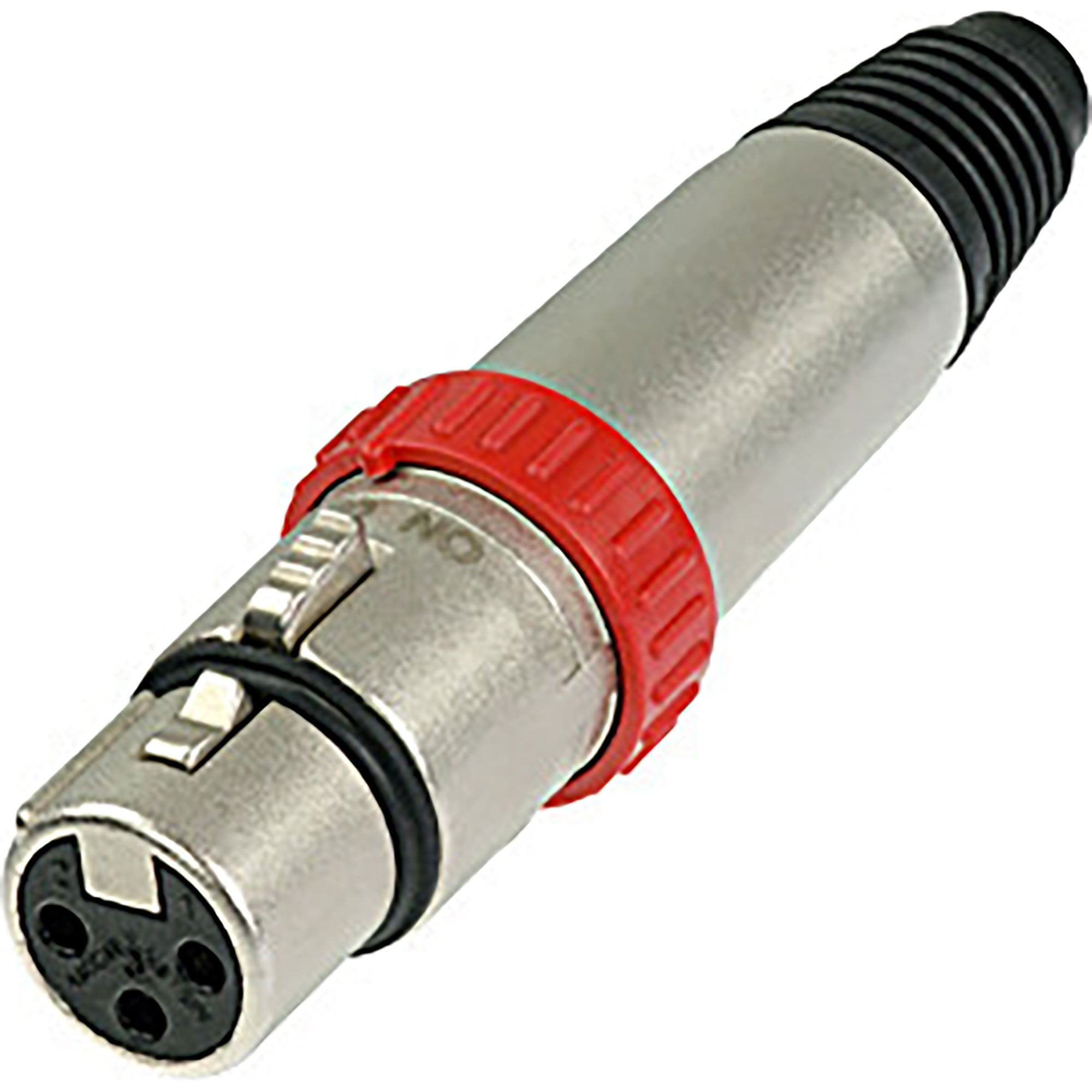

Female 3-Pin XLR Cable End Connector with On-Off Switch, X-S Series, Nickel Housing, Gold Contacts - Full Box of 50 Connectors
3 pole female cable connector, nickel metal housing
FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.
Features:
- Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
- For use on a microphone without switch
- Rugged zinc diecast shell, long lasting and durable
- Rugged metal boot
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
Specifications:
- Product
- Title: NC3FXS
- Connection Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 3 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: 50 V
- Mechanical
- Cable O.D.: 3.5 - 7.0 mm
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material
- Boot: Polyurethan
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: St3K32 (latch) / Ck 67 (spring)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Details
- Manufacturer: Neutrik
- MPN: NC3FXS
- Model Number: NC3FXS
