Key Features
- Female 3-Pin XLR Connector
- Solder Cups
- Standard D-Shape Housing
- Black Metal Housing
- Gold Contacts
- Full Box of 100 Connectors
Description

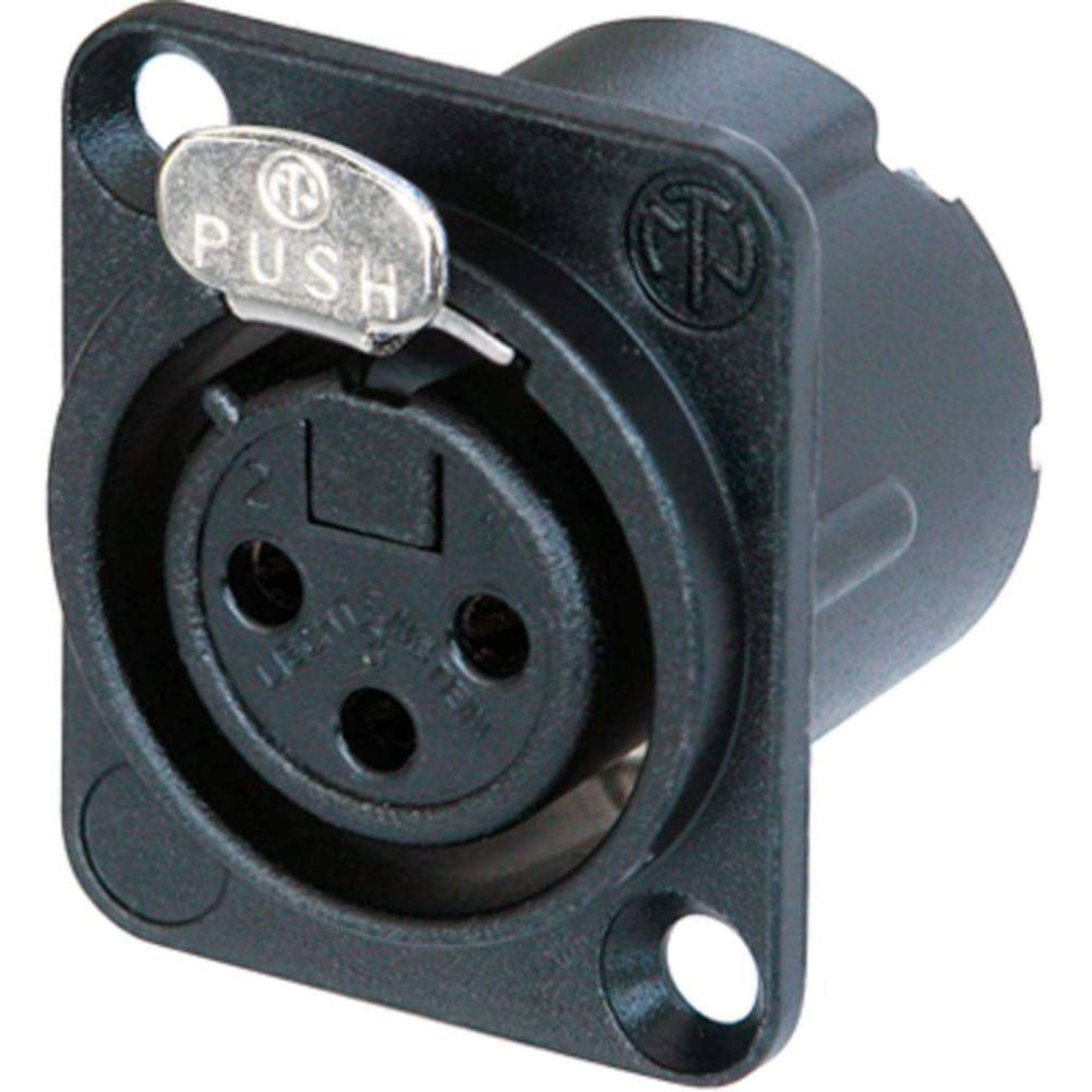

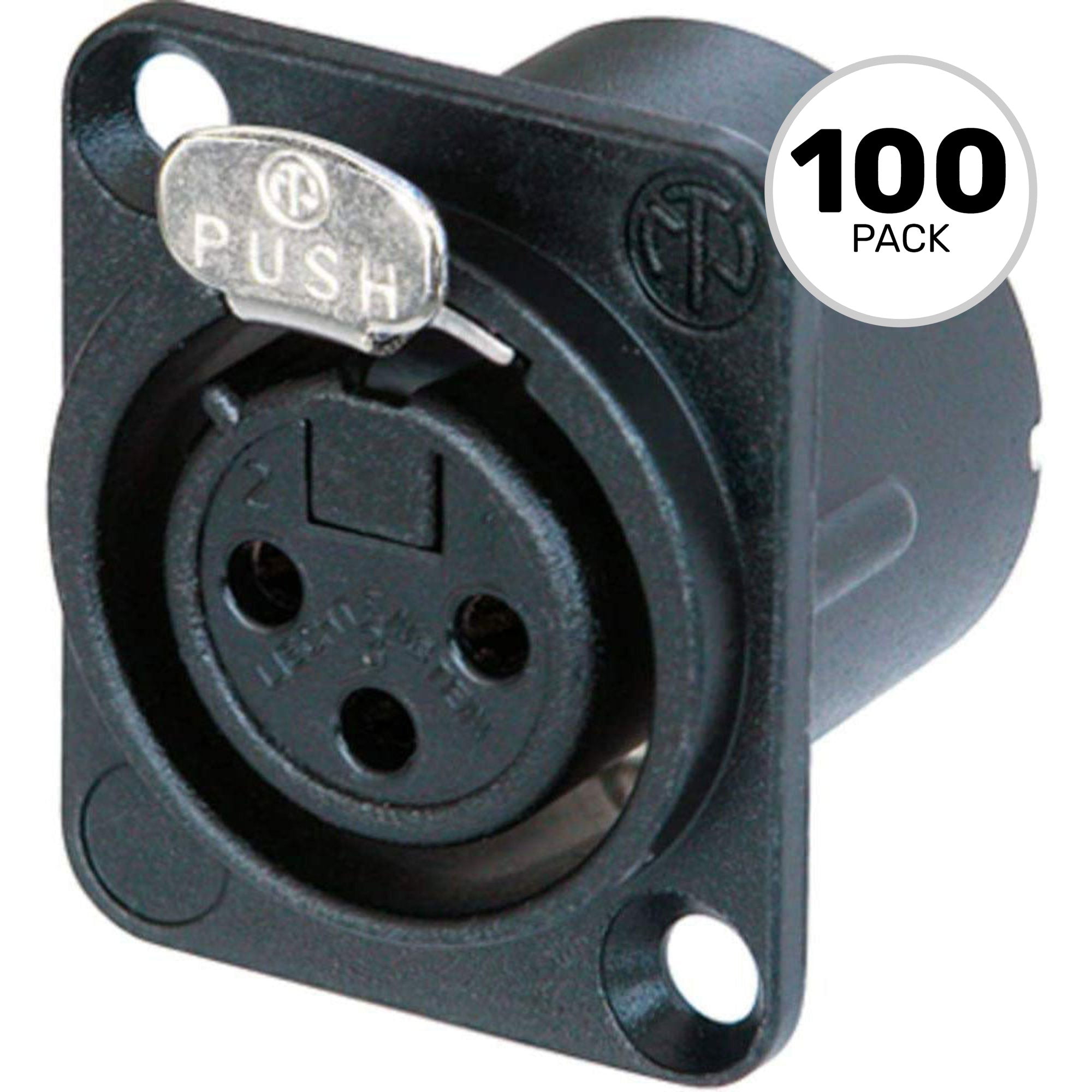

Female 3-Pin XLR Receptacle, DLX Series, Solder Cups, Black Housing, Gold Contacts - Full Box of 100 Connectors
3 pole female receptacle, solder cups, black metal housing, gold contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features:
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Specifications:
- Product
- Connector Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Insulation resistance: > 1 GΩ (after damp heat test)
- Rated current per contact: 16 A
- Rated voltage: 50 V
- Mechanical
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wire size: max. 2.5 mm(2)
- Wire size: max. 14 AWG
- Wiring: Solder contacts
- Locking device: latch lock
- Mounting direction: front & rear
- Chassis shape: D
- Material
- Contact plating: 0.2 m Au hard alloy over 2 m Ni
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 C to +80 C
Details
- Manufacturer: Neutrik
- MPN: NC3FD-LX-B
- Model Number: NC3FD-LX-B
