Key Features
- Female 3-Pin XLR Connector
- Vertical PCB Mount
- Tulip Type Contact Design
- UL Recognized Component
- Black Plastic Housing
- Silver Contacts

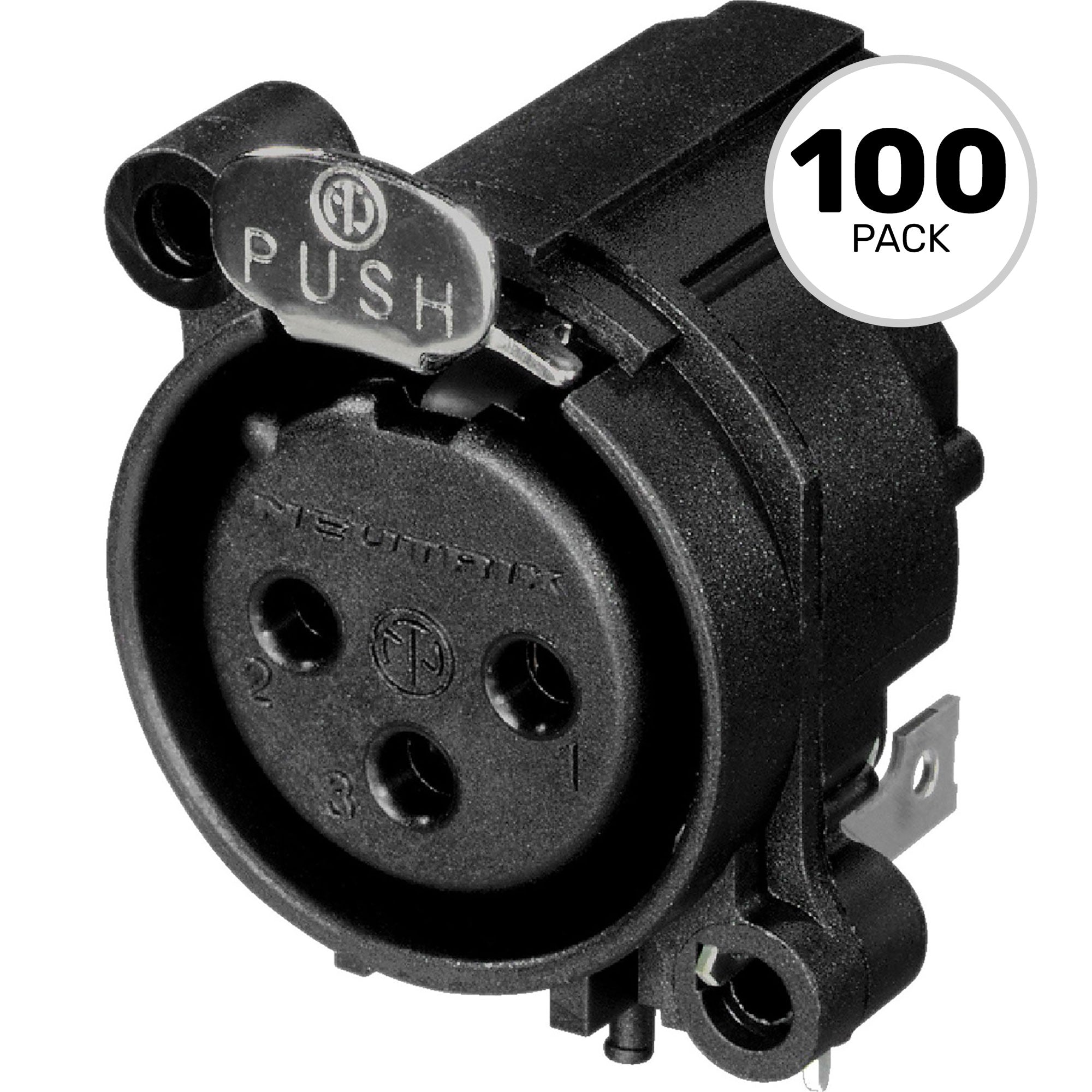

- Full Box of 100 Connectors
Description

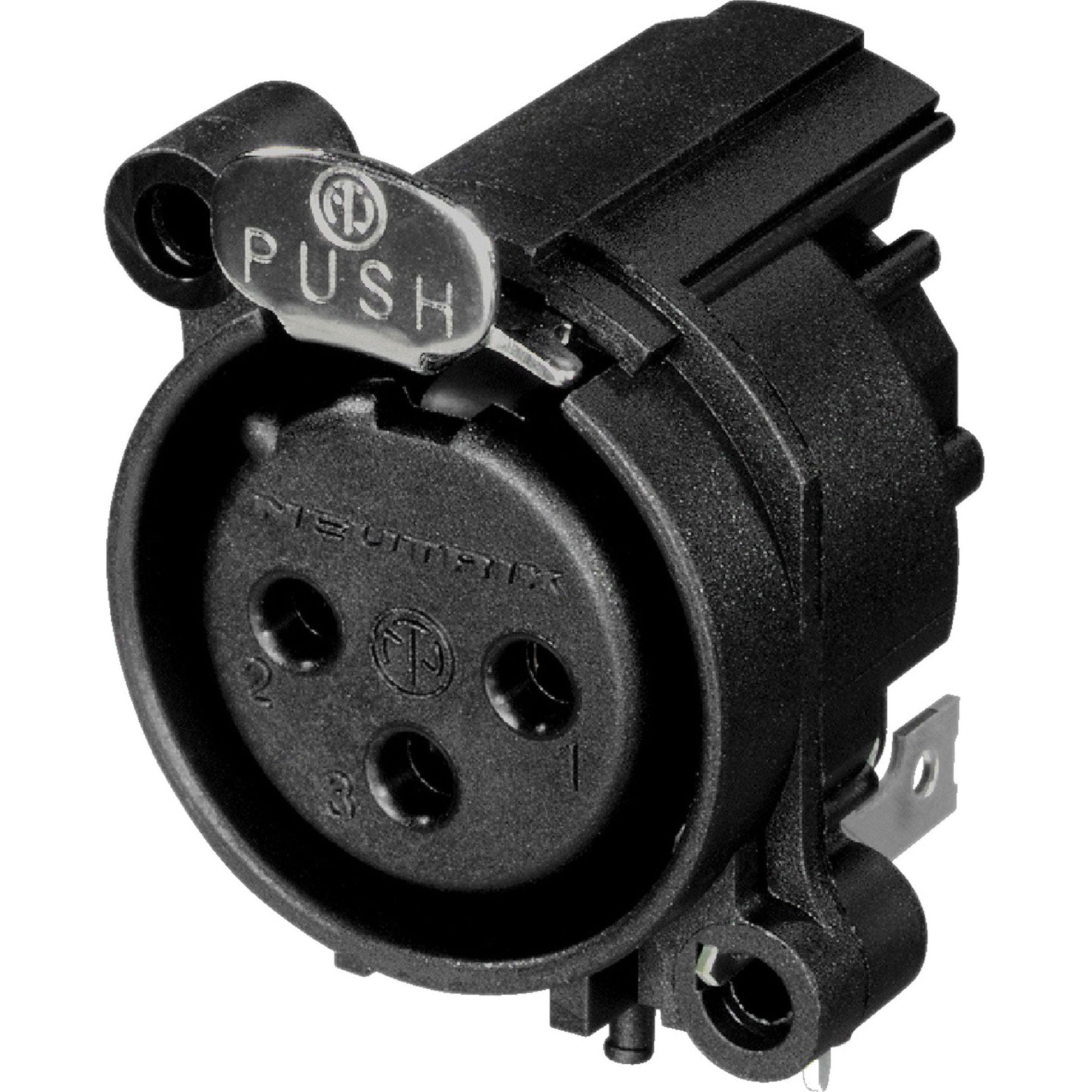

Female 3-Pin XLR Receptacle, Vertical PCB Mount, Black Plastic Housing, Silver Contacts - Full Box of 100 Connectors
3 pole female receptacle, grounding: without ground/shell contact, vertical PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Push latch assembled. Flammability rating UL94HB. UL recognized component.
Features:
- Most cost-effective series
- "Tulip" type contact design with high contact pressure for highest durability
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Specifications:
- Product
- Title: NC3FAAV
- Connection Type: XLR
- Gender: female
- Electrical
- Capacitance between contacts: <= 4 pF
- Contact resistance: <= 6 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 6 A
- Rated voltage: < 50 V
- Grounding Options: no grounding
- Mechanical
- Insertion force: <= 20 N
- Withdrawal force: <= 20 N
- Lifetime: > 1000 mating cycles
- Wiring: vertical PCB mount
- Locking device: Latch lock
- Mounting direction: Rear mounting
- Chassis shape: A
- Mounting: A-Screw
- Material
- Contacts: Bronze (CuSn6)
- Locking element: Steel Ck67
- Shell: Polyamide (PA 6.6 30 % GR)
- Environmental
- Approvals: UL
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Details
- Manufacturer: Neutrik
- MPN: NC3FAAV
- Model Number: NC3FAAV
