Save $39.00
NeutrikSKU: WB NTK NAUSB3B100
MPN: NAUSB3-B
Price:
$1,071.00 $1,110.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Reversable Design
  • USB 3.0/3.1 Gen 1 Interface

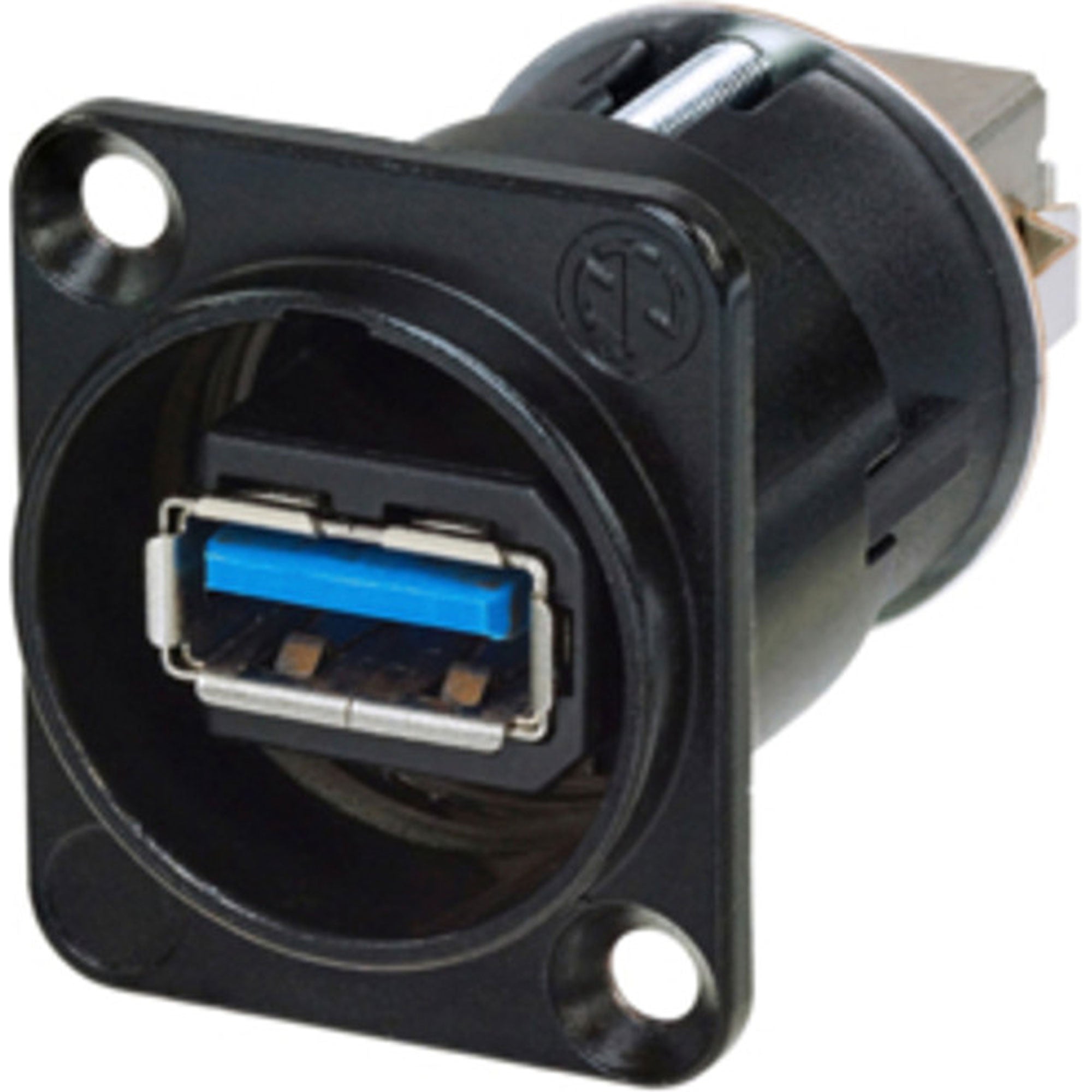

  • 1 x Female USB Type-A Port

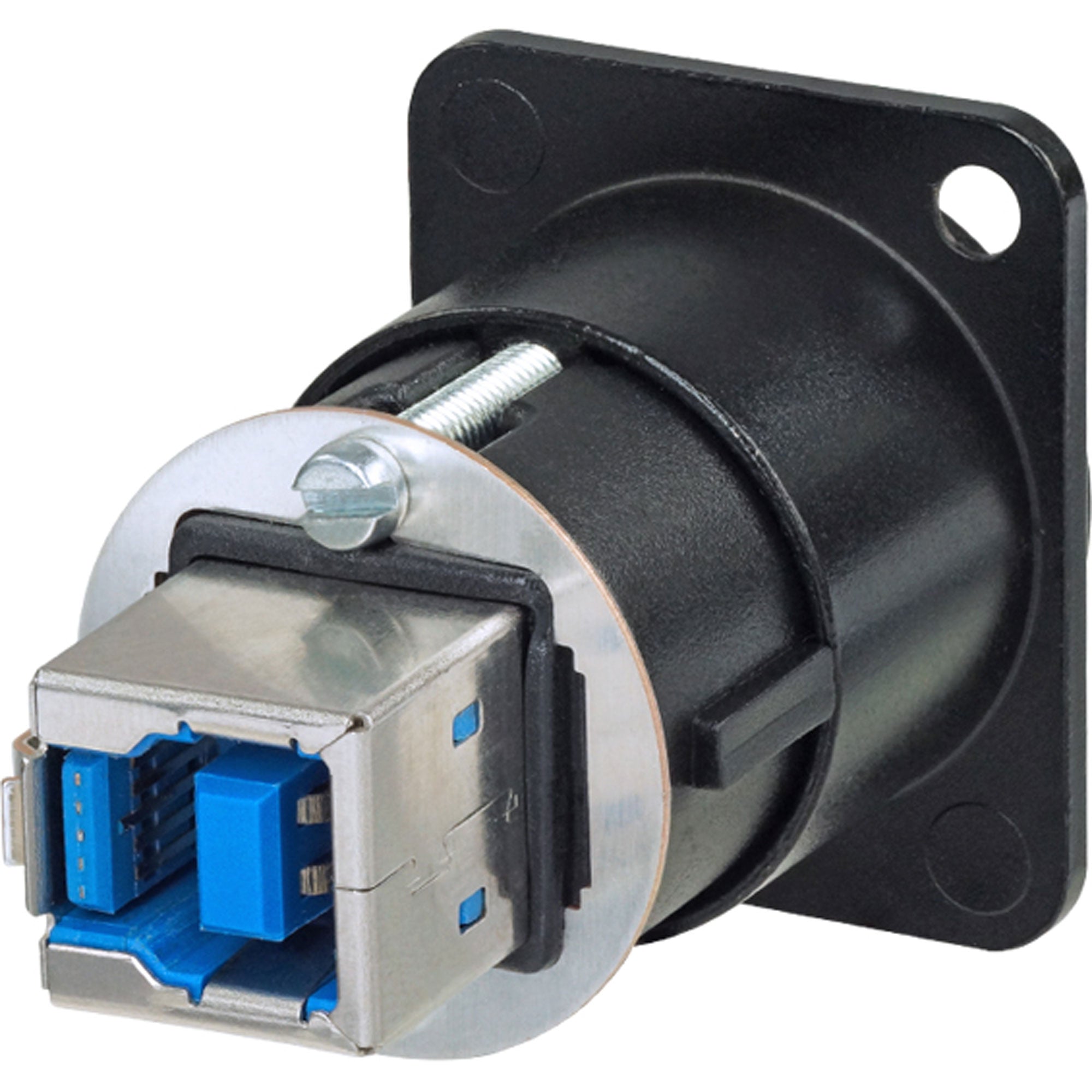

  • 1 x Female USB Type-B Port
  • D-Shaped Black Housing

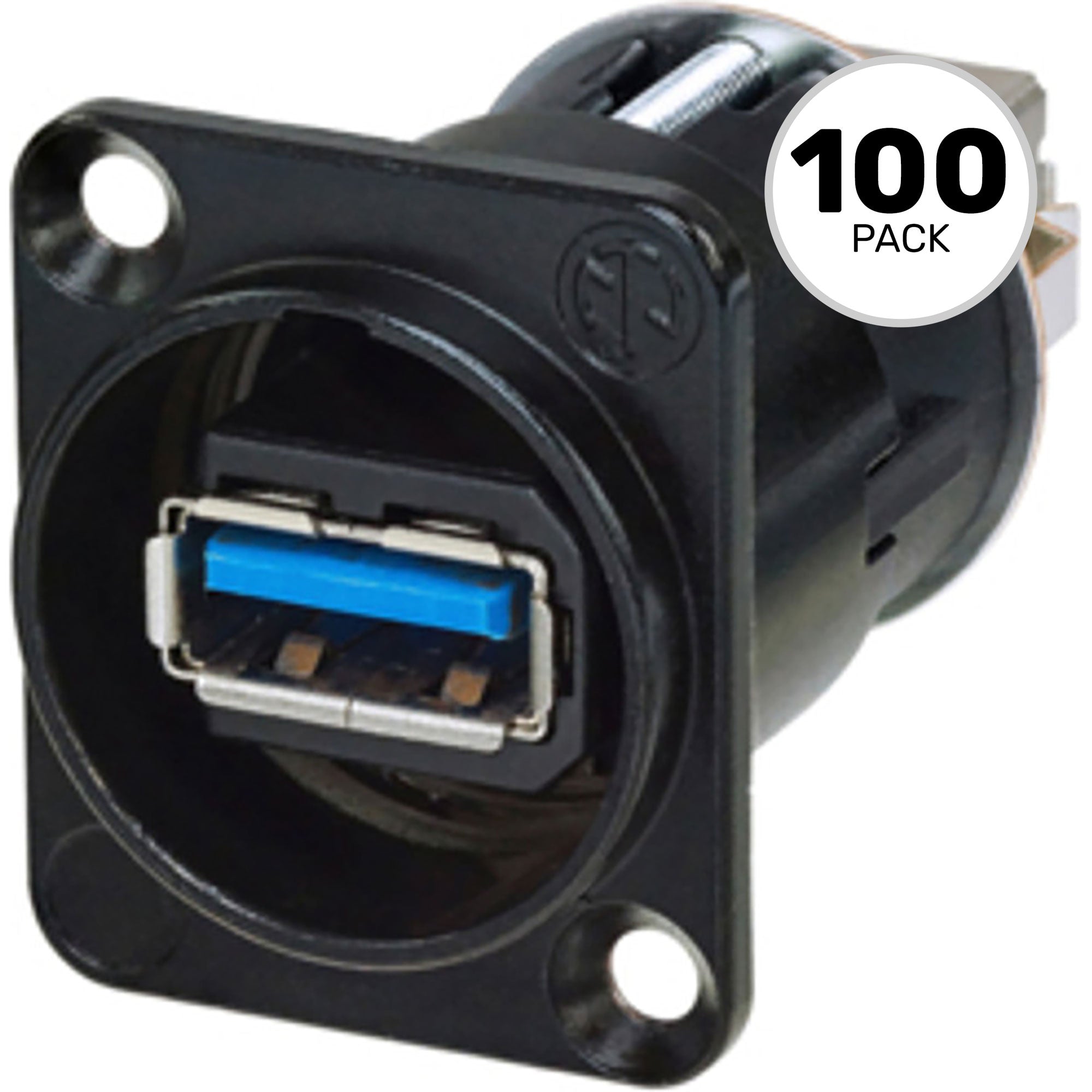

  • Full Box of 100 Connectors

Description

Reversible USB 3.0 Gender Changer (Type a and B), Black D-Housing - Full Box of 100 Connectors

The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables.

USB 3.0 Performance

To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.

Gender Changeable

Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.

Optimized Ground Connection

An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.

Cable lengths

We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximum length of USB-IF certified USB 3.0 passive cable is 2.0 meters.

Features:

  • USB 3.0 feedthrough adapter
  • Reversible insert offering type A or B on front or rear end
  • Standard D-shape housing
  • Removable screen for chassis grounding
  • Meets USB 3.0 specifications

Specifications:

  • Product:
  • Title: NAUSB3-B
  • Connection Type: Adapter
  • Gender: female
  • Electrical:
  • Reading / Writing speed: >200 MB/s
  • Mechanical:
  • Mounting direction: Front mounting
  • Chassis shape: D
  • Lifetime: > 1000 mating cycles
  • Material:
  • Contact plating: Au
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Environmental:
  • Flammability: UL 94 V-0
  • Standard compliance: USB 3.0 specifications
  • Temperature range: -25 °C to +85 °C
Details
  • Manufacturer:  Neutrik
  • MPN: NAUSB3-B
  • Model Number: NAUSB3-B
