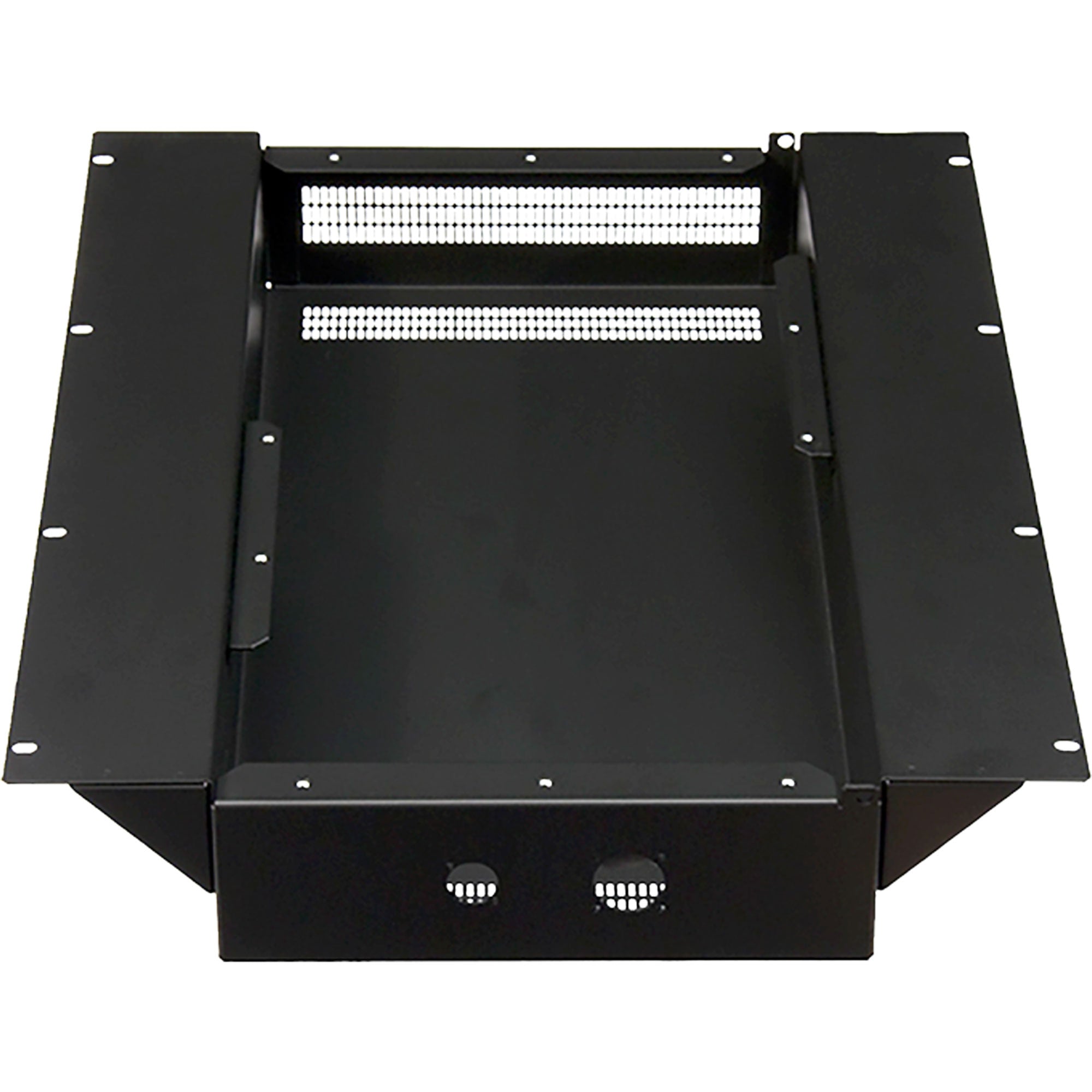

Neumann REK 4 Remote Electronics Kit (Loudspeaker)

Move a Loudspeaker Electronics Panel Up to 90 Feet

This option allows the electronics panel to be located up to 30 m (90') away from the loudspeaker cabinet.

Features:

• No heat dissipation problems
• Easy adjustment of the controls
• Easier servicing of the electronics
• Shorter cable runs

Specifications:

• Loudspeaker electronics' chassis:
  Height: 573 mm (22 1/2") - 12 U
  Width: 483 mm (19")
  Depth: 93 mm (3 5/8")
  Weight: 5 kg (11 lbs), without loudspeaker electronics
  Color: black (RAL 9011)
  Material: steel
• Cover plate for loudspeaker 2:
  Height: 230 mm (9")
  Width: 282 mm (11 1/8")
  Depth: 74 mm (3")
  Weight: 1.2 kg (2.6 lbs)
  Color: black (RAL 9011)
  Material: steel
• Connectors:
  Drivers: Neutrik Speakon NLT8MP, 8-pin connector
  Display: Neutrik etherCON NE8FBV
• Pin assignment of the CP cable pack:
  (Driver / Speakon pins):
  Bass / 1 +/-
  Not used / 2 +/-
  Midrange / 3 +/-
  Treble / 4 +/-
• Cross-section of the loudspeaker cables:
  (Cable length / Cable cross-section):
  < 20 m / 2.5 mm2 (14 AWG)
  > 20 m / 4.0 mm2 (12 AWG)

Includes:

• 1 REK 4 loudspeaker electronics' chassis with pre-mounted cables
• 1 REK 4 cover plate for loudspeaker with pre-mounted cables
• 1 Piece of damping material
• 4 Torx 25 cylinder head screws M5x25
• 4 Washers for M5 screws
• 1 Operating manual
