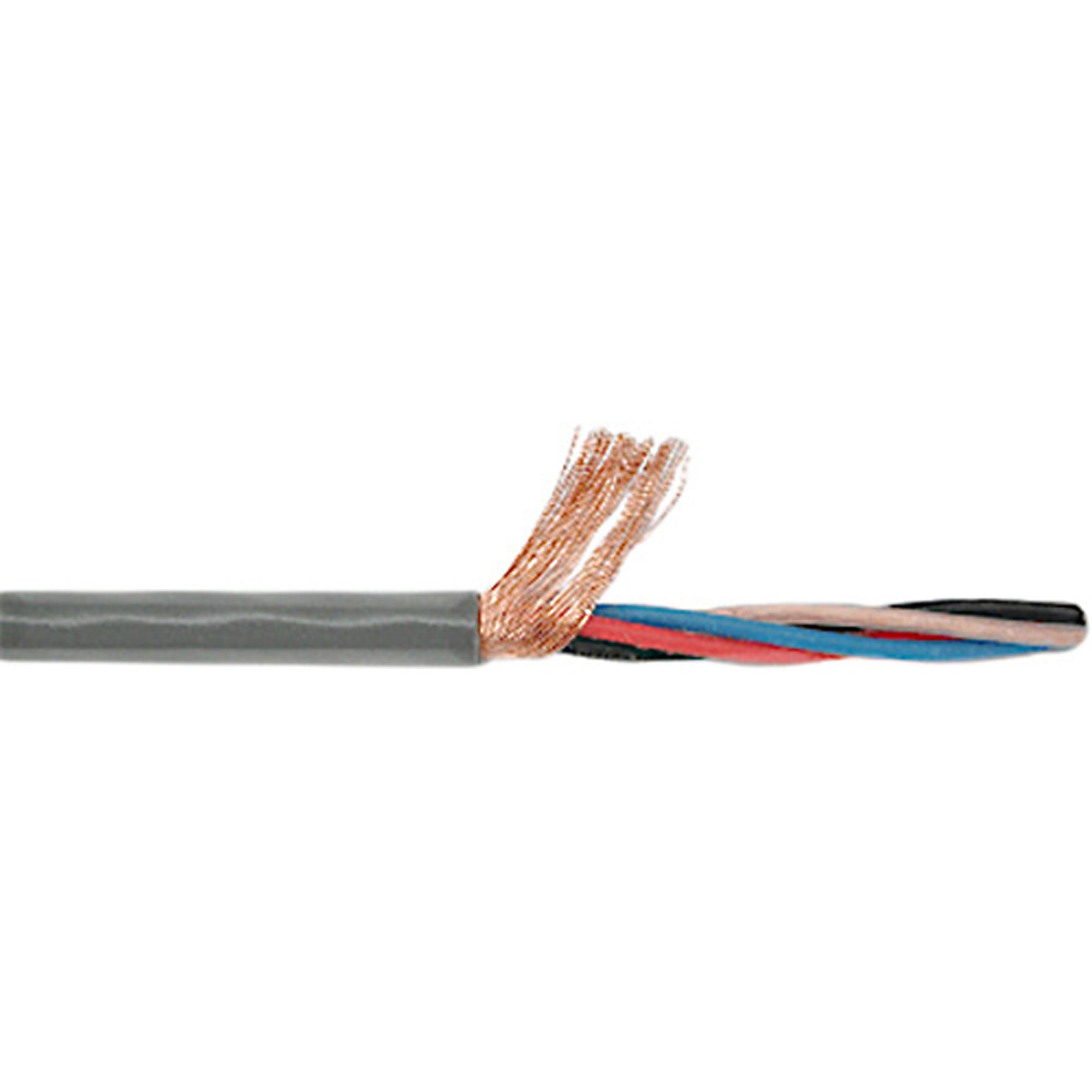

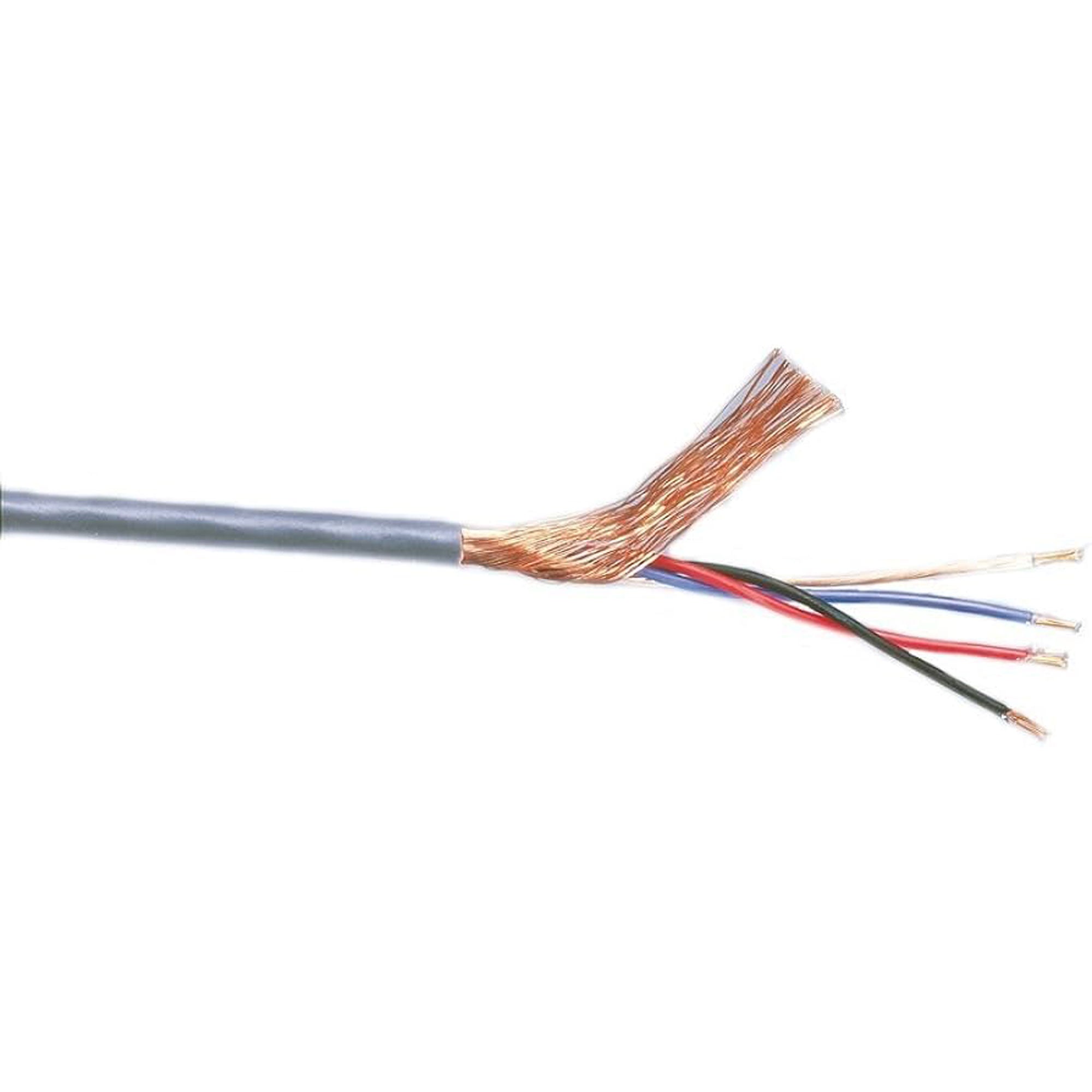

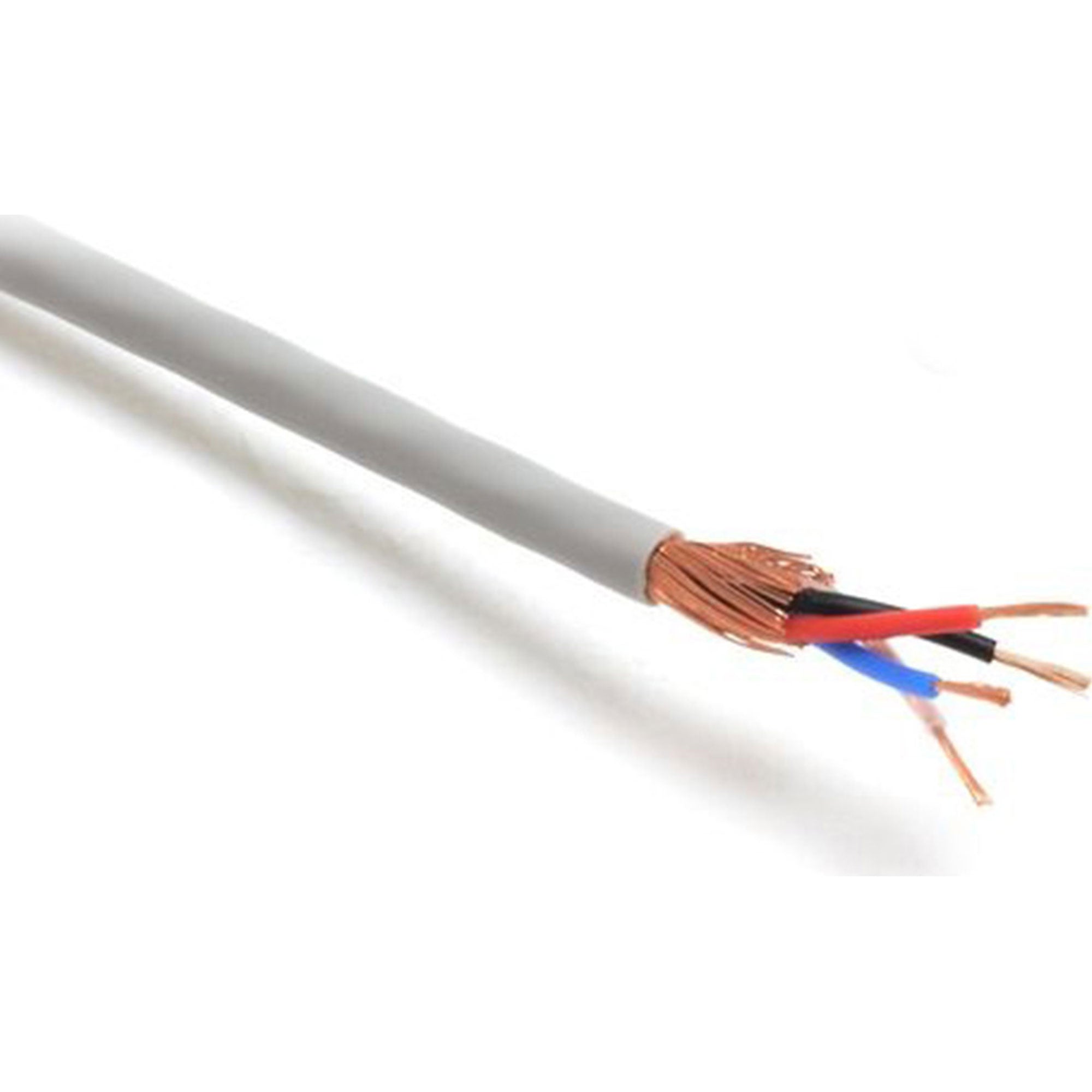

Mogami W2799 Neglex Mini-Quad Console Cable (164'/50m Roll)

4 Conductor 26awg Miniature Quad Console Cable - Full 164'/50m Roll

Miniature Quad High Definition Console Cable Designed for quality wiring of mixing consoles, racks, patch bays and electrical studio equipment. Quad configuration reduces electromagnetic noise. Four different colors of insulation makes it possible to use as a four conductor overall shield cable. Jacket Color: Only Gray is available.

The copper conductors of all these console cables are made of famous NEGLEX OFC, hence we can recommend any of these with confidence for the highest quality wiring of mixing consoles, rack panels, and studio equipment.

Available Colors: Gray

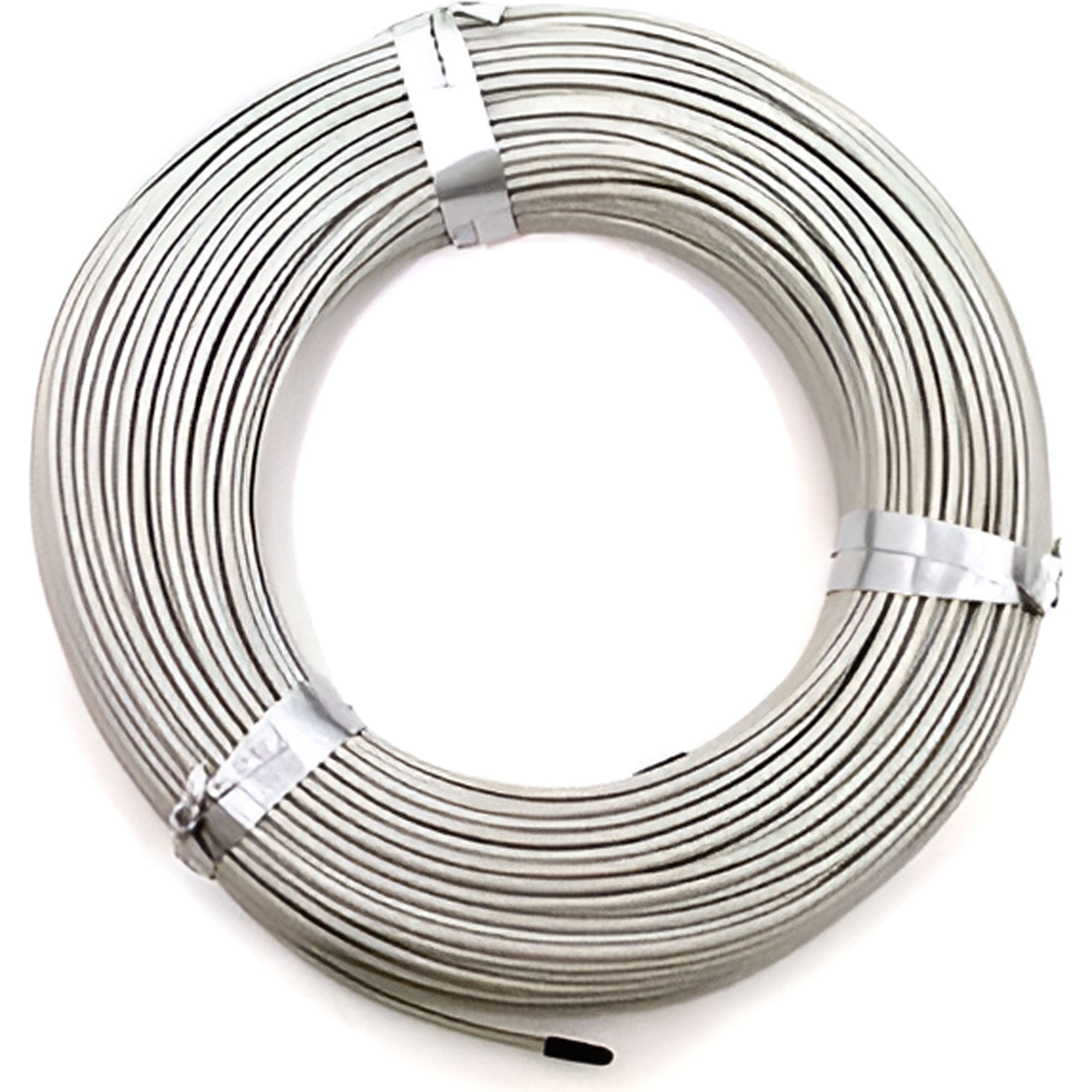

Standard Roll Lengths:

• 164 feet
• 328 feet
• 656 feet

Features:

• Quad configuration reduces electromagnetic noise.
• Four different colours of insulation makes it possible to use as a four conductor overall shield cable.
• Conductor size: same as #W2944
• Jacket Colour: Only Gray is available.
• All cables feature XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering.
• Served (spiral) shield provides easier cable termination and better sound quality than braided shield.

Specifications:

• Part No.: W2799
• No. of Conductor: 4
• Conductor Details: 30/0.08 OFC
• Conductor Size(mm²): 0.15mm² (#26AWG)
• Insulation Ov. Dia.(mm): 1.0Ø (0.039")
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Insulation Core Colors: Black / Red / Blue / Clear
• Served Shield: Approx. 60/0.12A
• Jacket Ov. Dia.(mm): 3.2Ø (0.126")
• Jacket Material: PVC
• Jacket Core Colors: Gray
• Roll Sizes:
  50m (164 Ft)
  100m (328Ft)
  200m (656Ft)
• Weight per 200m Roll: 3.8kg
• DC Resistance at 20°C: Inner Cond.: 0.13Ω/m(0.040Ω/Ft)
• DC Resistance at 20°C: Shield: 0.030Ω/m(0.009Ω/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value):
  K0: 69pF/m(21pF/Ft)
  K1: 15pF/m(4.6pF/Ft)
  K2: 2pF/m(0.6pF/Ft)
  Quad-Connection:
  Cond-Cond.: 131pF/m(40pF/Ft)
  Cond-Shield: 192pF/m(59pF/Ft)
• Inductance between conductors at 1kHz, 20°C: 0.5µH/m(0.15µH/Ft)
• Electrostatic Noise**: 1.5mV Max.
• Electromagnetic Noise: 0.02mV Max.
