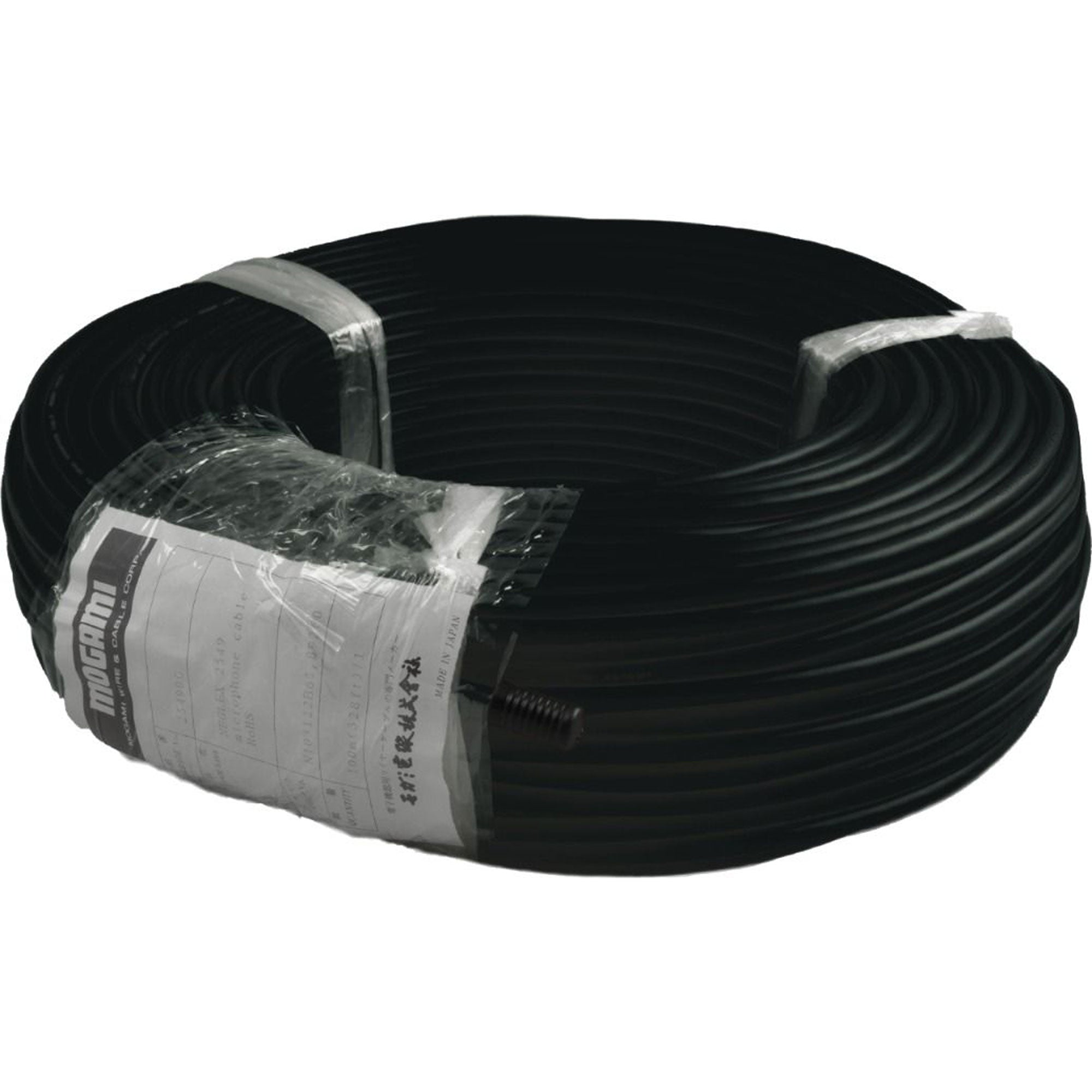

Mogami W2549 Long Run Mic Cable (Black, 164'/50m Roll)

Black 2 Conductor 22awg Long Run Neglex-Type Balanced Microphone Cable - Full 164'/50m Roll

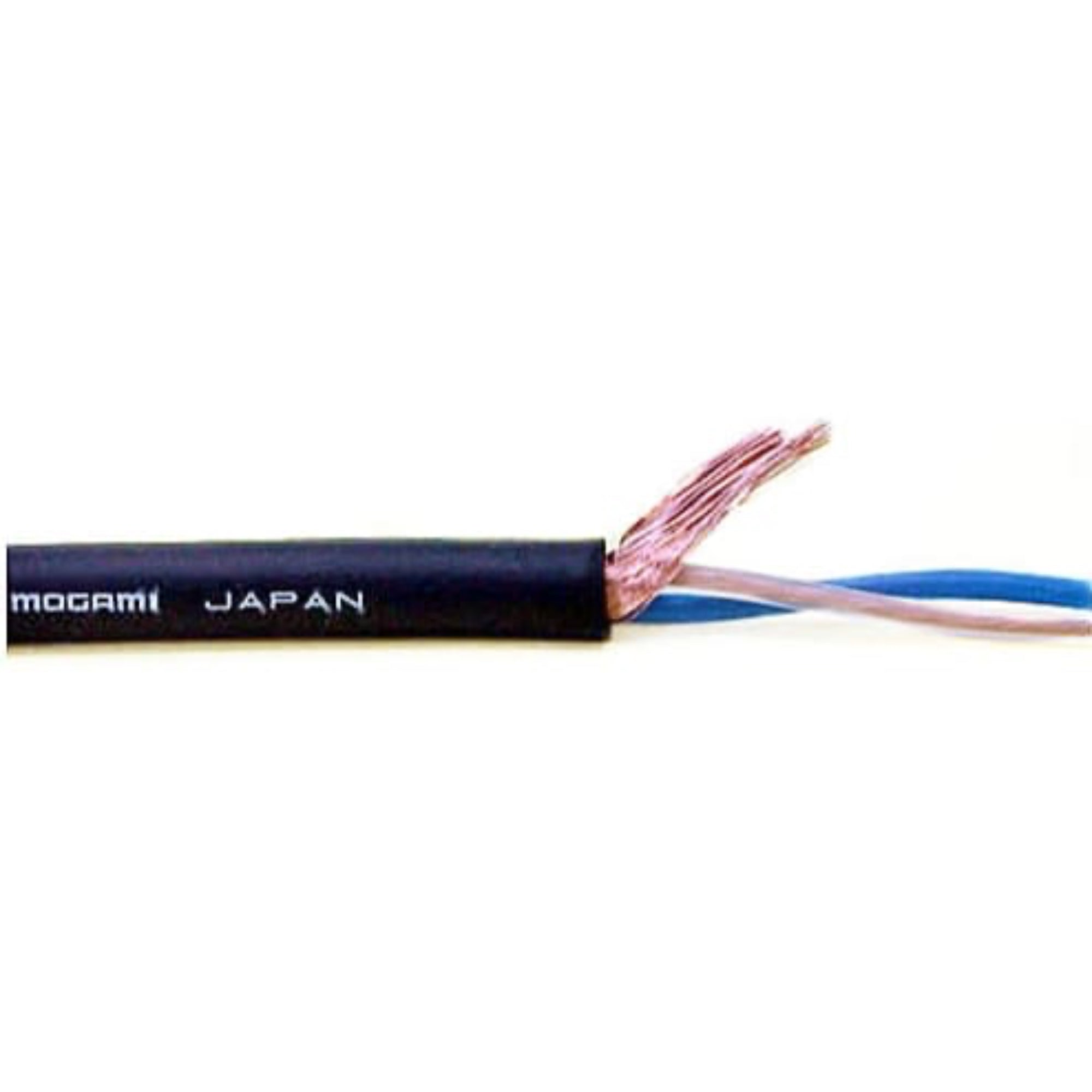

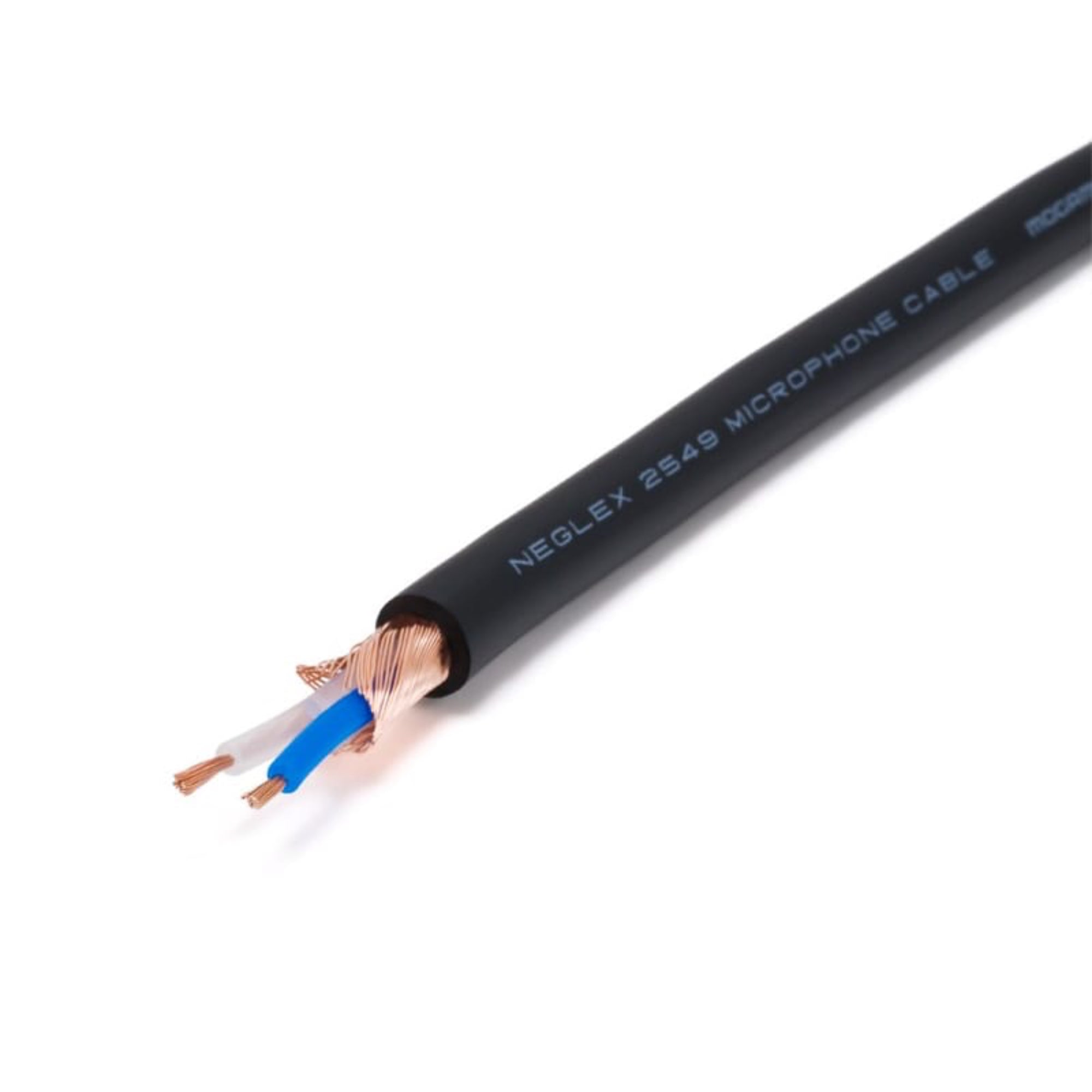

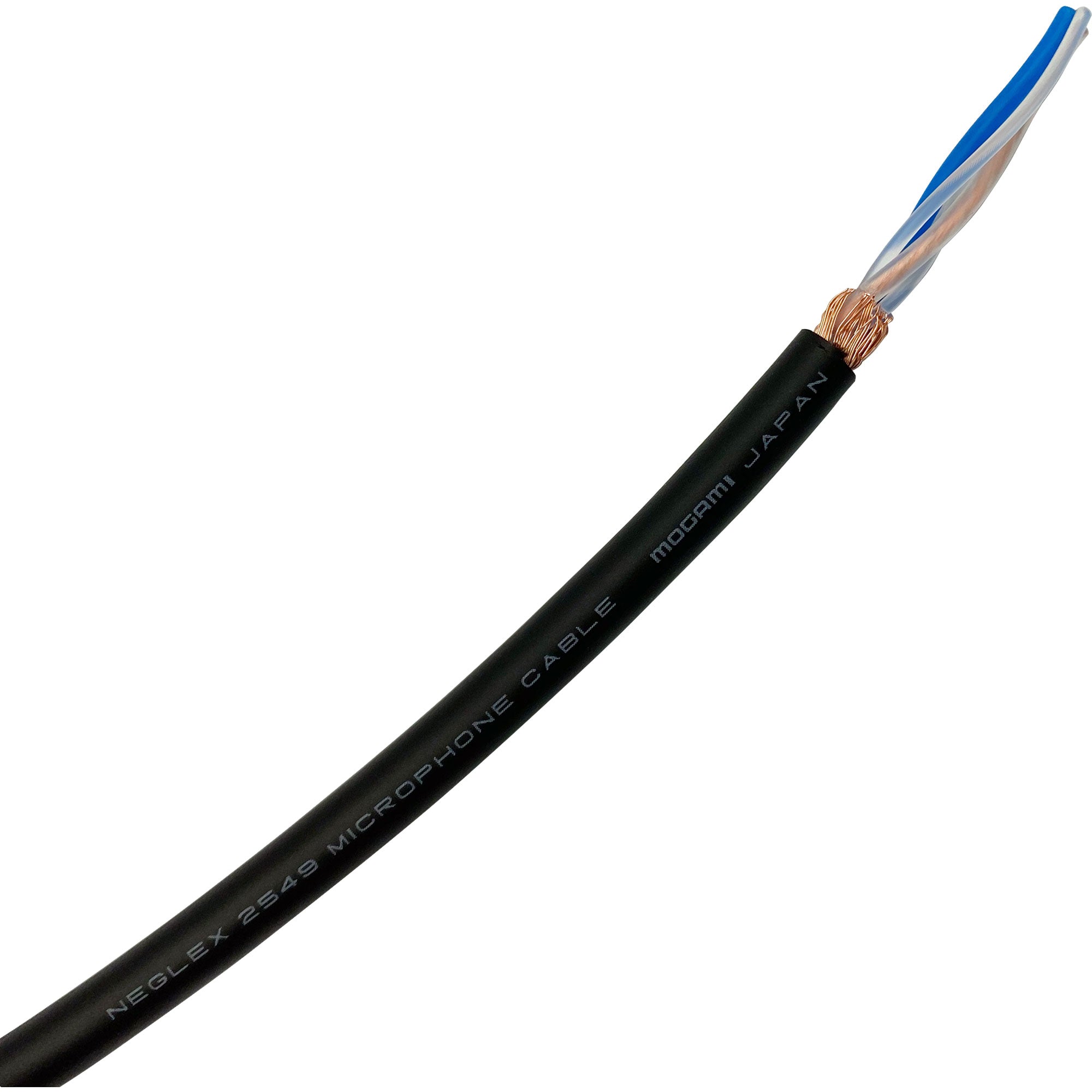

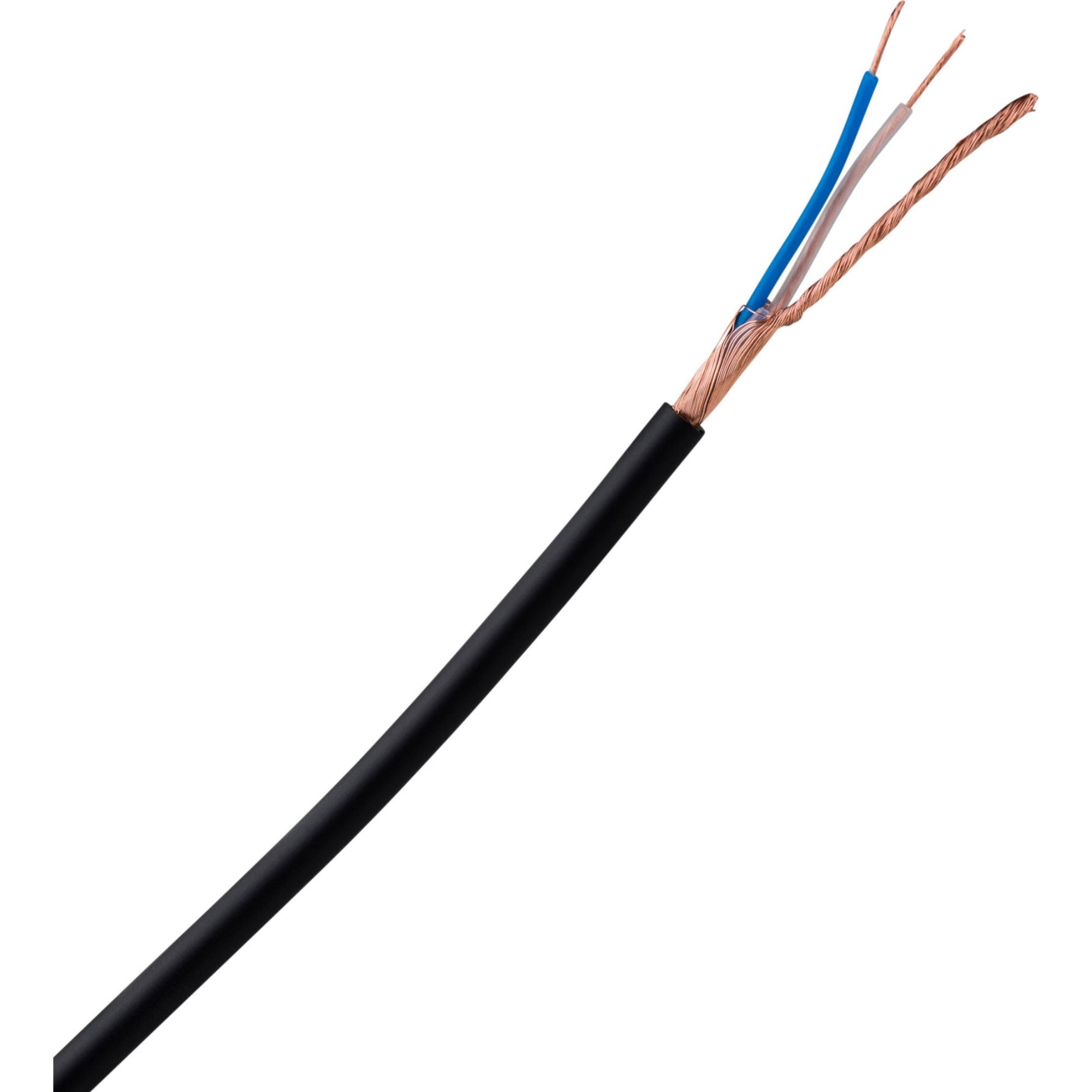

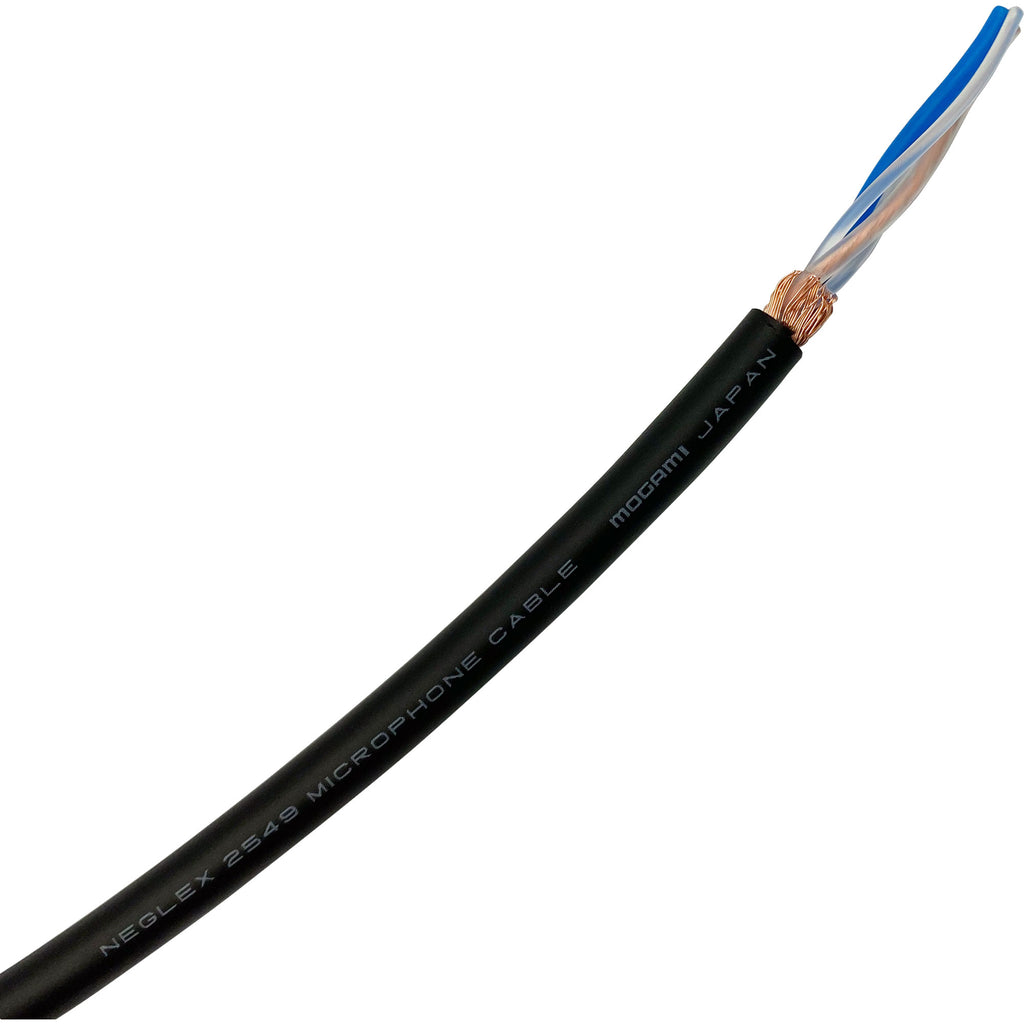

W2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

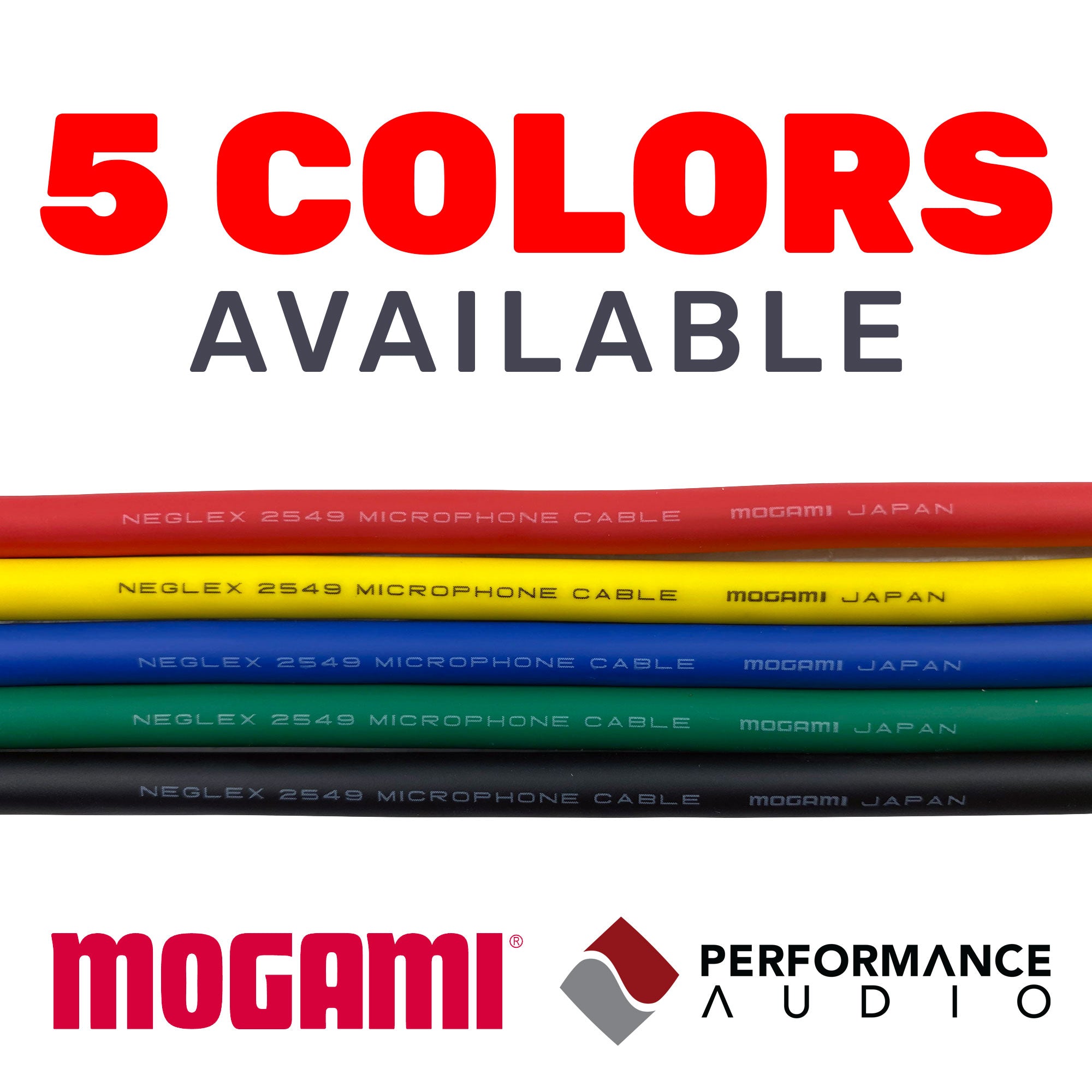

Available Colors: Black, Blue, Green, Red, Yellow

Standard Roll Lengths:
- 164 feet
- 328 feet
- 656 feet

Specifications:

• No. of Conductor: 2
• Conductor Details: 30/0.12 OFC
• Conductor Size(mm²): 0.339mm² (#22 AWG)
• Insulation Ov. Dia.(mm): 1.9Ø (0.075")
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Insulation Colors: Blue / Clear

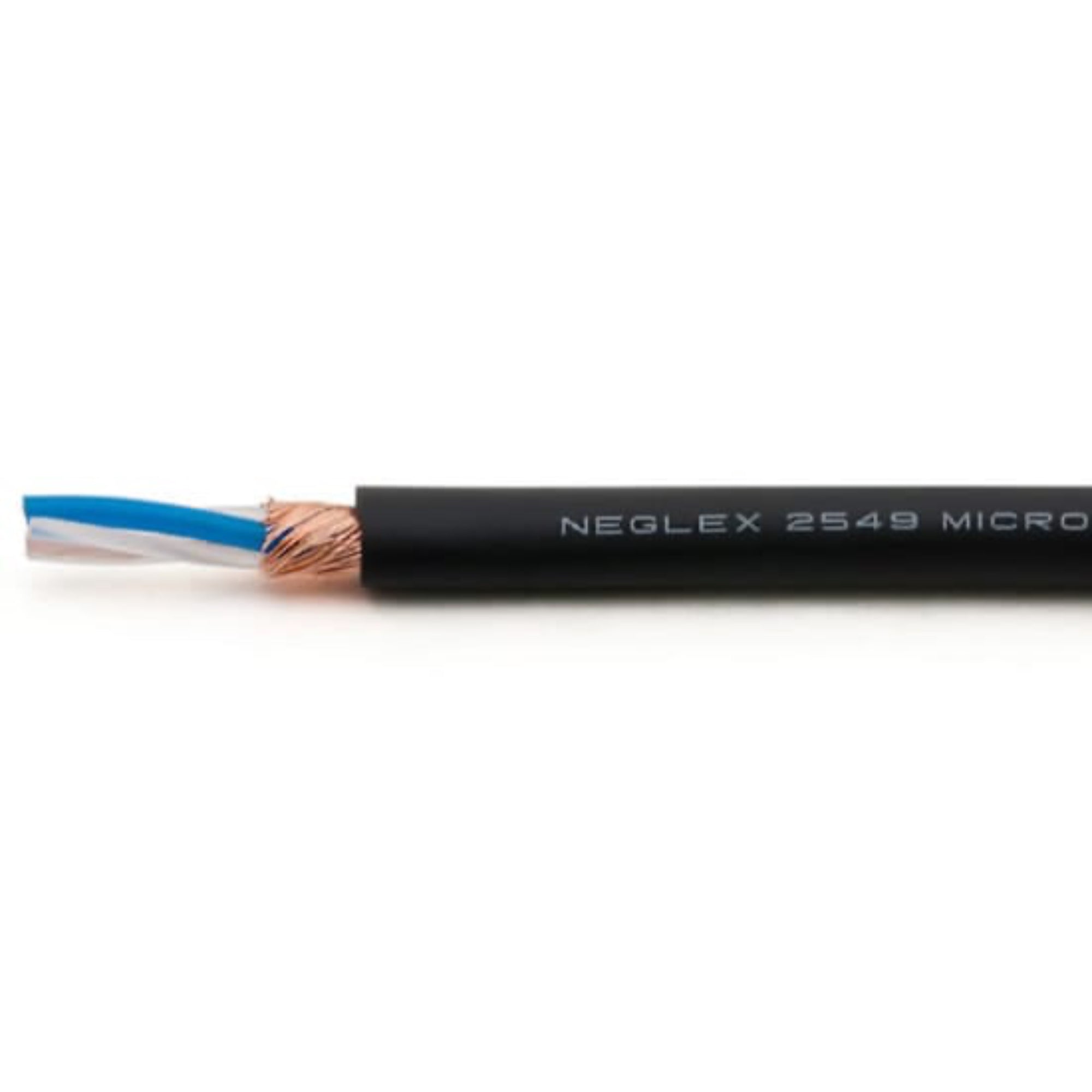

• Shield: Served Approx. 64/0.18A

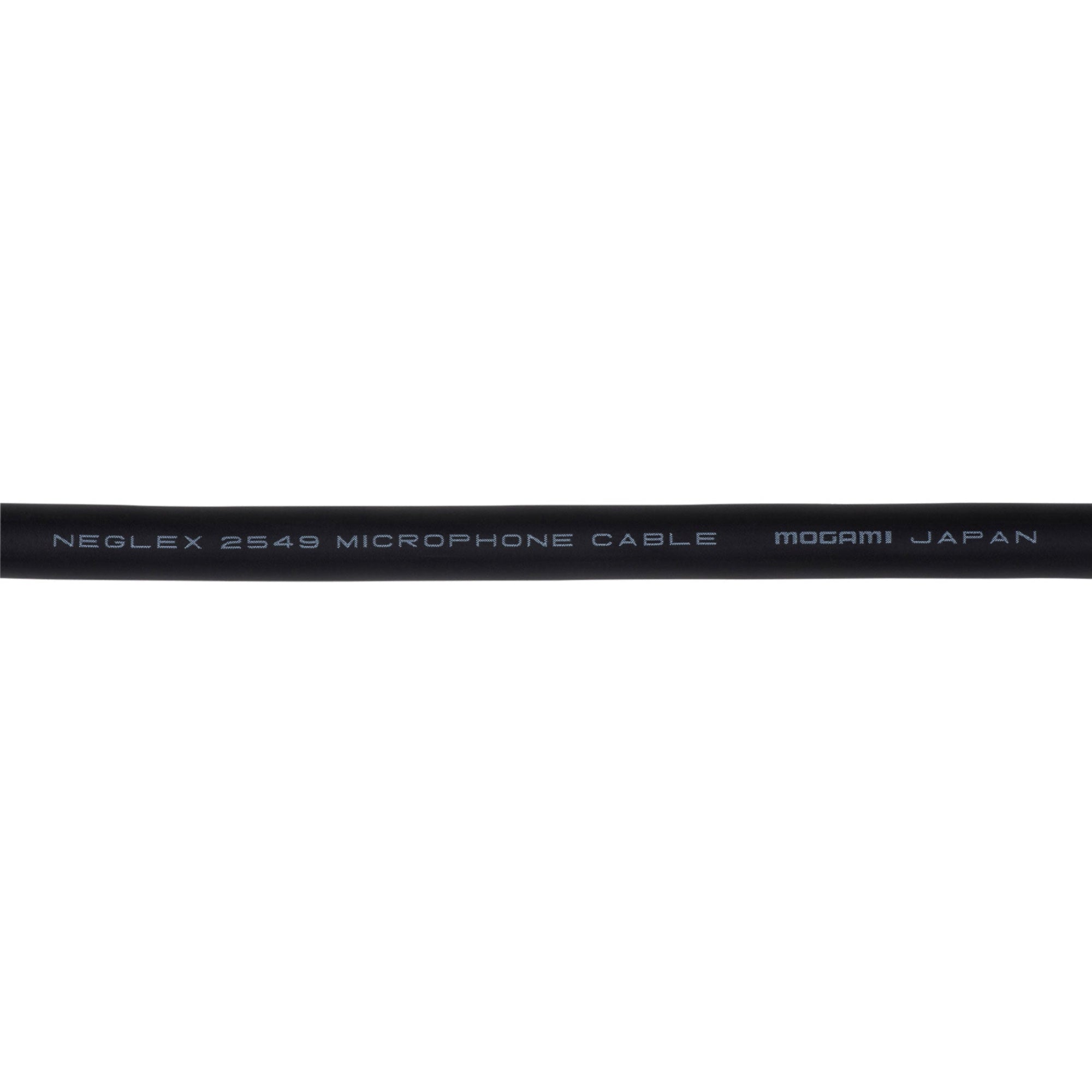

• Jacket Ov. Dia.(mm): 6.0Ø (0.236")
• Jacket Material: Flexible PVC
• Jacket Colors: Black / Red / Yellow / Green / Blue
• Roll Sizes:
  50m (164 Ft)
  100m (328 Ft)
  200m (656 Ft)
• Weight per 200m Roll: 11kg
• ELECTRICAL & MECHANICAL CHARACTERISTICS
• Part No.: W2549
• DC Resistance at 20°C: Inner Cond.: 0.058Ω/m(0.018Ω/Ft)
• DC Resistance at 20°CShield: 0.013Ω/m(0.004Ω/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value)*: K0: 76pF/m(23pF/Ft)
• Capacitance at 1kHz, 20°C (Partial C. Value)*: K1: 11pF/m(3.4pF/Ft)
• Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
• Electrostatic Noise**: 50mV Max.
• Electromagnetic Noise**: 0.15mV Max.
• Microphonics at 50KΩ Load**: 30m V Max.
• Voltage Breakdown: Must withstand at DC 125V/15sec.
• Insulation Resistance: 100000 M Ω x m Min. at DC 125V, 20°C
• Flex Life**: 14,500 cycles
• Tensile Strength: 657N
• Emigration: Non-emigrant to ABS
• Applicable Temperature: -20°C- +70°C(-4°F- +158°F)
• ** Using standard testing methods of Mogami Wire & Cable Corp.
• * Partial Capacitance
