Mogami W2524 Black Pro Instrument Cable (164'/50m Roll)

1 Conductor 20awg Professional Guitar/Instrument Cable - Full 164'/50m Roll

Most musical instrument sound pick-ups such as those in electric guitars are comprised of high impedance circuits driven by voltage, in other words by very small electrical current flow. Therefore, so-called MICROPHONICS (noise) becomes a critical problem. (Microphonics means noise that is generated when the cable is moved and or tapped when the cabling circuit is a high impedance link.) Guitar cables must be counter-measured against this, so, a conductive PVC layer is placed under the shield conductor in most cases even though it may have a bad affect on audio sound quality. Therefore, the conductive PVC (black carbon PVC) layer must be removed together with the shielding conductor when wiring, otherwise we receive a strange claim that the cable is shorting.

Specifications:

• Conductor:
  Details: 50/0.12A
  Size (mm²): 0.565mm² (#20AWG)
• Insulation:
  Ov. Dia. (mm): 2.7 diameter (0.106")
  Material: PE
  Color: Clear

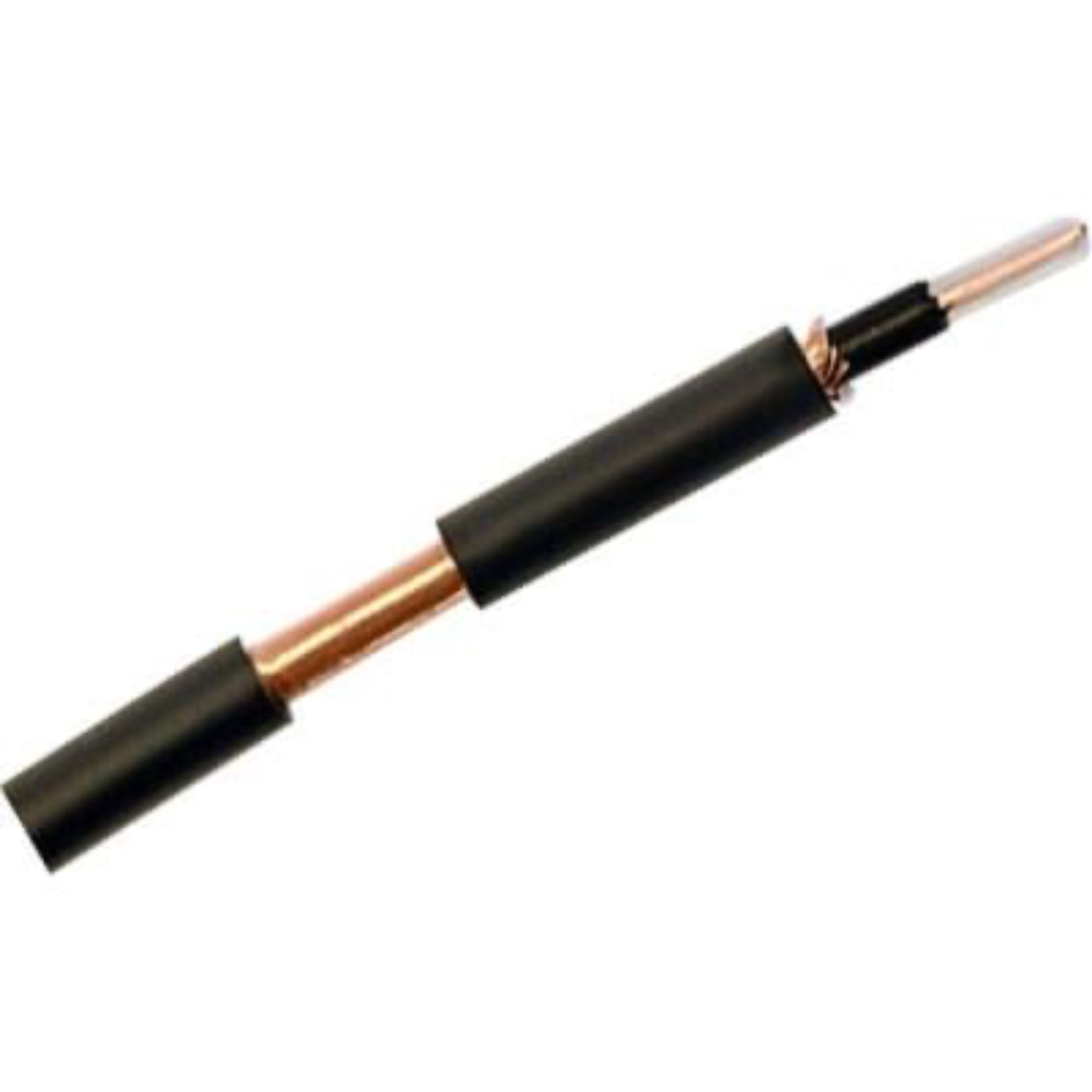

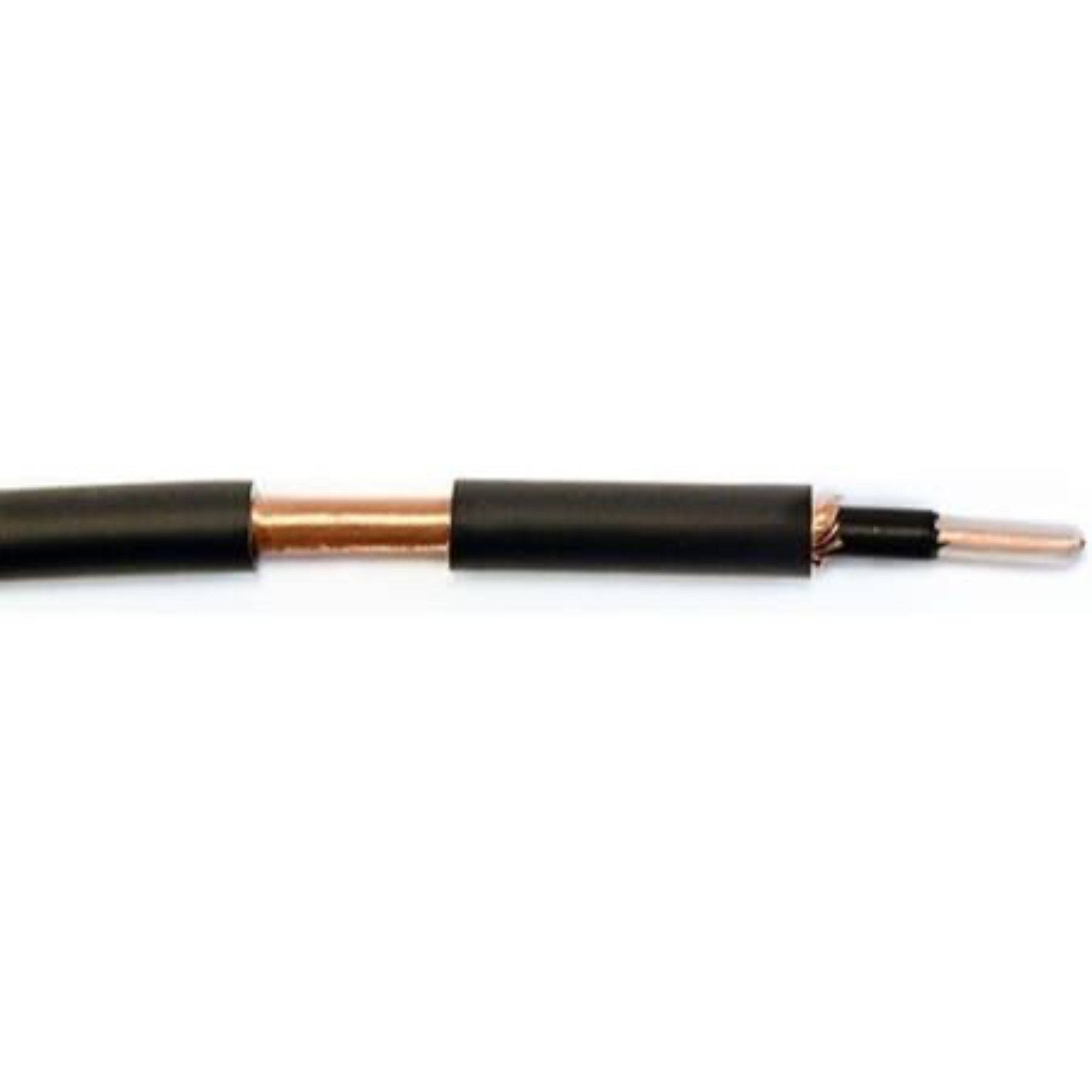

• Sub-Shield:
  Ov. Dia. (mm): 3.3 diameter (0.130")
  Material: Conductive PVC (Carbon PVC)
• Color: Black

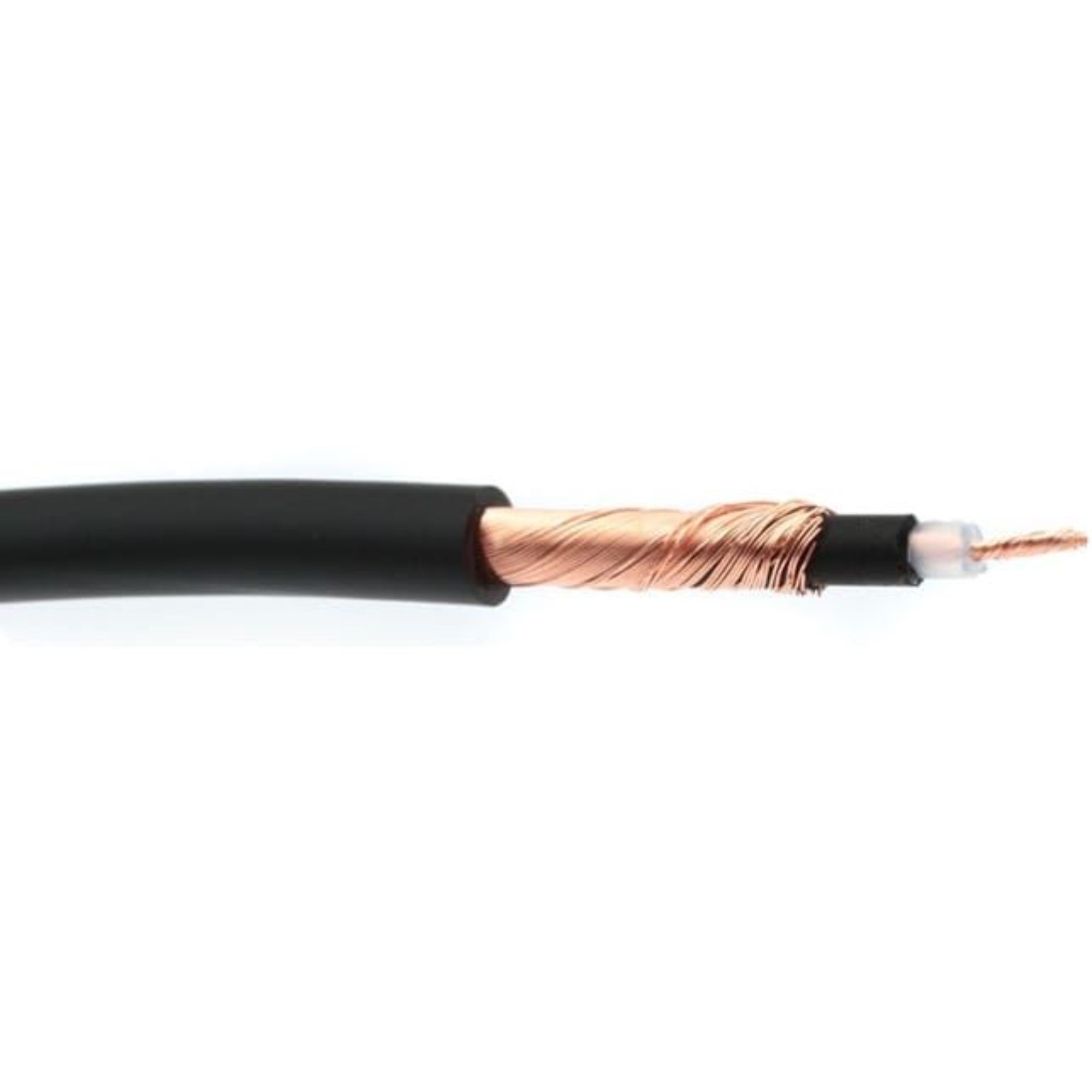

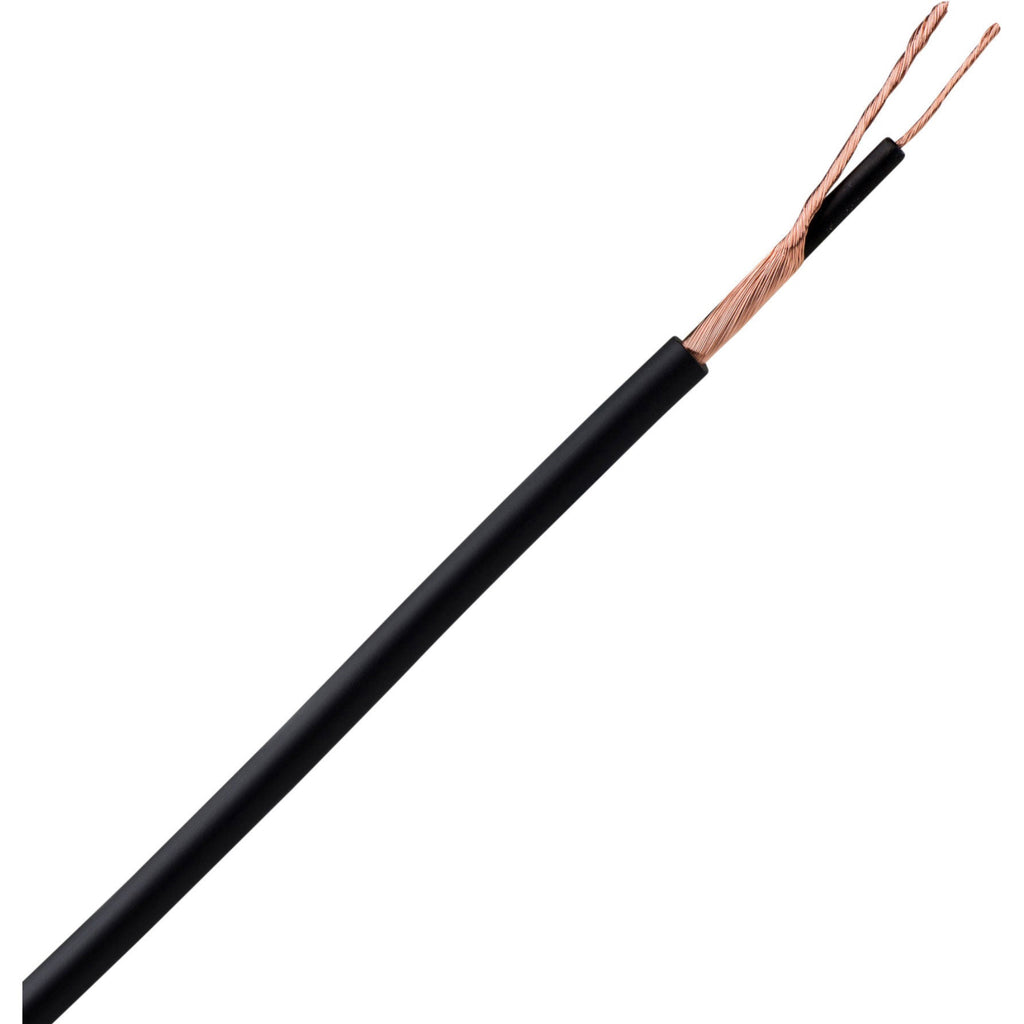

• Main-Shield: Served-Shield: Approx. 55/0.18A

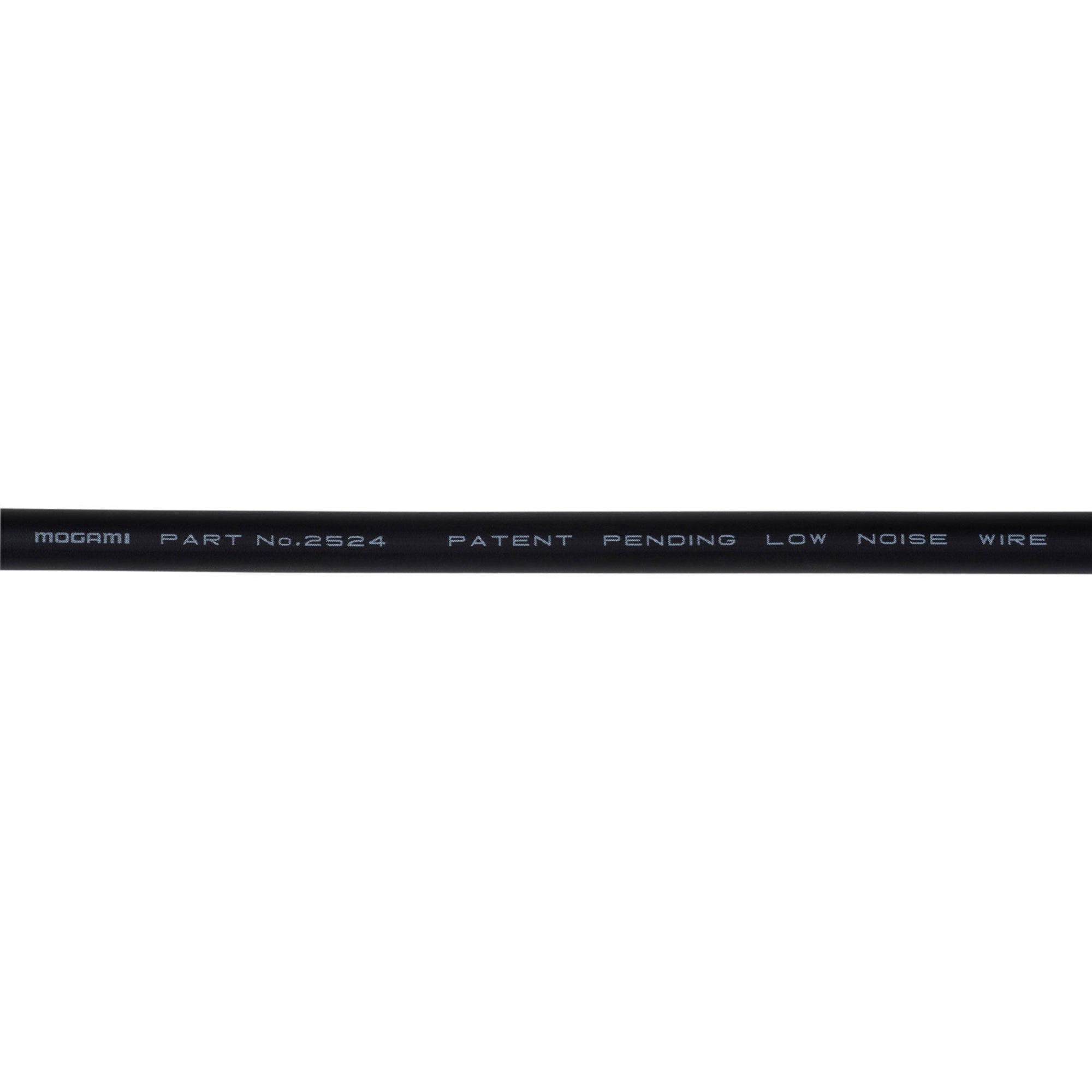

• Jacket:
  Ov. Dia. (mm): 6.0 diameter (0.236")
  Material: PVC
  Color: Black

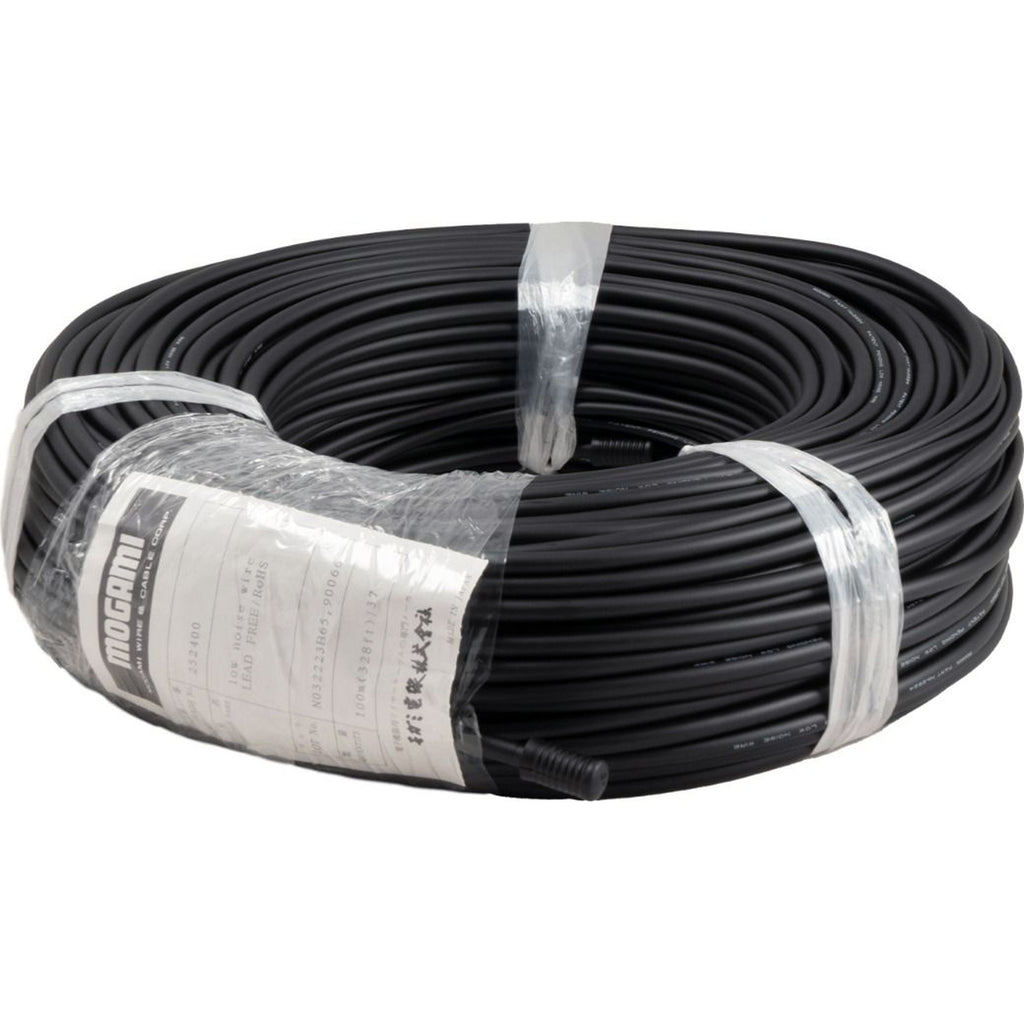

• Roll Sizes: 100m (328Ft) / 200m (656Ft)
• Weight per 100m (328Ft) roll: 5.1Kg
• Available Colors: Black
• Standard Roll Lengths:
  164 feet (50m)
  328 feet (100m)
  656 feet (200m)
• Electrical & Mechanical Characteristics:
• DC Resistance at 20C:
  Inner Conductor: 0.033W/m (0.010W/Ft)
  Shield Conductor: 0.014W/m (0.0043W/Ft)
• Capacitance at 1kHz, 20C: 130pF/m (39.7pF/Ft)
• Inductance: 0.2H/m (0.061H/Ft)
• Electrostatic Noize*: 0.15mV Max.
• Electromagnetic Noise At 10kHz*: 0.07mV Max.
• Microphonics*: 0.3mV Max
• Insulation Resistance: 100000 MW m Min. at DC 500V , 20C
• Flex Life: 15,000 cycles
• Tensile Strength (26C, 65%RH): 578 N
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20C~ +60C (-4F~ +140F)
• * Using standard testing methods of Mogami Wire & Cable Corp.
