Middle Atlantic RSH4A3M Custom Rack Shelf 3U, 14" Deep (Black Brushed)

3 Space (5.25") Black Brushed and Anodized Custom Rack Shelf, 14" Deep, Specify Unit to Mount

You MUST specify Middle Atlantic complete part number or complete brand and model number of the unit to mount. Please specify in the comments section of your order.

All RSH Series Custom shelves are special order only & and are non-returnable.

Full Shelf Kits
RSH4A, 1-5 Spaces - Full Shelf Kit with Black Brushed and Anodized finish. Units up to 5 spaces.
RSH4A, 6 Plus Spaces - Full Shelf Kit with Black Brushed and Anodized finish. Units 6 spaces and larger.
RSH4S, 1-5 Spaces - Full Shelf Kit with Black Textured finish. Units up to 5 spaces.
RSH4S, 6 Plus Spaces - Full Shelf Kit with Black Textured finish. Units 6 spaces and larger.

Faceplates ONLY
AFACE, 1-5 Spaces - Faceplate ONLY with Black Brushed and Anodized finish. Units up to 5 spaces.
AFACE, 6 Plus Spaces - Faceplate ONLY with Black Brushed and Anodized finish. Units 6 spaces and larger.
SFACE, 1-5 Spaces - Faceplate ONLY with Black Textured finish. Units up to 5 spaces.
SFACE, 6 Plus Spaces - Faceplate ONLY with Black Textured finish. Units 6 spaces and larger.

Clamping Kit for ALL RSH Shelf Products
-C - Clamp Kit for RSH Custom Rack Shelves

The Professional's choice for trimming non-rackmount components.

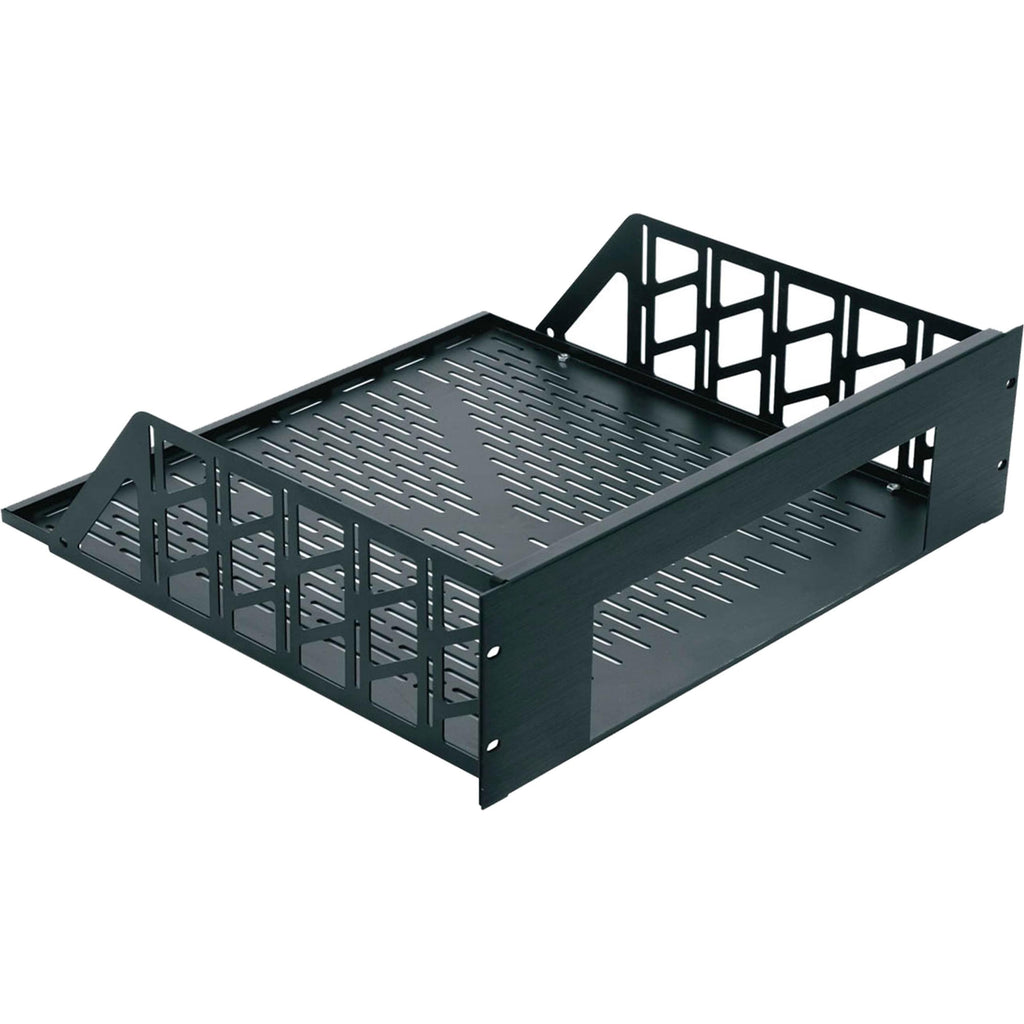

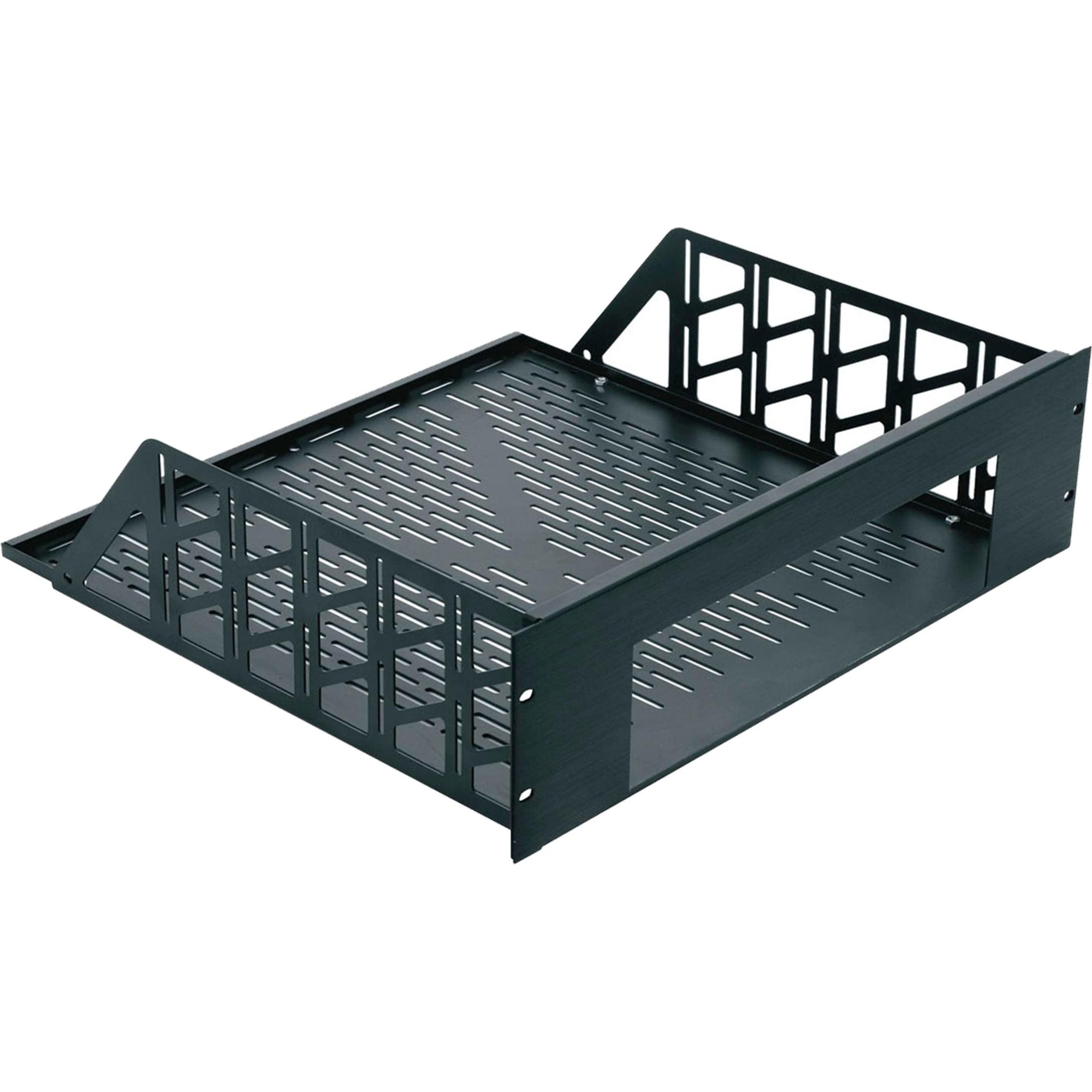

With our innovative RSH custom rackmounts, you can install virtually any component in a standard 19" enclosure without making any modifications. Custom cut to provide a perfect opening for the face of the component you are mounting, each RSH unit provides a neatly-trimmed installation with a perfect fit and no gaps. With accurate details on over 8,000 components in our measured database, chances are we have yours on file. Middle Atlantic Products guarantees your custom rackshelf to be manufactured in 48 hours. Assembles easily in minutes, rear brackets are included to prevent the mounted component from sliding back. A ventilated bottom promotes cooling. Depending upon your needs, the units can be ordered with a black textured finish (model # RSH4S) or a black brushed and anodized finish (model # RSH4A).

Bottom depths are automatically provided in 11-1/2", 14", 15-1/2", 17-1/2", or 20-1/2" styles. Custom rackmounts will accept any component up to 17-3/4" wide.Individual fascias less rack ears are also available in a black textured finish (model # SFACE) or a black brushed and anodized finish (model # AFACE).

Trim Strips also available to cover the rack screws on your rackshelves!

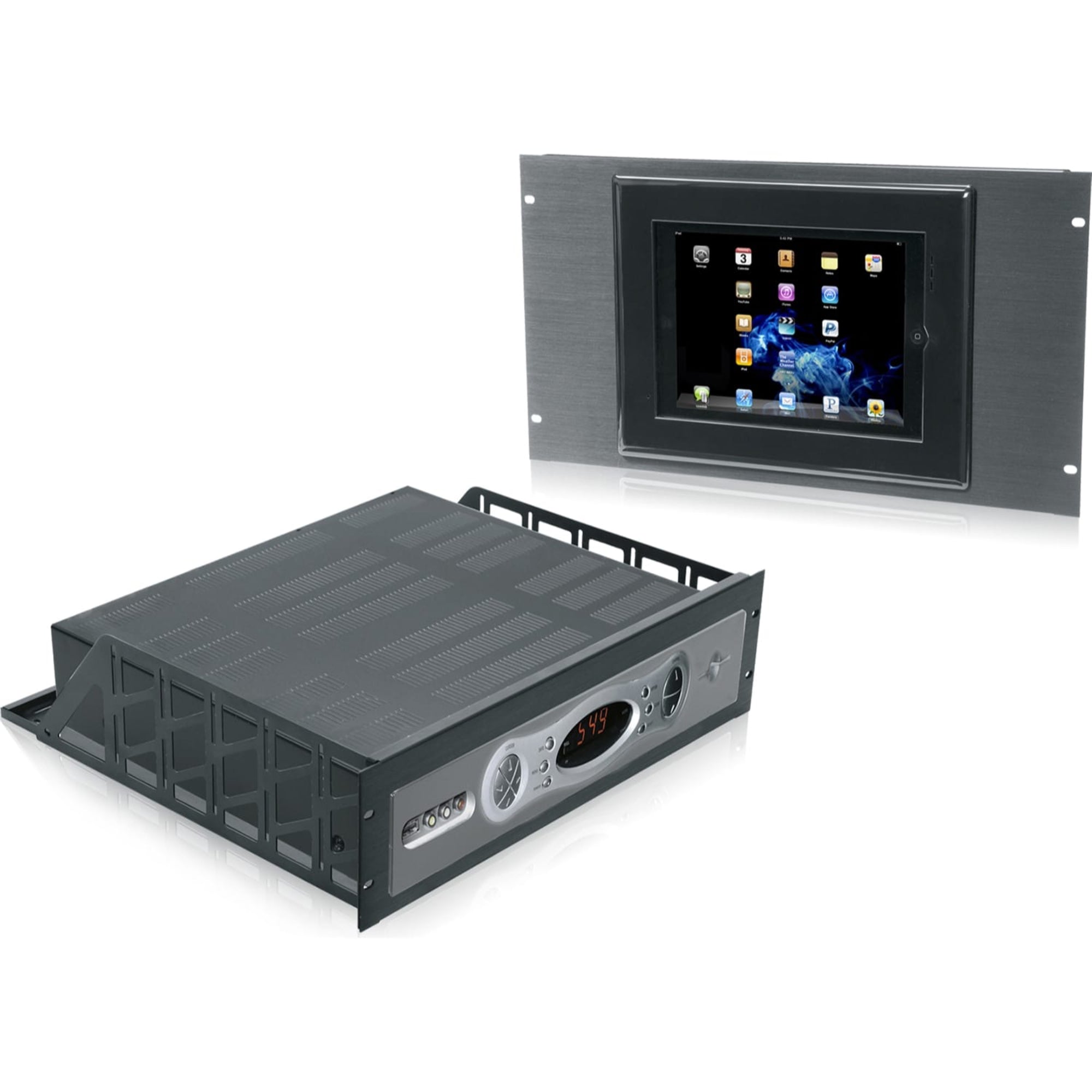

RSH Custom Rackmount for LCD Monitors
Now available! Custom LCD rackmount system to rackmount LCD monitors with up to 17" screen size. Custom LCD mounts feature VESA 75 and VESA 100 mounting hole patterns in the rear bracket to captivate the monitor as well as a custom cut for the specific LCD monitor you are mounting. As with all RSH units, the individual fascias trim the monitor's face and are available in a black textured, black brushed, or silver brushed and anodized finish.

Ordering Instructions
Check Middle Atlantic's measured unit database to see if the dimensions for the component you want to rackmount already exist among the over thousands we keep on file. If we don't have the dimensions, we strongly suggest that you insure the component and ship it to us via UPS so that we may accurately measure it. We will ship the component to you insured, the next day. The completed custom mount will follow within 2 business days. A second ordering option for custom mounting components with dimensions we don't have on file is to FAX us the measurements (please call for instructions on how to do this). The use of dimensions provided in the component's owner's manual is NOT recommended. Please measure carefully as RSH units are custom-made and non-returnable.

RSH4A black brushed and anodized
RSH4S black textured powder coat
-C clamping kit for all above
AFACE black brushed & anodized face plate only
SFACE textured face plate only

Features:

• Precision cut opening provides a clean, professional look, keeps components secure and enables optimal thermal management for system reliability
• Over 11,000 measured components in the growing database
• Guaranteed to be manufactured in 48 hours or less
• Assembles easily in minutes
• Includes rear brackets and clamping options to keep components in place
• Fully ventilated ears and bottom promote cooling airflow
• UL Certified for safety and reliability
• Black textured or black brushed and anodized finish
• Sizes range from 1 to 12 rackspaces
