Key Features
- Slotted Finger Design
- Create Larger Openings
- Keep Cables Hidden
- Cables Exactly Where Needed
- Black Plastic Construction
- Includes Hinged Plastic Covers
- Includes Mounting Hardware
Description

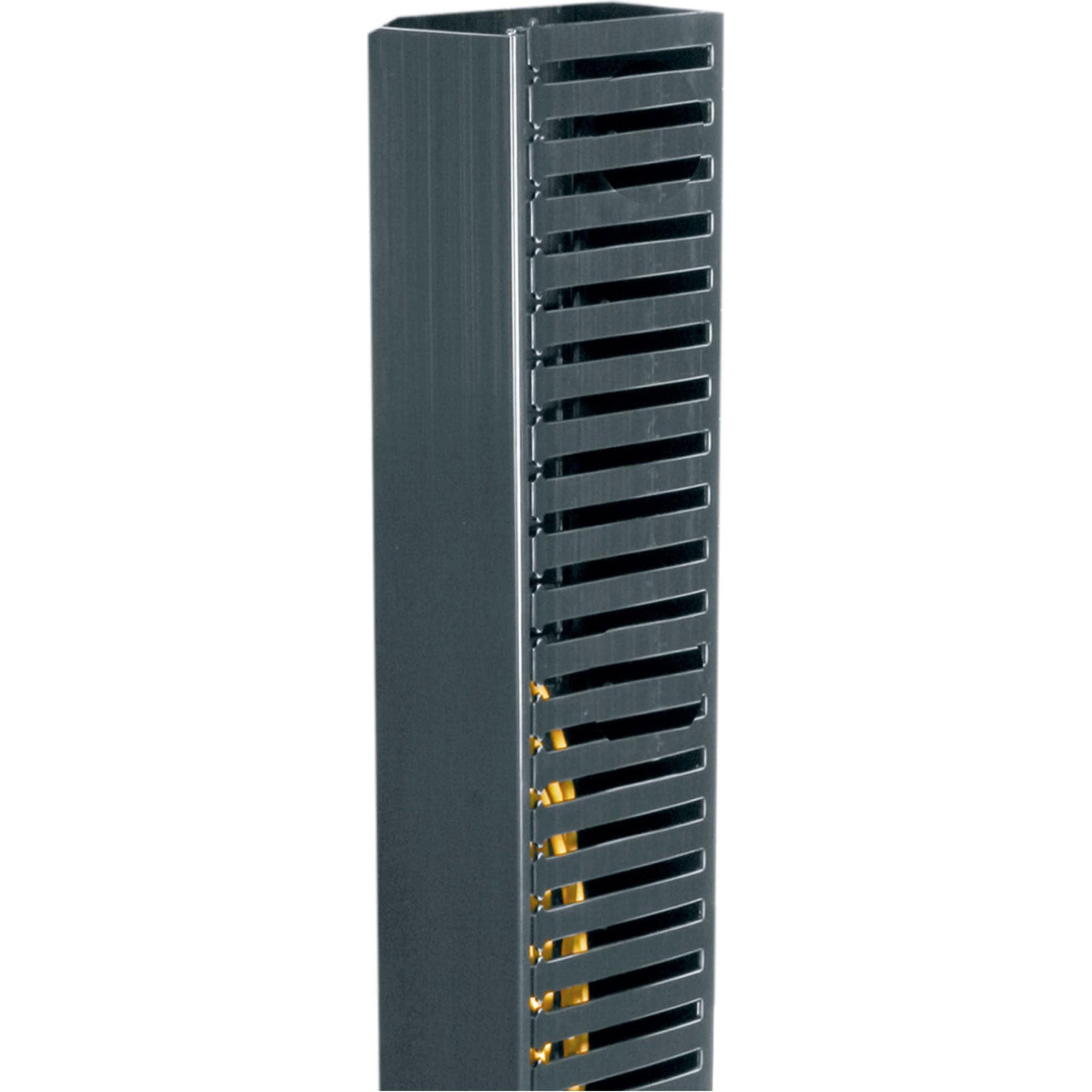

Plastic Cable Management Duct with Cover, Single Channel, 3"W X 3"D X 38 Space, Black Finish

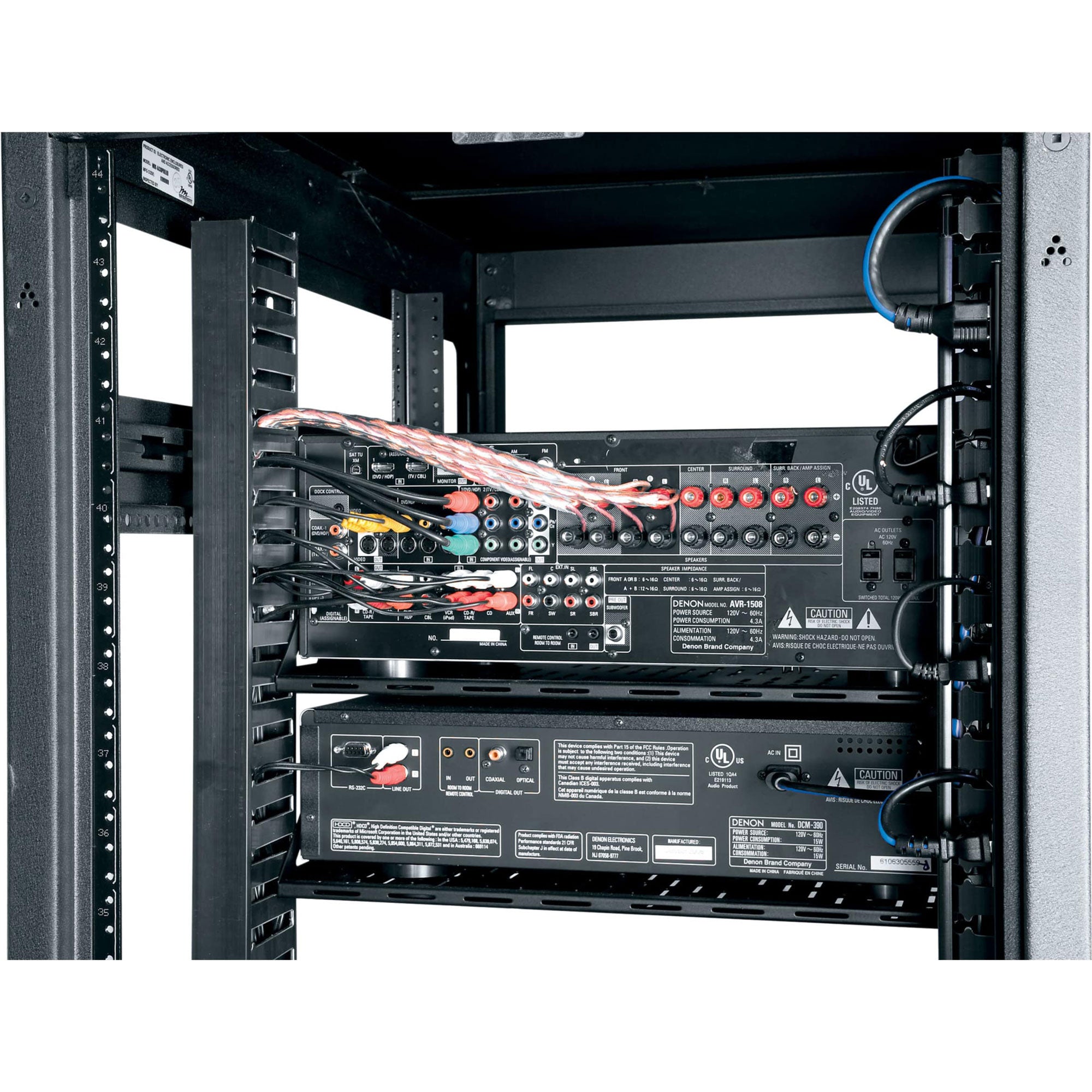

The PCD-3-3-38SC from Middle-Atlantic is a 38RU plastic cable duct designed to protect, route, and organize cables in a standard 2-post or 4-post open frame equipment rack. It has a slotted finger design to allow horizontal cable access, and the fingers can be easily removed for additional capacity. It protects the cable bend radius and is perfect for low-to-medium density installations. This duct is 3" wide and 3" deep, and is designed for single channel applications. Mounting hardware for rack installation is included.
Features:
- Available in a range of widths and depths to meet project needs
- Slotted finger design allows cable exit exactly where needed
- Fingers can be easily removed to create larger openings
- Includes hinged plastic covers
- Includes mounting hardware
Specifications:
- General Info
- finish: Black
- Component Type: vertical inside
- Listing Agencies/Third Party Information
- RoHS: Yes
- Greenguard: Yes
- Dimensions
- Depth U S: 3.06
- Height U S: 68
- Width U S: 3
- Primary Package Weight U S: 11.4
- Rack Units: 38
- Technical Information
- Material: Steel
Details
- Manufacturer: Middle Atlantic
- MPN: PCD-3-3-38SC
- Model Number: PCD-3-3-38SC
- UPC: 656747114632
