Middle Atlantic IFTA-3 Fan System (3 Fans, 220V)

Fan Tray System with 3 Fans, 220V Version

220V Version

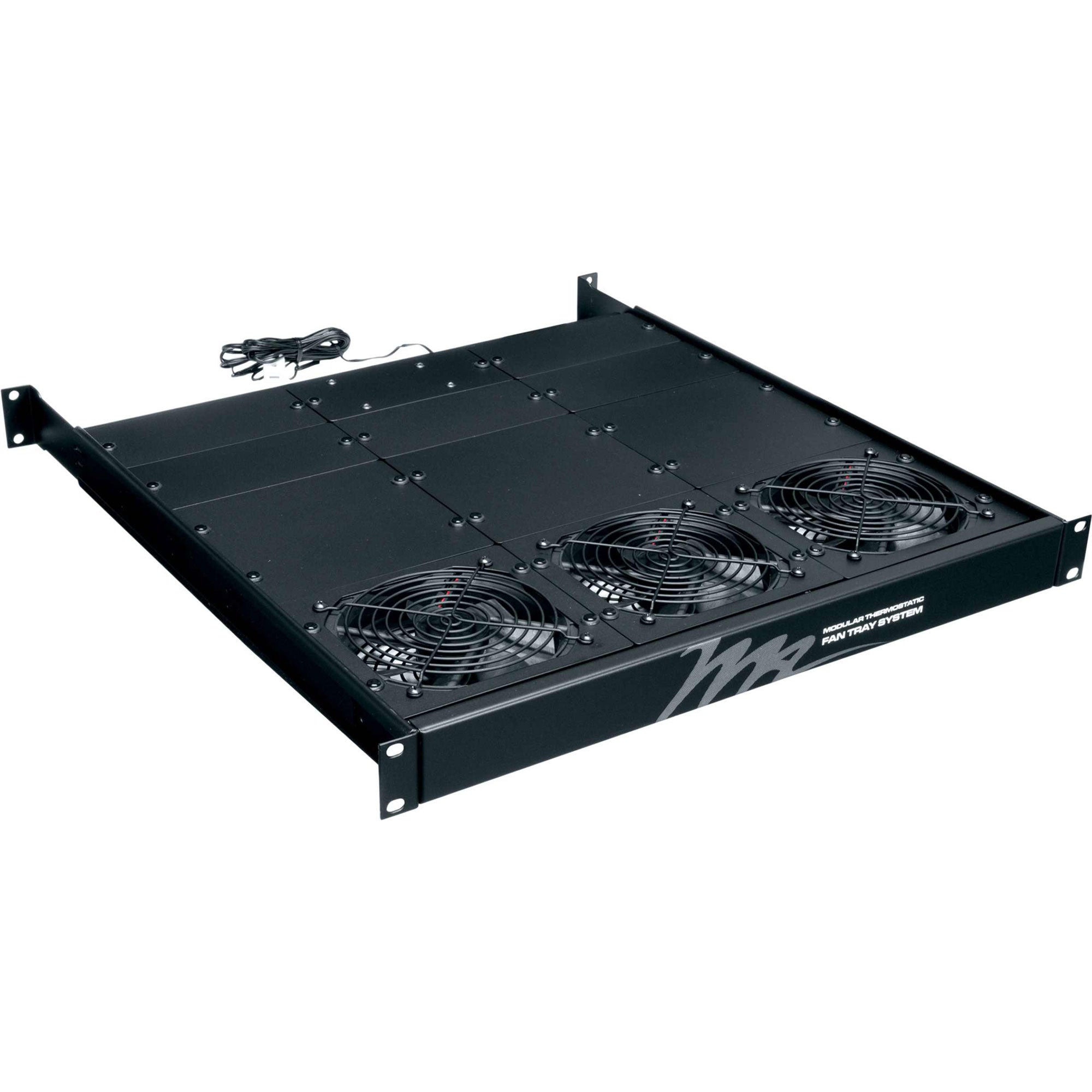

The Middle Atlantic IFTA-3 FAN System features three 4" (10.16 cm) DC fans (69CFM per FAN) in a tray, that when placed above the equipment vents, drive hot air away helping the unit maintain an optimum temperature.

Positions of the tray can be easily configured via the unique sliding rail system. The tray can be adjusted to be at the front or at the rear, or even front-to-back to match vent positions. With thermostatic control, the fans automatically turn on when the temperature reaches 87F/30C, and turn off at 85F/29C, for higher energy savings.

Powered by a single cord, the IFTA-3 uses a single rackspace, and has an adjustable mounting range of 18 to 32" (45.72 to 81.28 cm).

Features:

• Features three 4" DC fans (69CFM per FAN) in a tray, that when placed above the equipment vents, drive hot air away, helping the unit maintain an optimum temperature
• Allows easy configuration of the tray positions via a unique sliding rail system
• Offer tray adjustments at the front or at the rear, or even front-to-back to match vent positions
• With thermostatic control, the fans automatically turn on when the temperature reaches 87F/30C, and turn off at 85F/29C, for higher energy savings
• Draws power via a single cord
• Uses a single rackspace
• Provides an adjustable mounting range - 18 to 32" (45.72 to 81.28 cm)

Specifications:

• General Info
• finish: Black Powder Coat
• Component Type: Active
• Assembly/Installation Information
• Mounting Points: 4
• Listing Agencies/Third Party Information
• RoHS: Yes
• Dimensions
• Mounting Depth Max: 32
• Mounting Depth Min: 18
• CF M: 207
• Depth U S: 18.1
• Height U S: 1.75
• Width U S: 19
• Rack Units: 1
• Technical Information
• Material: Steel
