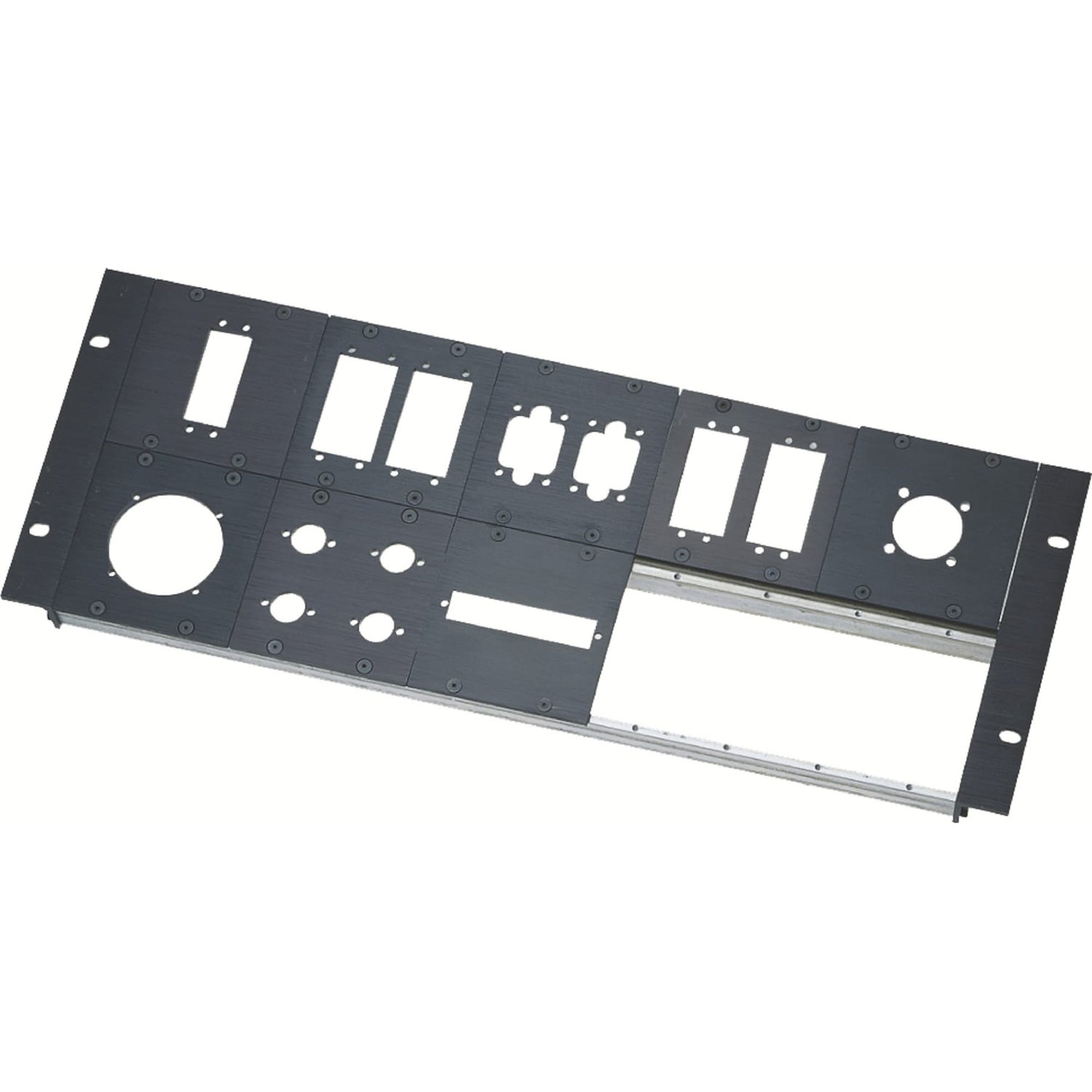

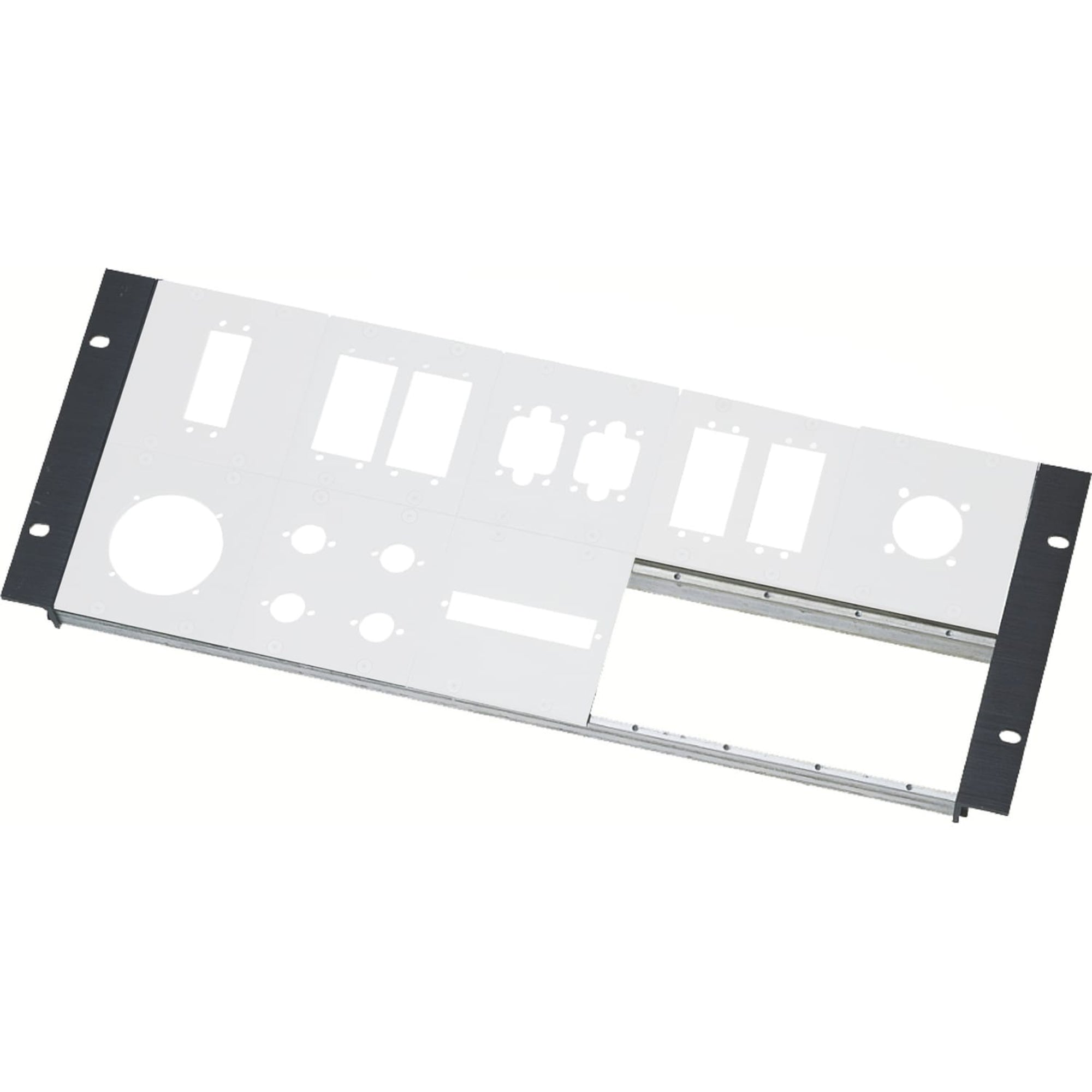

Middle Atlantic FK4 Frame Kit for UCP Custom Panels 4U

4 Space (7") UCP Frame Kit with Hardware

This FK4 4U UCP Frame Kit with Hardware from Middle Atlantic allows for rear access to your modules. This unit features captive thumbscrews that keep the frame closed. The kit comes complete with a pair of threaded FK bars and all mounting hardware. It occupies 4U (7") of rackspace.

The FK4 is 4 rack units high. For 2-space installations, order the FK2 instead.

Build Custom Panels
Build rackmount electronics panels to your own specifications using the FK4 Frame. Choose from a wide selection of precut modules to put in your frame including BNC, XLR, Phono, BANA, Socapex, Multipin, DB, Combo, and DL Series punchouts, among others. You can also install blank and vented modules in the ten module slots of the FK4.

Compatible with:

UCP Series Connector Punchout Modules

XLR Female: UCP-UNIV1, UCP-UNIV2, UCP-UNIV3, UCP-UNIV4, UCP-UNIV6
XLR Male: UCP-XLRM6
Combo Male/Female: UCP-COMBO2, UCP-COMBO4, UCP-COMBO6
Circular Flange, 4 Bolt: UCP-4SC1, UCP-4SC3
Multipin Elco: UCP-1ELCO38, UCP-1ELCO56, UCP-1ELCO90, UCP-1ELCO120, UCP-2ELCO38, UCP-2ELCO56, UCP-2ELCO90
Multipin Whirlwind: UCP-1W1, UCP-1W2
1/4", 3/8" and 7/16" Holes for Jacks, Switches, LEDs, etc.: UCP-3/8X1, UCP-1/4X2, UCP-3/8X2, UCP-1/4X4, UCP-3/8X4, UCP-7/16X4, UCP-3/8X6, UCP-3/8X8
Canare BNC: UCP-CANARE4
Cannon DL Series Multipins: UCP-2DL96
DB Multipin: UCP-1DB9, UCP-2DB9, UCP-3DB9, UCP-4DB9, UCP-2DB37, UCP-1DB15, UCP-2DB15, UCP-1DB25, UCP-2DB25, UCP-2DB50
BNC: UCP-1/2BNC1, UCP-1/2BNC2, UCP-1/2BNC3, UCP-3/8BNC4, UCP-1/2BNC4
Twistlock: UCP-TW2B, UCP-TW3B
DUP: UCP-DUP1, UCP-DUP2
Socapex 19-Pin: UCP-SPX-19
Universal Dual Banana: UCP-BANA2, UCP-BANA4, UCP-BANA6
Vent Module: UCP-VT
Blank Modules: UCPB1, UCPB2, UCPB3

Features:

• Four space frame holds 10 UCP modules
• Visible parts have a black brushed and anodized finish
• Strong aluminum construction
• Includes fasteners to mount modules

Specifications:

• General Info
• finish: Black Powder Coat
• Connection Type: Mounts all modules
• Assembly/Installation Information
• Mounting Points: 2
• Listing Agencies/Third Party Information
• RoHS: Yes
• Greenguard: Yes
• Dimensions
• Depth U S: 0.75
• Height U S: 7
• Width U S: 19
• Primary Package Weight U S: 0.95
• Rack Units: 4
• Technical Information
• Material: Aluminum
