Key Features
- Ready-to-Assemble Design
- Electrical Knockouts on Rear Plates
- Laser-Cut 1/8" Thick Steel Braces
- 10-32 Threaded Rackrail
- Adjustable Rackrail with Numbered Spaces
- 1000 lb. Weight Capacity
- Black Powder Coat Finish
Description

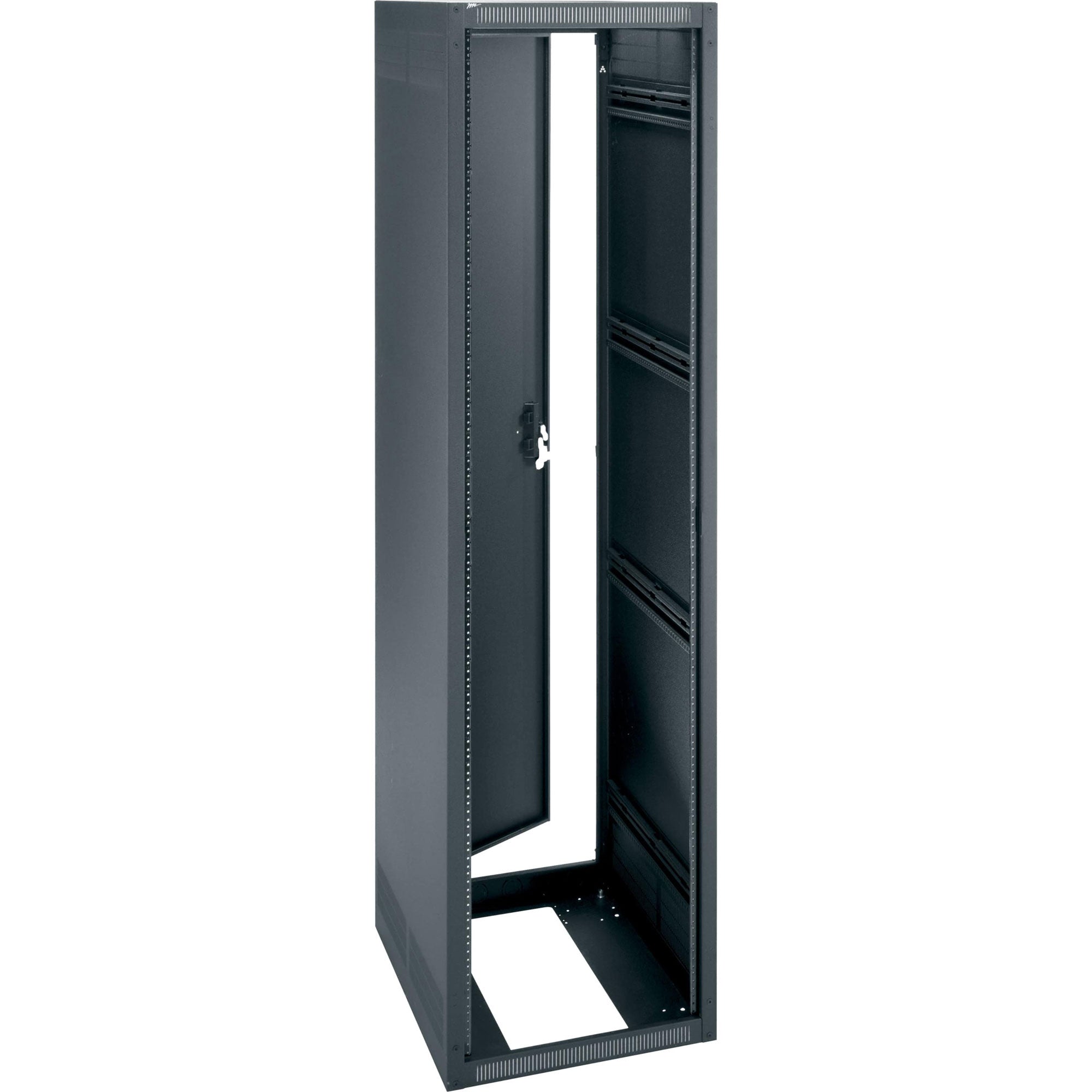

44 Space (77"), 25" Deep Ready to Assemble Stand Alone Rack with Rear Door, Black Finish
The Middle Atlantic ERK-4425KD Ready to Assemble Stand-Alone Enclosure supports up to 1000 lb (453kg) of load, and consists of a pair of fully adjustable front rackrails, and 16-gauge steel tops / bottoms / sides. The enclosure system has 44U of rack spacing, and 25" (63.5cm) of depth.

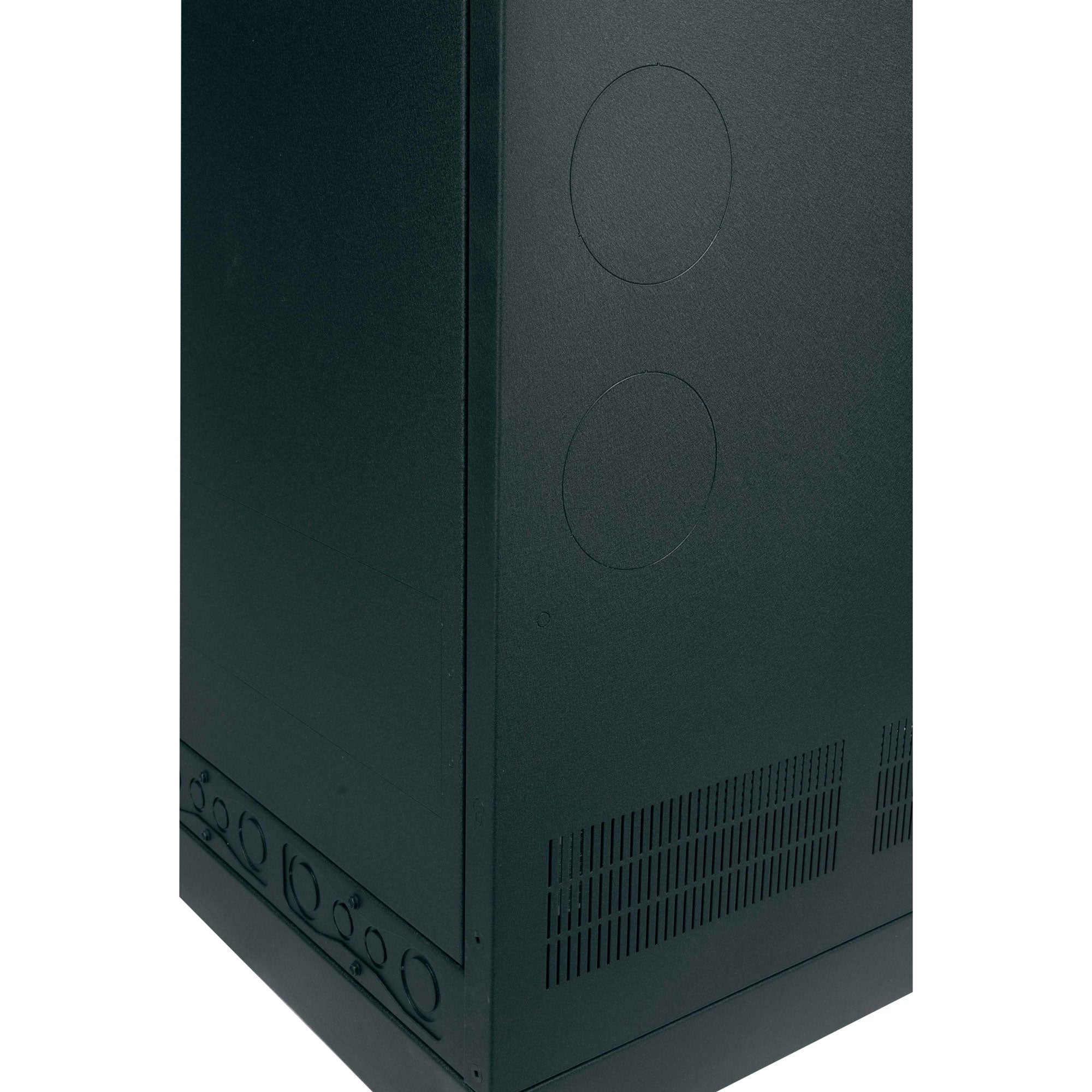

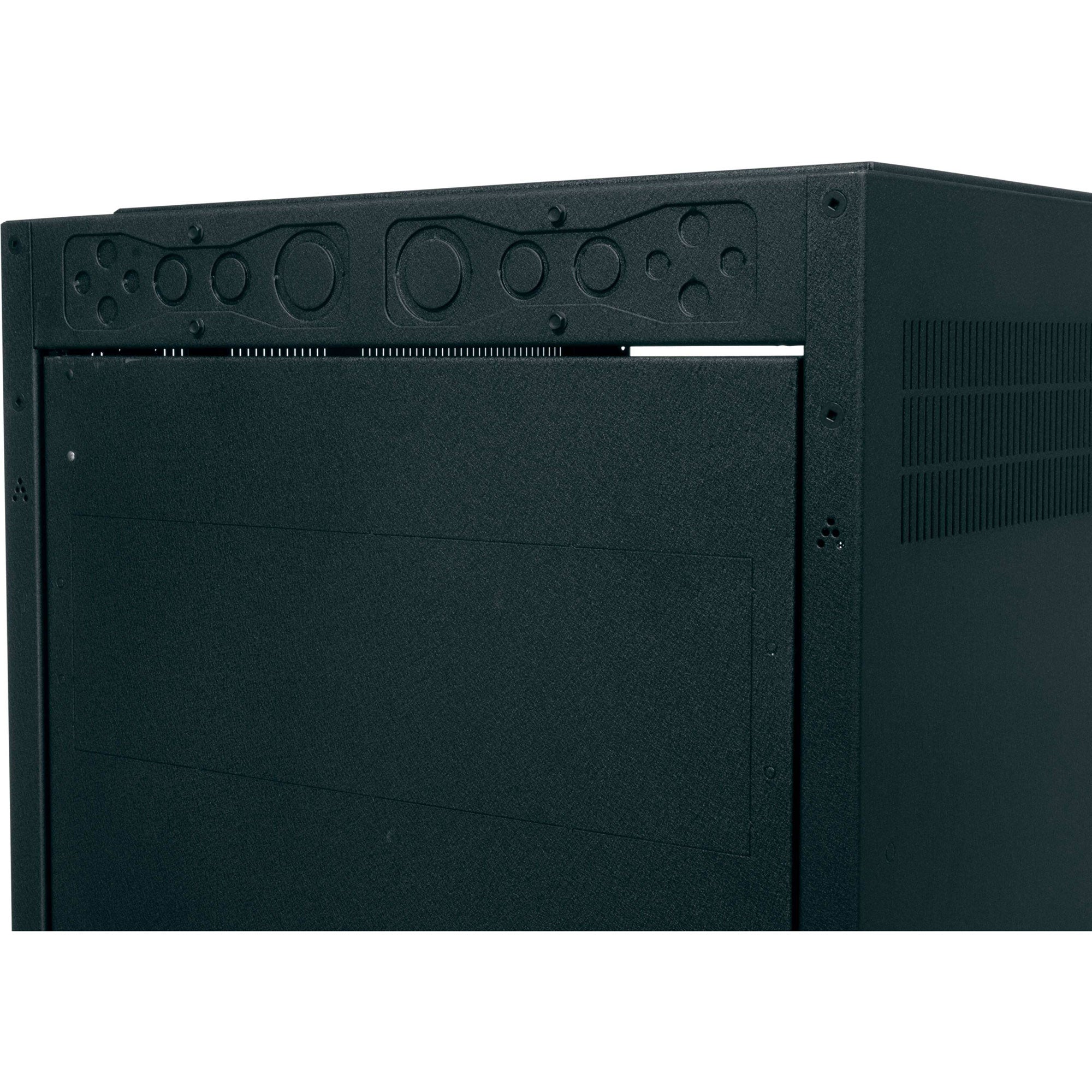

A large cable entry has been provided at the bottom, and 1/2", 3/4", 1", and 1.5" electrical knockouts are available on removable split rear plates. The top knockout plate additionally includes UHF/VHF antenna knockouts. A configurable top is provided along with grounding and bonding stud installed in base.
The ERK-4425KD Ready to Assemble Stand-Alone Enclosure complies with UL Certification. Durability is enhanced by a black textured powder coat finish.
Features:
- Supports 1000 lb (453kg) load capacity
- Consists of a pair of fully adjustable front rackrails, and 16-gauge steel tops/bottoms/sides
- Includes 1/8" laser-cut thick internal braces
- 44U of rack spacing, and 25" (63.5cm) of depth
- Provides a large cable entry at the bottom
- Optional front door available
- Offers 1/2", 3/4", 1", and 1.5" electrical knockouts on removable split rear plates
- Includes UHF/VHF antenna knockouts on top knockout plate
- Configurable top
- Grounding and bonding stud installed in base
- Safety - UL Certified
- Improves durability via a black textured powder coat finish
Specifications:
- General Info
- finish: Textured Black Powder Coat
- UL Standards Tested: UL2416
- Assembly/Installation Information
- Assembly Required: Yes
- Listing Agencies/Third Party Information
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Seismic Rating: 591
- Dimensions
- Usable Depth: 23.47
- Usable Height: 77.125
- Capacity Weight U S: 1000
- Depth U S: 25
- Height U S: 81.125
- Width U S: 22
- Primary Package Weight U S: 184
- Rack Units: 44
- Technical Information
- Rackrail Type: 10-32
- U L Load Capacity: 2500
- Material: Steel
- Mounting: Horizontal
- Manufacturer: Middle Atlantic
- MPN: ERK-4425KD
- Model Number: ERK-4425KD
- UPC: 656747070242
