Middle Atlantic DWR-12-22PD Sectional Wall Rack 12U

12 Space (21") Sectional Wall Rack with Plexi Front Door, Fits 20" Deep Equipment, Black Finish

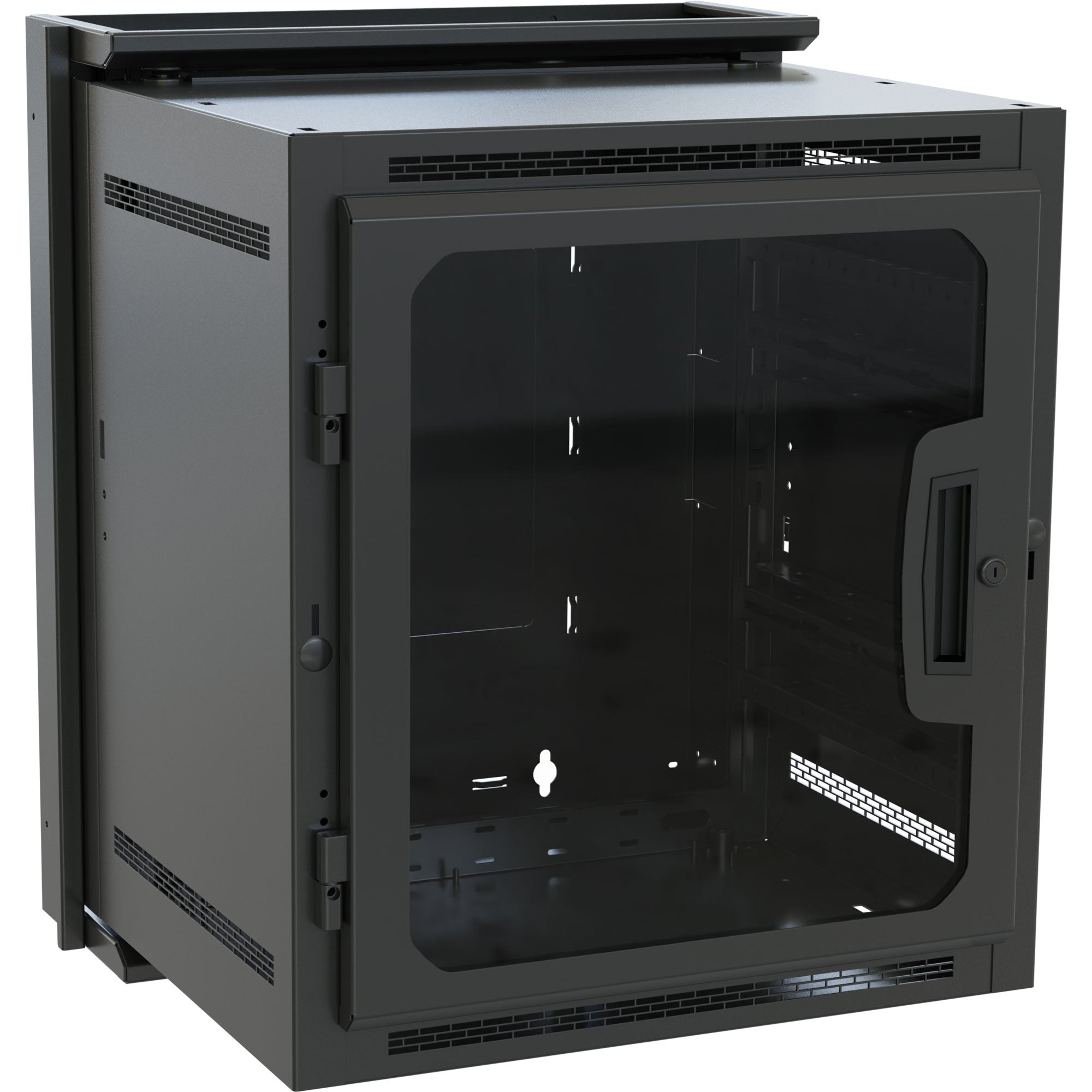

The Middle Atlantic DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door is a 22" (20" Useable) / 55.8cm (50.8cm) deep rack designed for mounting 19" wide equipment onto a wall. A tool-less quick mount system enables single person mounting of the center section to the back panel.

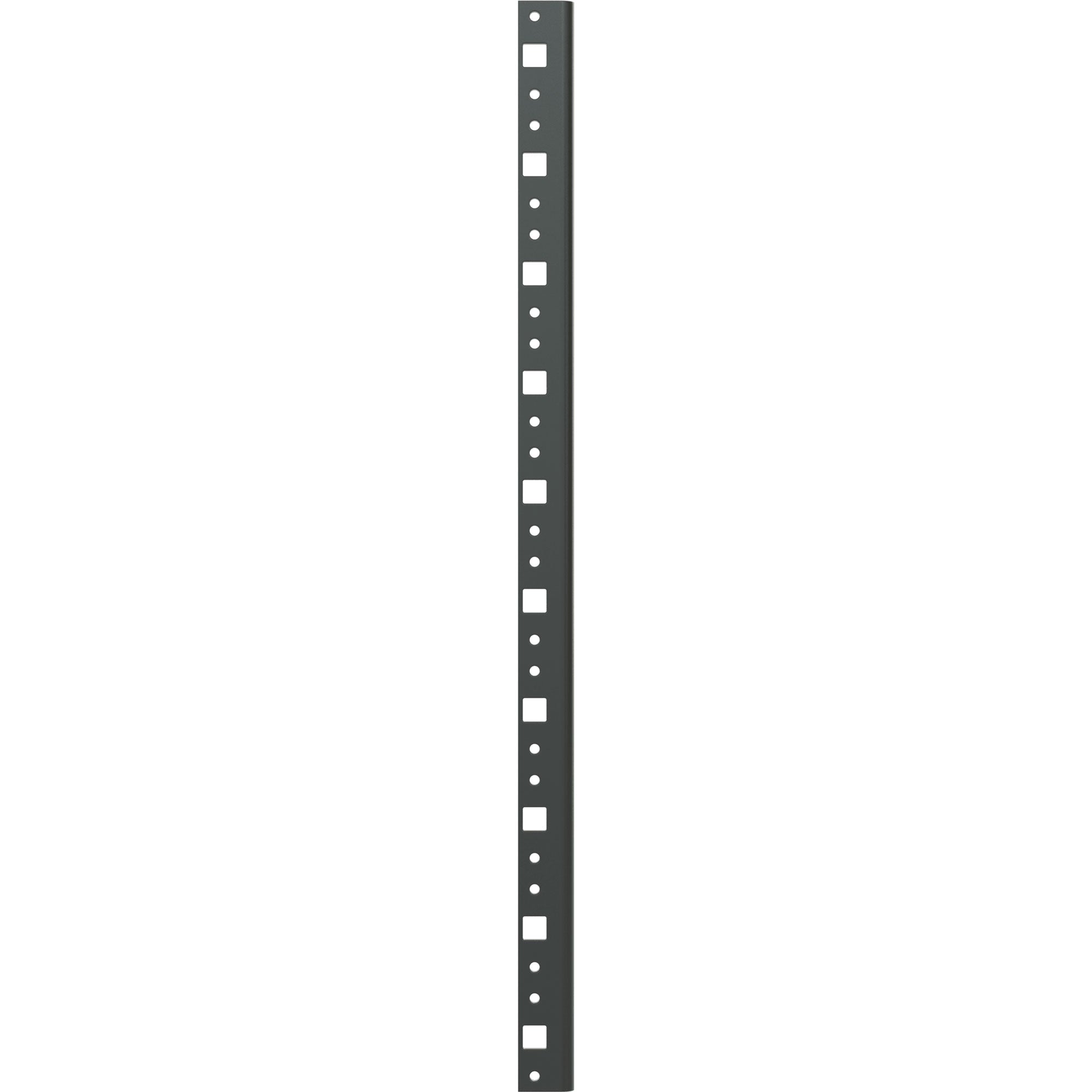

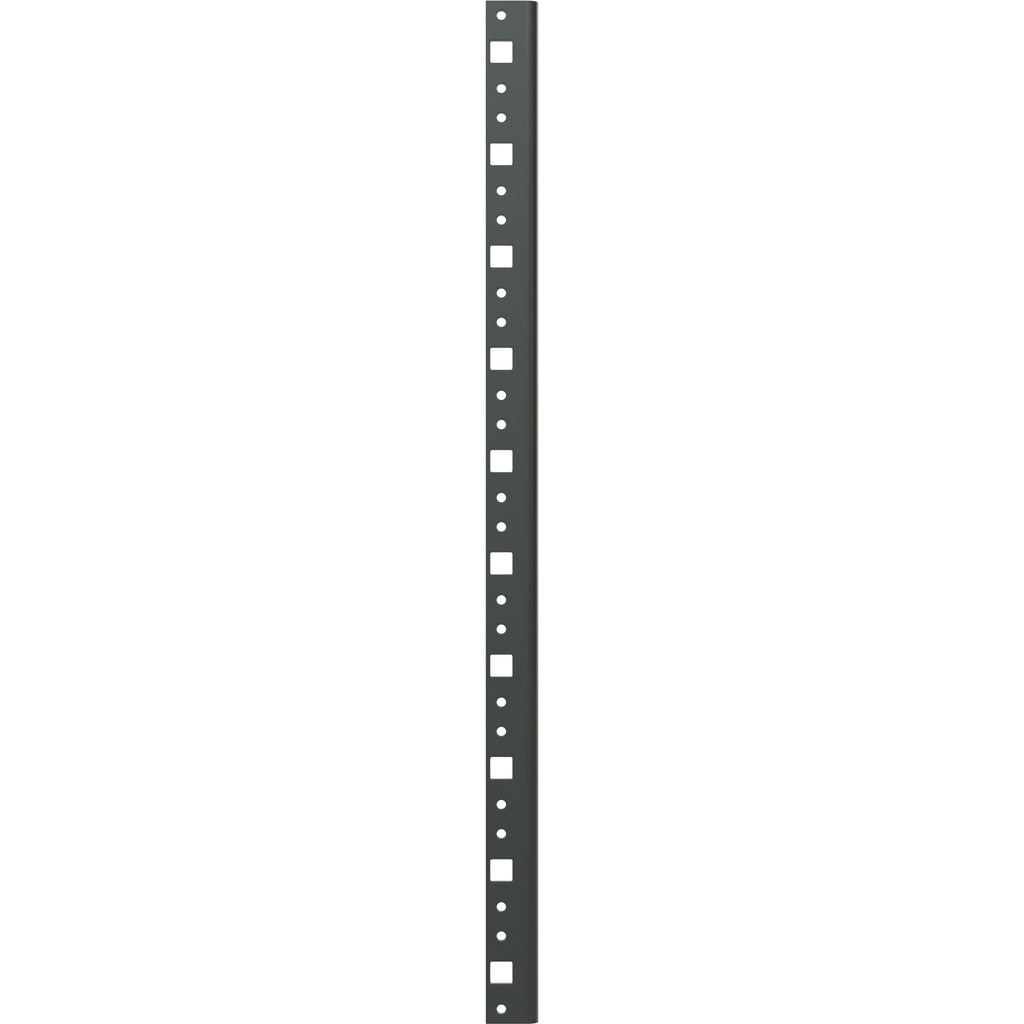

Adjustable front threaded rack rail (11-gauge 10-32) with marked rack space speeds up equipment mounting. Using center section hinges, you can accommodate left/right opening accessories. The center section and back panel feature top/bottom grounding/bonding studs to enable proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards.

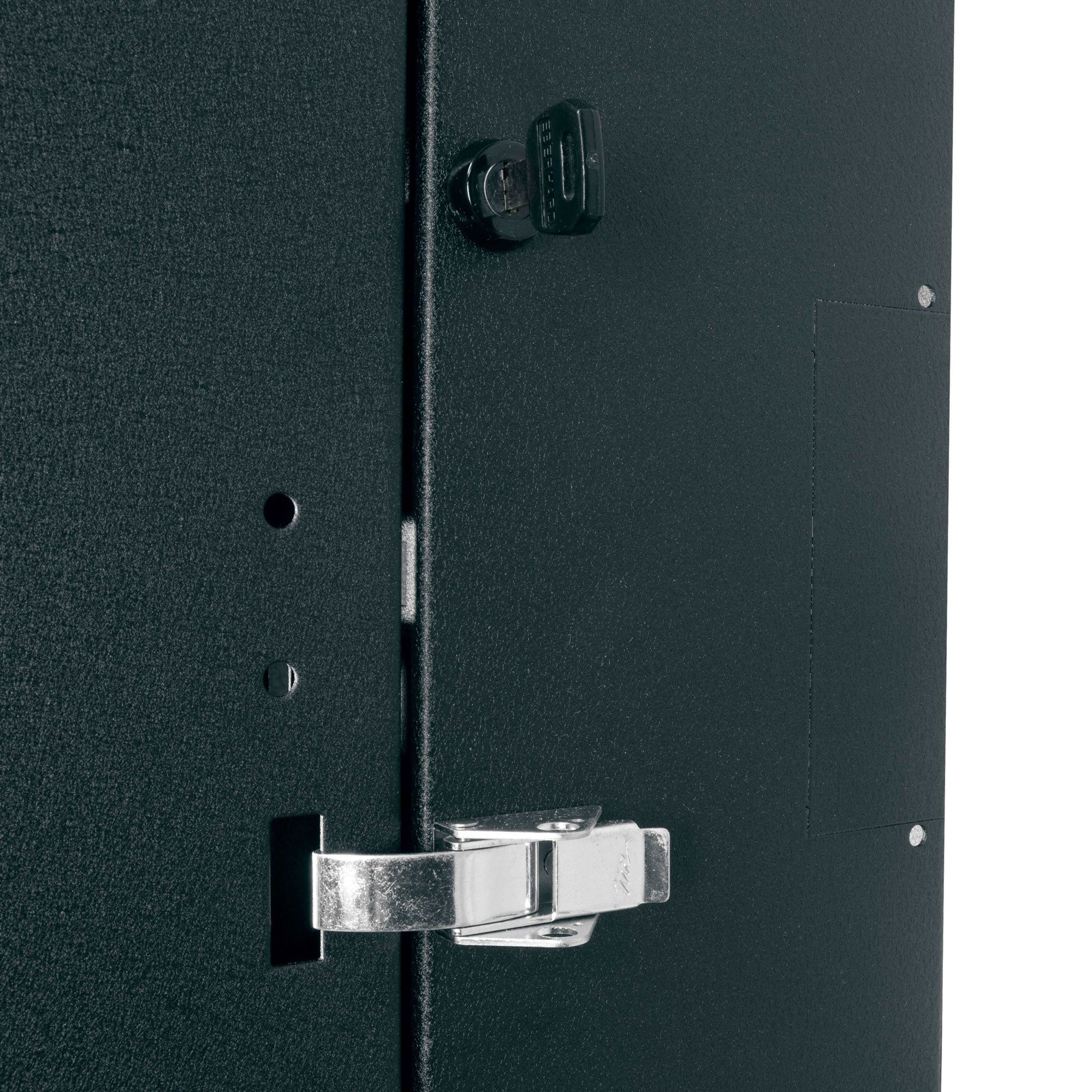

The DWR-12-22PD wall mount rack can handle load capacity of up to 200 lb (90kg). You can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch, thereby saving considerable wall space.

Top and bottom of the wall rack features 0.5", 0.75", 1", 1.5", 2", 3" electrical knockouts and 0.6" UHF/VHF antenna knockouts to facilitate easy cable attachment. In addition, the wall mount features 2"/4" knockout for Wiremold 4000 Series raceways and knockouts for UCP series connector panels on the sides.

Features:

• Solid Construction
  Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
• Tool-Free Quick-Mount System
  Middle Atlantic's trademarked "Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.

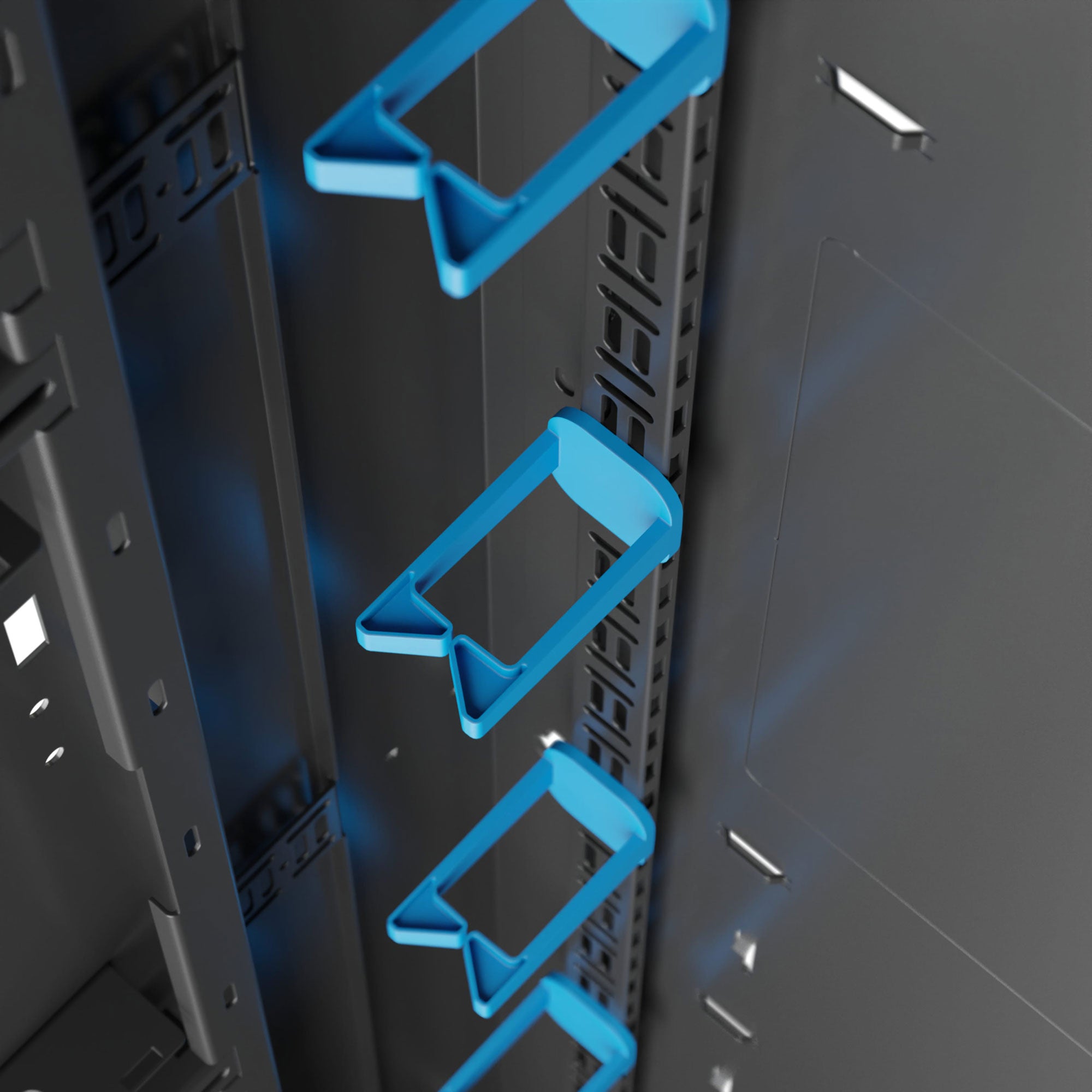

• Cable Management System
  Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
• Customization
  A variety of accessories allow you to personalize your rack to meet your exact needs: doors, fans, latches, rear rack rails, and more.
• No-Clog, Rack-Rail Threads
  All rack rails finished in durable "e-coat" to prevent clogged threads.
• Industry-Standard Design
  Rack rail is labeled in EIA standard rack space increments allowing for easy equipment alignment.
• Pre-Installed Washers
  Pre-installed washers on all 10-32 threaded rack screws save installation time.
• Grounding/Bonding Studs
  Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
• Free Layout & Specifications Software
  RackTools free layout and specification software included for effective system design help.
• UL Listed
  This product has been UL (Underwriters Laboratories) Listed in the United States and Canada.
• Quality Guaranteed
  Limited Lifetime Warranty to Original Purchaser.

Specifications:

• Construction: 16-gauge steel with 1/8" thick laser-cut corner braces
• Finish: Black, powder-coat finish
• Shelf: None
• Cabinet:
  Accepts 19" wide equipment (48.26 cm)
  Usable depth: 20" (50.8 cm)
  Capacity 21" (12U)
• Mobility: not specified by manufacturer
• Dimensions (WxHxD): 23-3/8 x 28-1/16 x 22"
• Weight Capacity: 200 lb.
