Key Features
- 1U Racking Height
- 19" Width
- Hinged/Swing-Out Design
- For AVIP, MAAP & IPS Plates
- Fits 14 Single or 7 Dual Plates
- Includes Strain Relief
- Includes Cable Management
Description

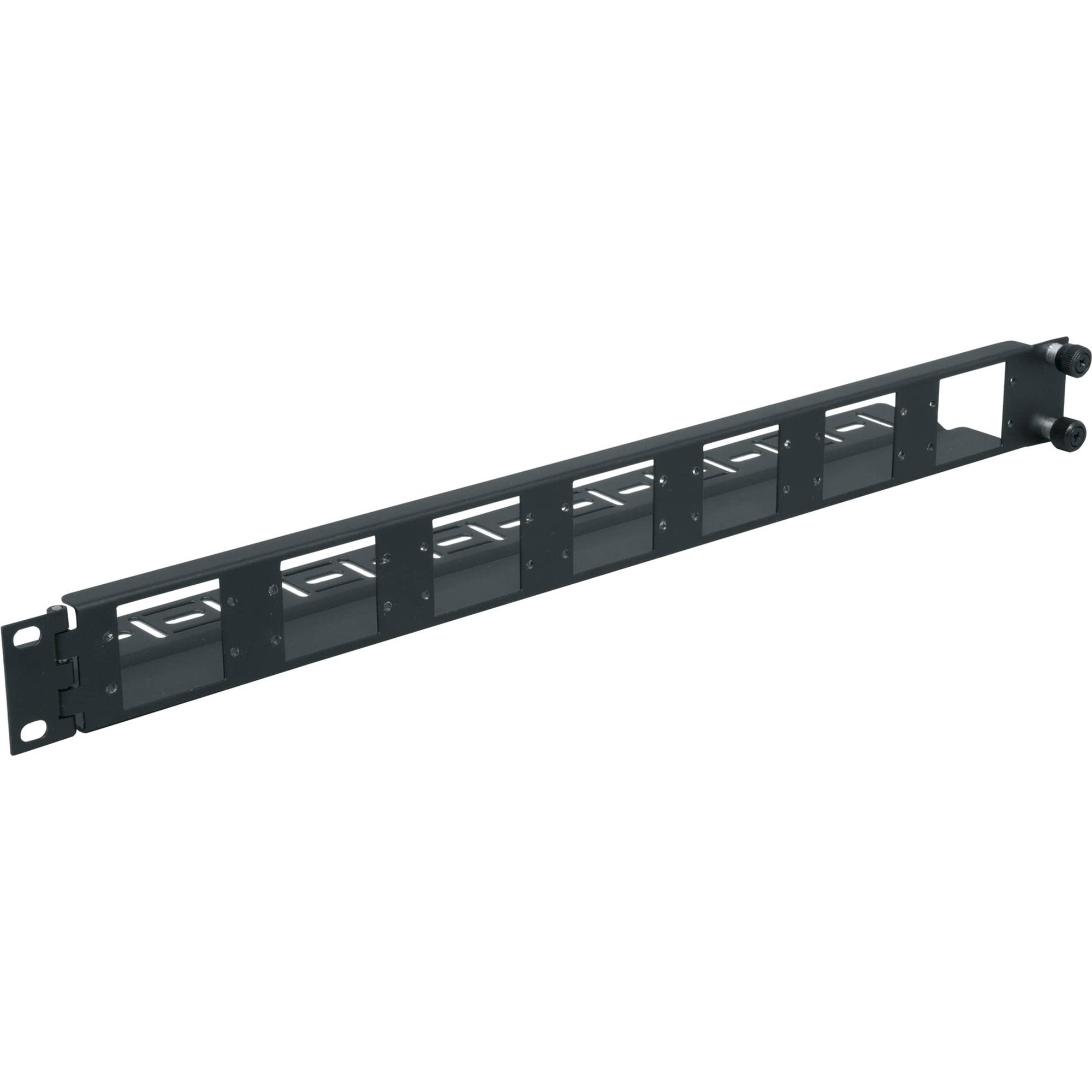

1 Space (1-3/4") Hinged AVIP Connector 19" Panel Frame Kit, Horizontal Mounting, Black
The black AVIP-SF1 1-Space Swing-Out Panel from Middle Atlantic accepts 14 single or 7 dual connector plates, as well as Wiremold AVIP, Extron MAAP, and FSR IPS device plates. It comes with strain relief and is equipped with cable management.
Features:
- Accepts 14 single or 7 dual connector plates
- Accepts Wiremold AVIP, Extron MAAP, and FSR IPS device plates
- Includes strain relief and cable management optimized for device plates
- Hinged on one side for easy interior access
- Captive 10-32 threaded thumbscrews require no tools to open
Specifications:
- General Info
- Finish Type: Black Powder Coat
- Assembly/Installation Information
- Mounting Points: 2
- Listing Agencies/Third Party Information
- Greenguard: Yes
- Dimensions
- Depth: 2.92"
- Height: 1.75"
- Width: 19"
- Primary Package Weight (US): 1.5
- Rack Units: 1
- Technical Information
- Material: Steel
Details
- Manufacturer: Middle Atlantic
- MPN: AVIP-SF1
- Model Number: AVIP-SF1
- UPC: 656747206580
