Key Features
- 14U Racking Height
- 26" Usable Depth
- Rugged Steel Construction
- 10-32 Threaded Rackrail
- Black Powder Coat Finish
- Interlocking Corner Joint
- Lightweight, Open Design
- Ready-to-Assemble
Description

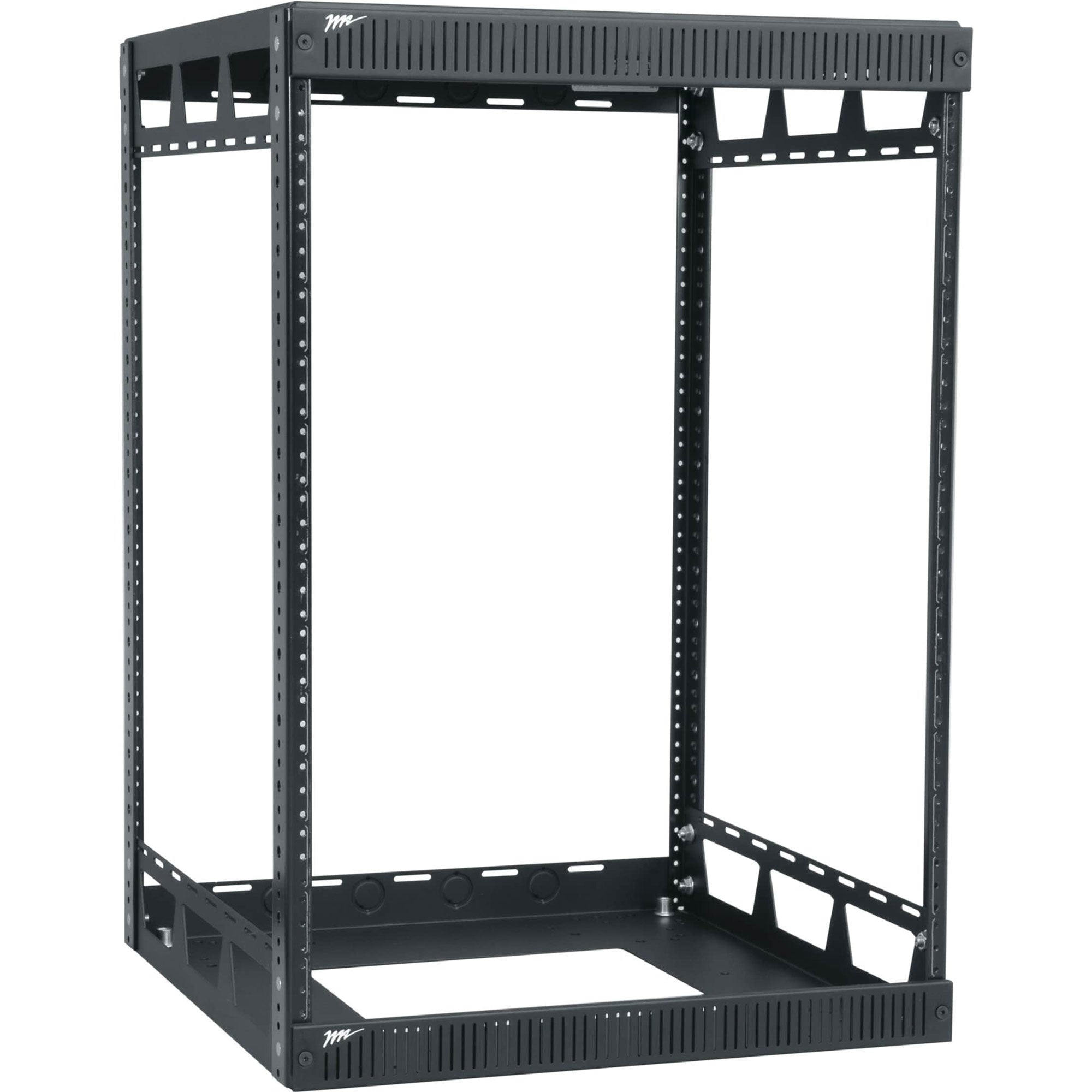

14 Space (24-1/2") Gangable KD Rack Frame, 26" Deep, Slim (19-1/8") Outer Width, Black Finish
14 RU Slim 5 Series 19-1/8 Inch Wide Rack Frame, 26 Inches Deep
Our popular Slim 5 Series rack frame system meets a wide range of project requirements with a strong steel construction and wide open access for easy integration. The Slim 5 Series ships ready-to-assemble.
Features:
- 14RU
- 26" (660mm) Depth
- Lightweight, open design is easy to work with
- Bolt-together design allows for flat shipment via UPS
- Unique interlocking corner joint for exceptional strength and easy assembly
- Accepts optional removable steel side panels for security and control airflow
- Top includes two laser knockout locations to mount cooling fans
- Standard front and rear fixed 10-32 threaded rackrail with marked spaces
Specifications:
- Dimensions & Measurements
- Depth: 26 in (66 cm)
- Height: 28.25 in (71.8 cm)
- Panel Width: 19 in (48.3 cm)
- Product Weight: 30 lbs (13.6 kg)
- Rack Units: 14 RU
- Shipping Weight: 38 lbs (17.2 kg)
- UL Load Capacity: 400 lbs (181.4 kg)
- Usable Depth: 26 in (66 cm)
- Usable Height: 24.5 in (62.2 cm)
- Width: 19.13 in (48.6 cm)
- Characteristics & Features
- Federal Ops Country of Origin: USA
- Gangable: Yes
- Product Configuration: Frame Only
- Rack Rail Type: 10-32
- Rack Type: Knockdown
- Certifications & Warranties
- Certifications:
TAA
UL Listed
Details
- Manufacturer: Middle Atlantic
- MPN: 5-14-26
- Model Number: 5-14-26
- UPC: 656747067013
