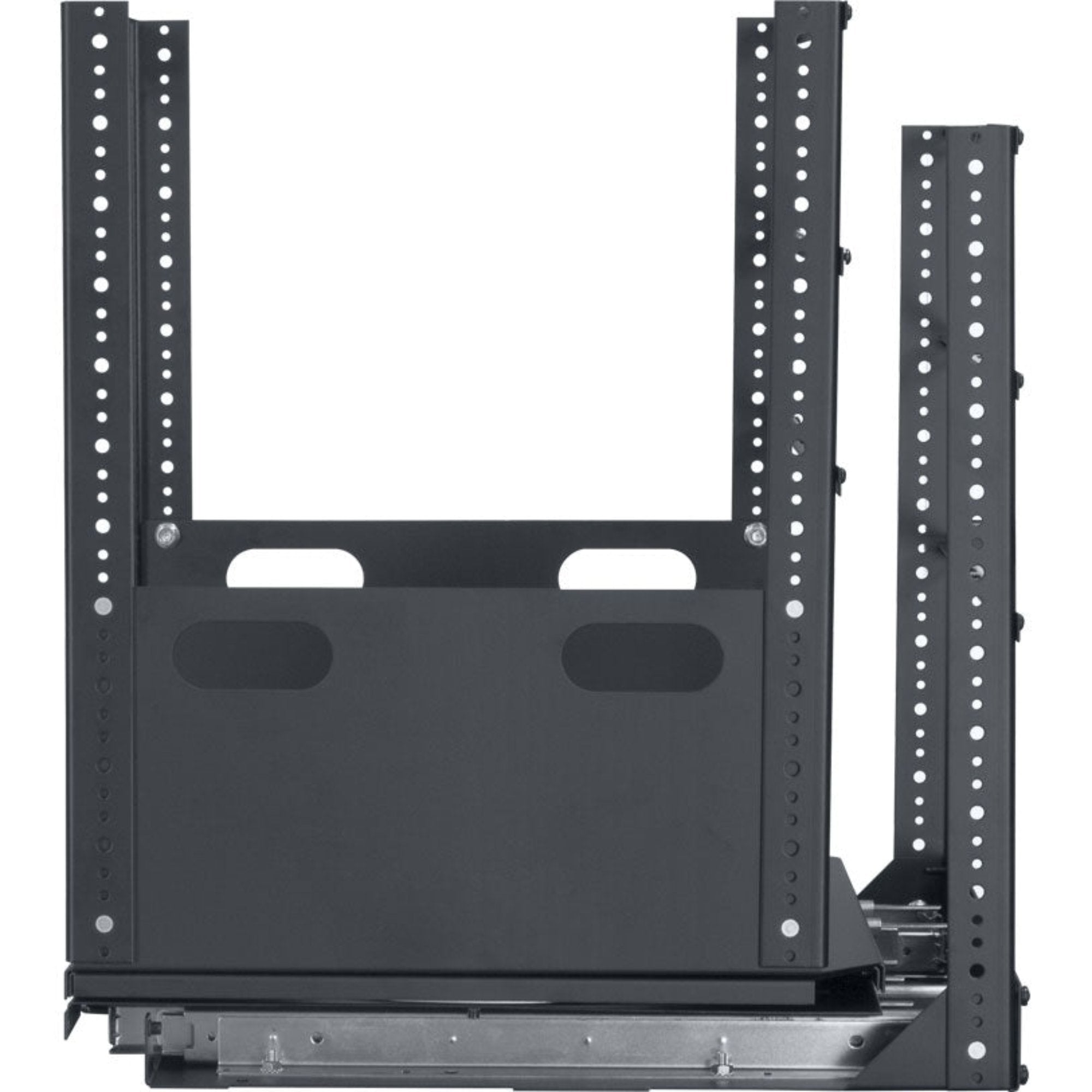

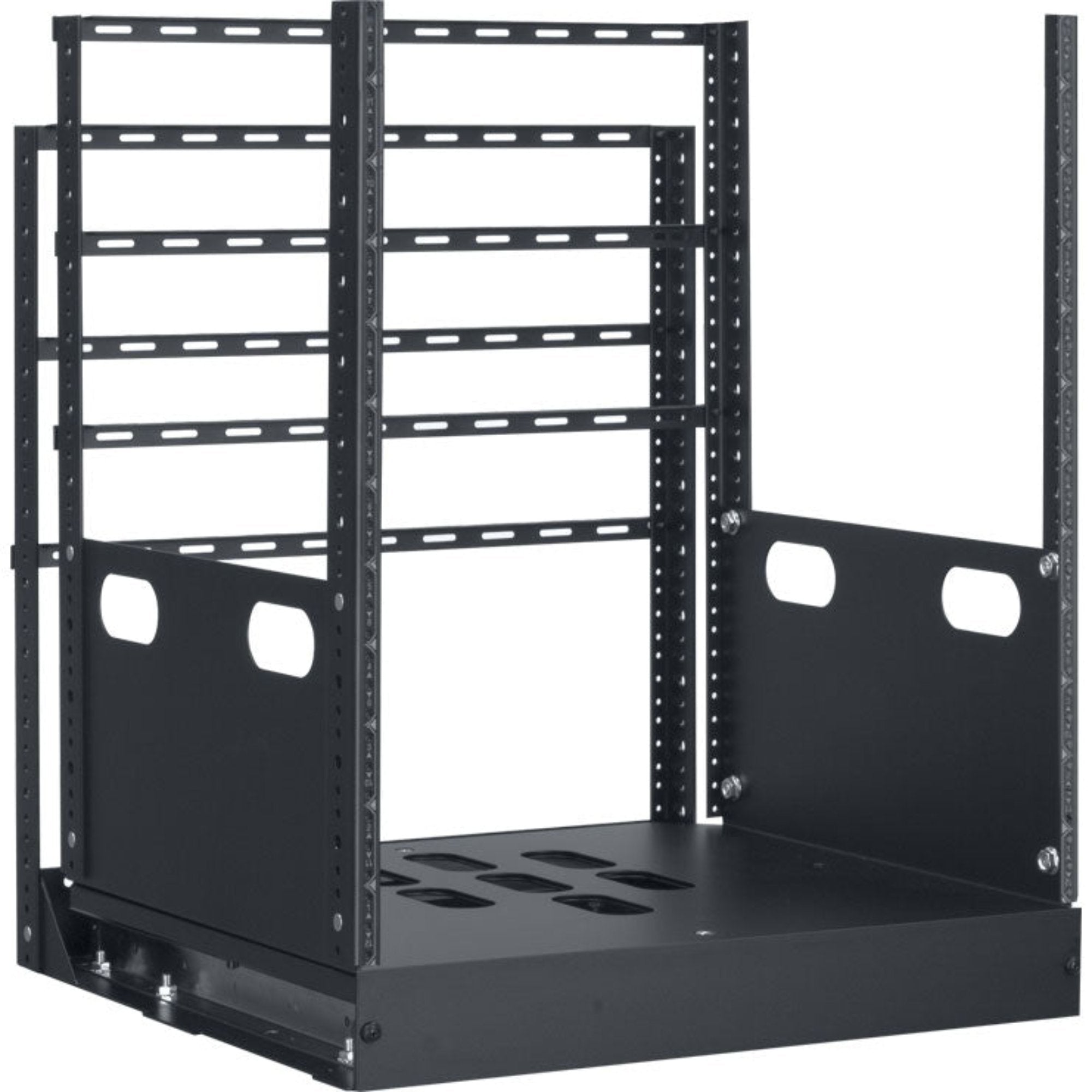

Lowell LPTR2-1219 Pull & Turn Rack with 2-Slides (12U, 19")

12 Space Pull & Turn Rack, 19" Deep

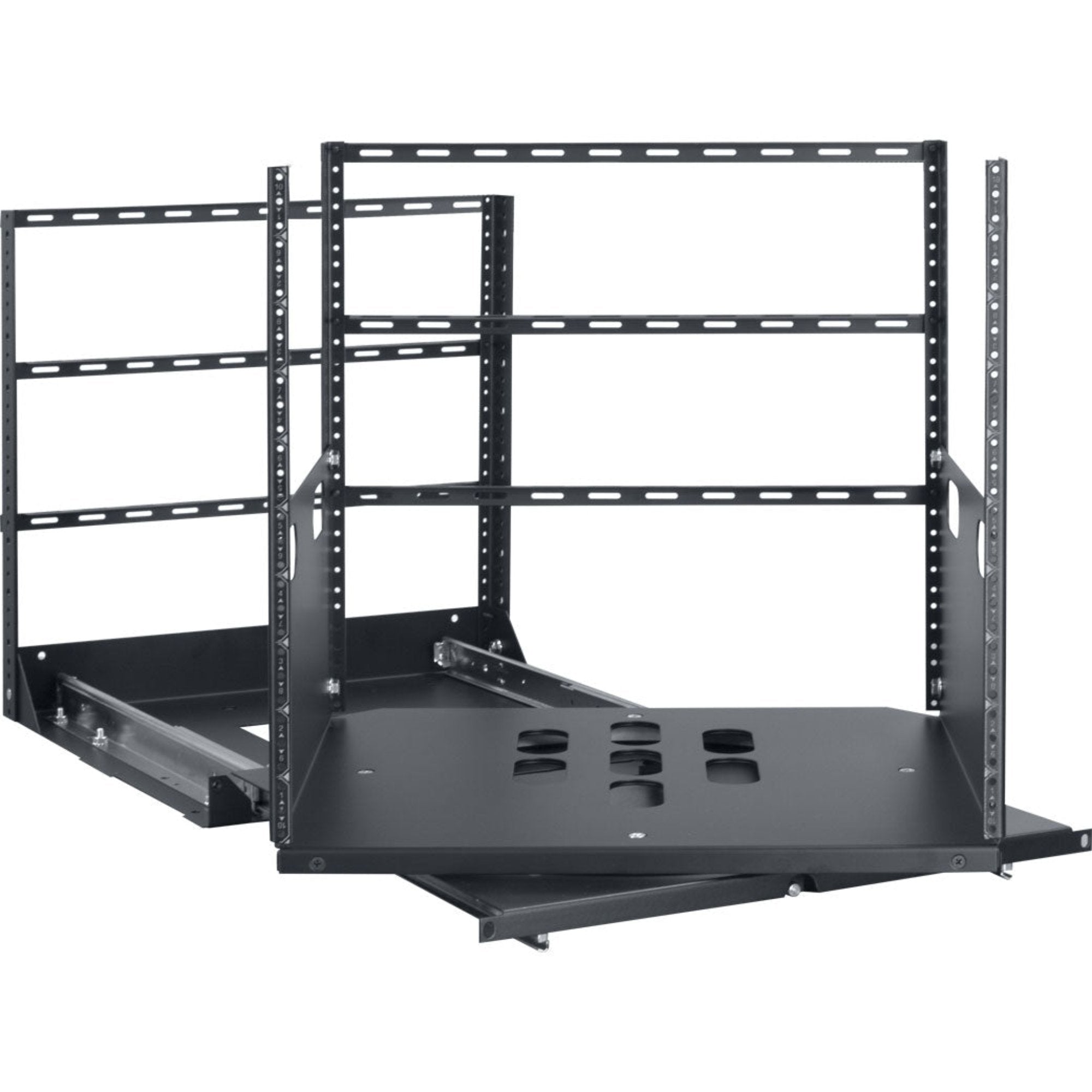

The LPTR2 is a knockdown rack made for built-in installations, such as inside cabinetry, to provide convenient slideout access to rackmounted equipment. The removable base can be mounted flush or recessed up to 1.75 inches to allow room for equipment protrusions. The rack secures to its base with front and rear screws. When equipment is mounted and wired, secure the assembly with screws through the front security panel. To service equipment, remove the security panel and slide the rack fully forward, then push the button (in center of base front) to release the lock and rotate the rack until it locks securely at 60 or 90 degrees. Note: When installing rack inside cabinetry, allow sufficient space at sides for rack rotation. Recessed installations may not allow enough room to rotate rack 90 degrees.

Features:

• Rack with two side stiffeners.

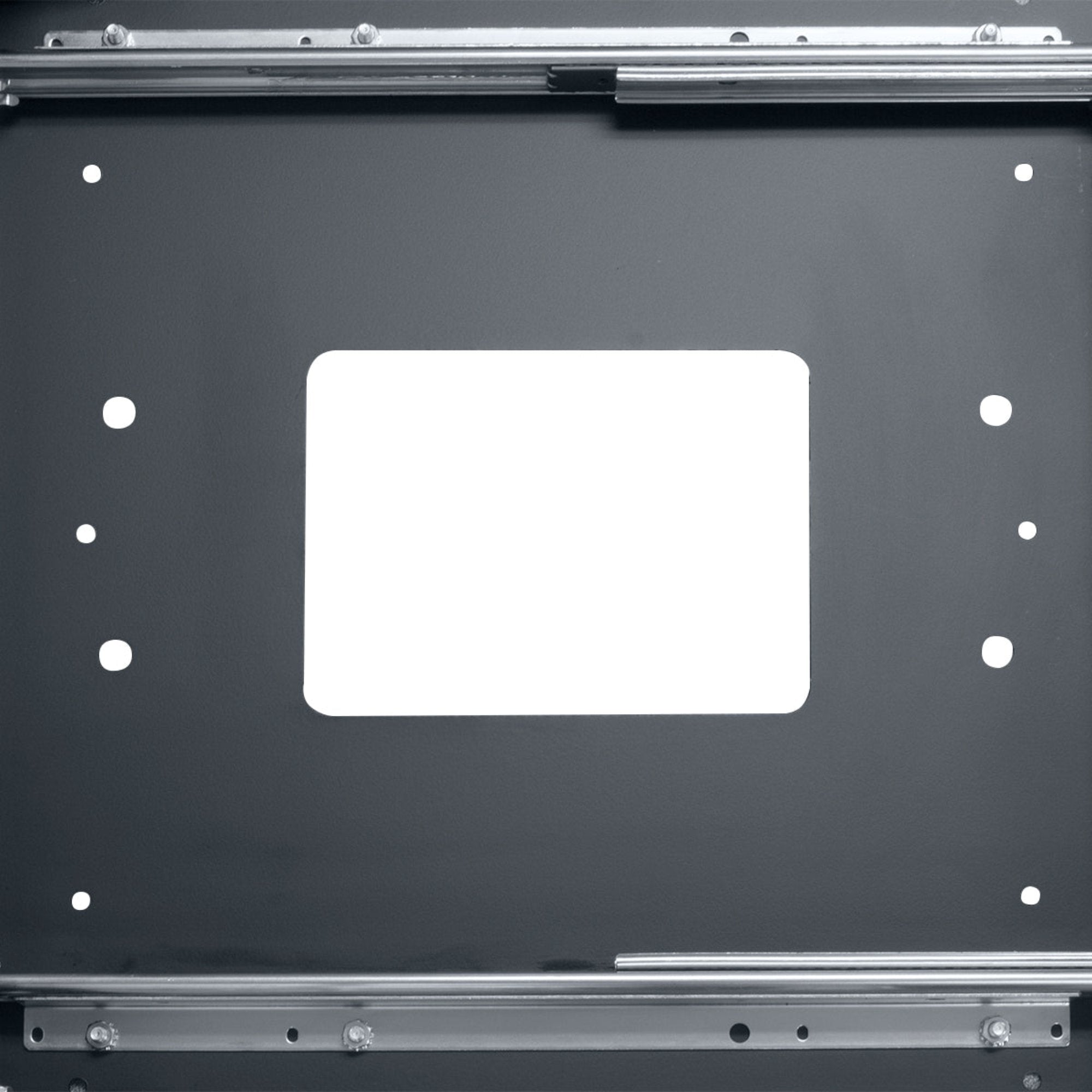

• Base includes integral turntable with push button release and two bottom rails to support the slide-out rack.
• Accommodates a load up to 125 lbs.
• Six (11-ga. steel) corner-post rails tapped 10-32
• Six cable lacing bars
• Front security panel (perforated)
• Made in the U.S.A. with 100% certified U.S. steel
• Black powder epoxy finish
• Ships in 2 cartons for efficiency: CARTON ONE includes base with integral turntable, 2 rear corner-post rails, 3 cable lacing bars. CARTON TWO contains rack bottom, 4 corner-post rails, 2 side stiffeners, front security panel, 3 lacing bars.
