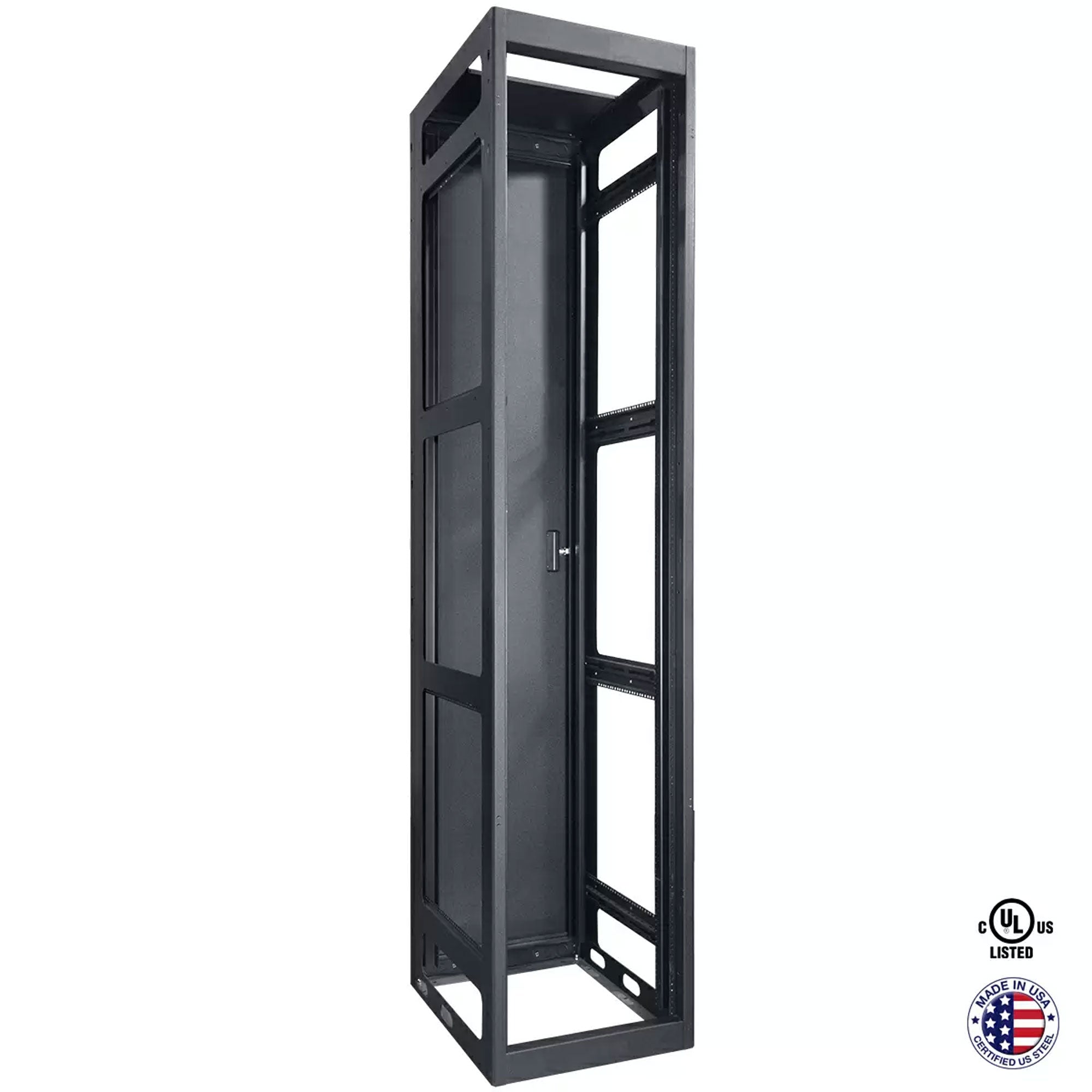

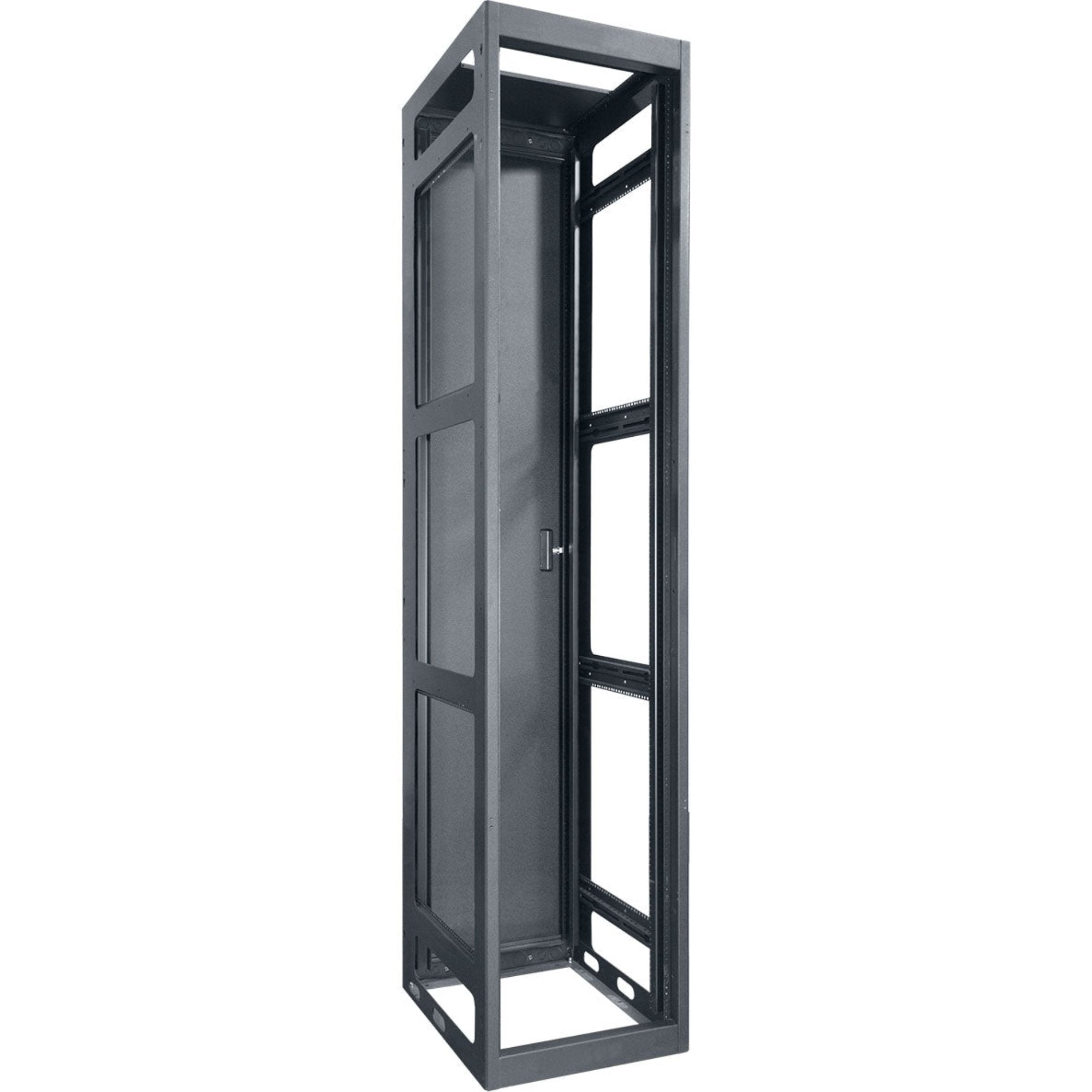

Lowell LGTR-5432 Gangable Tall Rack with Rear Door (54U x 32" Deep)

54 Space Tall Gangable Rack, 32-Inches Deep, Rails, Rear Door, Black

A 19" gangable equipment rack with 54 rack spaces is the ultimate space saver providing extreme efficiency for equipment mounted in areas with high ceilings. The new EIA/TIA compliant rank is UL Listed (UL2416) with a load capacity to 3150 lbs. It features the broadcast-standard 22" width and includes a solid rear door with key lock. Includes two pair of adjustable rails with mounting holes tapped 10-32. Optional side panels and front door.

Features:

• Welded Frame: 16-gauge steel seamless side-frame construction, 14-gauge steel top and bottom, reinforced at loadbearing junctions for strength equivalent to 11- gauge steel.
• Open Front: Rack ships ready to accept optional surface- mount door.
• Rear Door: Includes solid steel recessed rear door with key lock. (Door can be omitted by ordering Model No. LGTR-5432-LRD.)
• Knockouts: Rear frame has removable knockout panels and combination knockouts for conduit wiring above and below door (1/2", 3/4", 1", 1-1/2"), plus BNC knockouts for UHF/VHF antennas.
• Mounting Rails: Two pairs of 11-ga. steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. Rail clearance: front rails to outside frame (flush) is 1.75 in.; front rails to inside of (optional) surface-mount door is 2.5 in.

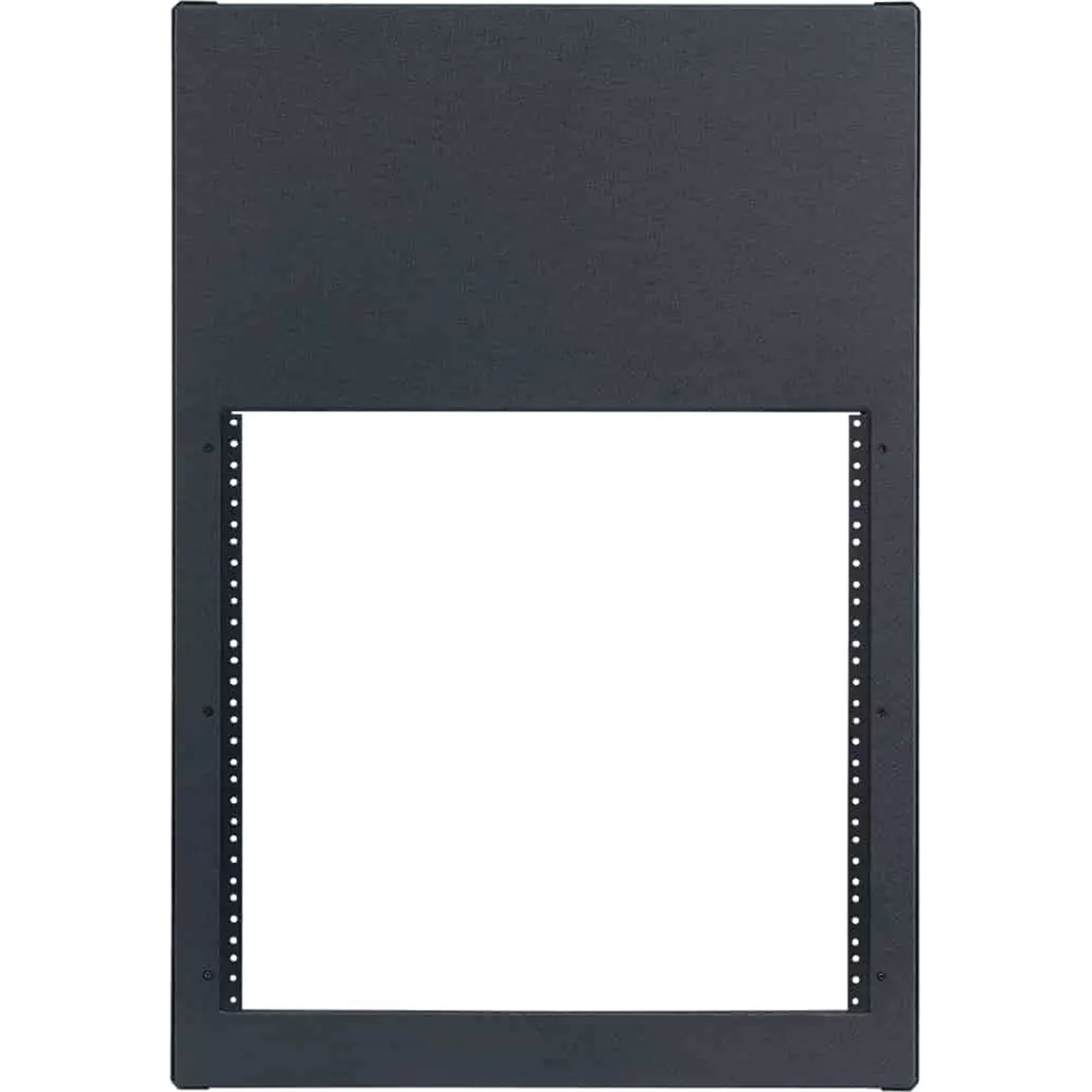

• Top Mounting Rails: 10U opening features rails with tapped 10-32 mounting holes on EIA spacing. Close with black steel panels included as shipping stiffeners or mount optional 19"W accessories.
• Base: Includes grounding stud and provisions to add leg levelers (optional) or anchor bolts (not included).
• UL Listed (UL2416): Load capacity 3150 lbs.
• EIA/TIA: Compliant.
• Hardware: Panel mounting hardware included.
• Finish: Black wrinkle powder epoxy.
• Origin: Made in U.S.A. with 100% Certified U.S. steel
