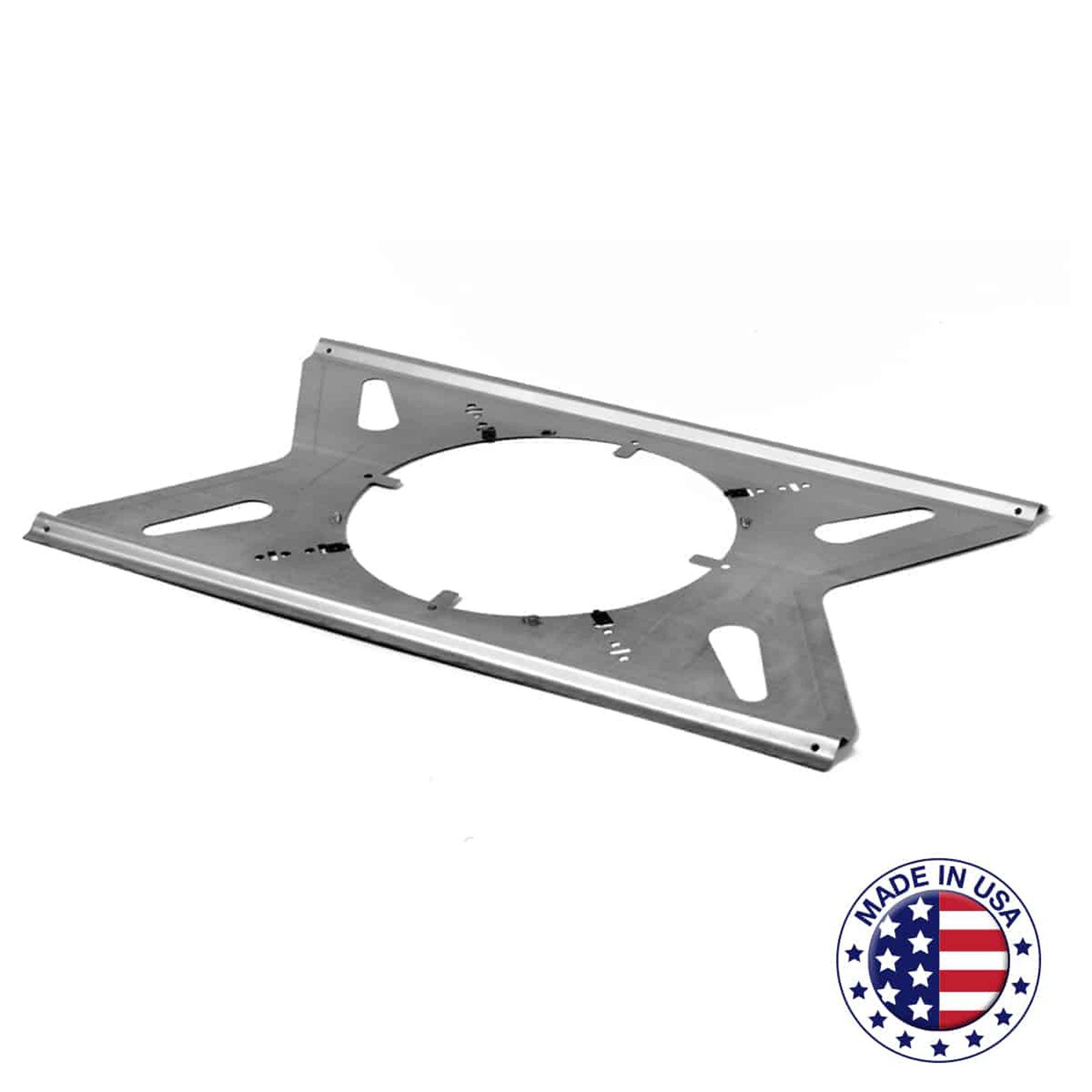

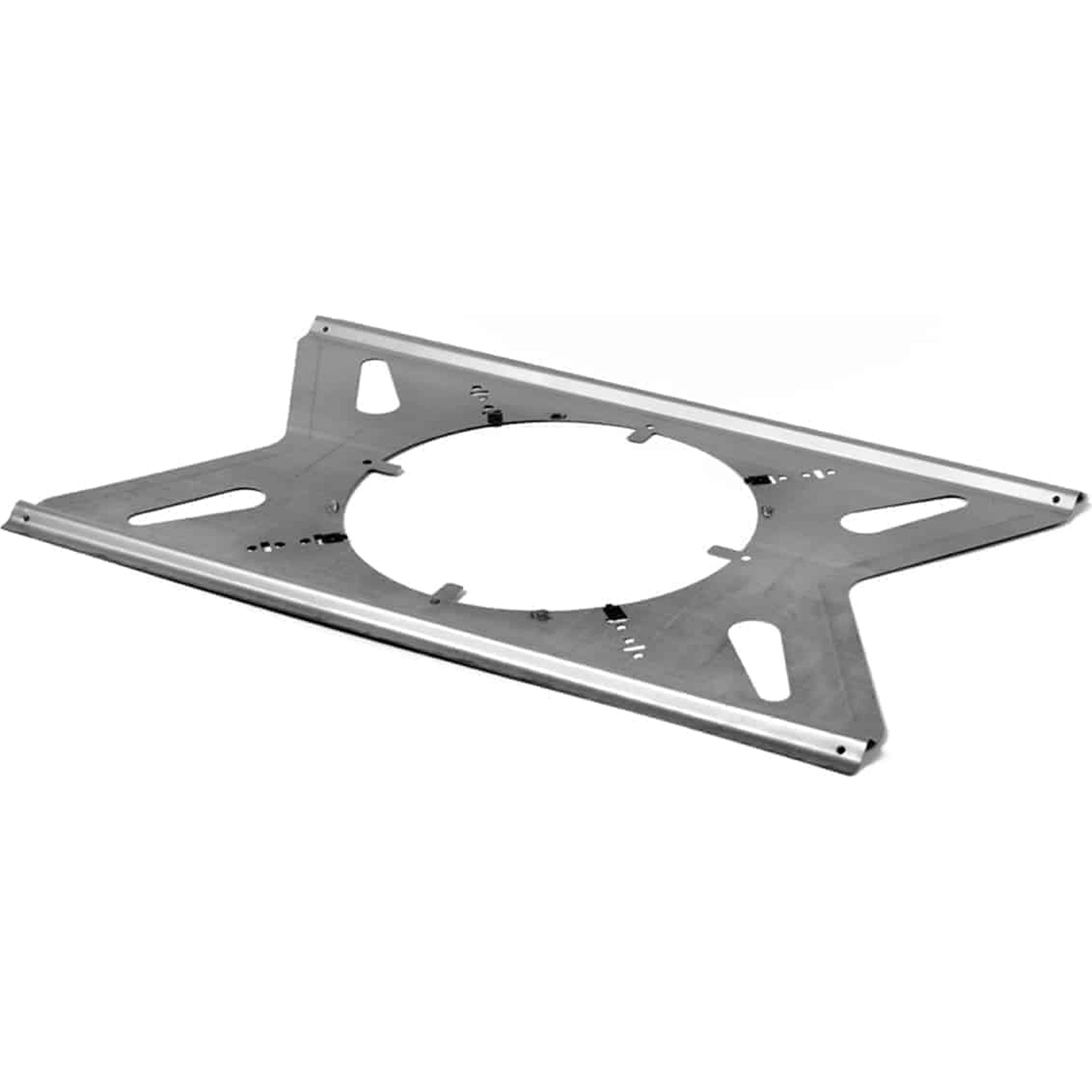

Lowell LBS8-R1 Tile Bridge for Speaker (10 Pack)

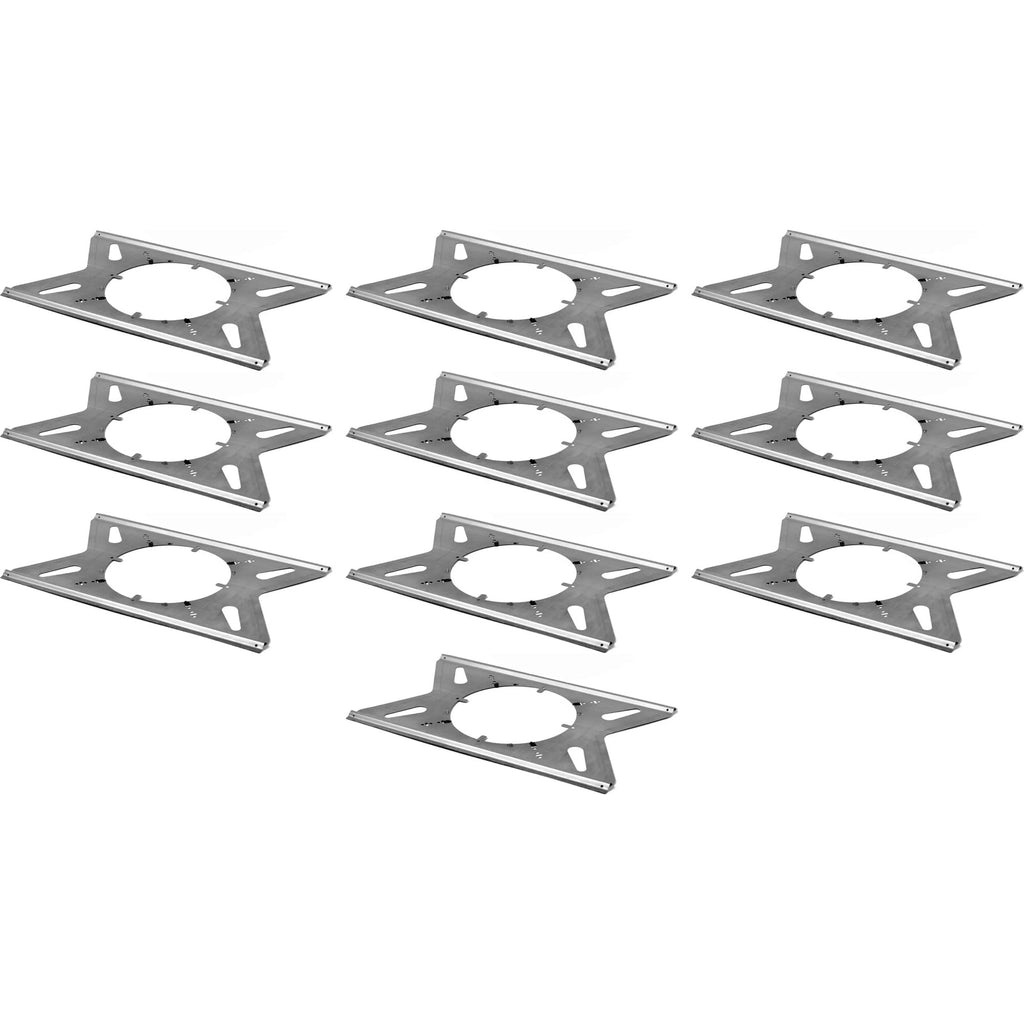

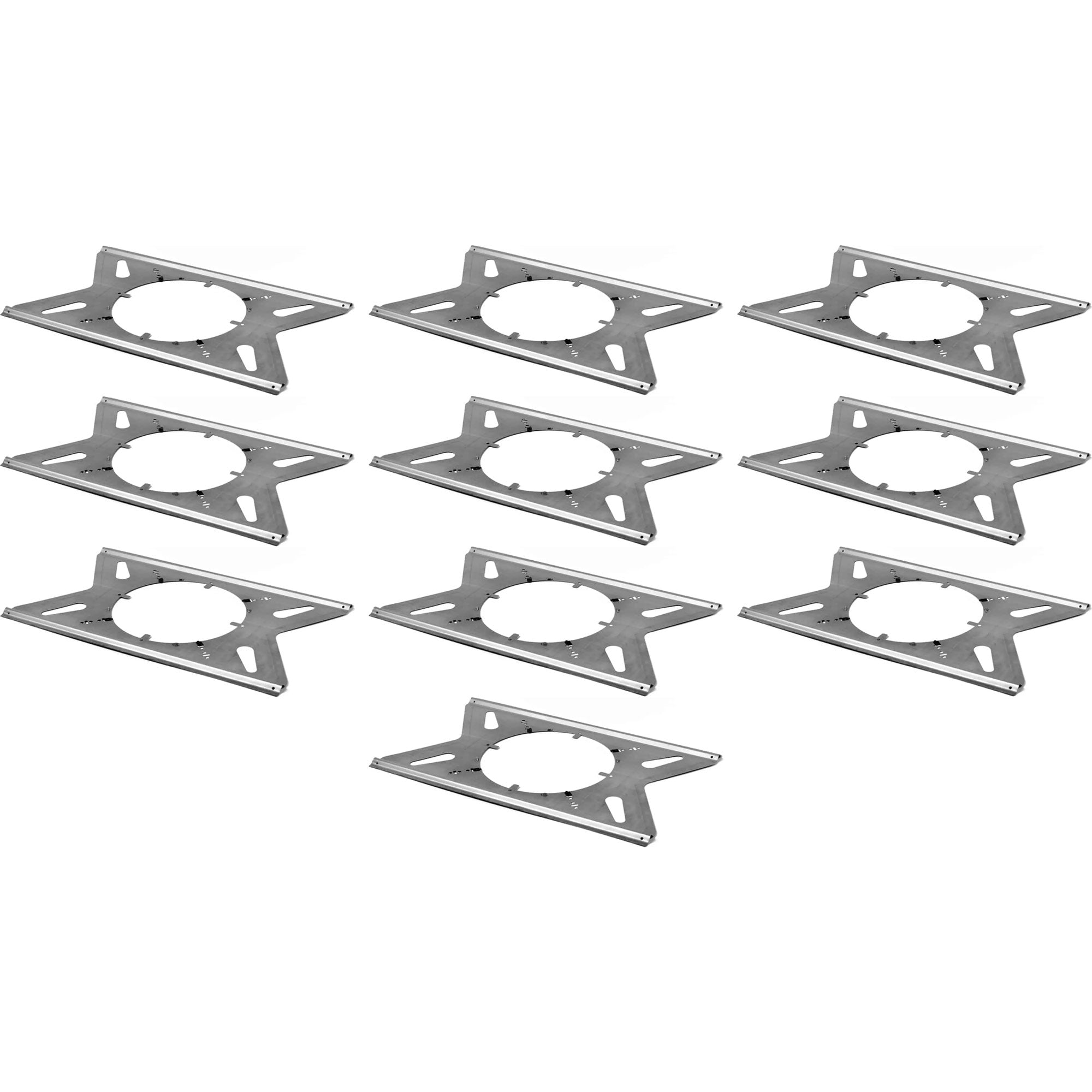

8" Speaker Tile Bridge - Case of 10 Tile Bridges

A tile bridge is often required by local building codes for safety reasons as well as for improved aesthetics in suspended 2'x2' or 2'x4' tile ceilings. It distributes the speaker's weight to the ceiling support structure, reducing the likelihood of tiles sagging under the weight of heavy speakers.

Features:

• Formed construction is lightweight with rigid support.
• Galvanized 22-gauge steel with multiple forms for strength
• 23.75"L x 15.5"W
• Center opening: 10.75" dia.
• Wire-tie holes at each corner for anchoring where required by code

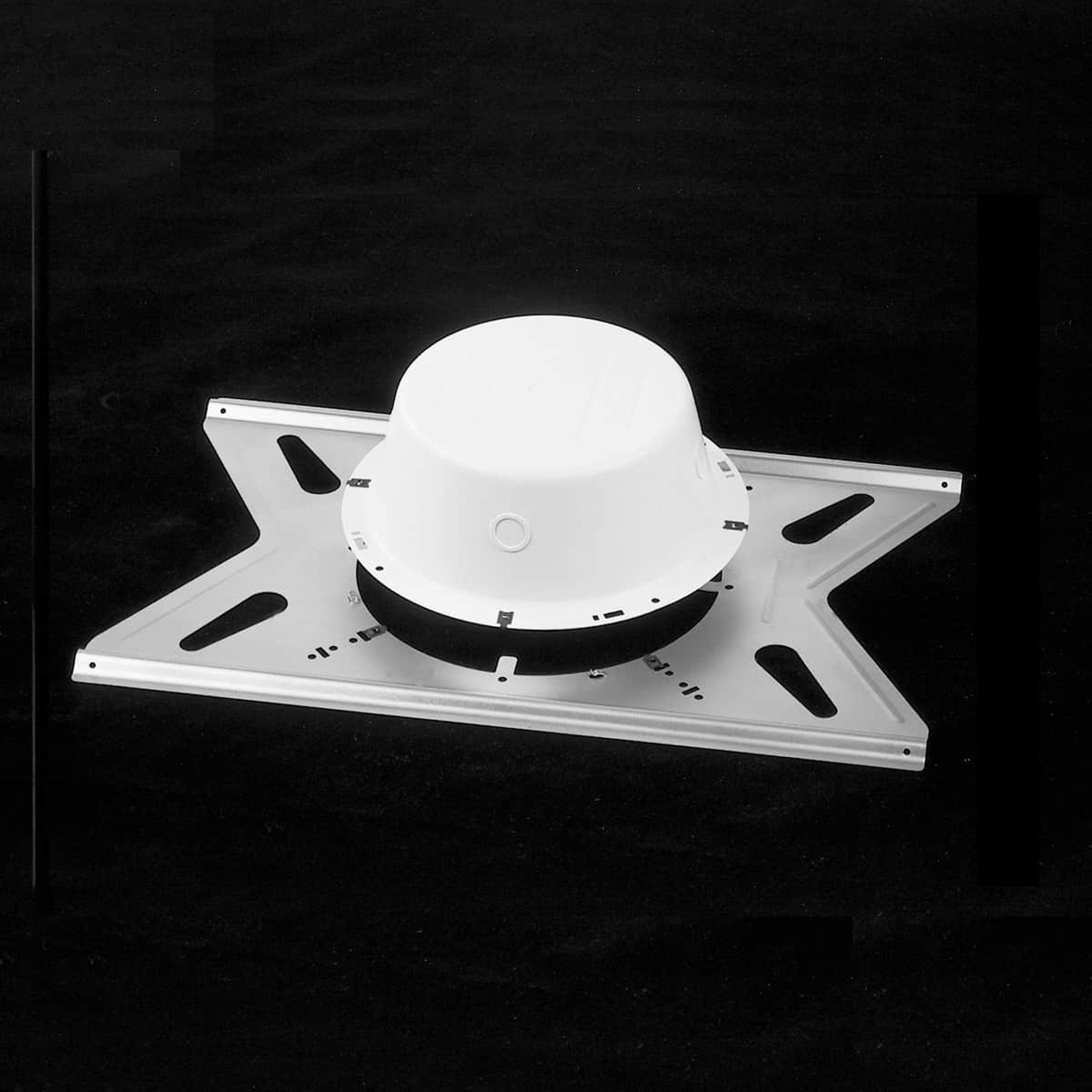

• Mounts 8-in. speaker with screw-mount or torsion grille, as noted in chart below.
• Note: the tile bridge does not include hardware. Mounting bolts are typically included with Lowell grilles and speaker assemblies. To mount a speaker enclosure to the tile bridge, four 832 bolts will be required.

Specifications:

• Formed construction, lightweight, rigid support
• 24-gauge galvanized steel
• 23.75 in. x 15.5 in.
• 10.75 in. diameter opening
• Mounting Aids: Wire-tie points for seismic anchoring where required by code, multiple attachment points
• For Driver Size: 8 inch
• For Grille Type: Screw-mount or torsion
• Backbox Requirements: Use with or without backbox
• COMPLIANCE & CERTIFICATION
• Made in the U.S.A.
