Key Features
- For 8" Speaker
- Fits Tile Ceilings
- 24-Gauge Galvanized Steel
- Distributes Speaker's Weight
- For Screw-Mount Grille
- Made in the USA
- Case of 10 Tile Bridges
Description

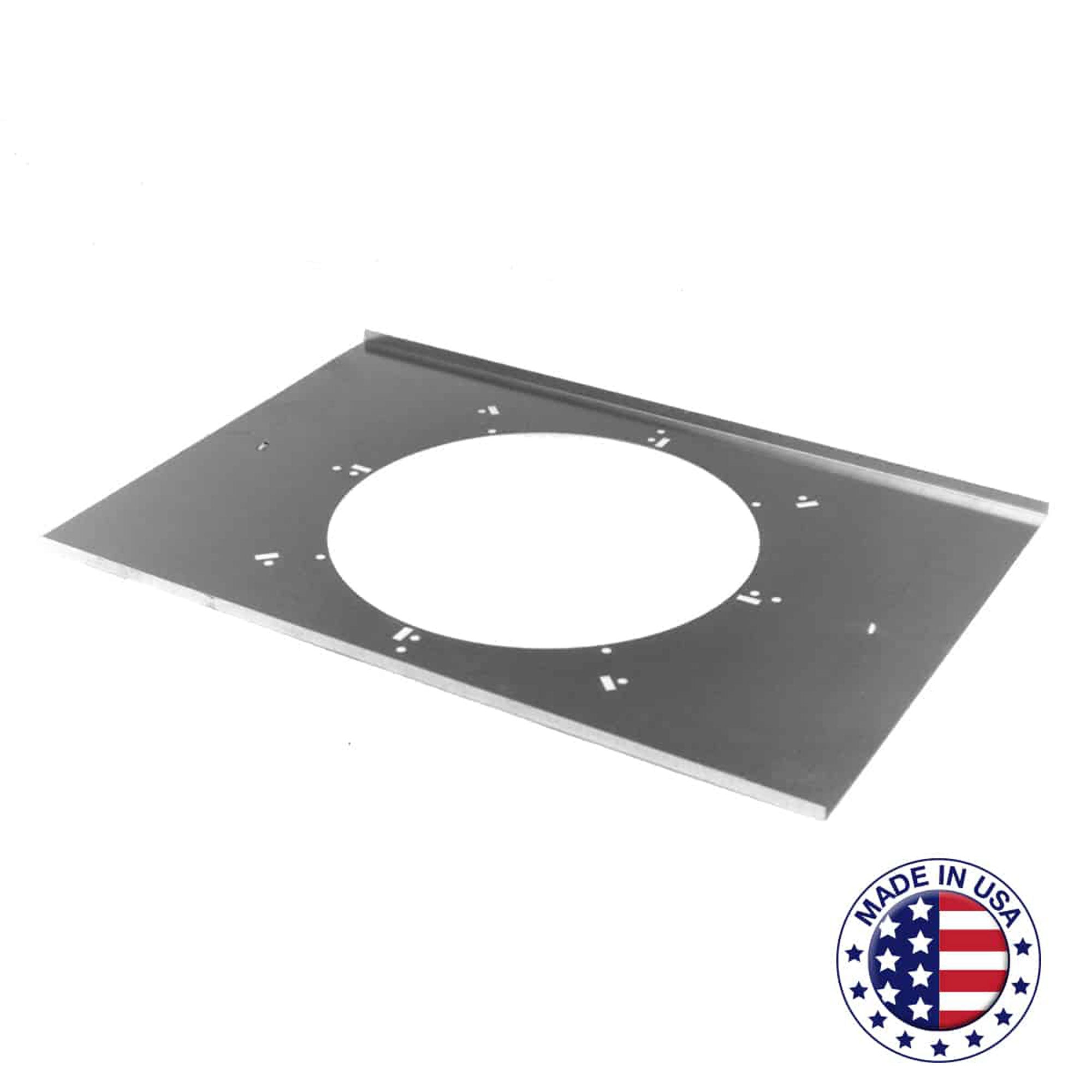

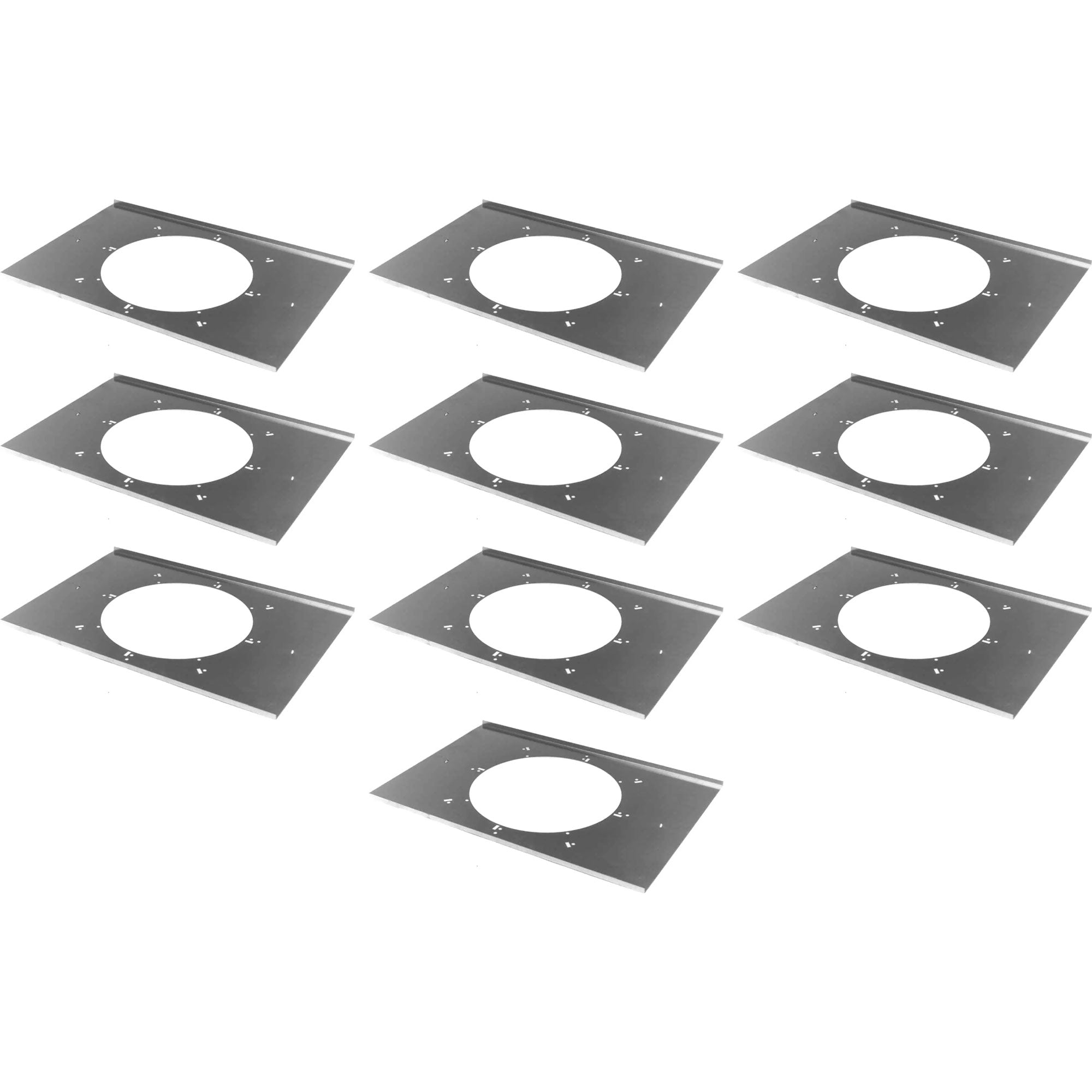

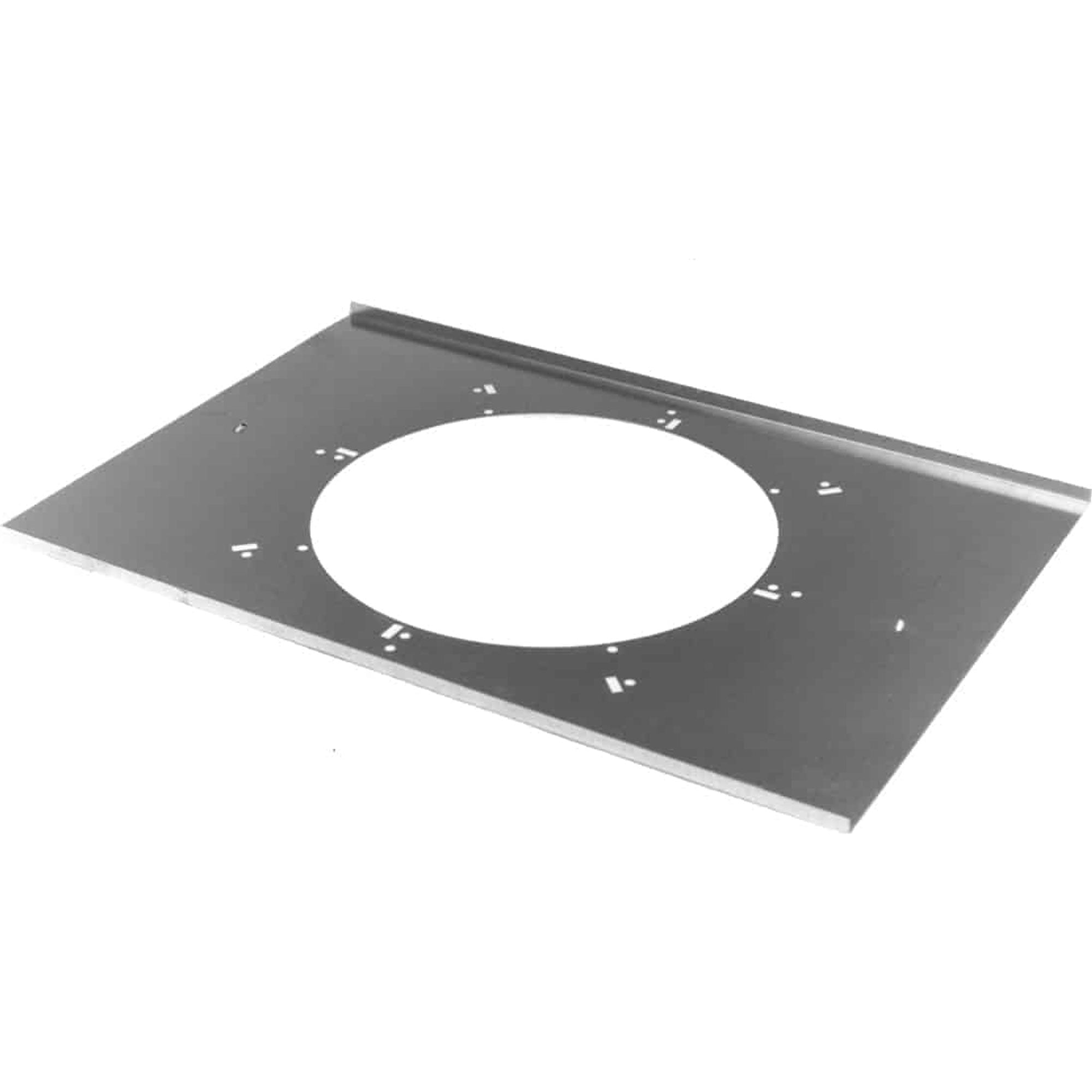

8" Speaker Tile Bridge - Case of 10 Tile Bridges
A tile bridge is often required by local building codes for safety reasons as well as for improved aesthetics in suspended 2'x2' or 2'x4' tile ceilings. It distributes the speaker's weight to the ceiling support structure, reducing the likelihood of tiles sagging under the weight of heavy speakers.
Features:
- Galvanized 20-gauge steel
- Formed construction, lightweight with rigid support
- 23.75"L x 16.25"W
- 12" dia. center opening with 2 wire-tie points for seismic anchoring, where required by code.
- Mounts 8" speaker with screw-mount grille and backbox.
- Note: the tile bridge does not include hardware. Mounting bolts are typically included with Lowell speaker assemblies and grilles. To mount a speaker enclosure to the tile bridge, four 832 bolts will be required.
Specifications:
- Formed construction, lightweight, rigid support
- 22-gauge galvanized steel
- 23.75 in. x 16.25 in.
- 12.00 in. diameter opening
- Mounting Aids: Wire-tie points for seismic anchoring where required by code
- For Driver Size: 8 inch
- For Grille Type: Screw-mount
- Backbox Requirements: Required
- COMPLIANCE & CERTIFICATION
- Made in the U.S.A.
Details
- Manufacturer: Lowell
- MPN: LBS8-CP
- Model Number: LBS8-CP Case
- UPC: 811859032339
