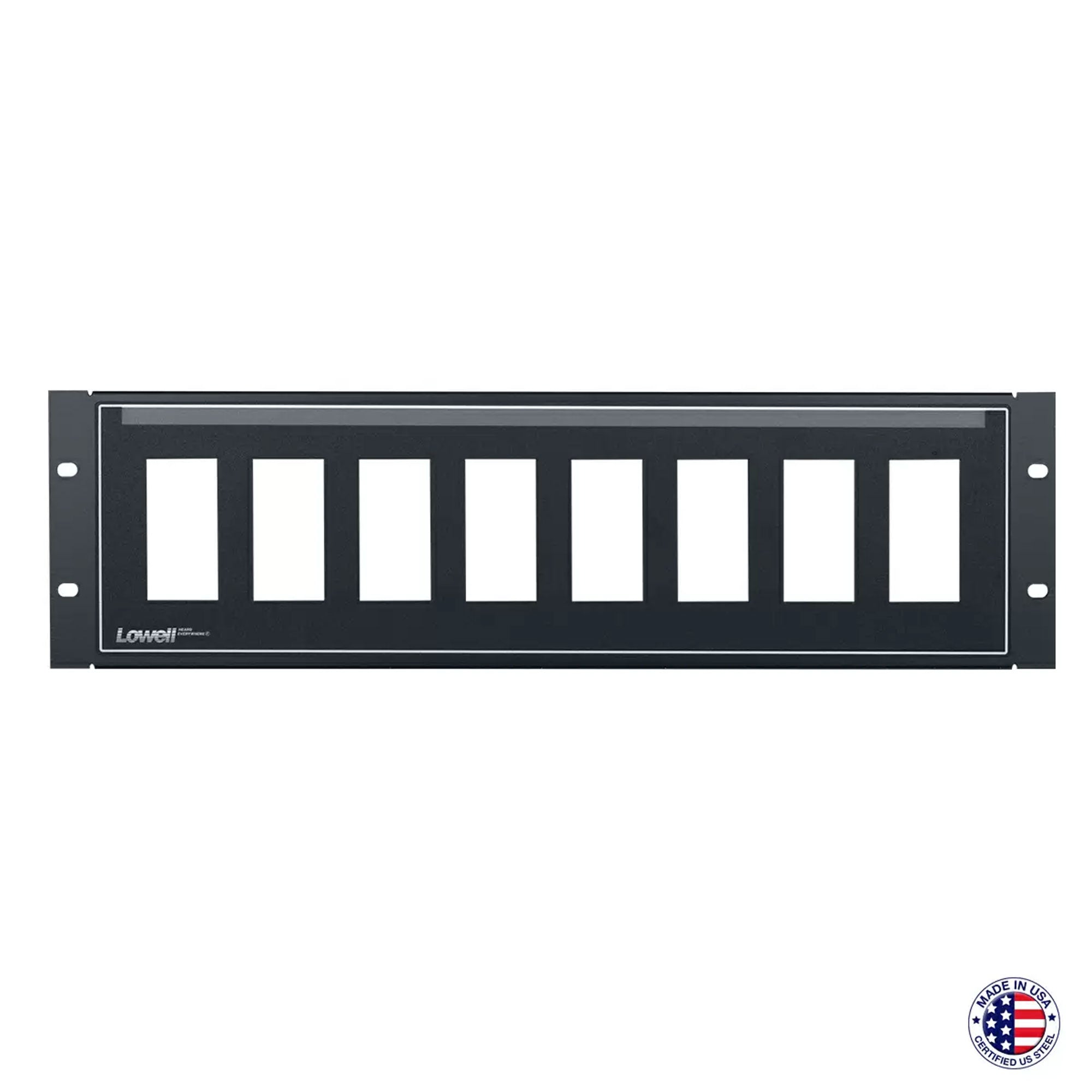

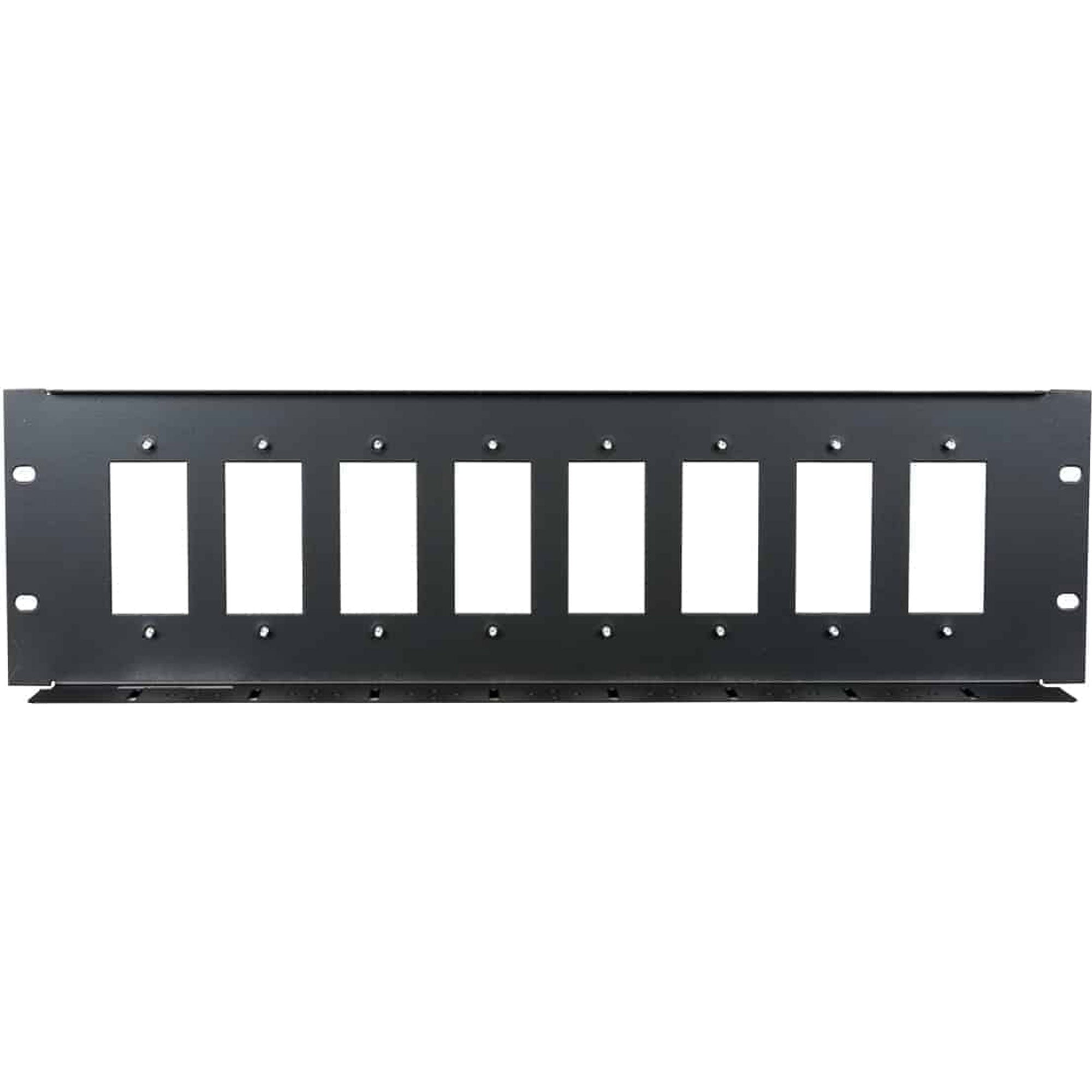

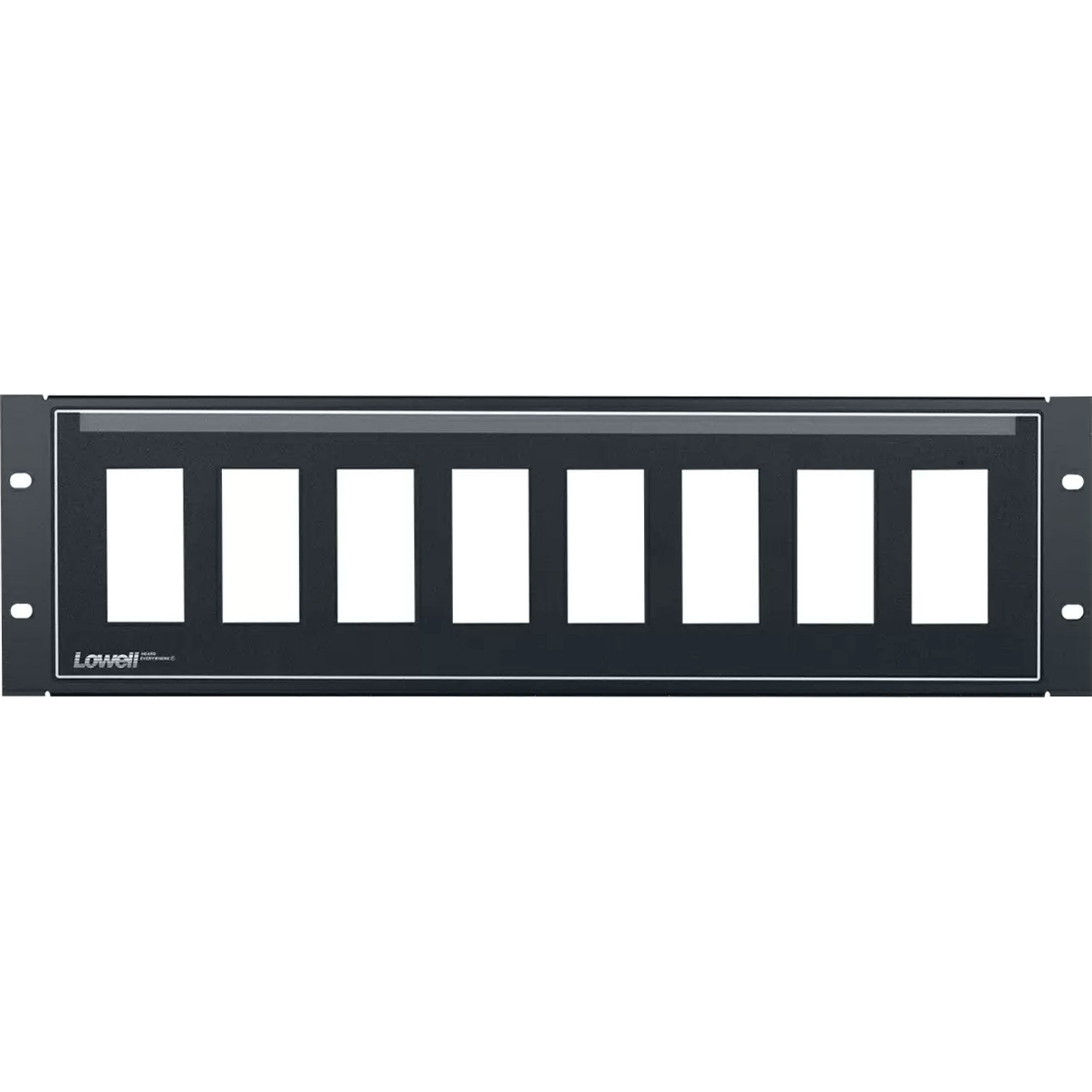

Lowell D8P-ID-3 Decora 8-Hole Rack Mount Panel

3U Decora 8-hole Rackmount Panel

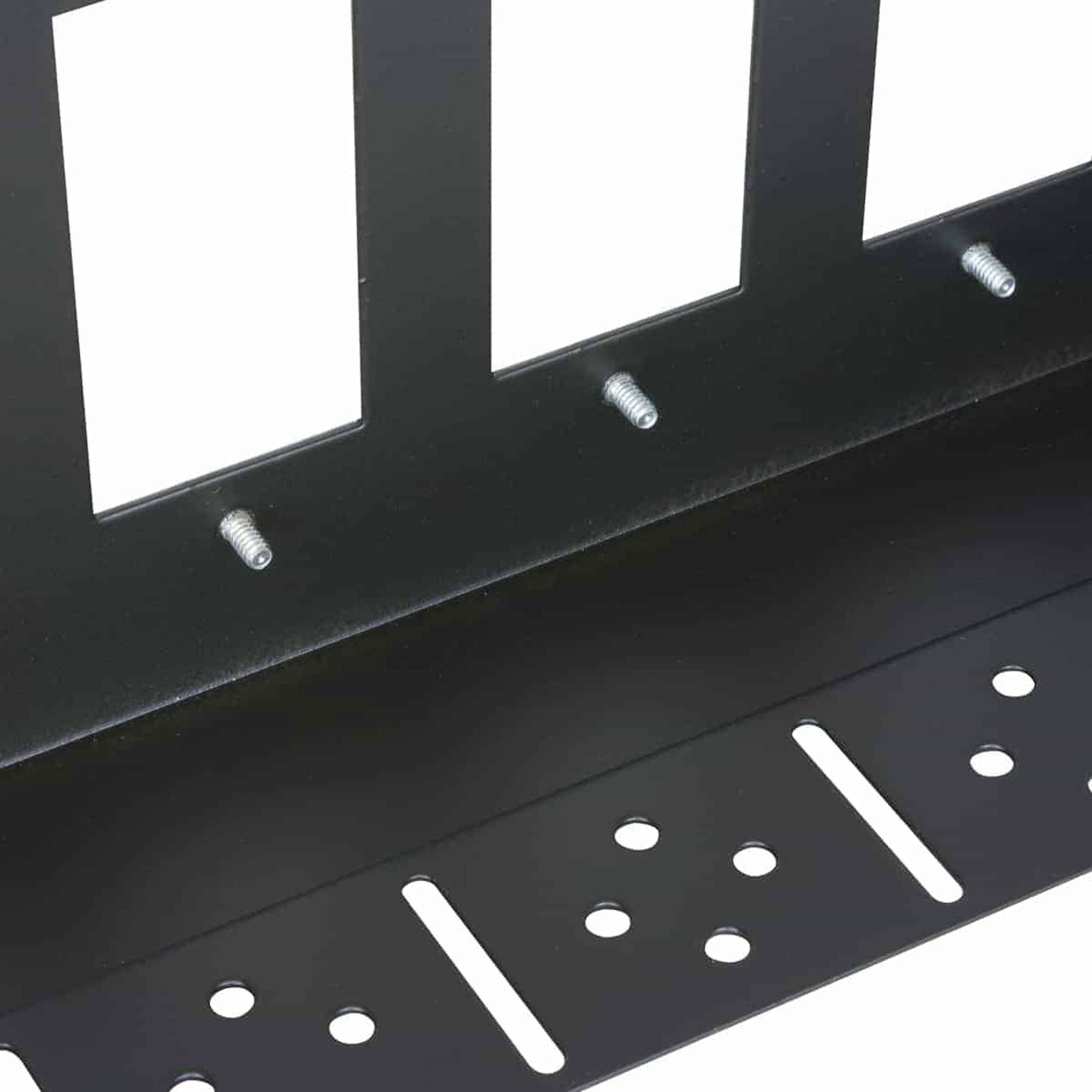

The D8P-ID-3 is a 19" (3U) steel rackmount panel with eight punched open- ings to hold up to eight (1-gang) Decora style devices, and a PocketIDTM label area. The panel uses minimal rack space while providing an organized solution for mounting and identifying low-voltage devices in the front of the rack. It includes a rear lacing flange for wire management, hardware, and a mounted polycarbonate overlay with clear Pocket-ID area for labels. Smooth, semi-gloss, black epoxy finish. Order device controls and filler plates separately.

Features:

• 16-gauge steel

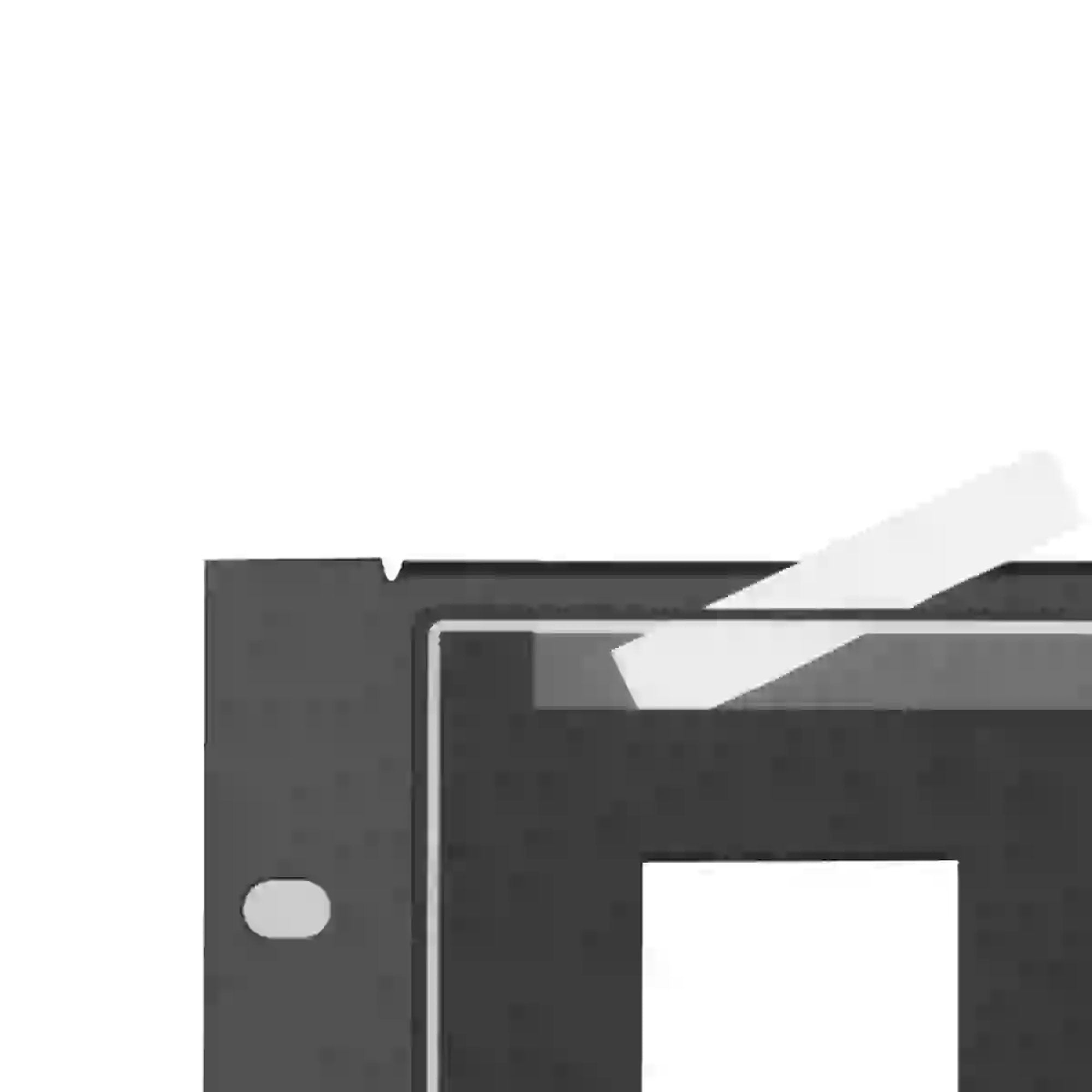

• PocketID polycarbonate overlay window for a paper label (not included)
• Eight (8) punches for low-voltage decorator style devices mounted vertically
• Smooth black semi-gloss powder epoxy finish
• Hardware

Specifications:

• Rack Space: 3U
• Height: 5.25 in.
• Width: 19.00 in.
• Depth: 0.5 in. flange
• COMPLIANCE & CERTIFICATION
• EIA/TIA compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.
