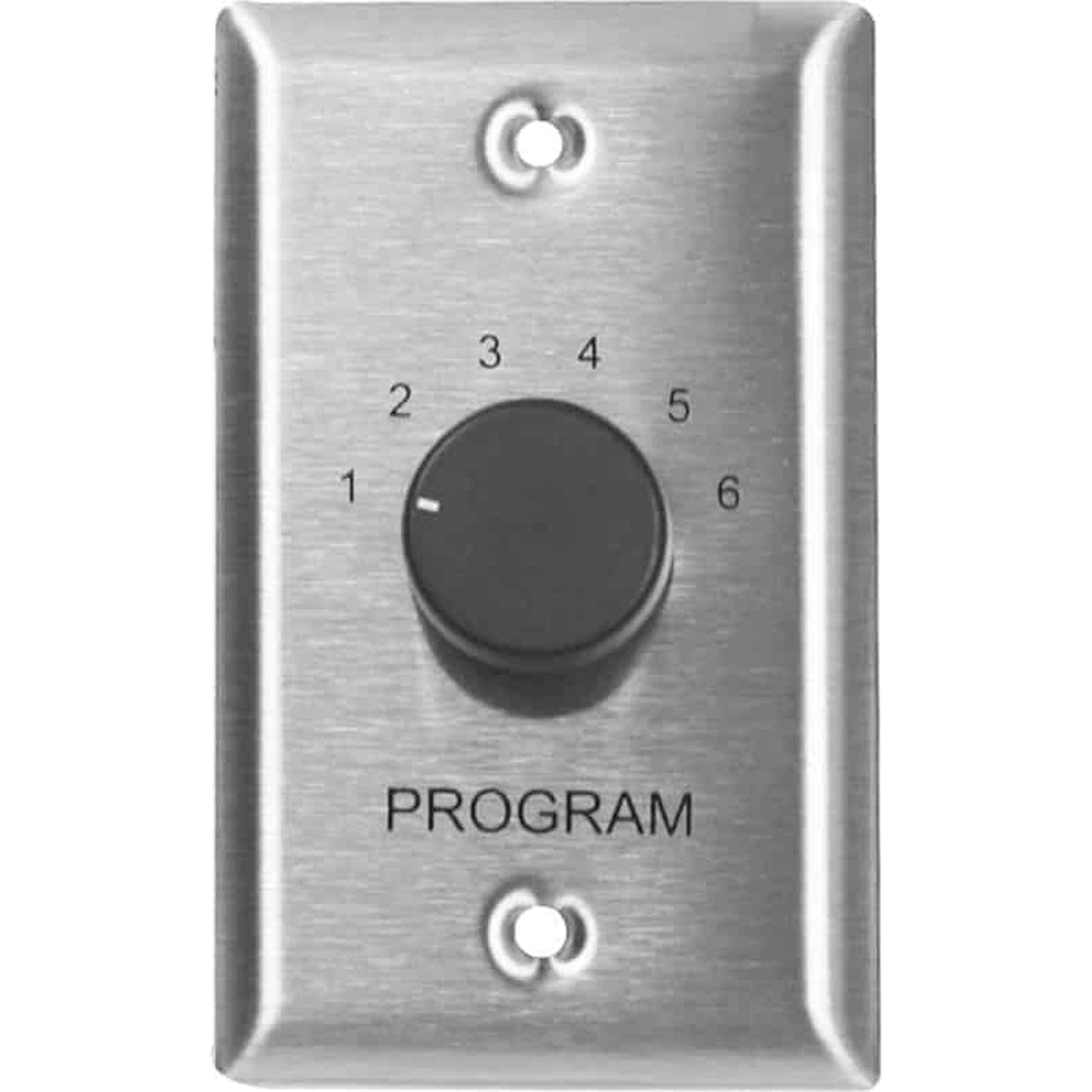

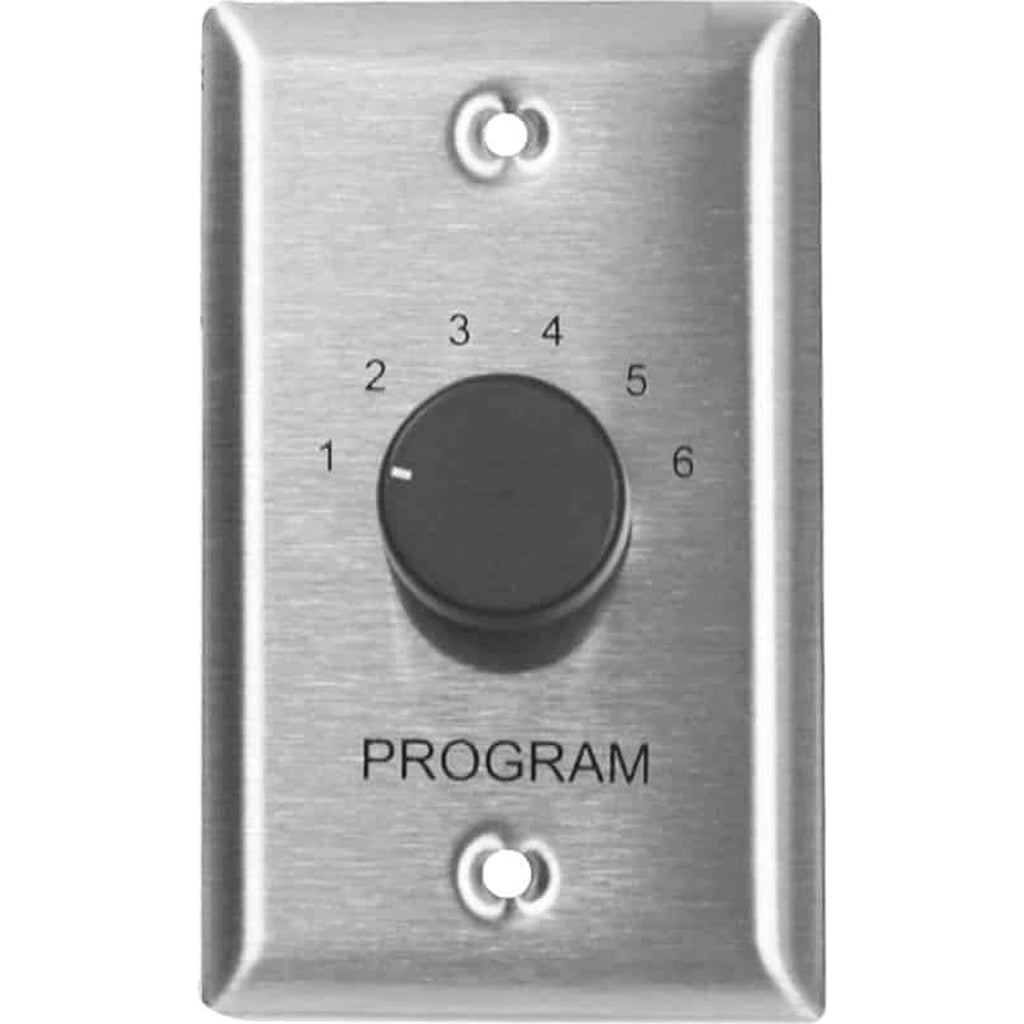

Lowell CS6-SS Program Selector Switch (Stainless Steel)

Six-Source Selector Switch, Stainless Steel

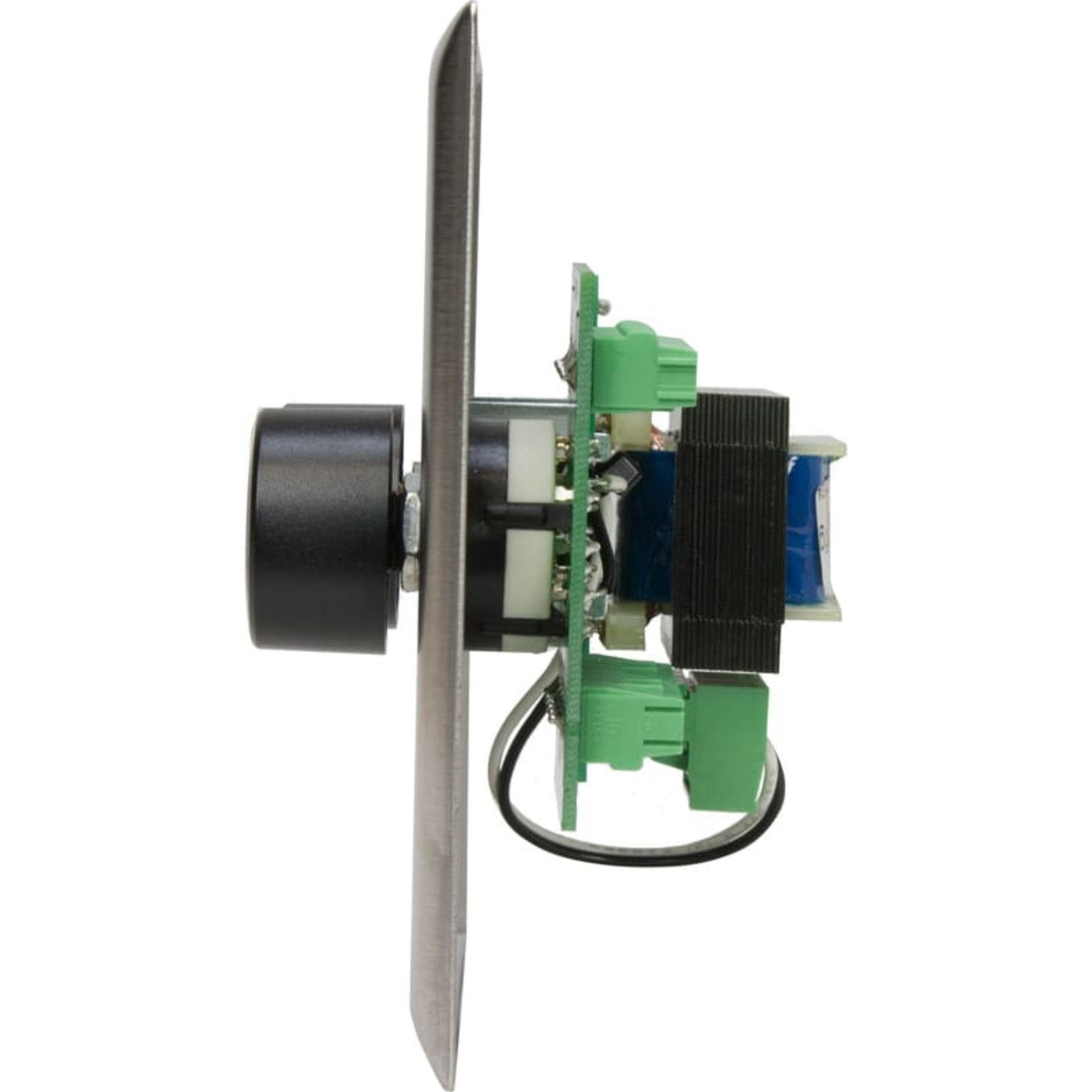

Lowell Model CS6 is an attractive wall-mount selector switch for on/off access to up to six program sources. The selector switch is a two-pole rotary style with six "Euro-Style" screw inputs. It's ideal for program source selection in medical offices, mixed-use retail suites, schools, hotels, restaurants and residential applications where source selection without volume control adjustment is desired. The switch features six inputs for remote source selection. It's designed for use where volume adjustment is accomplished at the source. It may also be used in conjunction with a 70/25V volume control (such as Lowell's 25W, 50W or 100W LVC Series - order separately) by connecting the selector output to the attenuator input. The selector and volume control may then be mounted side by side in a two-gang E.O. box or in separate single gang boxes. Controls include standard plate in stainless steel or Decora-style plate in white, black, white/stainless, or black/stainless with matching knobs and mounting screws. Mounting depth is 1" for convenient installation into standard single gang electrical outlet boxes (by others) or Lowell's surface mount box Model P1X (white only, order separately).

Features:

• Wall-mount selector switch provides remote on/off access to up to six program sources.
• Standard plate in stainless steel or Decora-style plate in white, black, almond, white/stainless, or black/stainless.
• Ideal for professional office and retail suites, hotels, restaurants and residential applications.

Specifications:

• Program Sources: 6
• Control: Rotary knob
• Termination: Pigtails
• Input: Screw terminal
• Wall Plate: Standard, stainless steel
• Fits standard E.O. box
• May be used with a 70V/25V volume control
• CERTIFICATION & COMPLIANCE
• Made in the U.S.A. with global components
