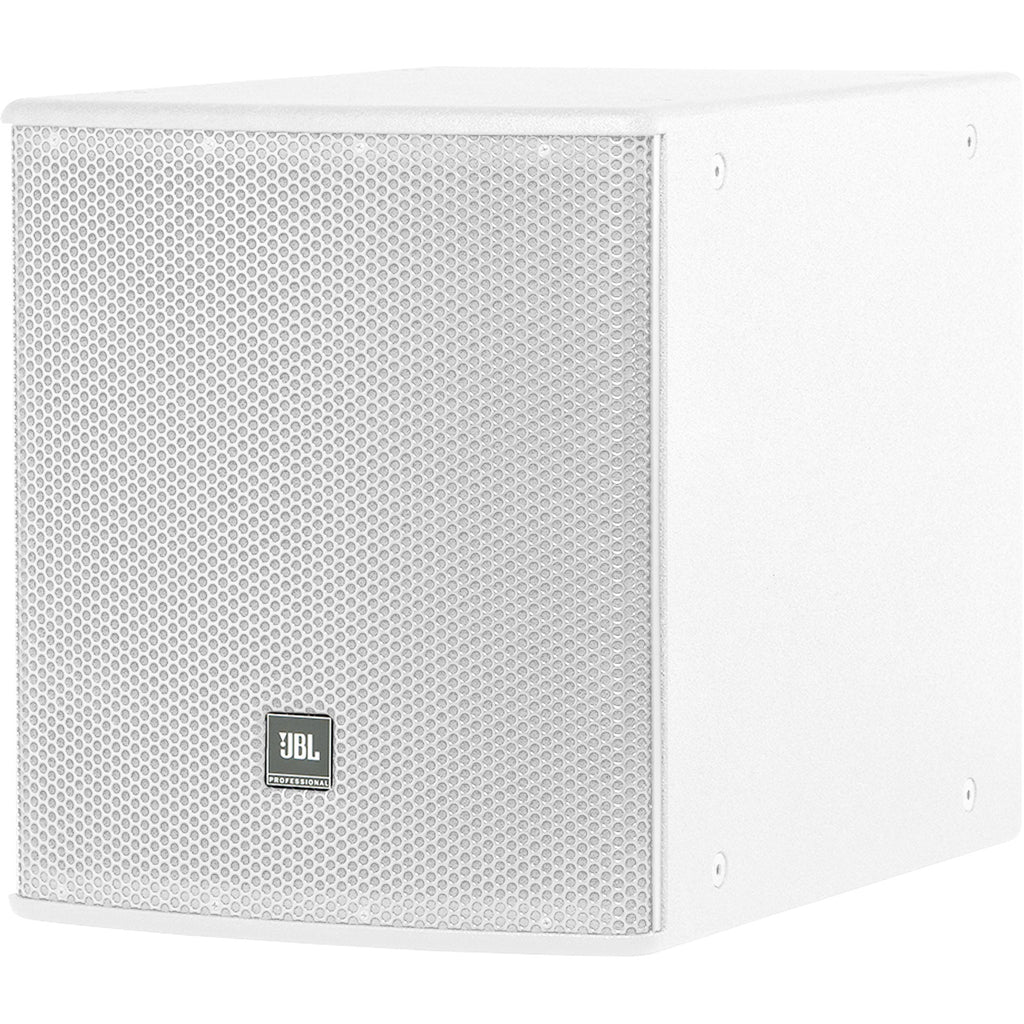

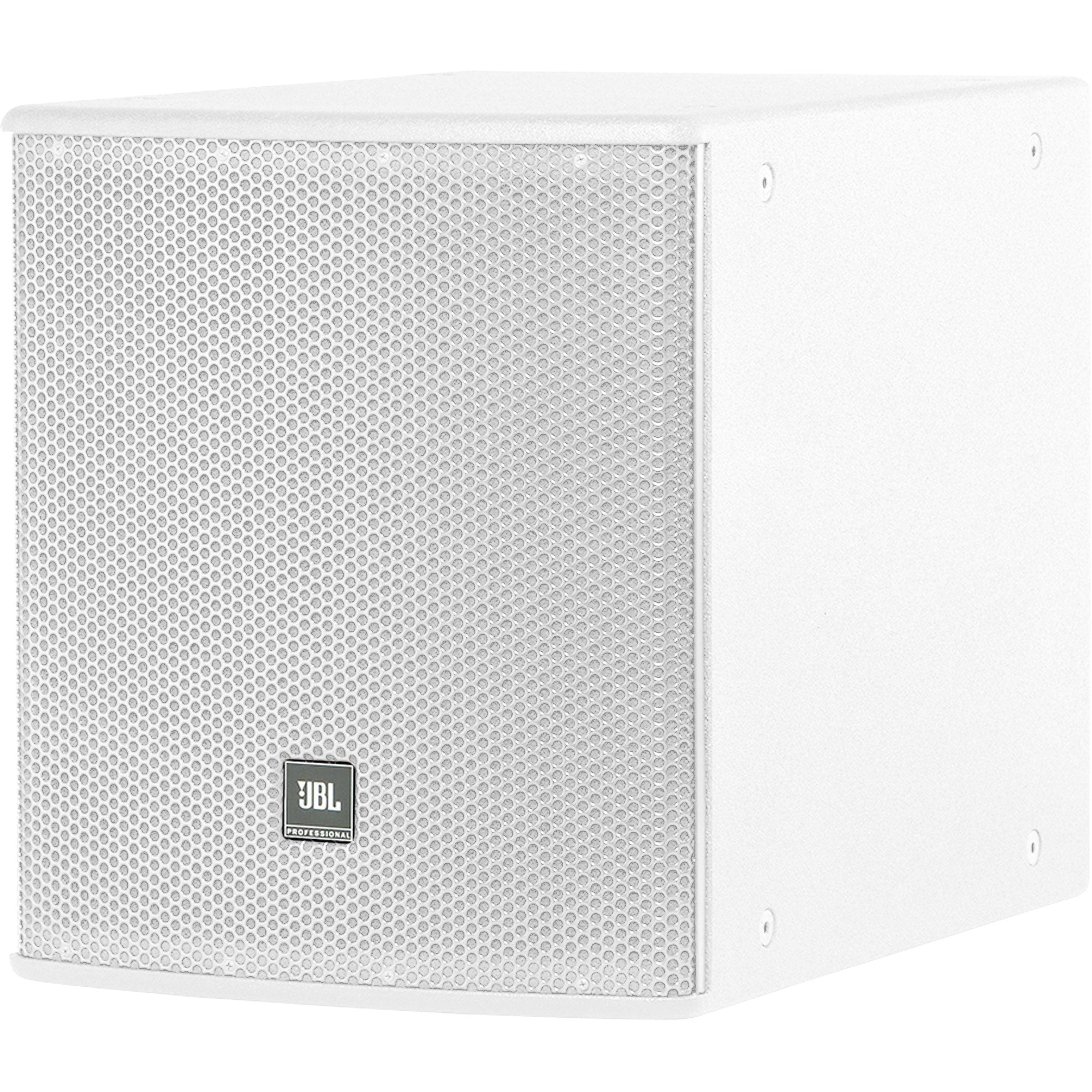

JBL ASB6118-WH Single 18" Subwoofer (White)

High Power Single 18" Subwoofer, White

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features:

• Large vent area for high output.
• Arrays with AM7200 mid-high loudspeakers (using PAF-2K planar array frame kit) Arrays with AM2212 full-range speakers (using PAF-1K planer array frame kit). See Array Guide.
• For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications:

• Frequency Range: 28 Hz - 1 kHz (-10 dB)
• Frequency Response: 35 Hz - 1 kHz ( +/- 3 dB)
• Transducer Power Rating (AES): 1200 W (4800 W peak), 2 hrs
• Long-Term System Power Rating (IEC): 800 W (3200 W peak), 100 hrs
• Maximum SPL: 30 Hz - 100 Hz: 129 dB-SPL cont avg
• (135 dB peak)
• 100 Hz - 500 Hz: 129 dB-SPL cont avg
• (135 dB peak)
• System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz - 100 Hz: 98 dB
• 100 Hz - 500 Hz: 98 dB
• Nominal Impedance: 8 ohms
