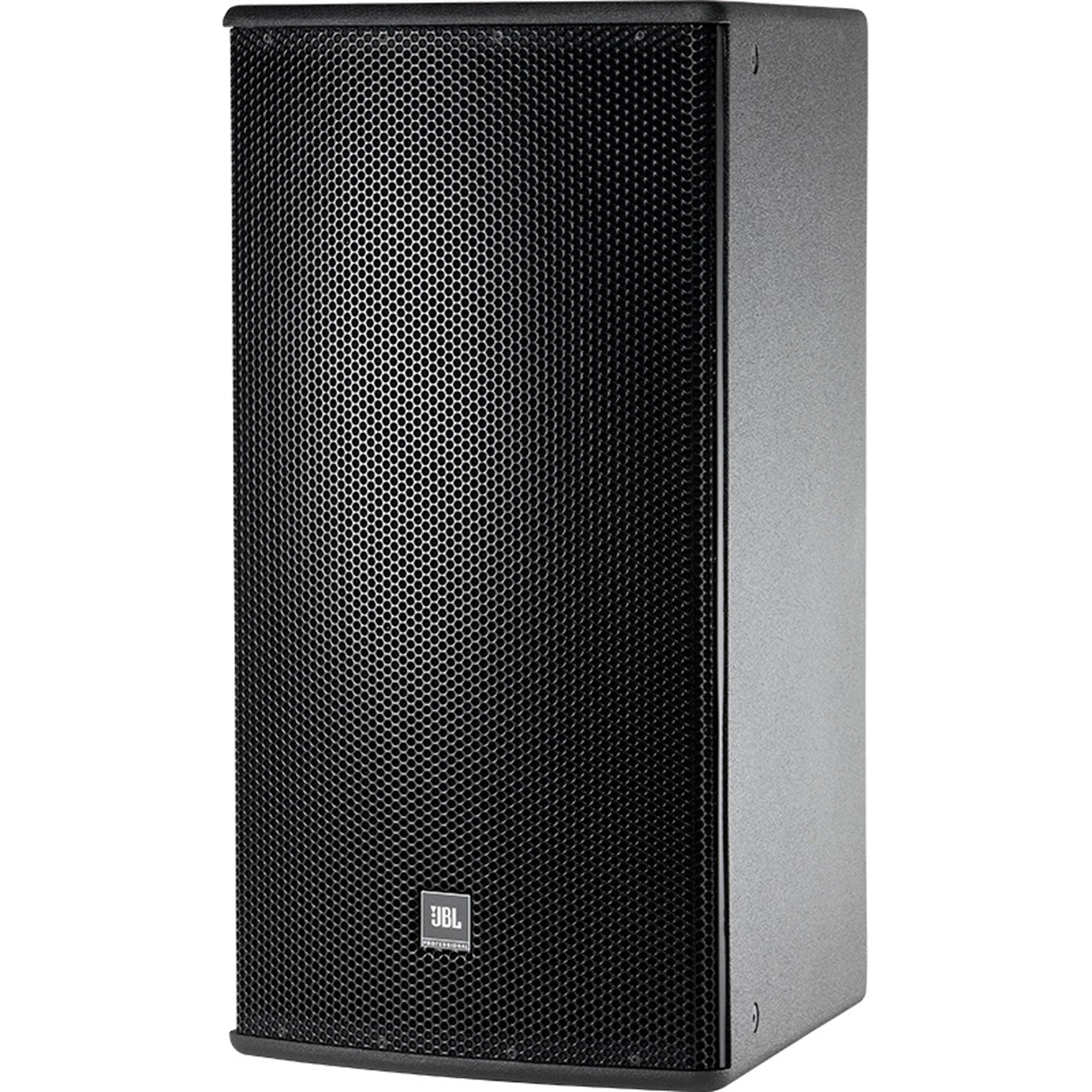

JBL AM7215/66 High Power 15" 2-Way Full-Range Loudspeaker System (Black)

High Power 2-Way Loudspeaker with 1 x 15" LF, 60 x 60 Coverage, Black

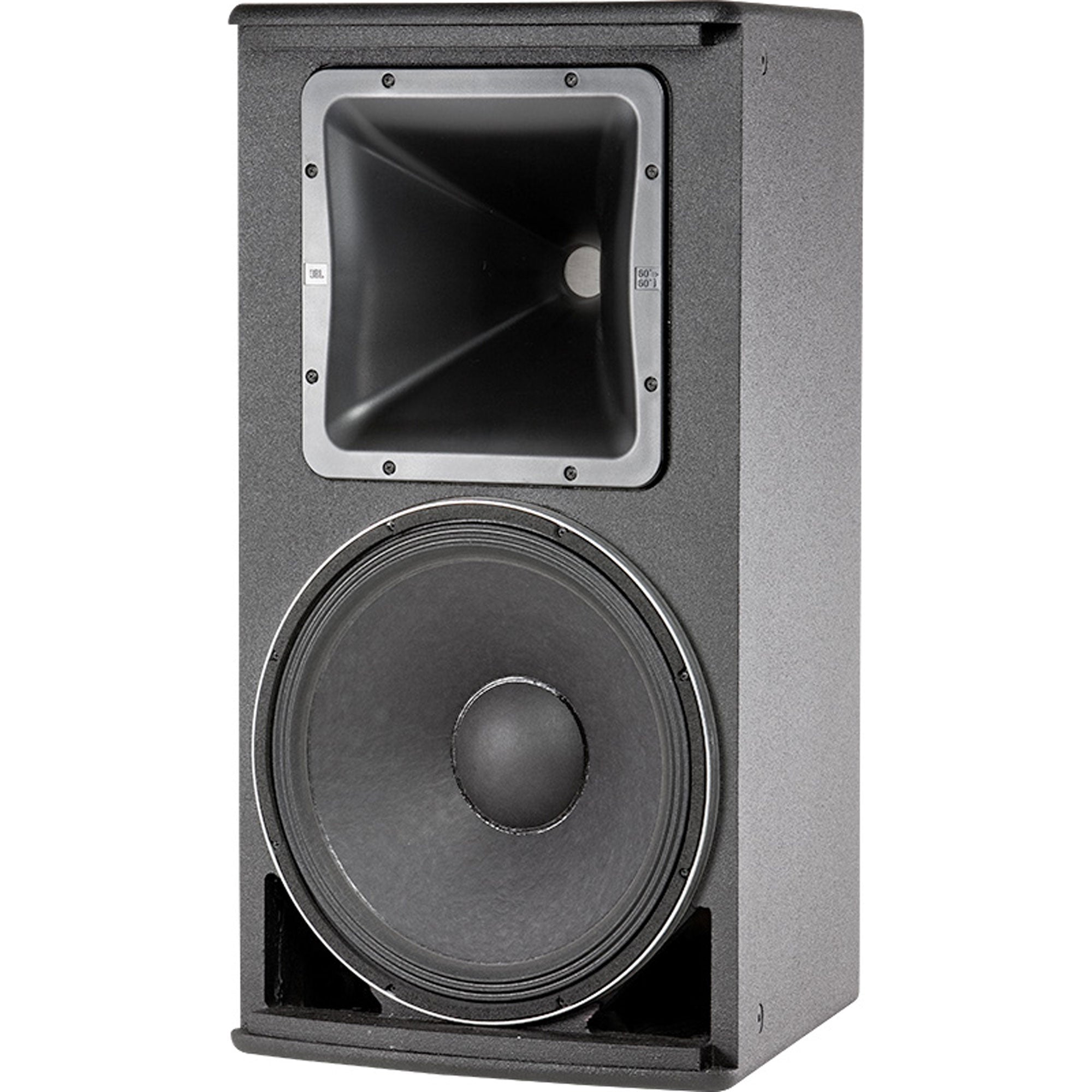

The AM7215/66 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60 x 60 coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features:

• 60 x 60 Coverage
• 2265H Differential Drive Low- Frequency Driver
• 2432H High-Frequency Compression Driver
• Large PT Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Available in Black, White and WRC/WRX finishes

Specifications:

• Frequency Range ( -10 dB): 34 Hz - 20 kHz
• Frequency Response ( +/- 3 dB): 40 Hz - 18 kHz
• Coverage: 60 x 60 horn
• LF Driver: 2265H
• HF Driver: 2432H
• System Type: 15" Two - Way, High Power, Full - Range
• Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
• Weight: 27.2 kg (60 lb)
• Directivity Factor (Q): 14.5
• Directivity Index (DI): 11.6 dB
• Crossover Modes: Bi-amp/Passive switchable
• Passive Crossover Frequency: 1.4 kHz
• Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr
• 750 W (3000 W peak), 100 hrs
• HF: 100 W (400 W peak), 2 hrs
• Long-Term System Power Rating (IEC): Passive mode: 600 W (2400 W peak), 100 hrs
• Maximum SPL (dB-SPL, 1W @ 1m): Bi-amp mode:
• LF: 128 dB-SPL cont avg (134 dB peak)
• HF: 134 dB-SPL cont avg (140 dB peak)
• Passive mode:
• 124 dB-SPL cont avg (130 dB peak)
• System Sensitivity (1W @ 1m): Passive mode: 96 dB SPL
• Nominal Impedance: 8 ohms
