JBL AC895 8" Two-Way Loudspeaker (Black)

8" 2-Way Full-Range Loudspeaker System, Rotatable 90º x 50º Waveguide Coverage - Black

Two-Way Full-Range Loudspeaker with 1 x 8" LF

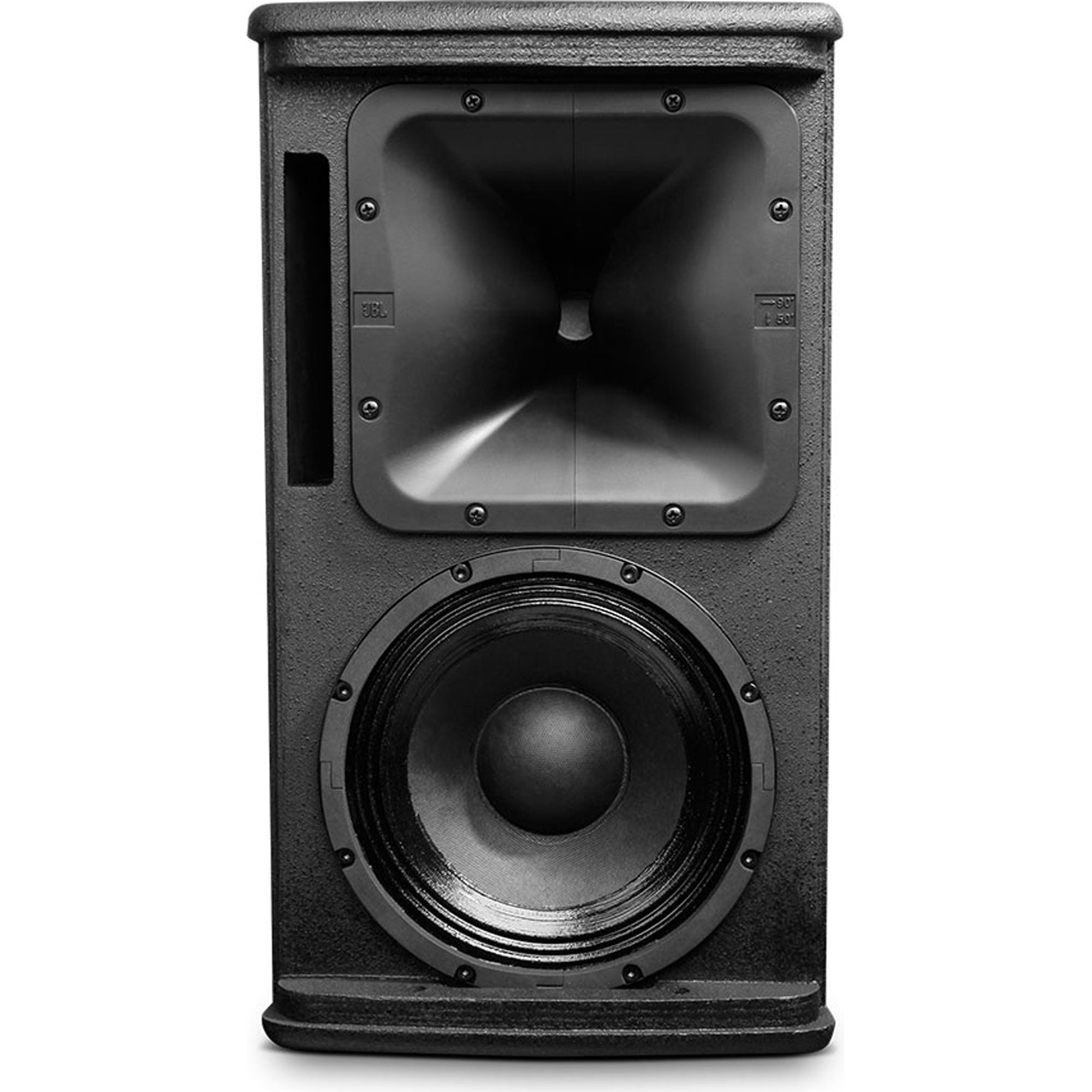

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features:

• Compact enclosure
• 209 mm (8 in) LF transducer
• 90° x 50° Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple Attachment Points for Ultimate Flexibility

Specifications:

• Frequency Range (-10 dB): 70 Hz - 20 kHz
• Frequency Response (±3 dB): 90 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 94 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 116 dB (122 dB peak)
• Power Rating (Continuous/Program/Peak): 150 W/ 300 W/ 600 W
• Coverage Pattern: 90° x 50° (H x V)
• Crossover: 2 kHz
• Low Frequency Driver: 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
• High Frequency Driver: 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood

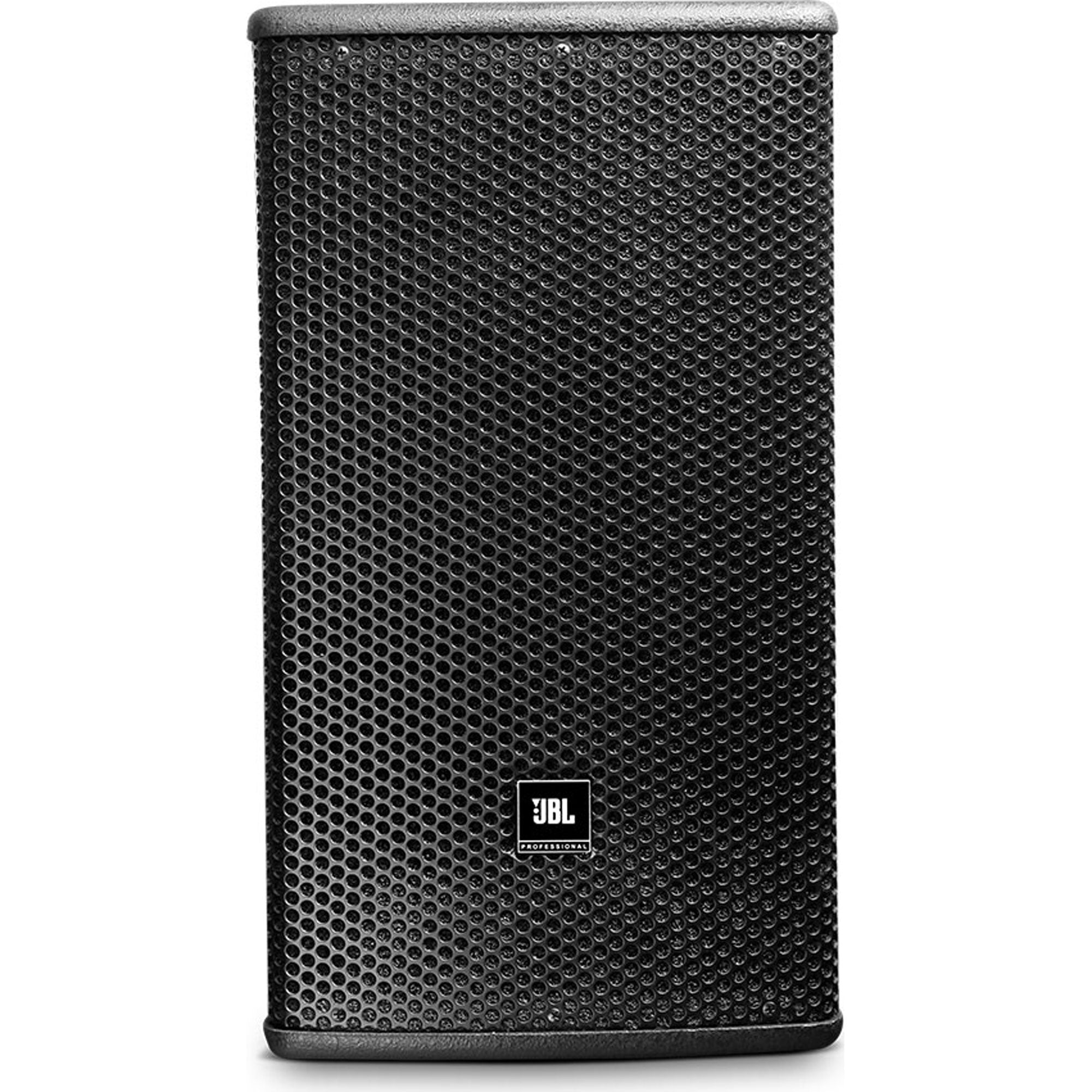

• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Dimensions (H x W x D): 470 mm x 265 mm x 254 mm (18.5 in x 10.4 in x 10.0 in)
• Net Weight: 10.2 kg (22.4 lbs)
