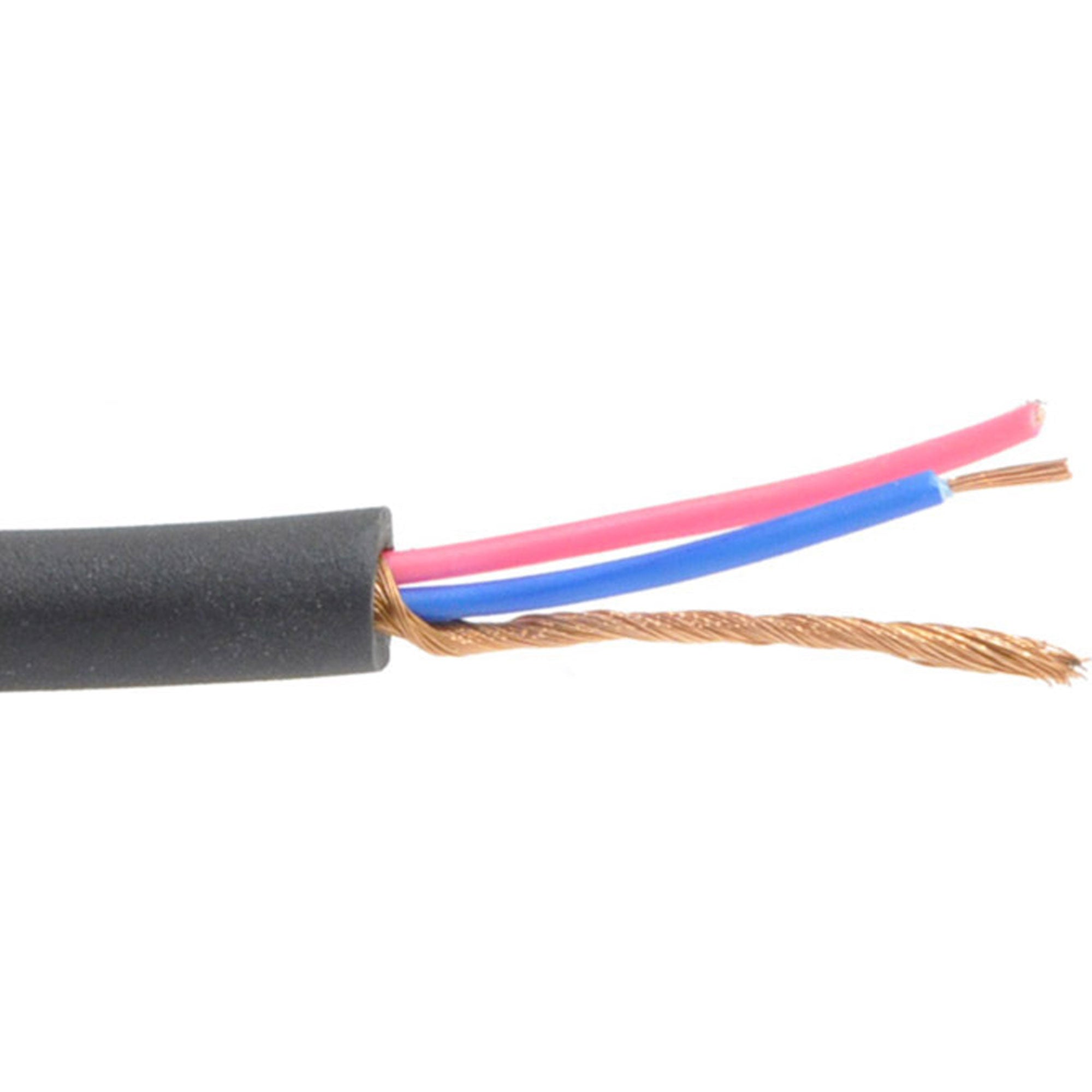

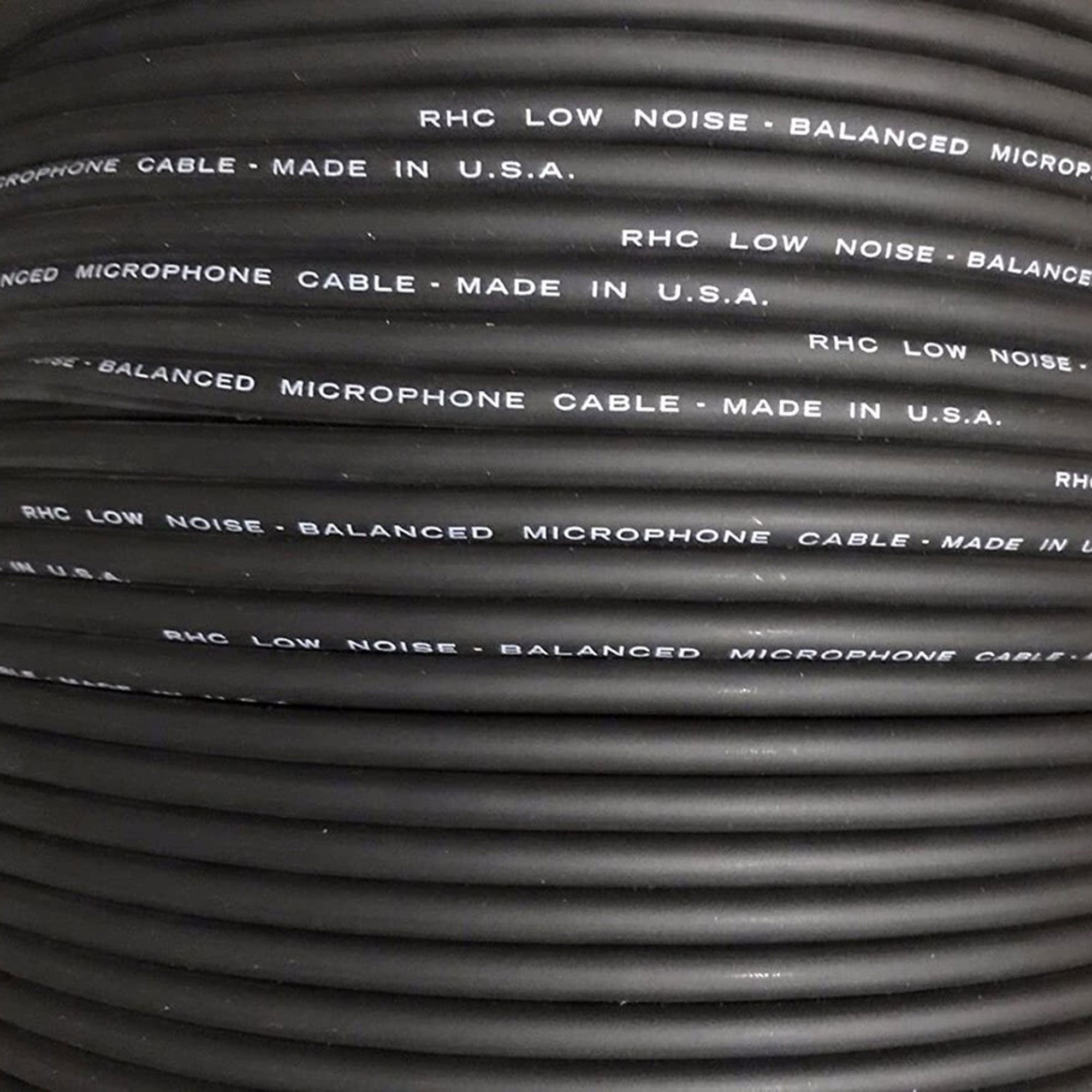

RapcoHorizon MIC1.K Low Impedance Microphone Wire (By the Foot)

24 Gauge 2 Conductor Lo-Z1 Low Impedance Microphone Wire - Black (Price per Foot)

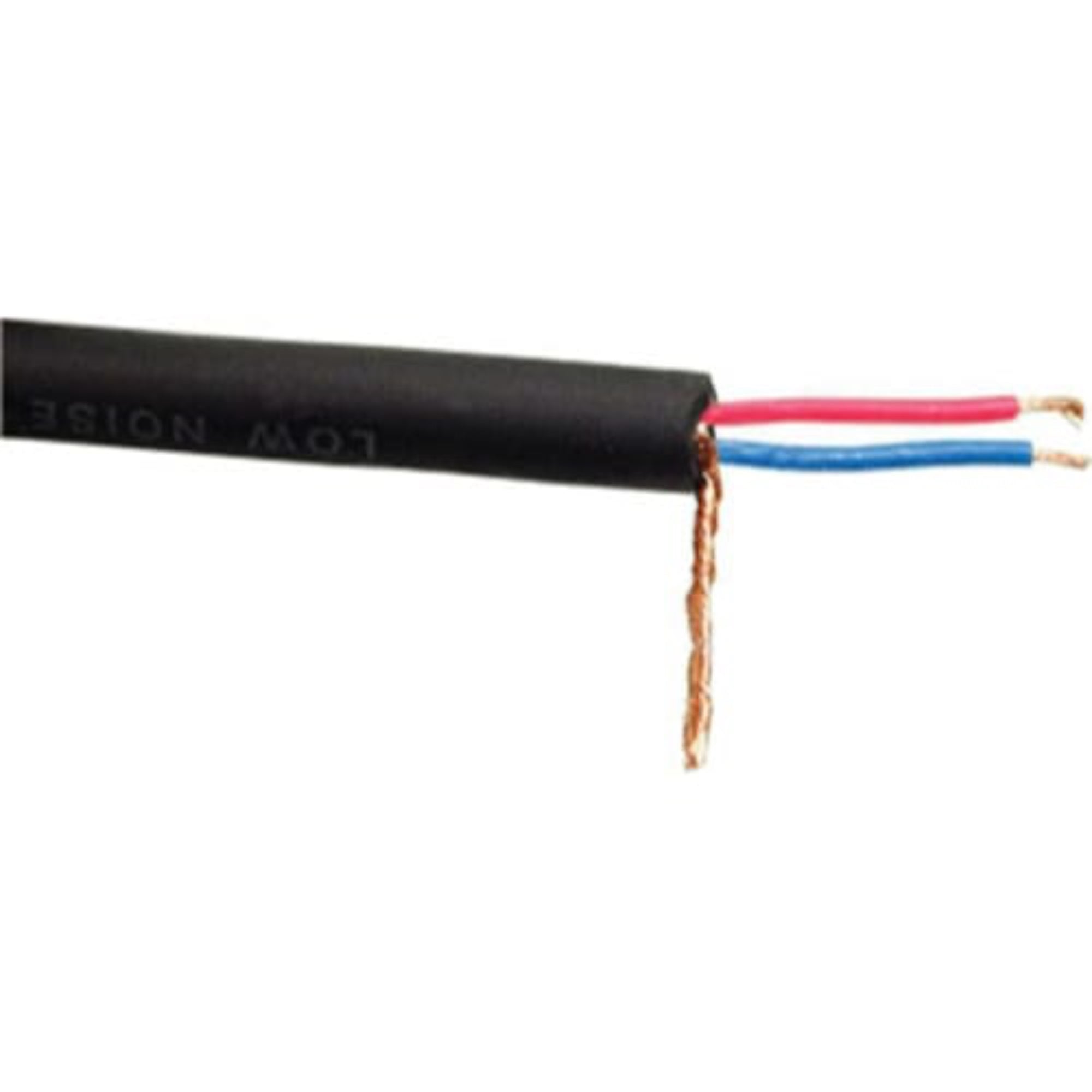

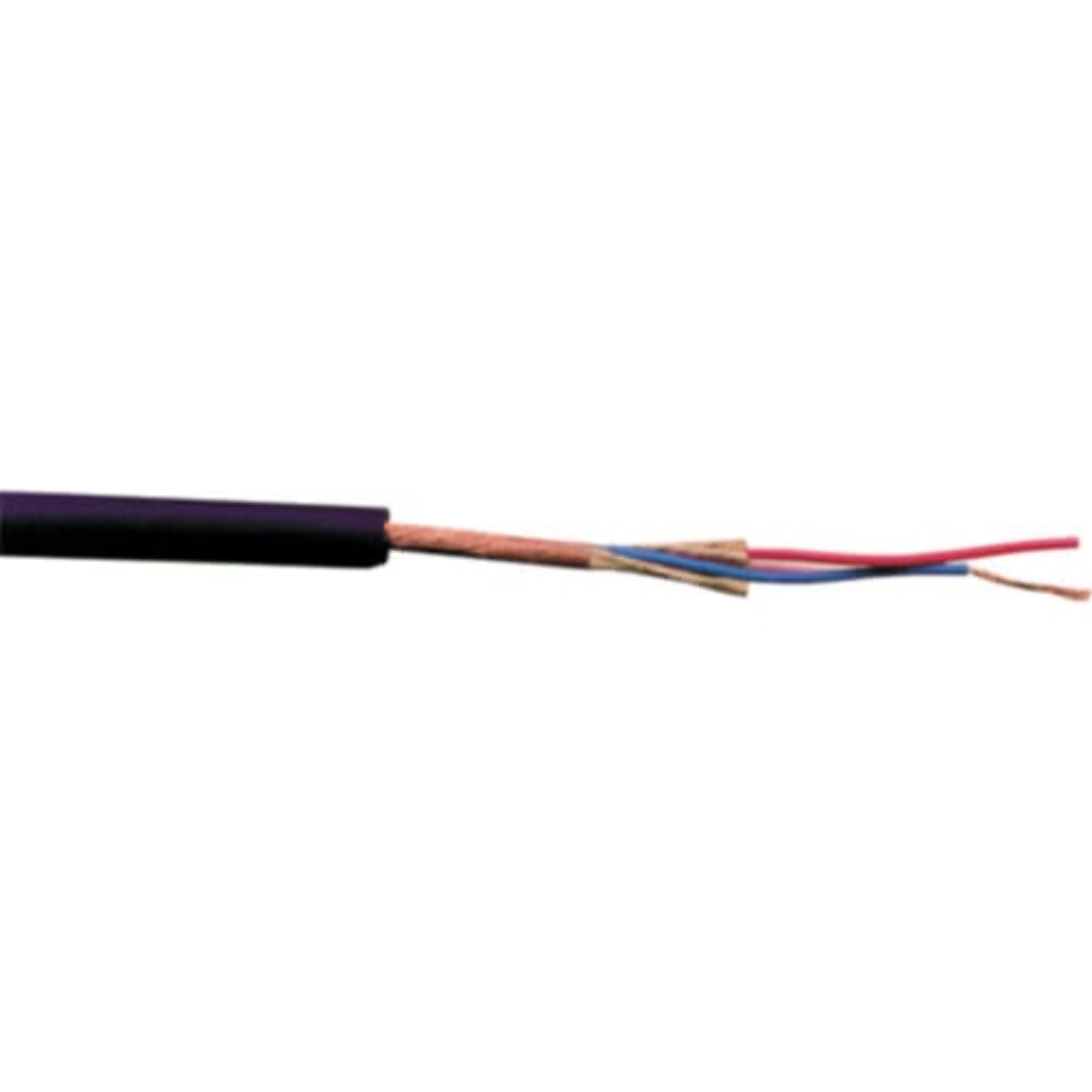

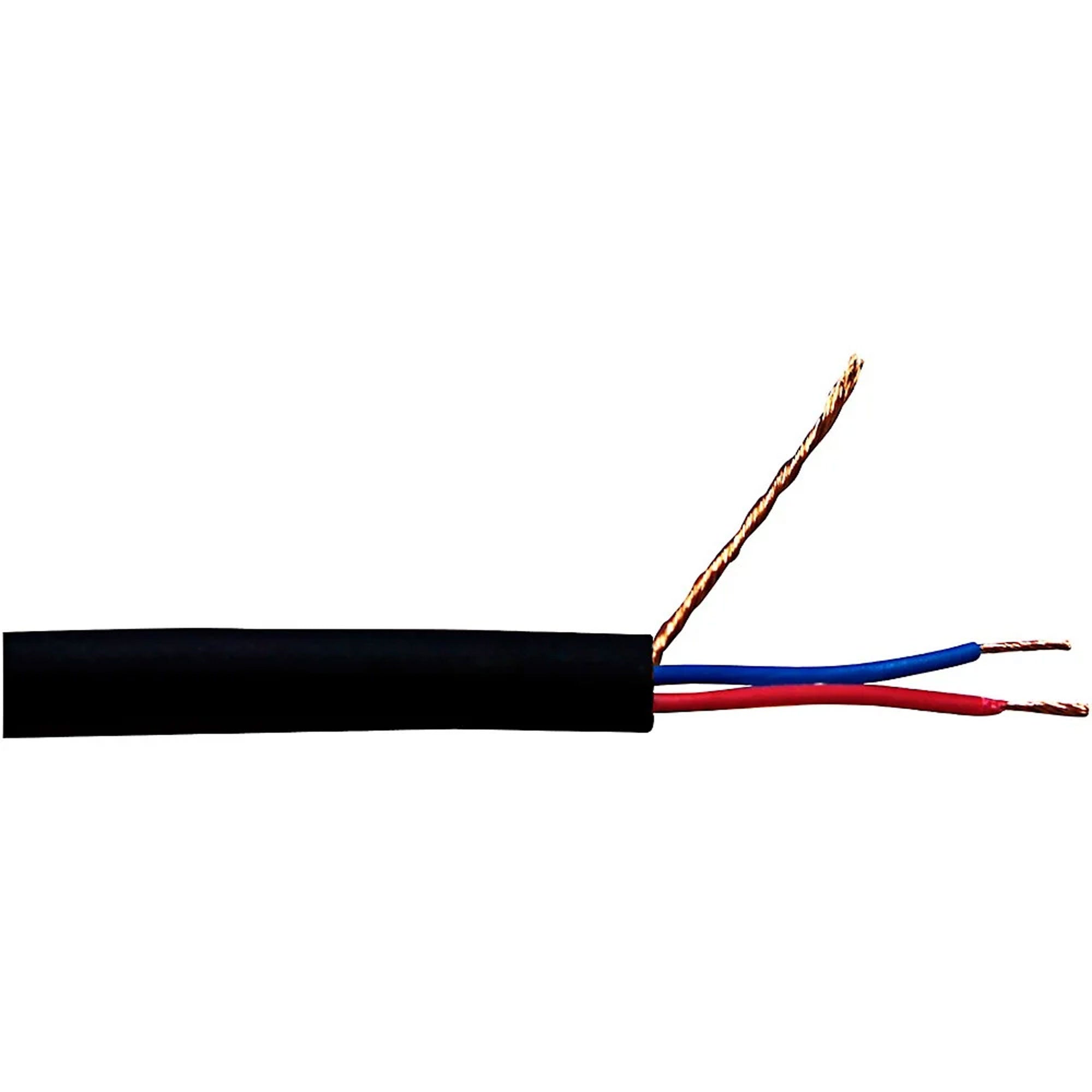

2 conductor, 24awg, stranded bare copper, polypropylene insulated, overall copper serve shield, PVC jacketed microphone wire

Available in Black, blue, green, purple, red, white, neon blue, neon green, neon orange, neon pink, neon yellow, translucent blue, translucent green, translucent black, translucent magenta, translucent orange, translucent purple, translucent red, and translucent yellow.

NOTE: Colors other than black must be ordered in full 1000' roll lengths only.

Variations
Model # MIC1.K: Black Jacket
Model # MIC1.B: Blue Jacket
Model # MIC1.G: Green Jacket
Model # MIC1.P: Purple Jacket
Model # MIC1.R: Red Jacket
Model # MIC1.W: White Jacket
Model # MIC1.NB: Neon Blue Jacket
Model # MIC1.NG: Neon Green Jacket
Model # MIC1.NO: Neon Orange Jacket
Model # MIC1.NP: Neon Purple Jacket
Model # MIC1.NY: Neon Yellow Jacket
Model # MIC1.TB: Translucent Blue Jacket
Model # MIC1.TG: Translucent Green Jacket
Model # MIC1.TK: Translucent Black Jacket
Model # MIC1.TM: Translucent Magenta Jacket
Model # MIC1.TO: Translucent Orange Jacket
Model # MIC1.TP: Translucent Purple Jacket
Model # MIC1.TR: Translucent Red Jacket
Model # MIC1.TY: Translucent Yellow Jacket

Specifications:

• Cable: MIC1.*
• Conductor Gauge: (2)24 gauge
• Shield: Bare annealed copper serve
• Shield Coverage: 95%
• Jacket: Matte PVC
• O.D.: 0.230"
• Capacitance: 21 pF/ft. @ 1 kHz
• Characteristic Impedance: 70Ω NOMINAL
• D.C. Resistance @ 20°C: 23Ω/1000'
