Description

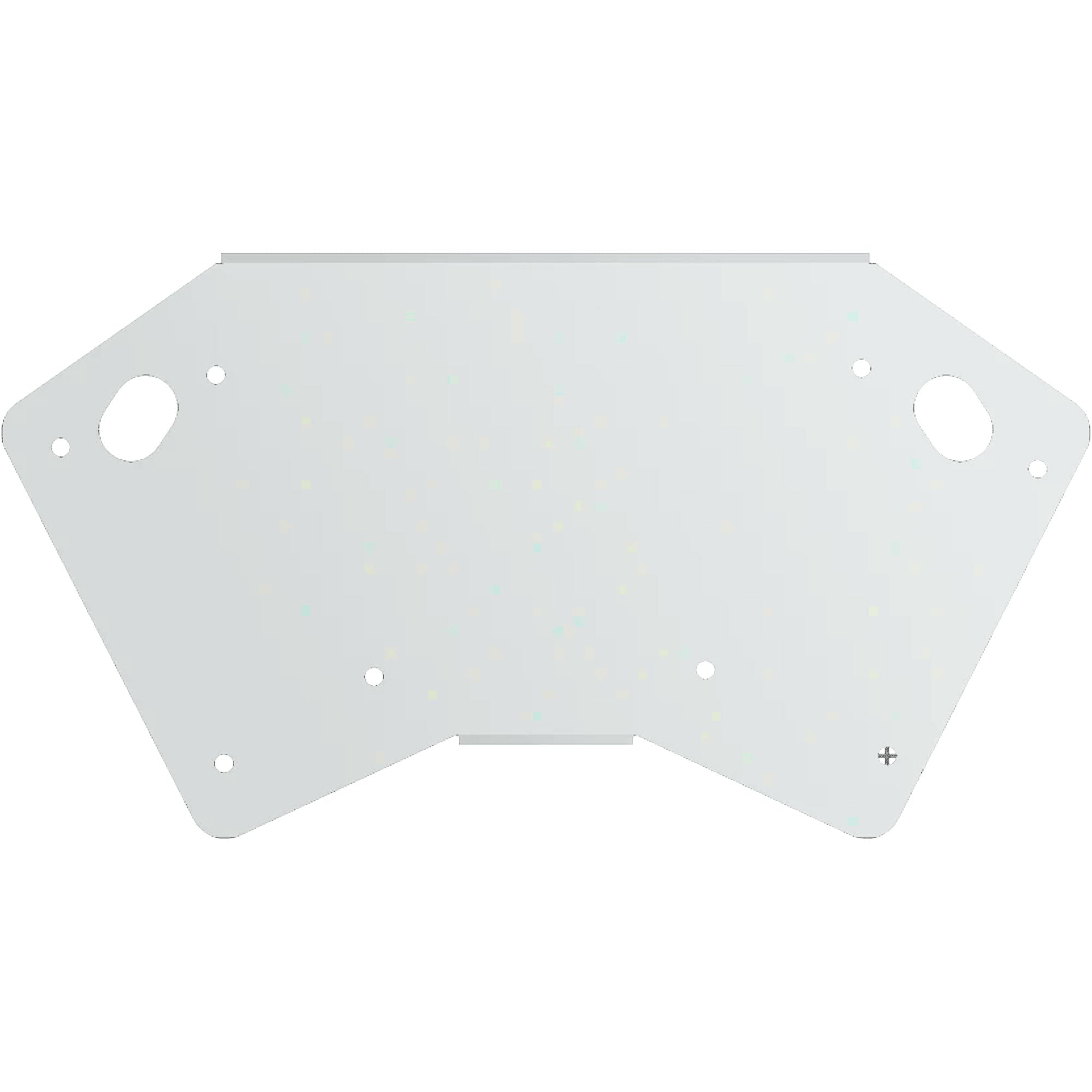

Horizontal Array Kit, White
Horizontal array kit for side-by-side arraying of two Sb121 Sb121a Sb122PI Sx100+ or Sx300 (use a second Mb300 to array three systems; the Mb300 requires one Mb200 U-bracket kit per speaker system) white.

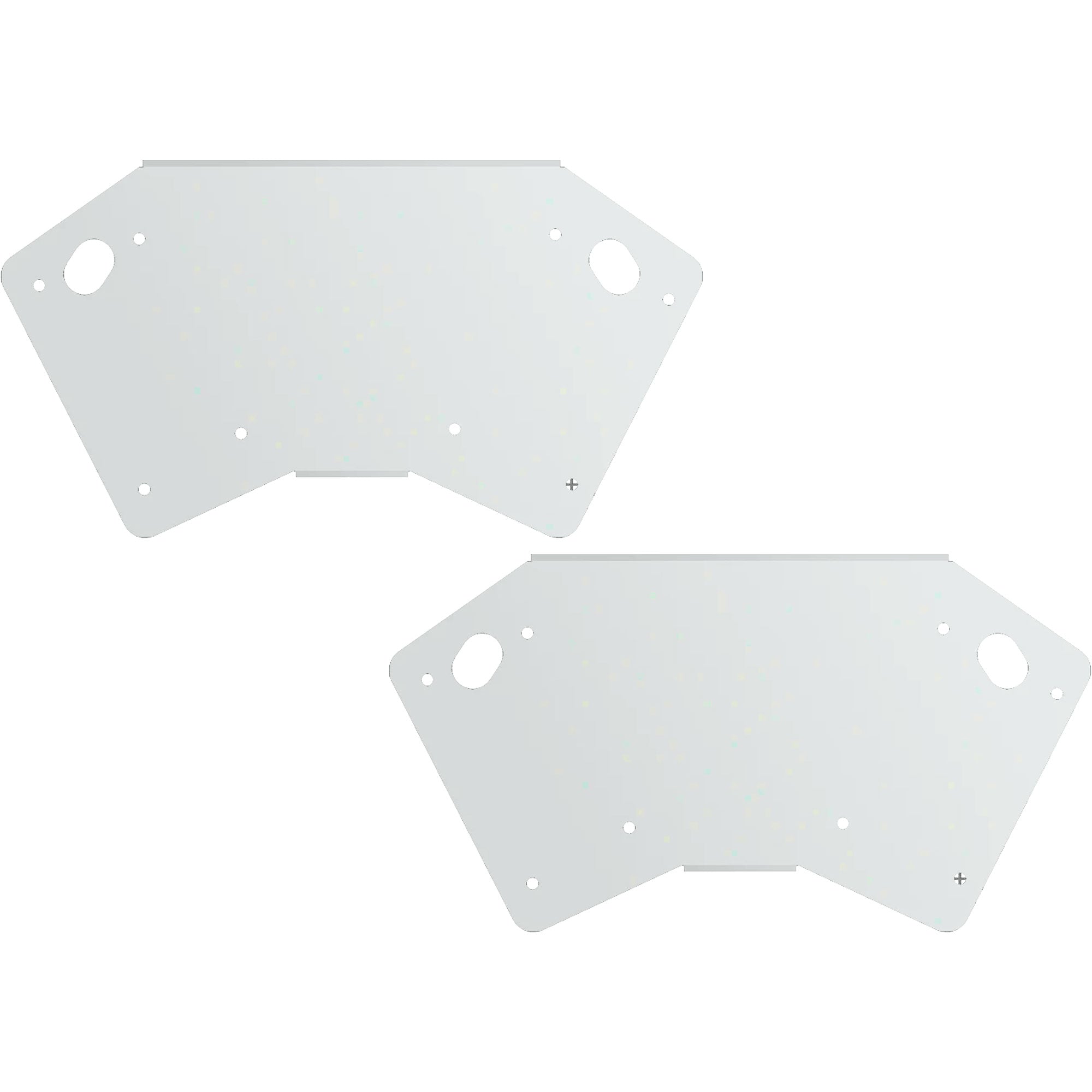

The Mb300 horizontal array kit contains two brackets and eight of each of the following: 5/16-18 x 1 hex-head bolts, 5/16 lock washers, 5/16-18 nuts.
The Mb300 is used in conjunction with the Mb200 installation bracket to create a speaker array. The array can be constructed in either of two angular configurations:
Speakers side by side (50 angle) for a tight array
Speakers spread slightly (60 angle) for wider coverage
(Note that a full 360 array can only be accomplished with the 60 angle pattern.)
Suspension of the speaker array is made easy with the four 12.7-mm (0.5-in.) holes located on the Mb300. A cable, chain quick link, or other suitable hardware which is rated for overhead lifting (not supplied with this kit) can be used to connect to the array for flying.
- Manufacturer: Electro-Voice
- MPN: F.01U.118.109
- Model Number: Mb300W
- UPC: 800549420433
