Key Features
- 12 DMX Channel Faders
- Master Dimmer Fader
- Portable, Hand-Held, Wall-Mountable
- Runs on 12 VDC Supply, or 9 VDC Battery
Description

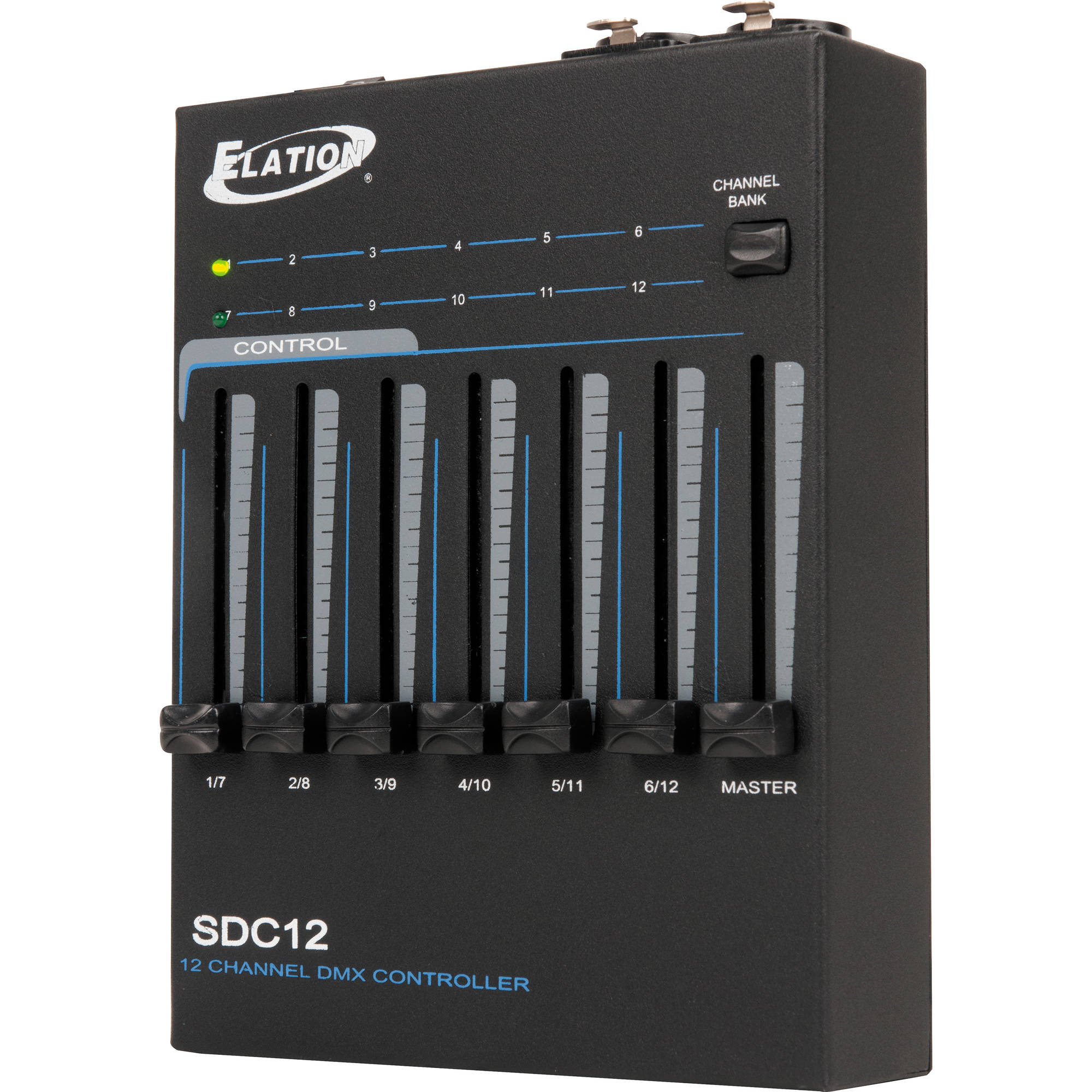

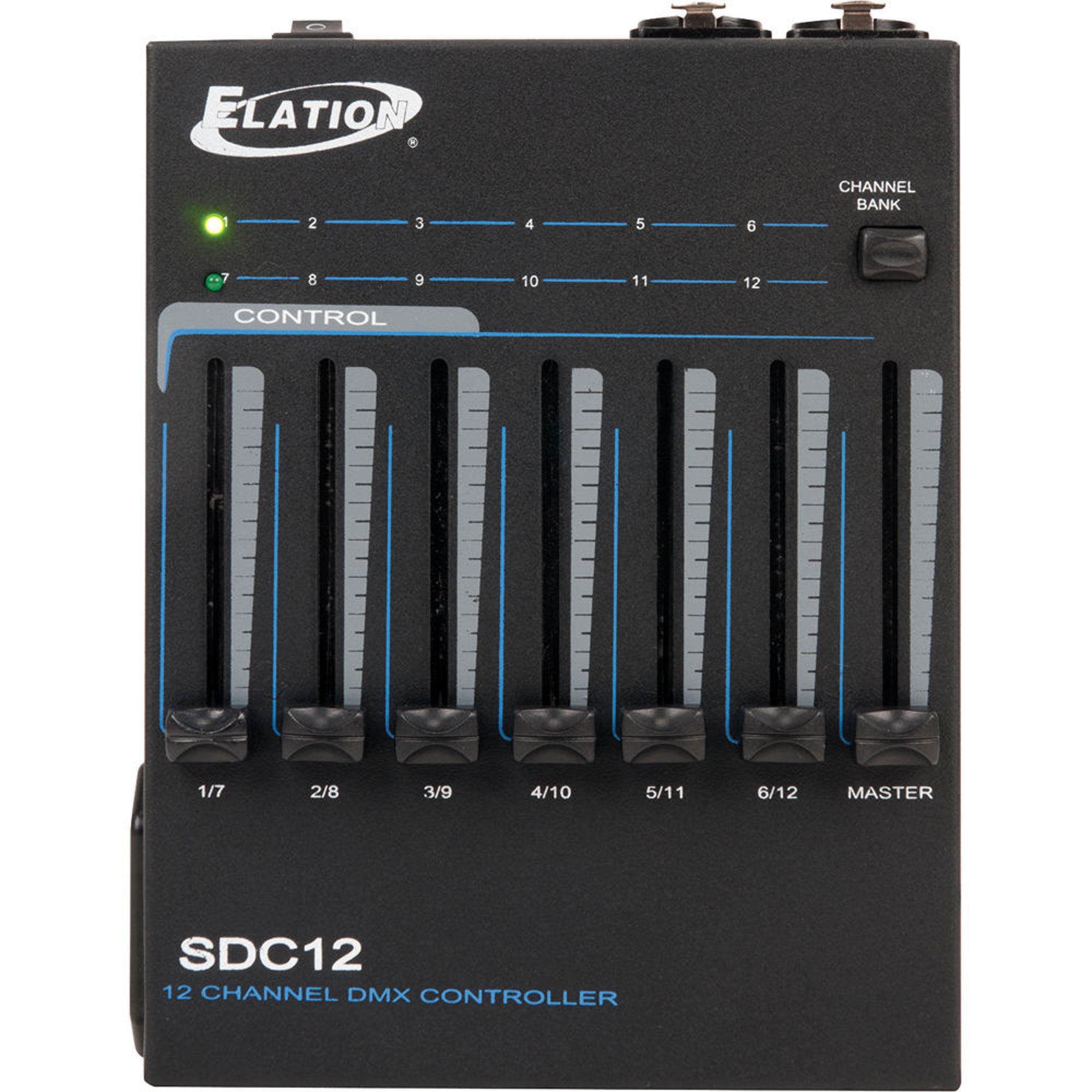

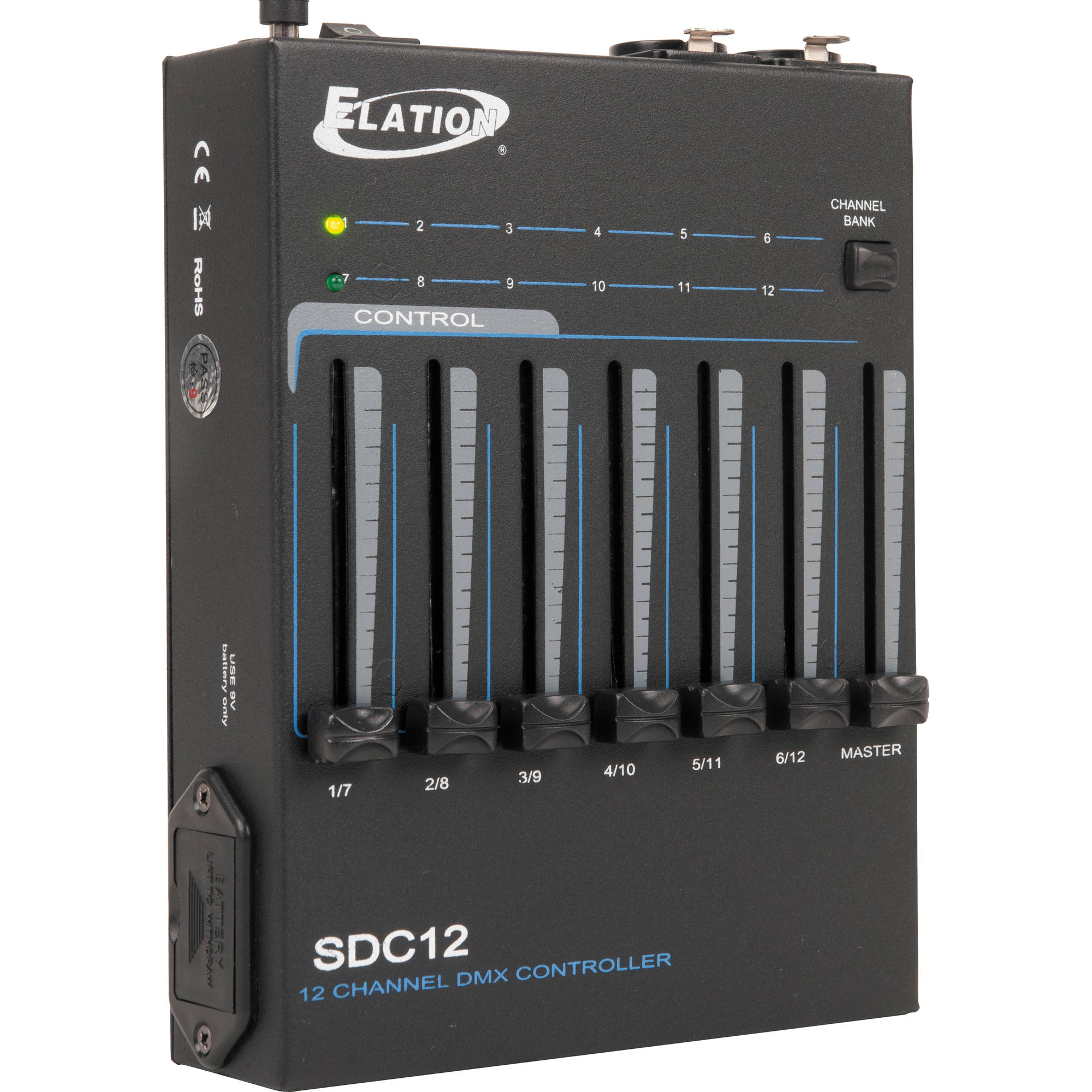

12-Channel Basic DMX Controller
The new SDC12 features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3pin and 5pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).
The SDC12 is great handheld device for product demos or manual control of LED or conventional fixtures. It may also be wall mounted for permeant installations.
Features:
- 12 DMX Channels Faders
- Master Dimmer Fader
- Portable Handheld Or Wall Mountable
- Operates via 12VDC Power Supply (Included) Or
- 9VDC Battery (Not Included)
Specifications:

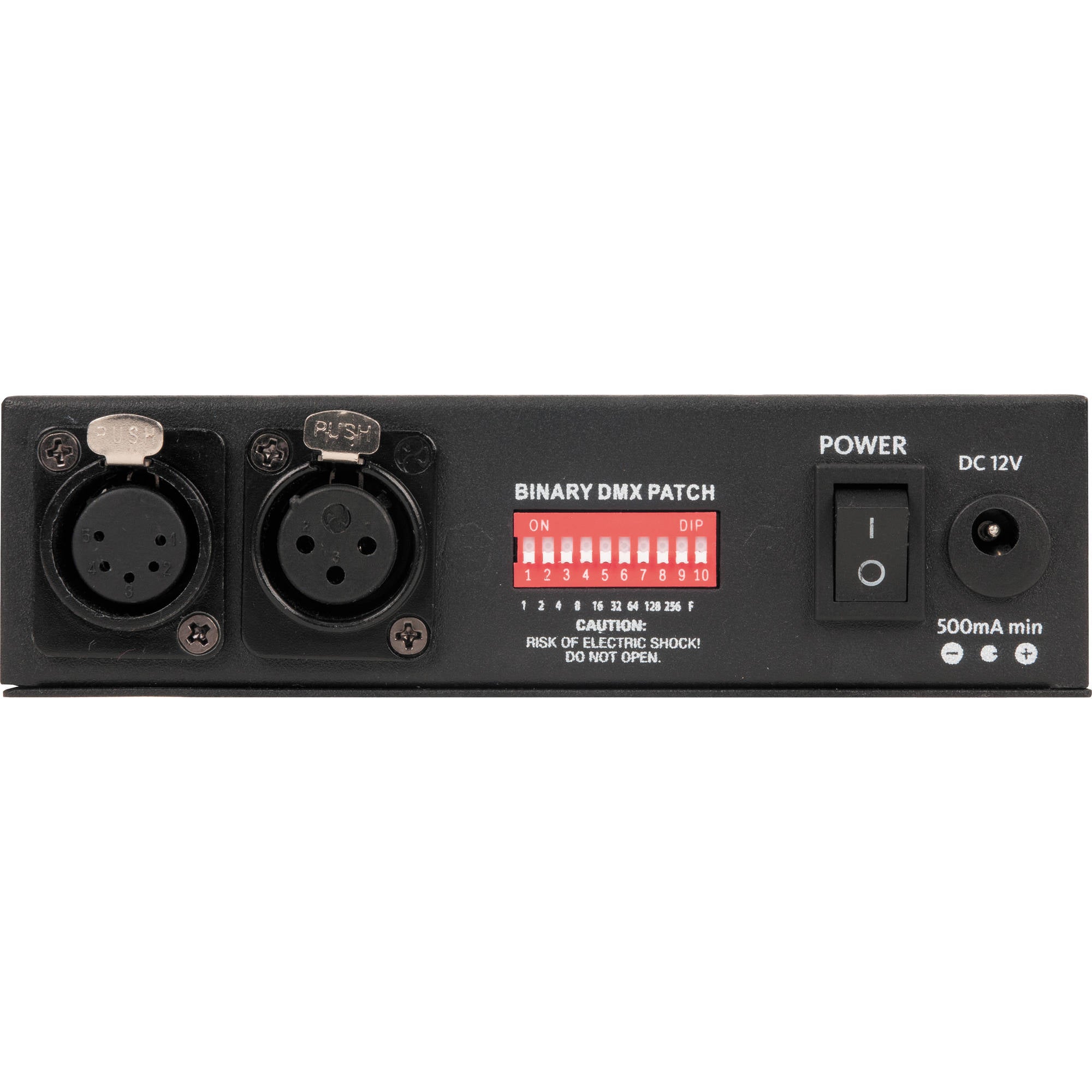

- CONTROL / CONNECTIONS:
- DIP Switches To Set Starting DMX Channel
- 3pin & 5pin DMX Outputs
- On/Off Switch
- LED Channel Bank Indicator
- DC 12V Power Supply Input
- SIZE / WEIGHT:
- Length: 7.5" (191mm)
- Width: 5.9" (149mm)
- Height: 1.6" (41mm)
- Weight: 2.0 lbs. (0.9kg)
- ELECTRICAL:
- DC 12V 500mA min OR 9V Battery (Not Included)
- APPROVALS / RATINGS:
- CE Approved
- RoHs Compliant
- INCLUDED ACCESSORIES:
- 12V Power Supply
Details
- Manufacturer: Elation
- MPN: SDC12
- Model Number: SDC12
- UPC: 837874016451
