Doug Fleenor DMX24DIM-2U 24-Channel DMX Dimmer with Grounded Outputs

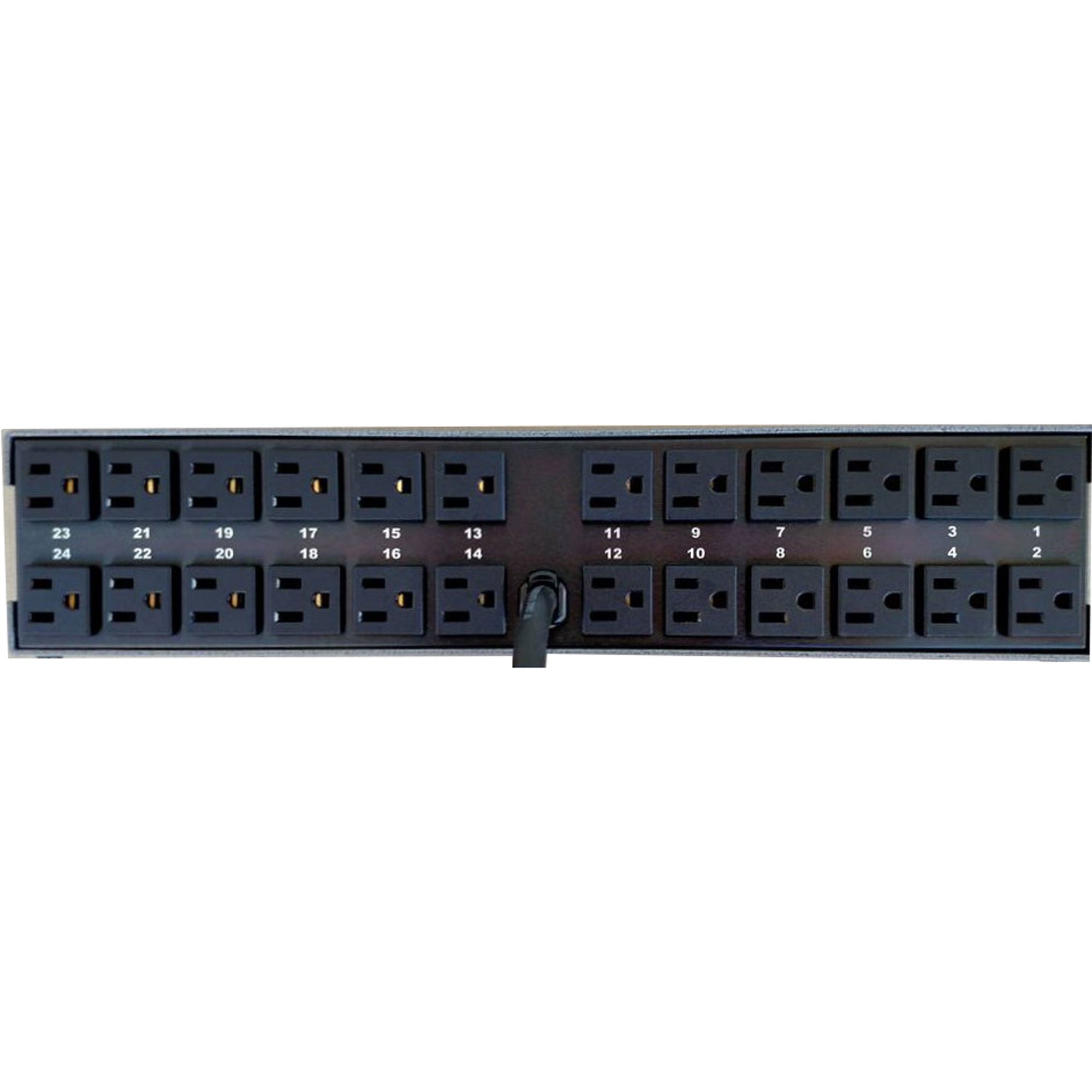

24 Channel 100W Rack Mount Dimmer, with Grounded Outputs

The DMX24DIM is a twenty-four output dimmer designed for high efficacy loads, low idle power, and minimal losses. Typical loads include Christmas light strings (LED and incandescent), and low power lamps such as LED, neon, compact fluorescent, electronic and magnetic low voltage, halogen and incandescent. Common applications include Christmas tree lighting, cue lights, signs, marquees, and practicals.

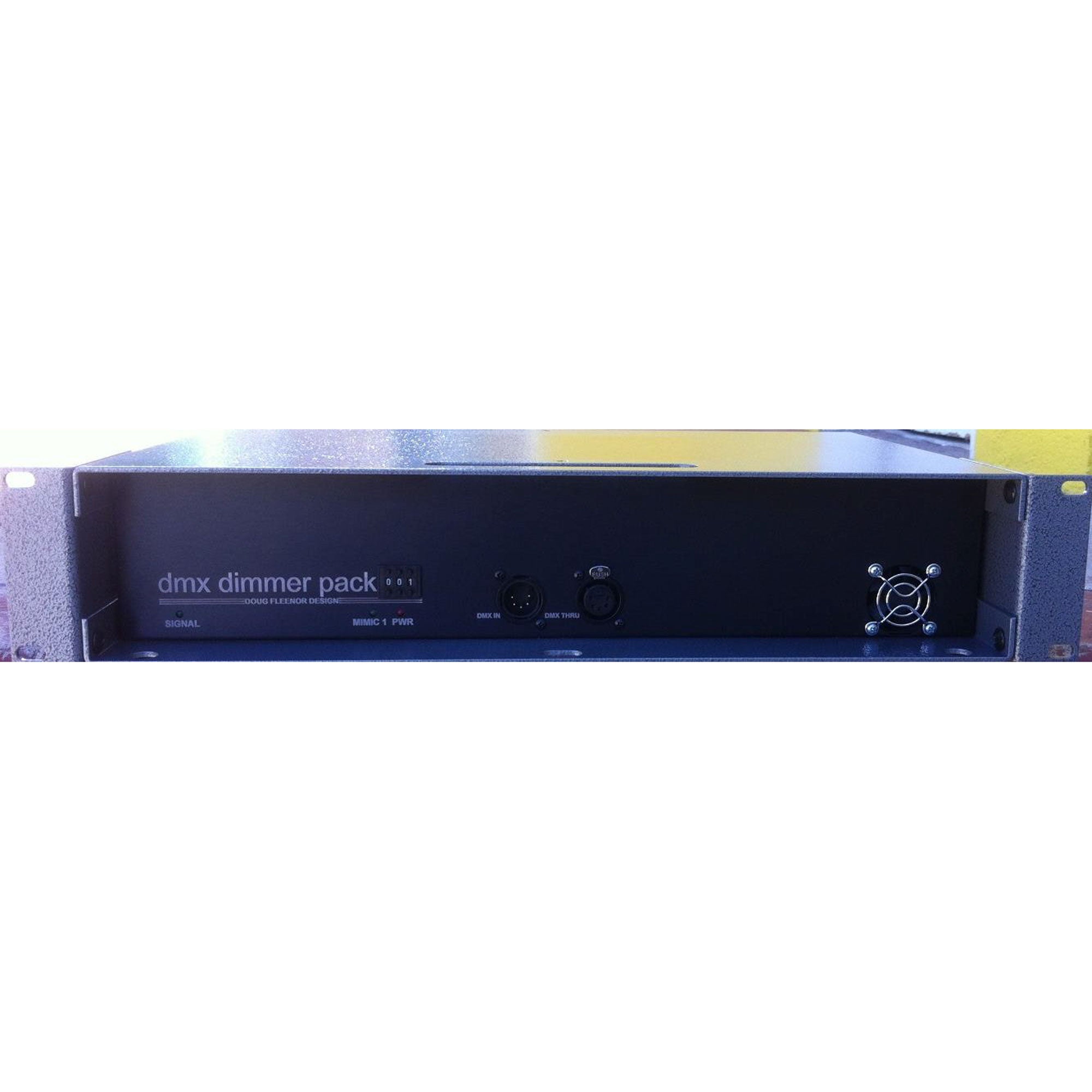

The dimmer is a single-space rack mount unit with removable rack ears. Airflow is front to side. Half inch holes are provided for half couplers or C clamps. The enclosure features a carry handle and a 3/8 inch safety cable slot.

The DMX24DIM is DMX512-A compliant and ETL listed to UL508. The DMX24DIM is a forward phase firing (aka: leading edge firing) dimmer. It uses Triac power output devices. The DMX24DIM is not capable of reverse phase (aka: trailing edge or ELV) firing.
