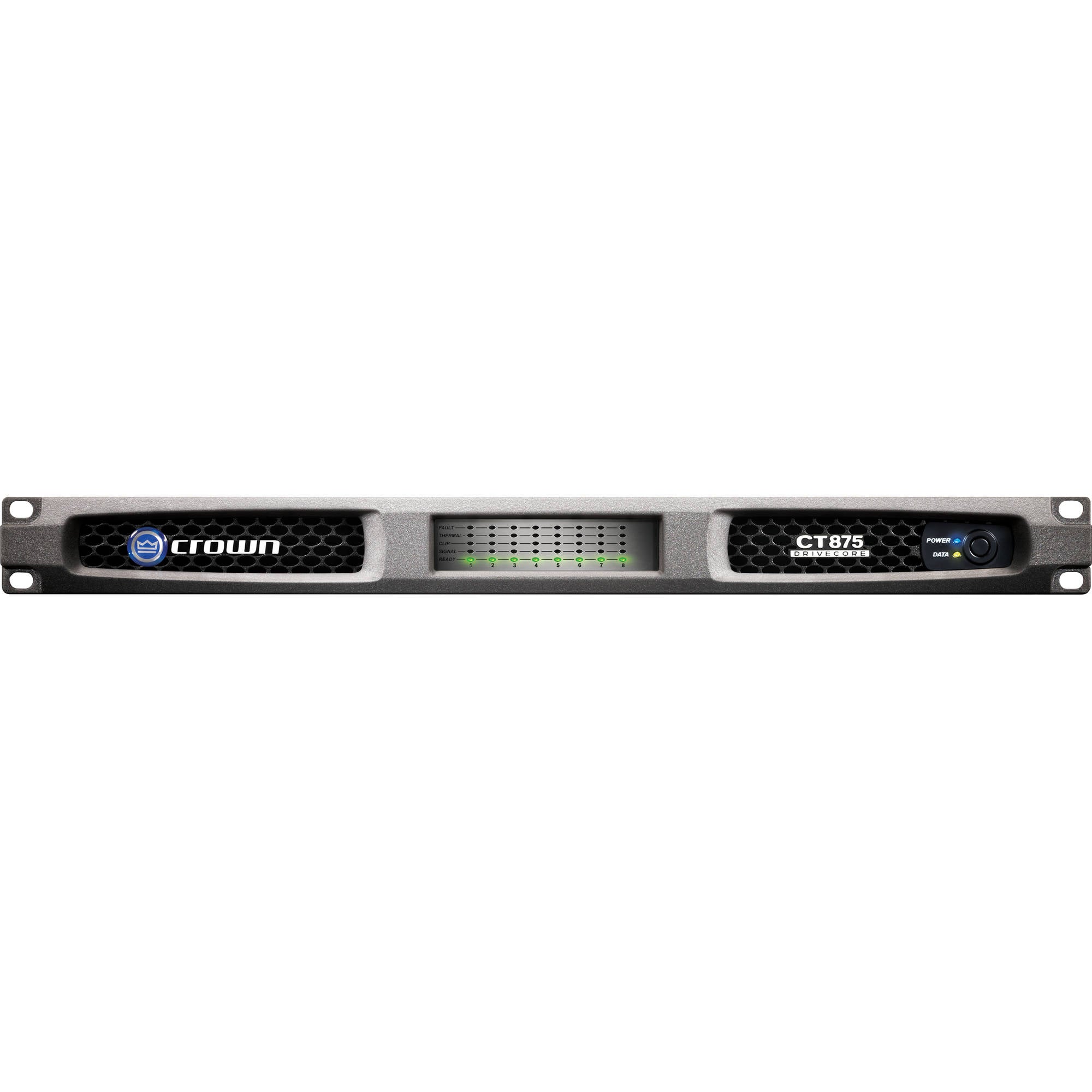

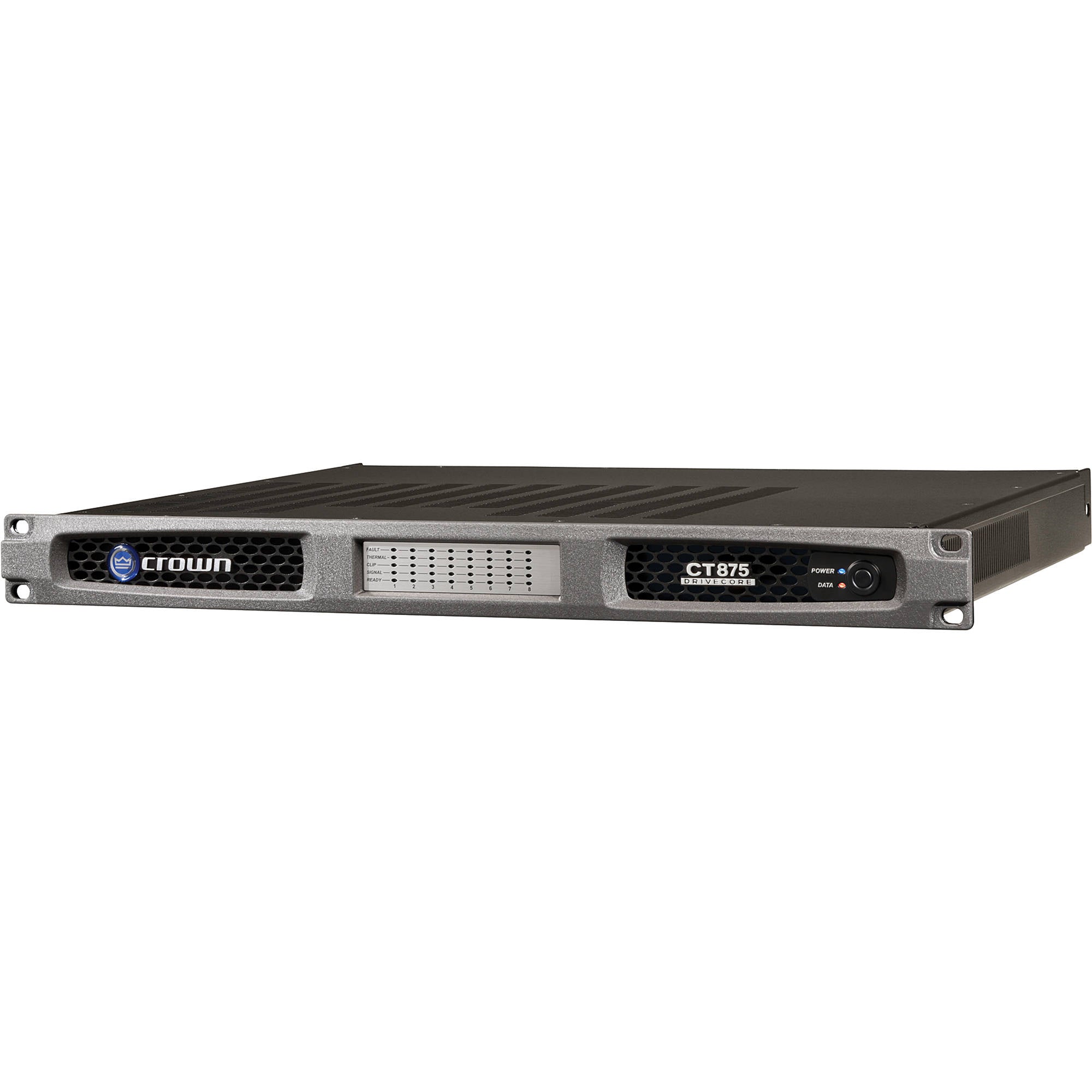

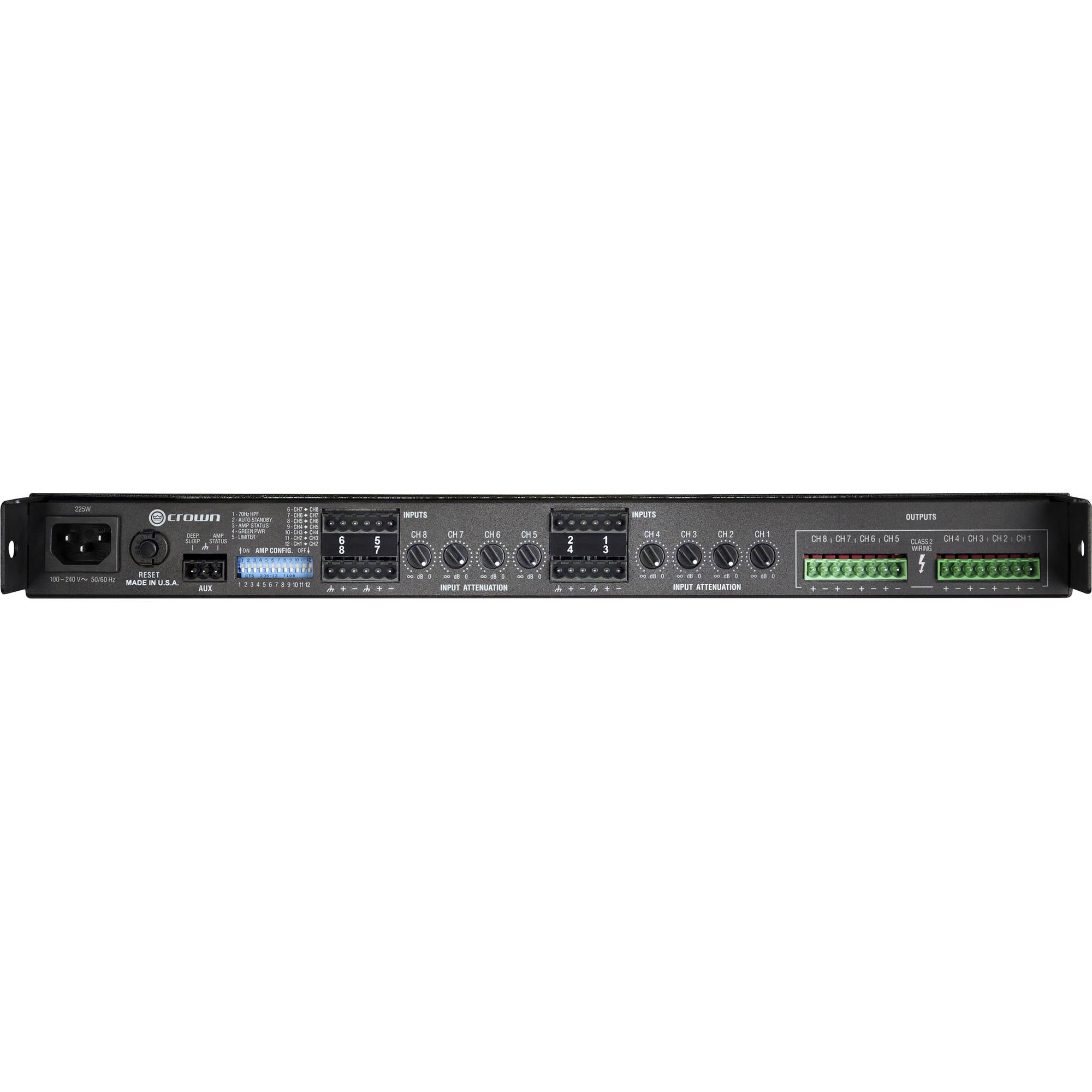

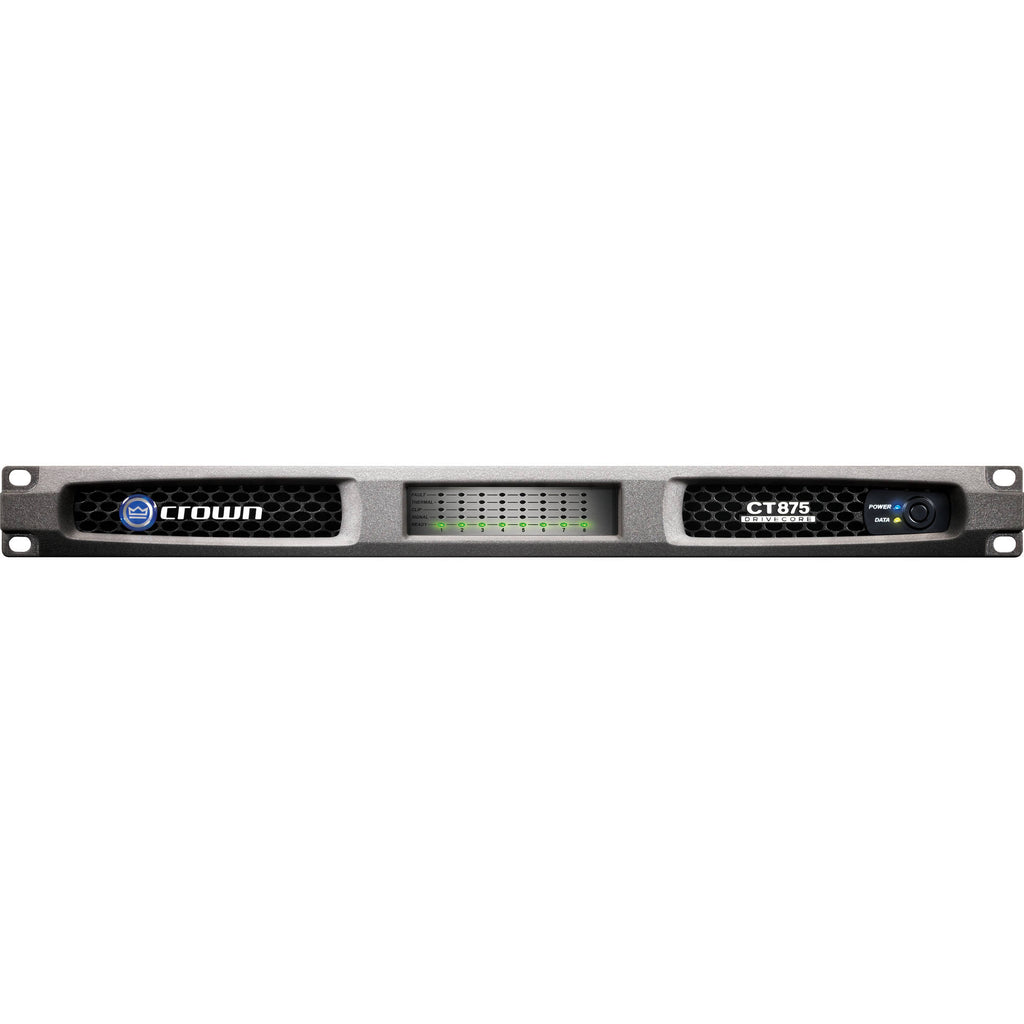

Crown CT875 8 Channel Power Amplifier

8 Channel Power Amplifier - 75 Watts Per Channel at 8 Ohms

Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Features:

• Flexible Input Routing
• Convection Cooled
• Universal Power Supply
• Integrated Life-Safety Features
• Up to 8X125W in 1U chassis with no fan
• DriveCore technology provides >90% efficiency with no compromise in performance
• Patented Feedback and Protection Circuits
• Amplifier is stable for 2 - 16 Ohm Loads
• XFMR 4/8 needed for 70V/100V Applications

Specifications:

• Channels: 8
• Sensitivity: 1.4 V
• Rated Power Output (all channels driven): 75W per CH @ 4 ohms, 75W per CH @ 8 ohms
• Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted): 110 dB
• THD (full rated power, 20 Hz - 20 kHz): < 0.05%
• Intermodulation Distortion (from 0 dB down to -30 dB): < 0.05%
• Frequency Response (at 1W, 4/8 ohms): +/- 0.5 dB
• Crosstalk (below rated power) 20 Hz to 1 kHz: > 70 dB
• Common Mode Rejection (20 Hz to 1 kHz): > 55 dB, typically > 70 dB
• Voltage Gain: 25 dB
• DC Offset: +/- 20mV
• Idle Power Consumption (Standard Mode): 23.0W
• Dimensions: 1.75" x 19" x 15.19"
• Weight: 10lbs/4.54kg
• Shipping Weight: 15 lbs/6.8 kg
• IEC Power Connector: 15A
