Key Features
- TFT Color Display
- 4 Top Buttons With Individual Level Control
- 5 Additional Programmable Buttons
- Rotary Controls on Both Sides
- Up/Down Level Controls
- Master Volume Control on Bottom
- Mic & Speaker Mode
- Built-In Flashlight
- Drop-In & USB-C Charging
Description
Wireless Beltpack with 5GHz Frequency Range, FreeSpeak II Compatibility, XLR-5F Headset Connector, and Built-in Flashlight

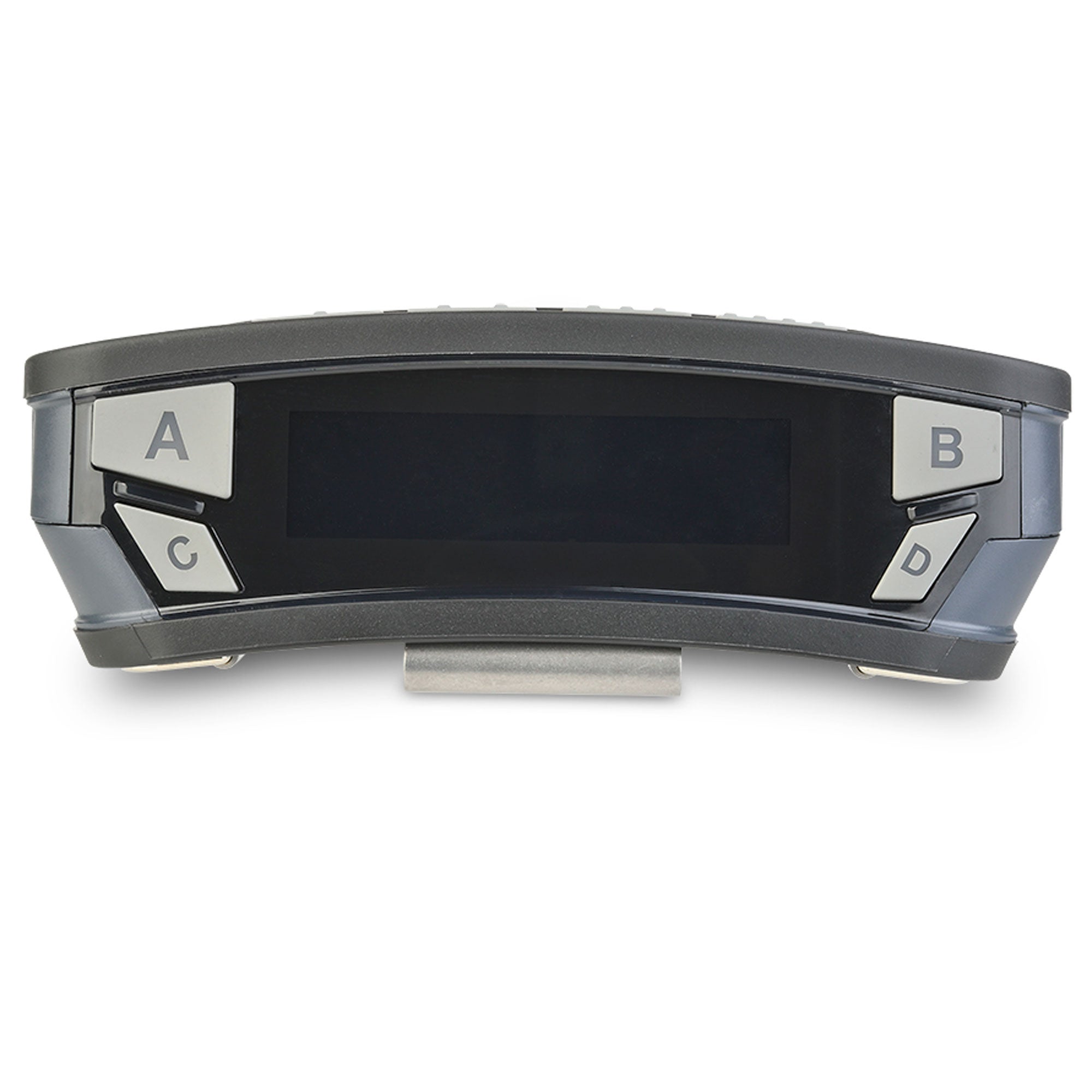

The FSE-BP50 is a rugged, water-resistant multi-channel beltpack that operates in the ISM license-free 5 GHz frequency range. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, and overall dedicated master volume control.
The FreeSpeak Edge Digital Wireless RF Configuration Guide provides specifications, best practices and guidance for using the 5 GHz band and RF channels.
Features:
- Beltpack

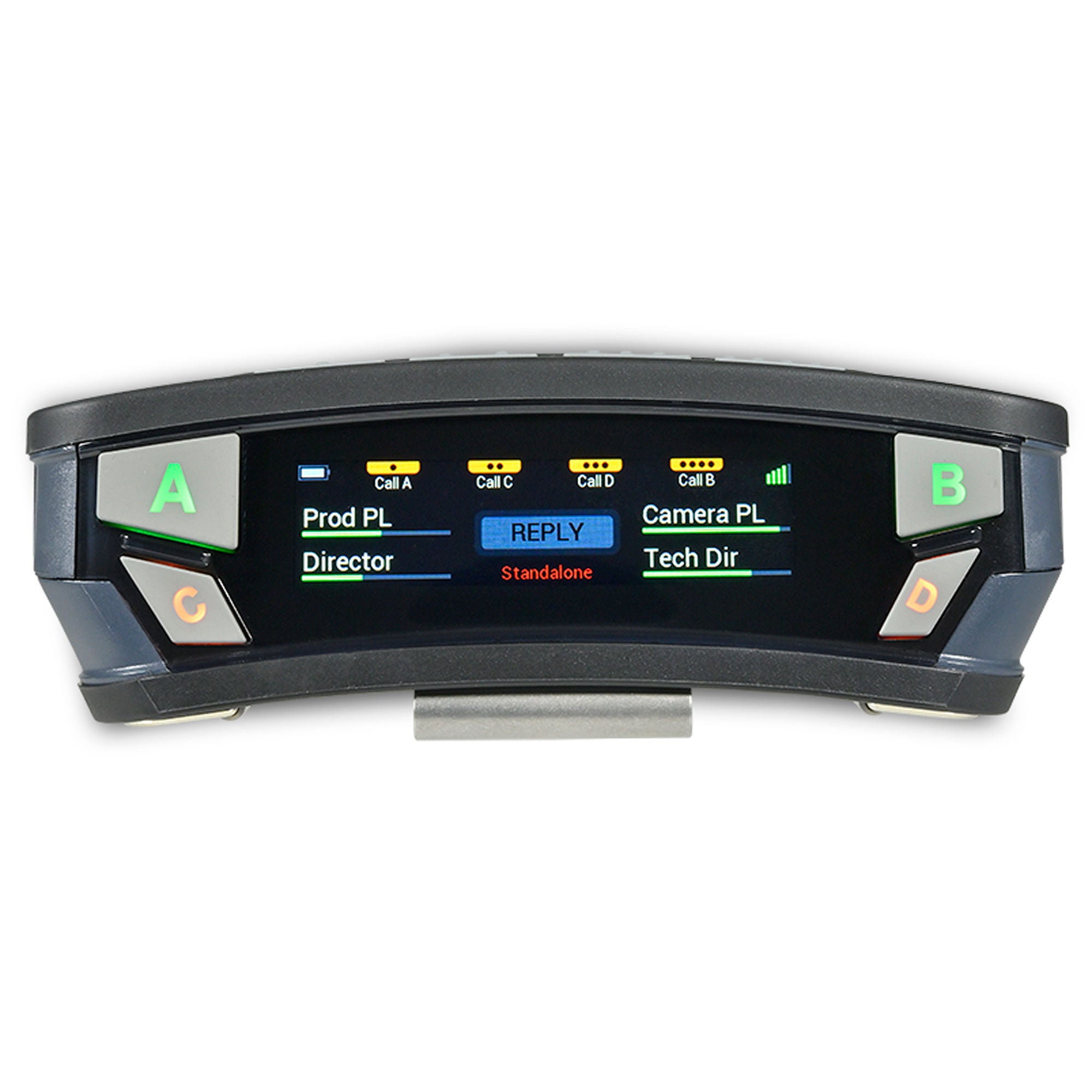

- TFT color display
- 4 top buttons with individual level control
- 5 additional programmable buttons

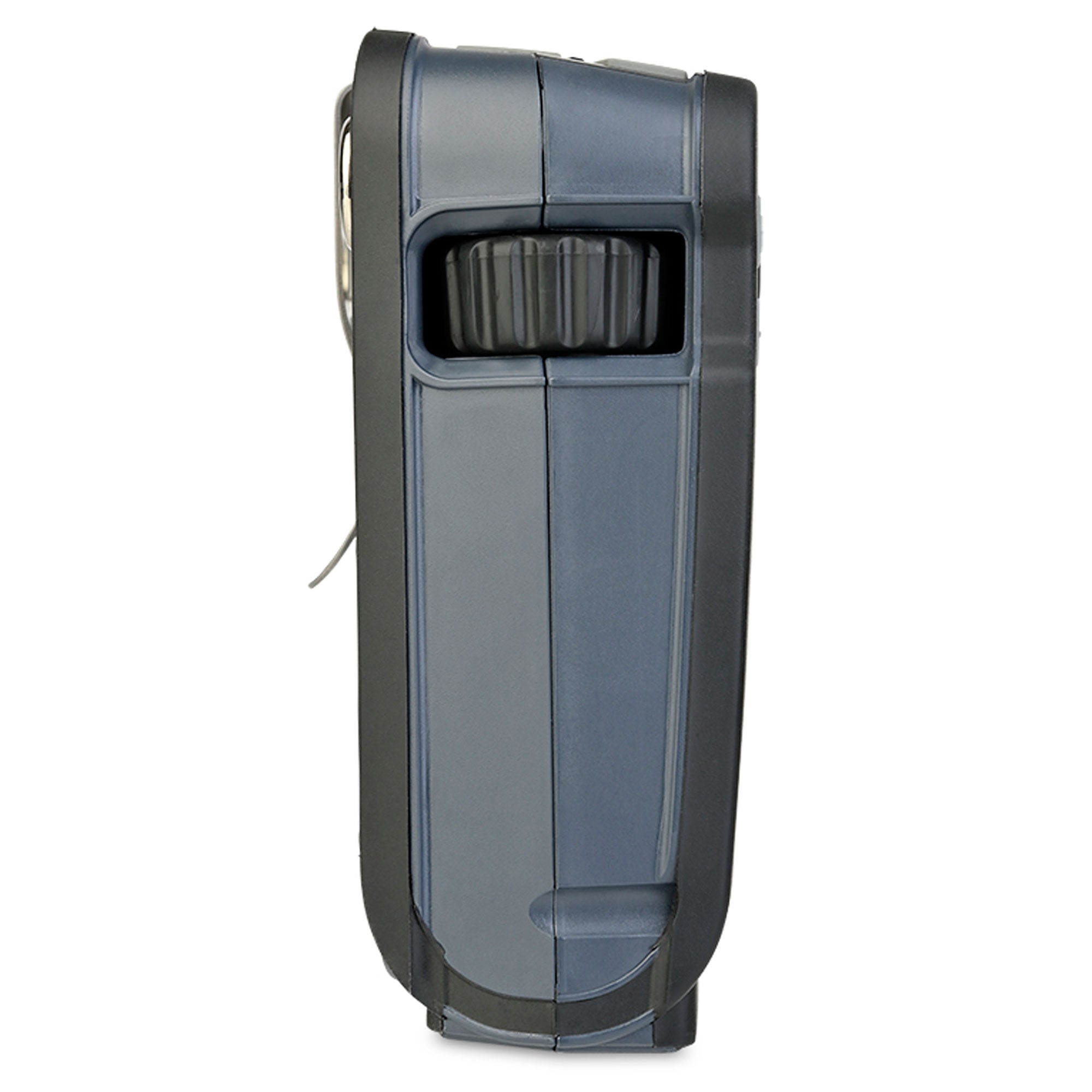

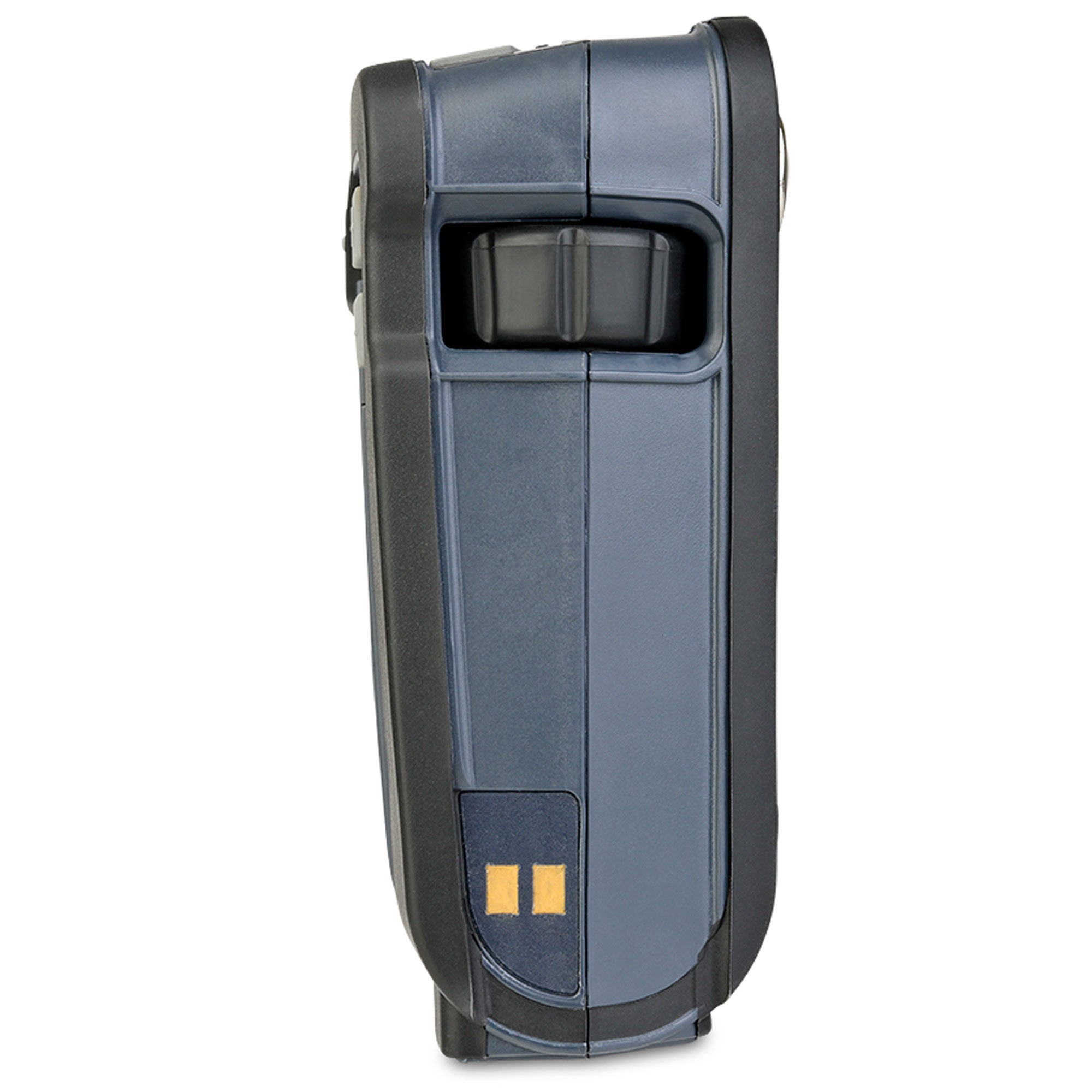

- Rotary controls on both sides and up/ down level controls
- Master volume control on bottom
- Mic and speaker mode
- Built-in flashlight
- Drop-in and USB-C charging
- Connectivity
- Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
- 5 GHz radio frequency
- 20-27 radio channels (region specific)
- Robust radio link works in high multipath or reflective environments
- Dual redundant radios
- Bluetooth Low Energy (BLE) radio; beltpack pairing and firmware updates over the air
- Low latency audio: < 35ms (60ms beltpack to beltpack)
- Wi-Fi coexistence
- 5 GHz Scanner Mode - built in scanning tool for selecting channels
- AES256 shared key encryption
- Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
Specifications:
- Audio
- Audio Bandwidth: 200 - 12kHz
- No. of Full-Duplex Audio Paths: 9
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 9 push buttons, 5 level controls (2 rotary and 2 button level controls, with 1 master level control)
- Menu Button: 1
- Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Headset Limiter: Selectable from beltpack menu
- Radio
- Frequency Spectrum: 5170 -5875MHz (20MHz channels set by country)
- Output Power: Adjustable from 1 - 24dBm (Maximum output power is determined by selected channel and country)
- Modulation: OFDM
- Range: Typical indoor range 250ft (80m), outdoor range 750ft (230m)
- Battery
- Battery: 4400mAh
- Power: 16Wh
- Typical Voltage: 3.6V
- Battery Life: 12 hours
- Environmental
- IP54 water and dust resistance
- Operating: 32º to 113ºF (0º to 45ºC)
- Storage: -22º to 158ºF (-30º to 70ºC)
- Humidity: 20-90%, Non-Condensing
- Dimensions
- 5.31 x 4.07 x 1.92in (WxHxD)
- (134.87 x 103.34 x 48.77mm)
- Weight
- Without Battery: 0.72lbs (0.37kg)
- With Battery: 0.96lbs (0.44k
- Manufacturer: Clear Com
- MPN: FSE-BP50-X5
- Model Number: FSE-BP50-X5
- UPC:
