Key Features
- 3 Conductor
- 12 AWG Conductor Size
- Bare Copper Stranded Conductors
- Ethylene Propylene Rubber Insulation
- Unshielded
- Water/Oil Resistant
- Heavy-Duty Type SJOOW
- UL Listed, CSA and RoHS certifed
- Sold by the Foot
- Shipped in a Continuous Length
Description
12 AWG, 3 Conductor SJOOW Type Oil/Water Resistant Electrical Power Cable, UL, CSA - Sold by the Foot
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
SJOOW Flexible Portable Cord. Cut to length - sold by the Foot.

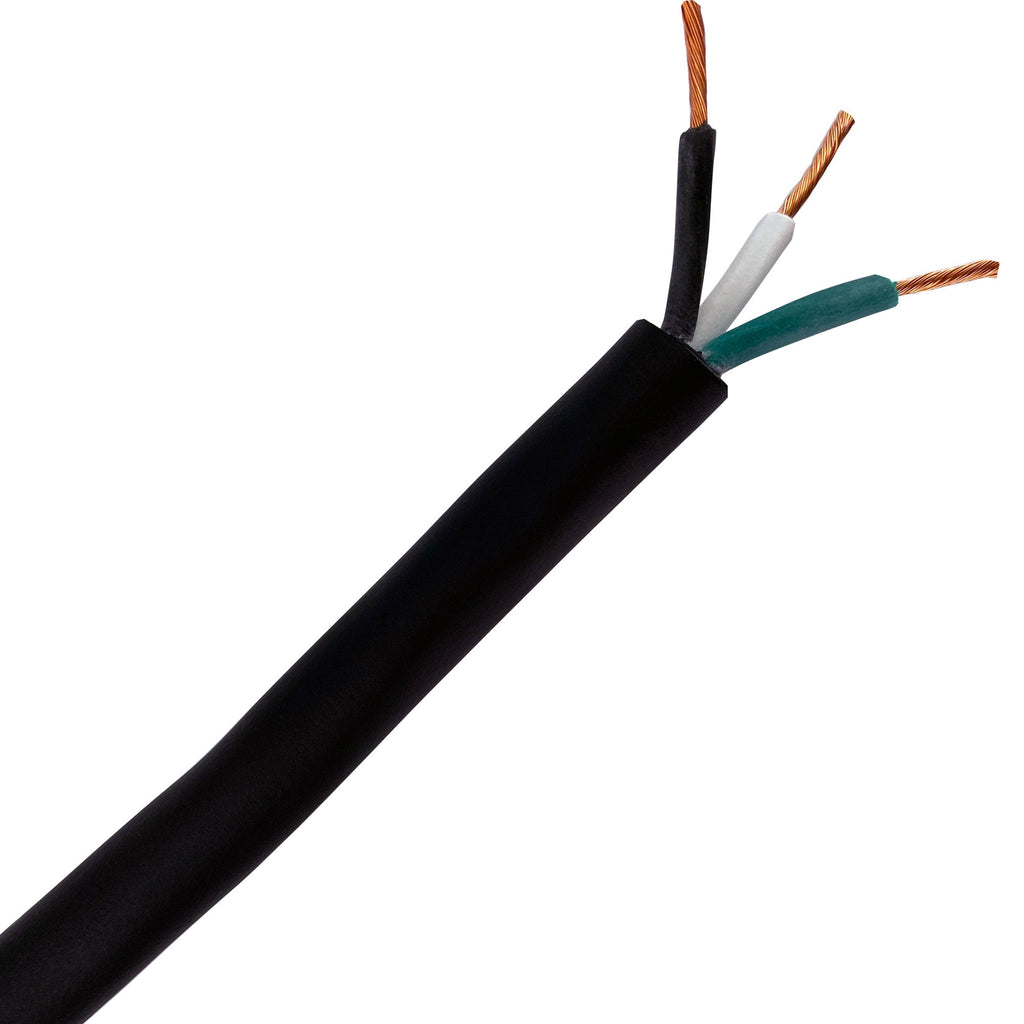

This 12 AWG cord features three stranded bare copper conductors, EPDM insulation, and a neoprene jacket. SJOOW portable power cable is suitable for use in applications that require flexibility and durability including compact appliances and small-scale motors. It has a voltage rating of 300V and a temperature range of -40°C to +90°C. This 12-gauge portable service cord is oil, water, and weather-resistant. SJOOW is RoHS compliant and MSHA approved.
Features:
- Excellent resistance to oil and moisture.
- Good tensile strength, elongation and aging characteristics.
- High flexibility.
- Excellent abrasion resistance.
- Water-resistant.
- UL Listed and CSA Certified for indoor and outdoor use.
- Sunlight-resistant.
- Temperature range: -40ºC to +90ºC
Specifications:
- Specifications:
- Size: 12 AWG
- Number of Conductors: 3
- Conductor Strand: 65/30
- Insulation Thickness: 0.76 mm / 0.030 inches
- Outside Diameter: 10.92 mm / 0.430 inches
- Weight: 0.15 lbs per ft
- Current Amps: 25
- Color Code:
- 3 Conductors: Black, White, Green
- Standards:
- UL Flexible Cord - UL Subject 62
- CSA Flexible Cord - C22.2-49
- MSHA Approved
- RoHS Compliant
- Construction:
- Conductors:
- 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
- Insulation:
- Premium-grade, color-coded 90ºC EPDM.
Details
- Manufacturer: CBI
- MPN: BW-SJOOW-12/3
- Model Number: BW-SJOOW-12/3
