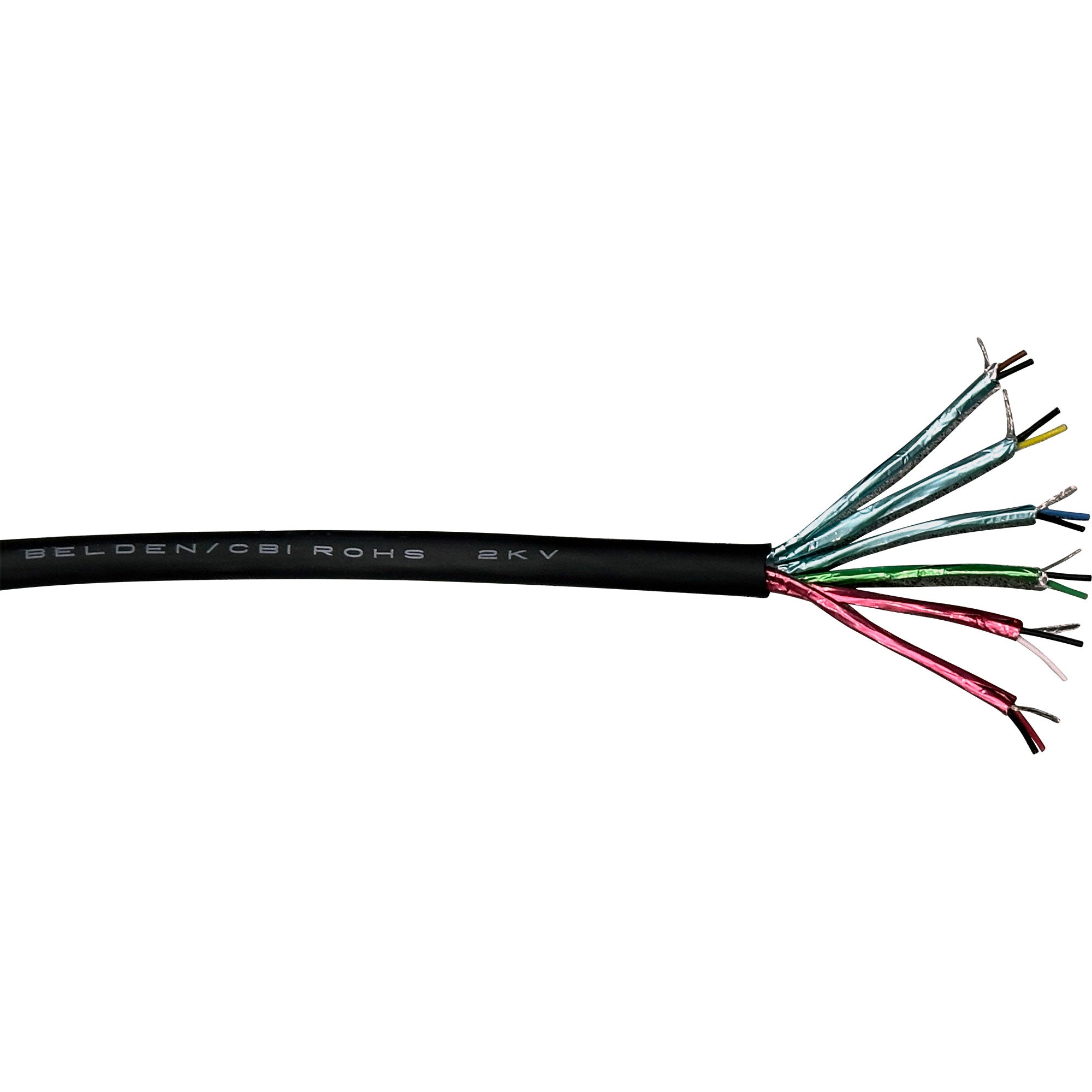

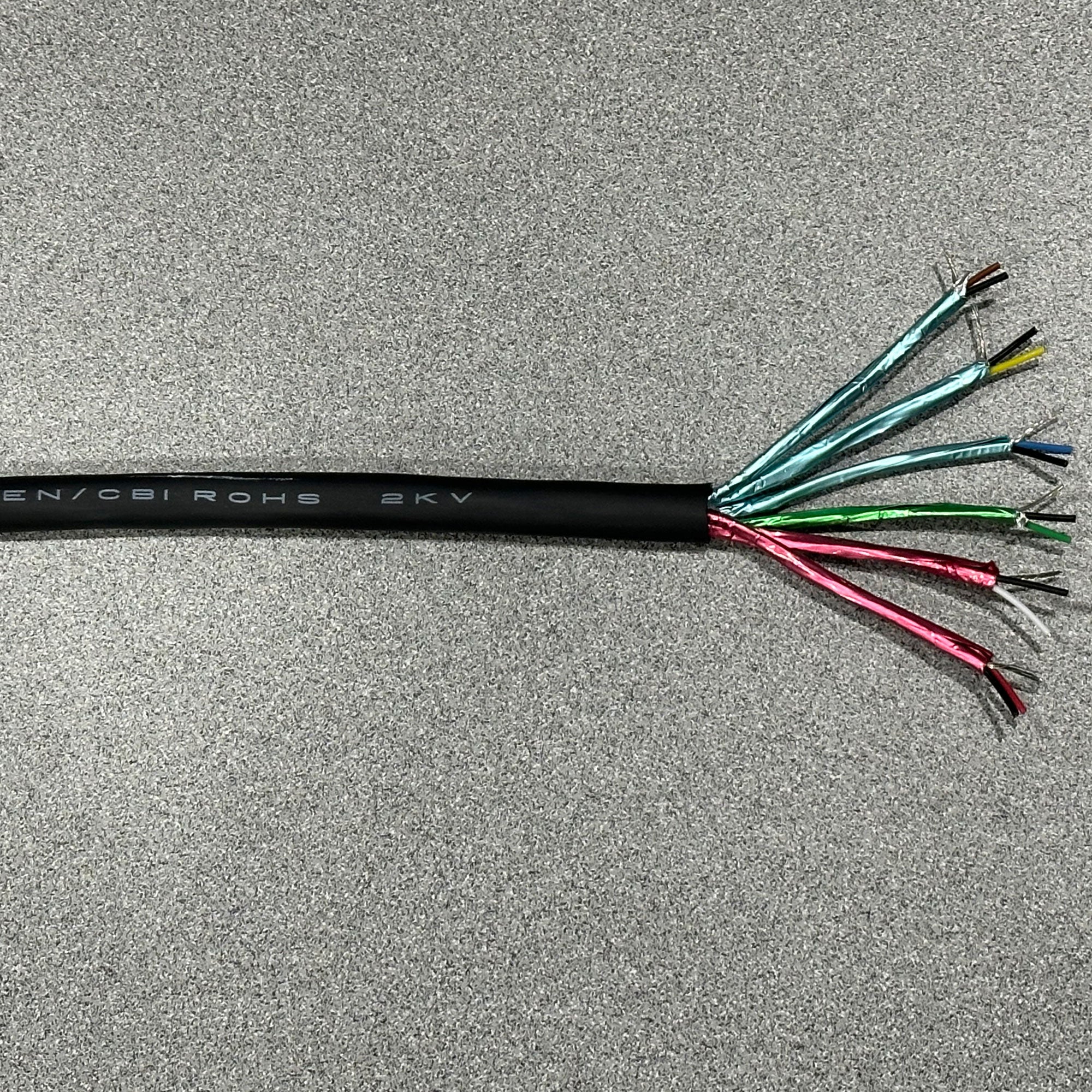

CBI BW-MPA-6 Performer Series 6-Channel 24AWG Audio Snake Cable (By the Foot)

6 Pair Performer Series Black Flexible, 100% Individually Shielded 24ga Multipair Snake Cable - Sold by the Foot

Twelve conductor cable consisting of six individually shielded pairs.

Specifications:

• Conductors: (12) 24 AWG stranded (7/32) bare copper conductors.
• Insulation: 10 mils of High Density Polyethylene.
• O.D. over insulation: .044"
• Pair drain wires: Each pair contains (1) 24 AWG stranded (7/32) bare copper drain wire.
• Pair shields: Each pair is wrapped foil free aluminum/polyester tape (for shield isolation)
  with the foil side facing in, in contact with the drain wire.
• Filler: Fibrillated foamed polypropylene fillers used required.
• Assembly: Twelve conductors are twisted into six shielded pairs. The six shielded pairs are twisted together with left hand lay and covered with an overall flexible PVC jacket.
• Jacket Nominal wall: 60 mils of flexible matte finish PVC.
  With a tissue separator between the cable core and jacket.
• Color - Matte Black.
• Nominal O.D.: .366" +/- .010"
• Surface print: "C.B.I. PERFORMER SERIES 24 AWG"
• RoHS Compliant: YES
• Agency Approvals: NONE
• Color code:
  Pair #: 1st Color / 2nd Color
  1: Black / Red
  2: Black / White
  3: Black / Green
  4: Black / Blue
  5: Black / Yellow
  6: Black / Brown
