Canare MR202-12AT 12-Channel Twisted Pair Audio Snake Cable with Foil Shield (Black, 328'/100m)

12 Channel Twisted Pair Multi Channel Microphone Snake Cable - 328 ft. Roll

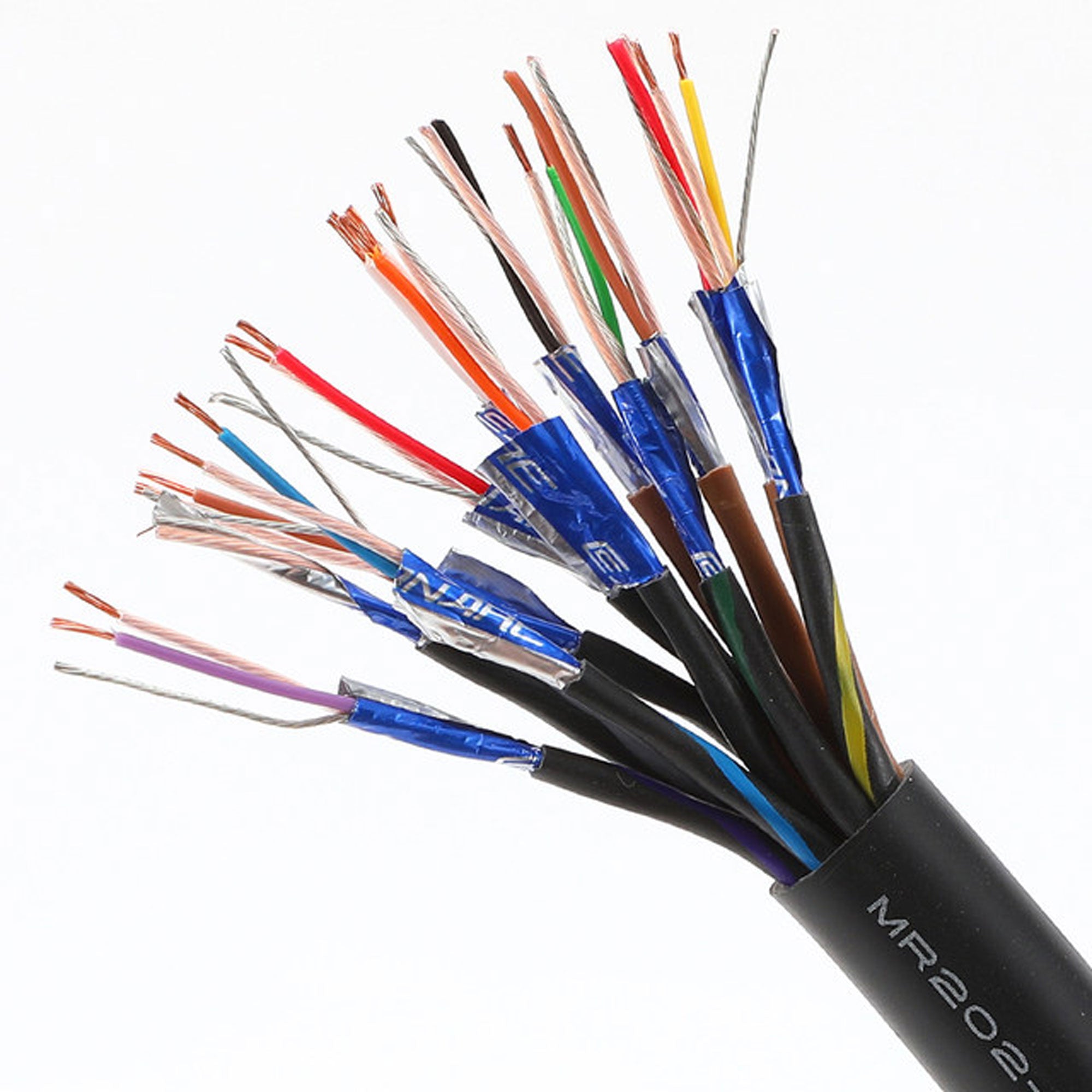

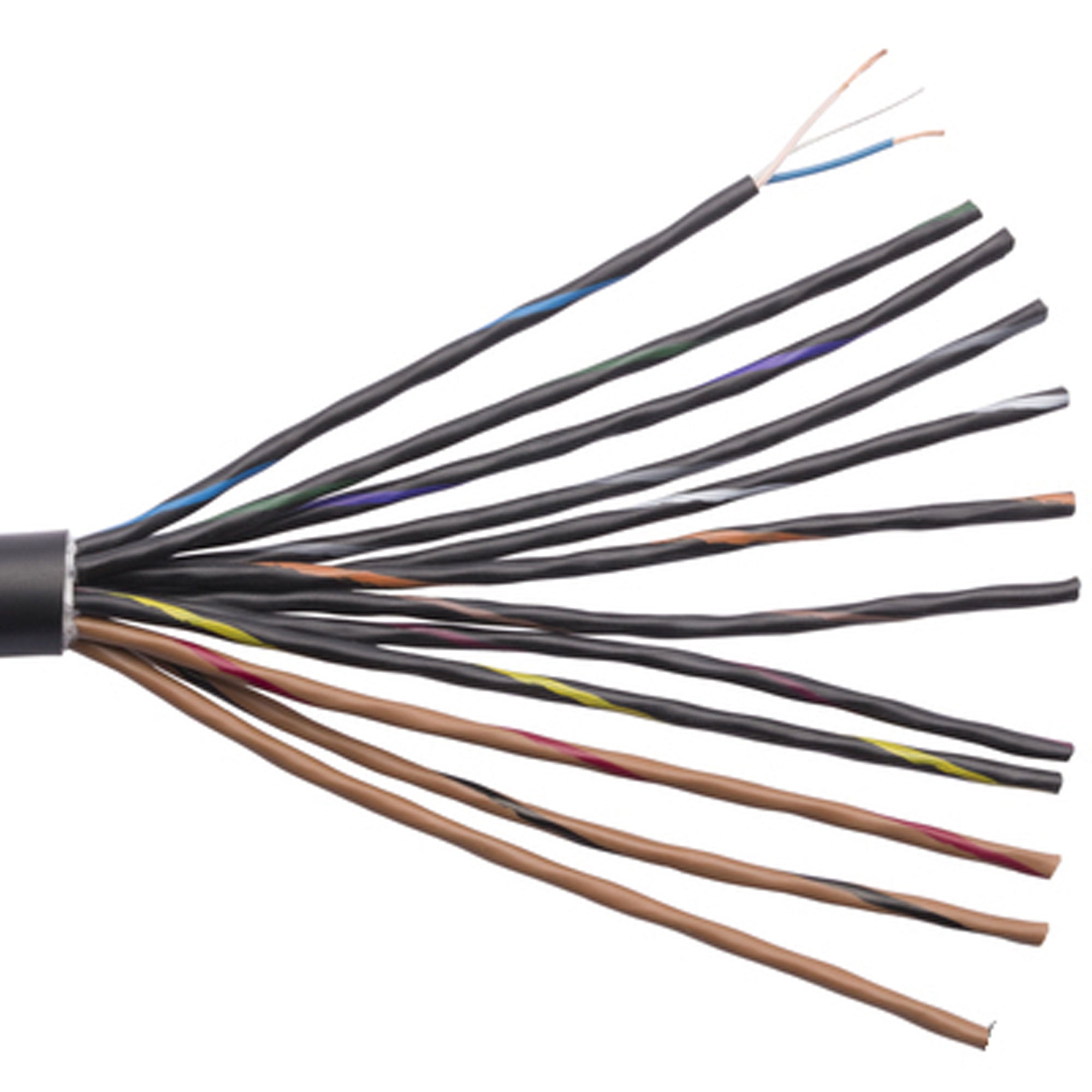

A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.

Features:

• Foil Shield with Drain Wire
• Variety Channels

Specifications:

• Mechanical Specifications:

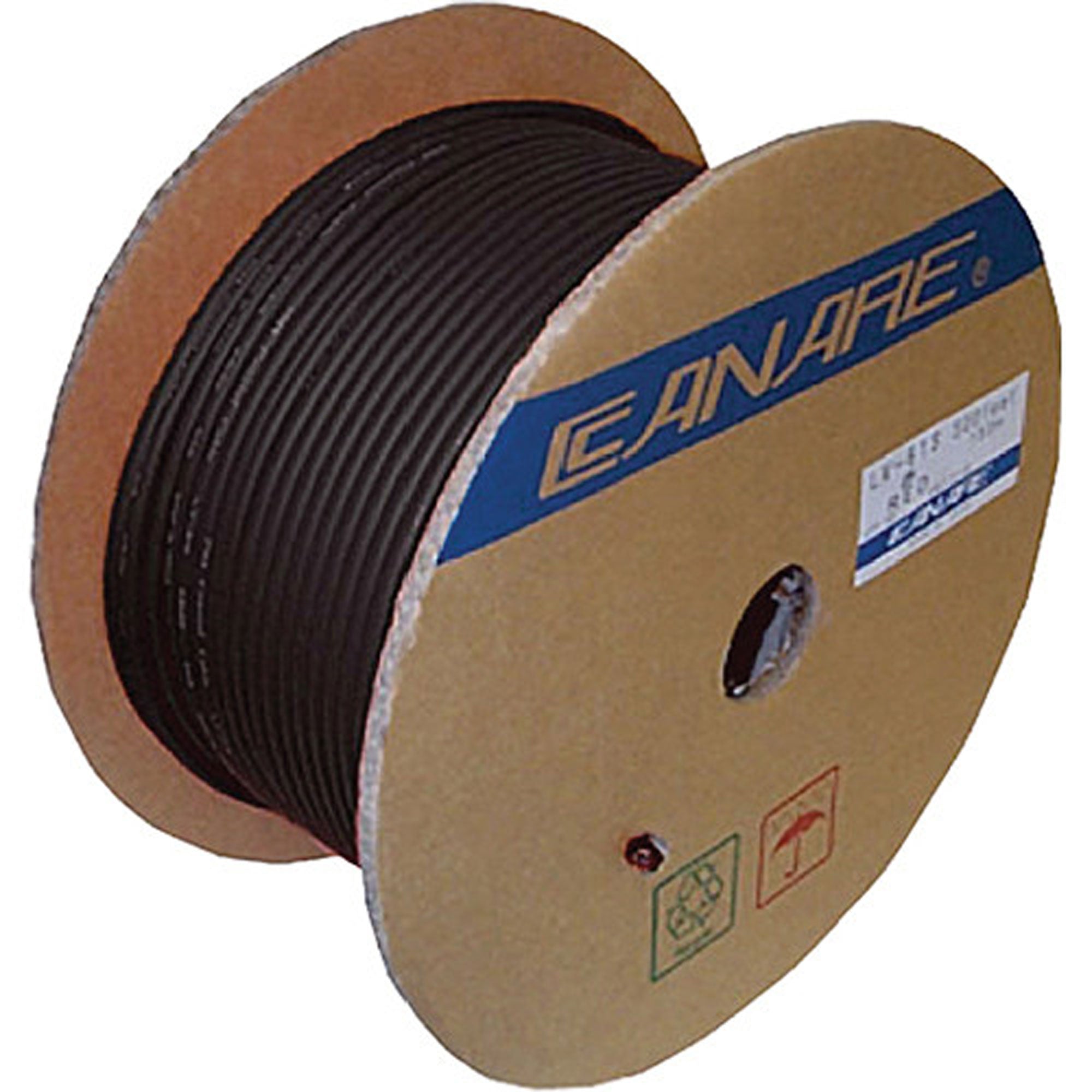

• Std. Lng. ft. (m): 328 (100)
• No. of Channels (Pairs): 12
• No. of Cond. (2 Per Channel): 24
• Wt Std. Lng. lbs (kgs): 46 (21)
• Nom. O.D. in.: .500
• PVC Jacket Nom. Thick. in. (mm): .047 (1.2)
• Brittle Point F (C): -4 (-20)
• Channel O.D. in. (mm): .106 (2.7)
• Channel Jacket Nom. Thick. mil: 11.8
• Insul. Type* Thick mil: IPE 9.1
• Cond-AWG (Qty./mil) Cross Sec. Area mil.: AC - #25, (7/7.09), 279
• Pitch of Pairs in. (mm): <.99 (<25)
• Shield Coverage: 100% Alum. Tape Drain Wire #25 AWG
