Description
75 Ohm Video Coaxial Cable, Single Channel, 22 AWG, 8281F Type - Sold by the Foot (Black)

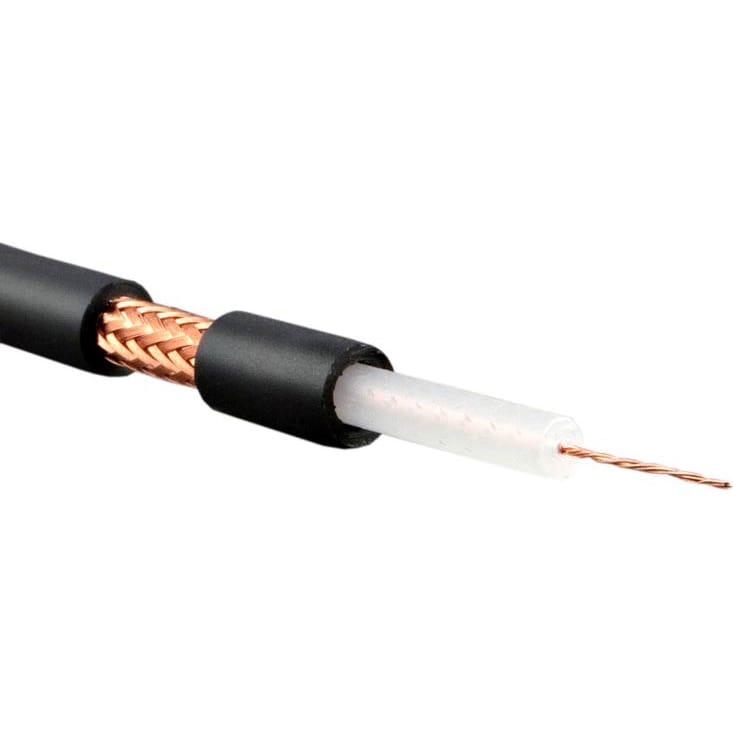

An amazingly flexible version of 8281F double shielded precision 75 ohm video coax. Typically used for longer cable runs between equipment, Canare LV-77S offers good return loss characteristics and excellent signal isolation.
Features:
- Flexible Center Conductor: Stranded Bare Copper
- Dielectric strips away clean from Conductor
- Tightly Woven Braid Shield
- Stays Flexible even in Sub_Zero Weather
Specifications:
- Mechanical Specifications:
- Std. Lng. ft. (m): 500 (153)
- Wt. Std. Lng. lbs. (kgs): 32 (14.5)
- Nominal O.D. in. (mm): .303 (7.7)
- PVC Jacket Thickness in. (mm): .035 (0.9)
- Brittle Point F (C): -22 (-30)
- Cond.-AWG (Qty./mil.): AC-#22 (7/10.24)
- Cond. O.D. in. (mm): .031 (0.78)
- Dielectric Insulation Type*: PE
- Insulation O.D. in. (mm): .189 (4.80)
- Shield Material Coverage: AC Braid >92%(inner) >95%(outer)
- *Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
- Electrical Performance:
- Cond. D.C.R. ohm/1000ft (ohm/100m): <15.3 (<5.0)
- Shield D.C.R. ohm/1000ft (ohm/100m): <1.8 (<0.6)
- Nom. Cap. @1KHz pF/ft (pF/m): 21 (67)
- Nom. Imp. ohm: 75
- Nom. Attn. @10MHz dB/1000ft (dB/100m): 10 (3.4)
- Velocity of Prop.: 66%
Details
- Manufacturer: Canare
- MPN: LV-77S BLACK
- Model Number: LV-77S Black
