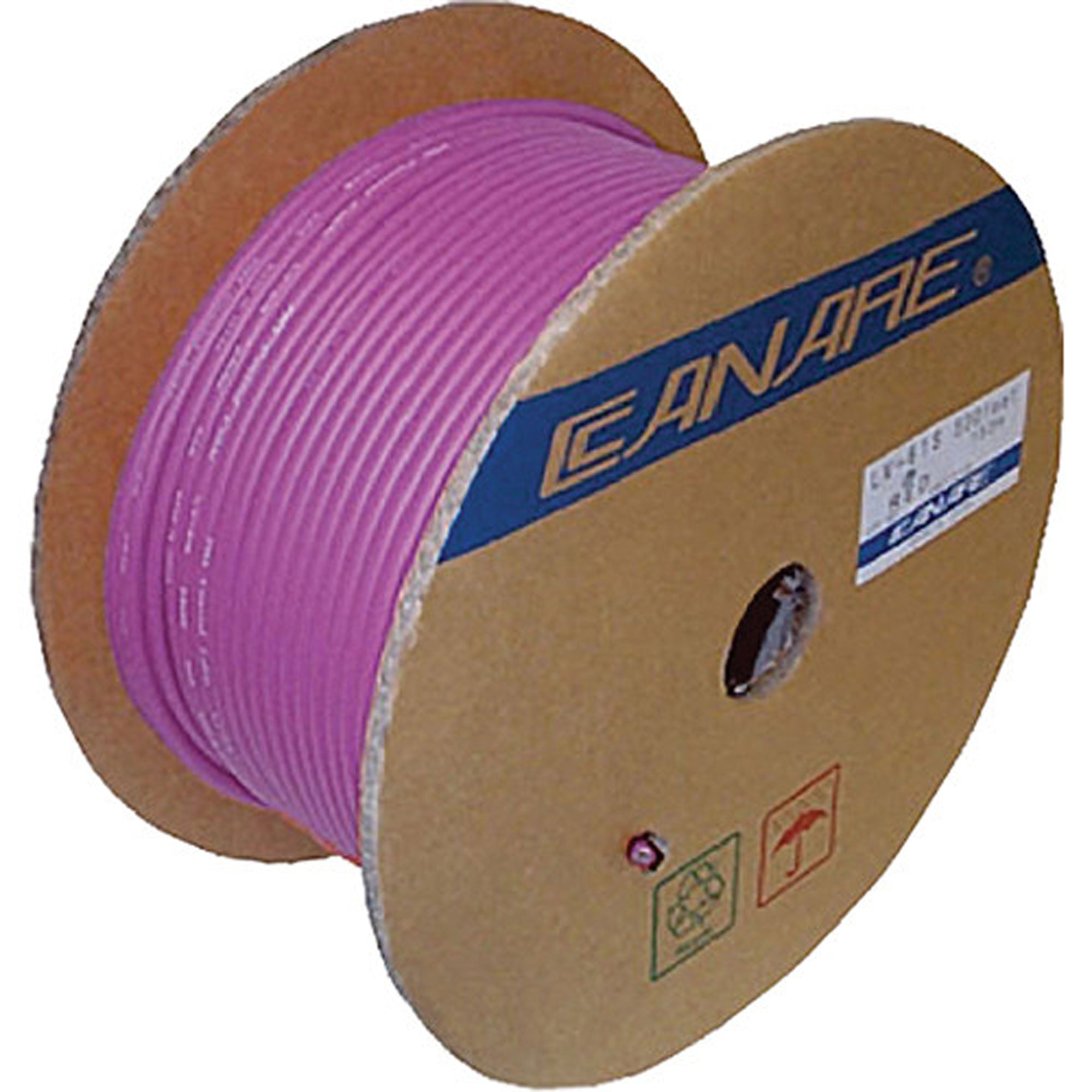

Canare LV-61S 75 Ohm Coaxial Video Cable RG-59 Type (Purple, By the Foot)

Purple 75 Ohm Video Coaxial Cable, Single Channel, 24 AWG, RG59 Type - Sold by the Foot

Canare's No.1 Selling Coax.
LV-61S is a lightweight, very flexible RG59B/U equivalent that is perfect for all video facility equipment interfacing, ENG/OB work and video patch cord assemblies. Our smooth non-glare finish PVC jackets are available in 10 distinctive colors (including Chroma-Key Blue!) and will stay flexible even in sub-zero weather!

The Canare LV-61S can also serve great as an extra low capacitance guitar/instrument cable. While not among the typical choices for instrument wire, the LV-61S can have some great benefits in it's increased sensitivity. Use with Neutrik Gold connectors like the NP2X-B and NP2X-AU-SILENT for best results.

Features:

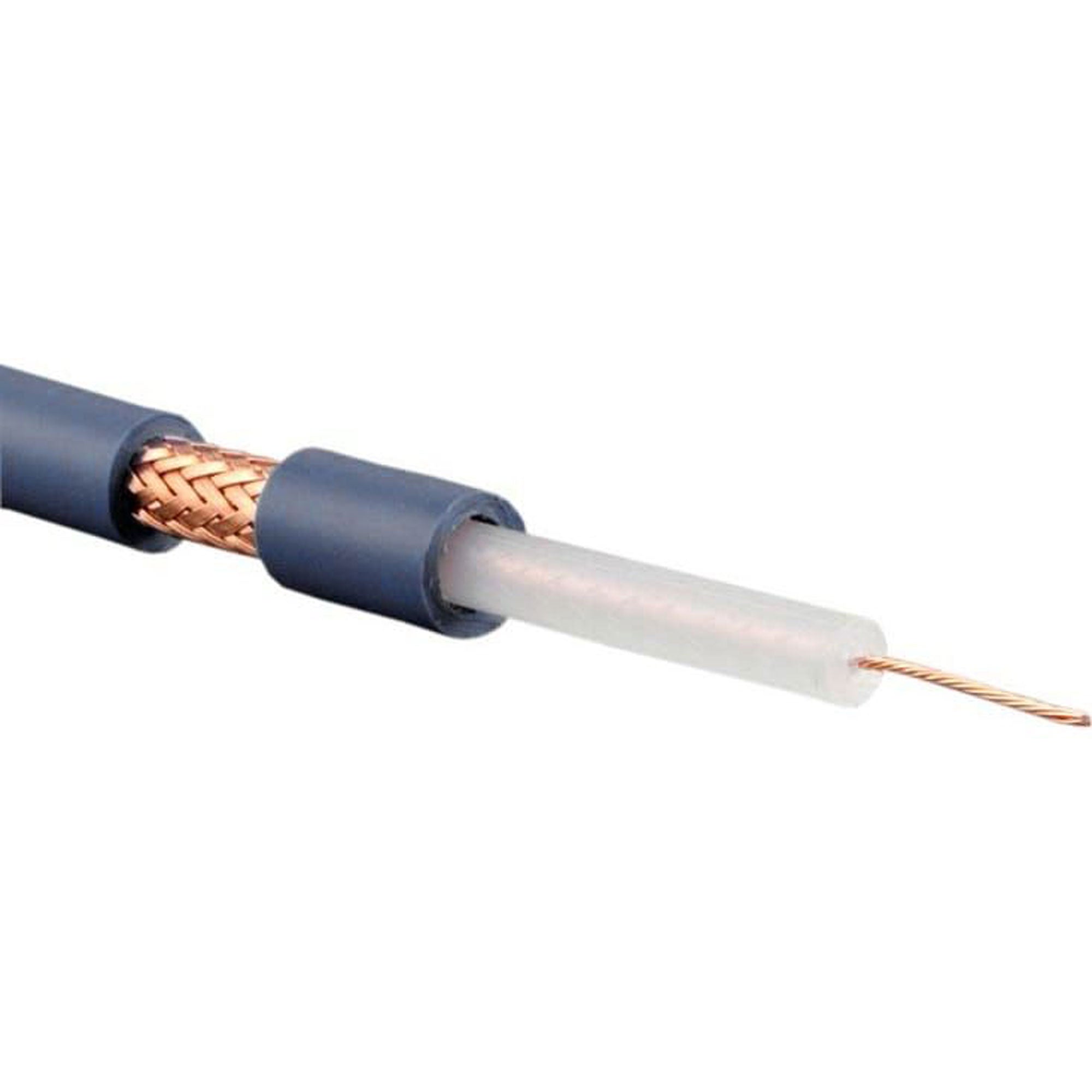

• Flexible Center Conductor: Stranded Bare Copper
• Dielectric strips away clean from Conductor
• Tightly Woven Braid Shield
• Stays Flexible even in Sub Zero Weather
• Available in 10 Colors

Specifications:

• Mechanical Specifications:
• Std. Lng. ft. (m): 500 (153)
• Wt. Std. Lng. lbs. (kgs): 19 (8.6)
• Nominal O.D. in. (mm): .240 (6.1)
• PVC Jacket Thickness in. (mm): .039 (1.0)
• Brittle Point F (C): -22 (-30)
• Cond.-AWG (Qty./mil.): AC-#24 (7/7.88)
• Cond. O.D. in. (mm): .024 (0.6)
• Dielectric Insulation Type*: PE
• Insulation O.D. in. (mm): .142 (3.6)
• Shield Material Coverage: AC Braid >95%
• *Dielectric Strength = 1000V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
• Electrical Performance:
• Cond. D.C.R. ohm/1000ft (ohm/100m): <25.9 (<8.5)
• Shield D.C.R. ohm/1000ft (ohm/100m): <4.0 (<1.3)
• Nom. Cap. @1KHz pF/ft (pF/m): 21 (67)
• Nom. Imp. ohm: 75
• Nom. Attn. @10MHz dB/1000ft (dB/100m): 13 (4.2)
• Velocity of Prop.: 66%
