Canare GS-6 OFC Guitar, Keyboard and Instrument Cable (Blue, By the Foot)

CanareSKU: CAN GS6BLUE
MPN: GS-6 BLUE

Price:
Sale price$0.92
Stock:
677 In Stock & Ready to Ship

Key Features

  • Sold by the Foot
  • Shipped in a Continuous Length
  • Oxygen Free Copper Cable
  • Low Capacitance & Resistance
  • Reduced Handling Noise
  • 6 Colors Available

Description

Blue Guitar, Keyboard and Instrument Cable, 18 AWG - Sold by the Foot

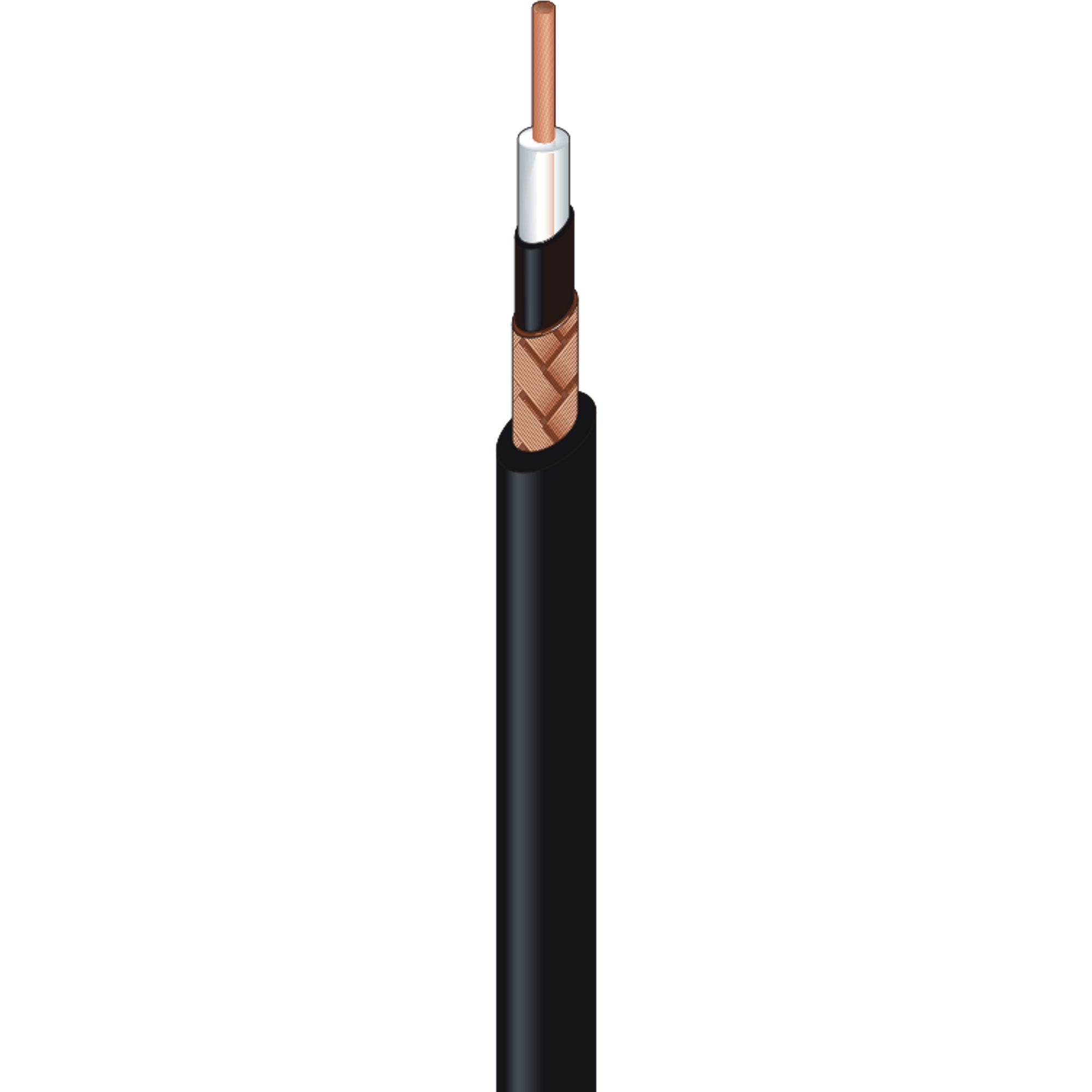

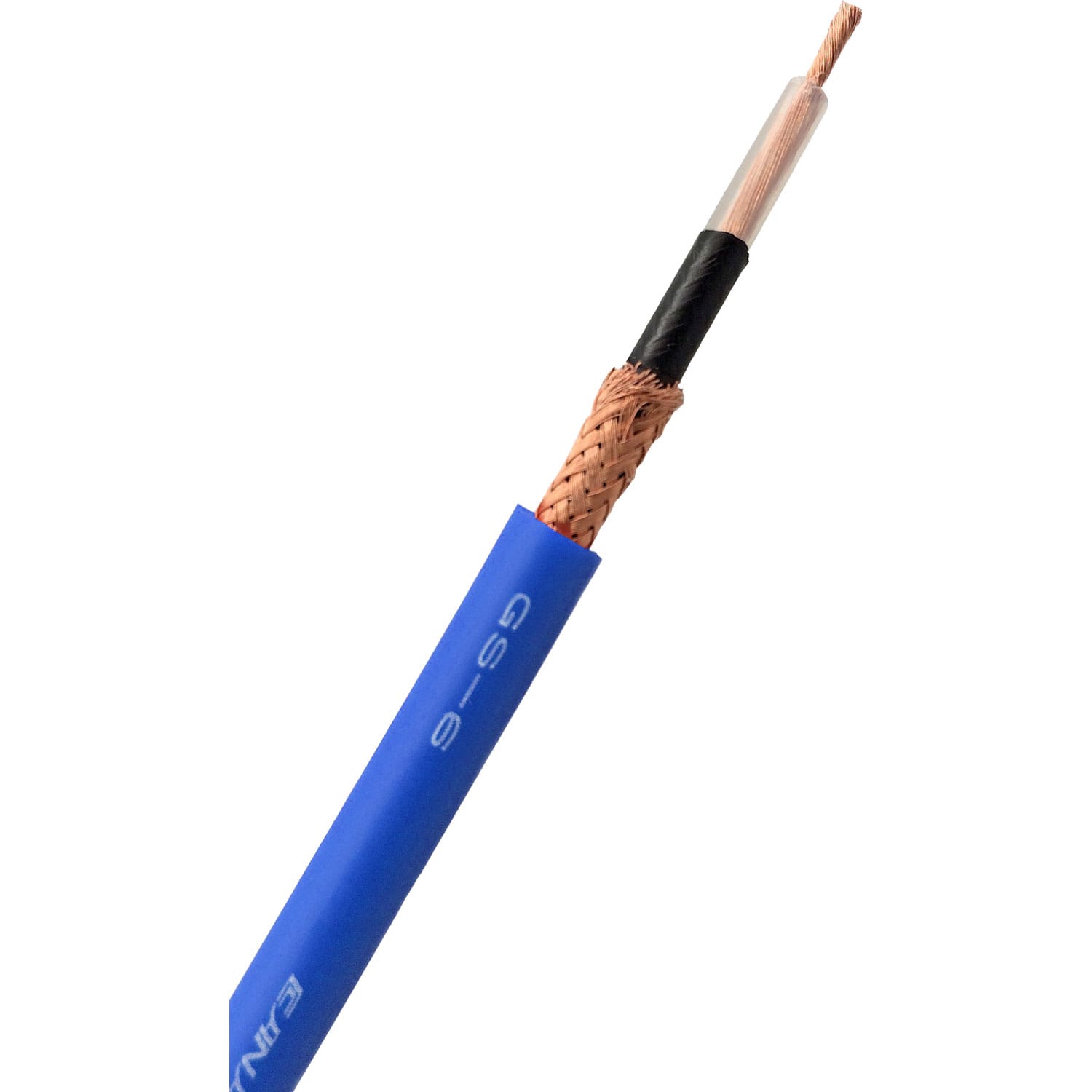

A specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz). A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The proprietary double Carbon/Braid Copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. Also highly recommended for Amp Head to Speaker Cabinet leads.

Features:

  • Stays Flexible even in Sub-Zero Weather
  • Oxygen Free Copper Conductor & Shield
  • Reduced Microphonic Handling Noise
  • Low Capacitance & Resistance

Specifications:

  • MECHANICAL SPECIFICATIONS
  • Model: GS-6
  • Std. Lng. ft. (m): 328 (100), 656 (200)
  • Wt Std. Lng. lbs (kgs): 22 (10)
  • Nom. O.D. in. (mm): .228 (5.8)
  • PVC Jacket Nom. Thick. in. (mm): .039 (1.0)
  • Brittle Point F° (C°): -56 (-49)
  • No. of Cond.: 1
  • Insul. Type* Thick mil: PE 33.5
  • Cond-AWG (Qty./mil) Cross Sec. Area mil.2: OFC-#18 (127/3.94) 1550
  • Pitch Twist Quad in. (mm): -

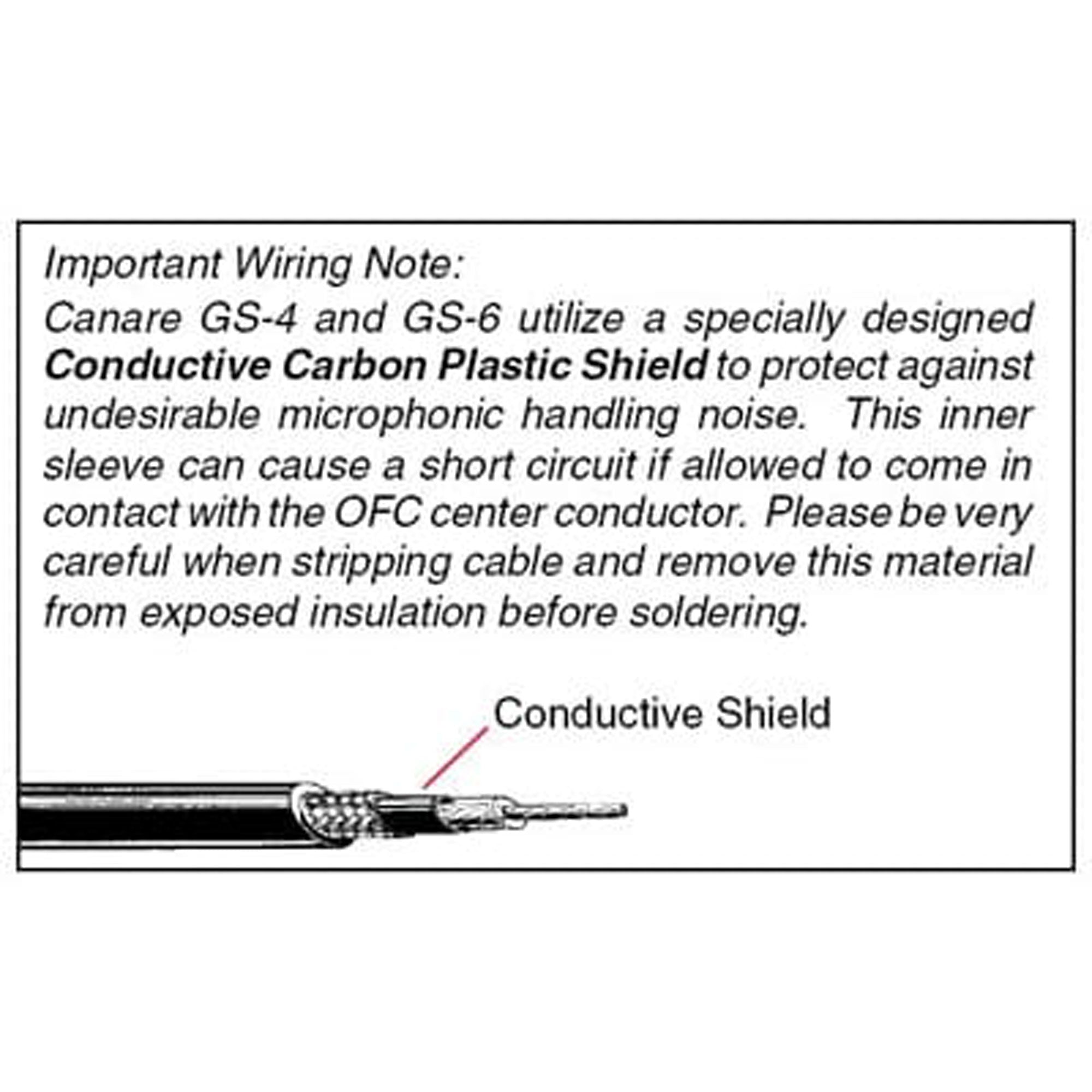

  • Shield Coverage: OFC>92% Braid+ Carbon Sleeve
  • Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
  • ELECTRICAL PERFORMANCE
  • Cond. D.C.R. ohm/1000ft (ohm/100m): <5.6 (<1.8)
  • Shield D.C.R. ohm/1000ft (ohm/100m): <7.6 (<2.5)
  • Nom. Cap. between conductors to shield (pF/m): 160
  • COLORS AVAILABLE
  • Black, Blue, Green, Orange, Red, Yellow
Details
  • Manufacturer:  Canare
  • MPN: GS-6 BLUE
  • Model Number: GS-6 Blue
  • UPC:
