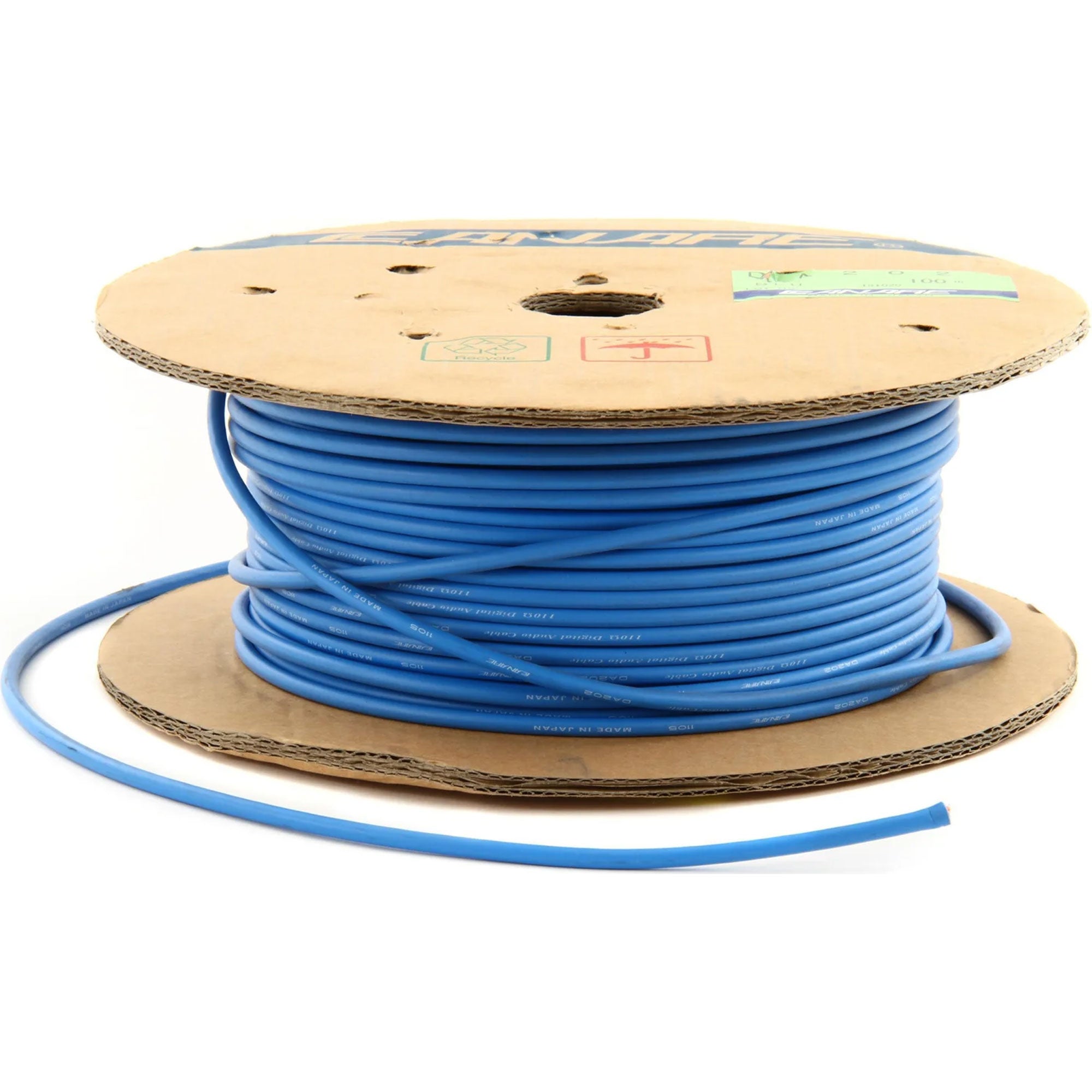

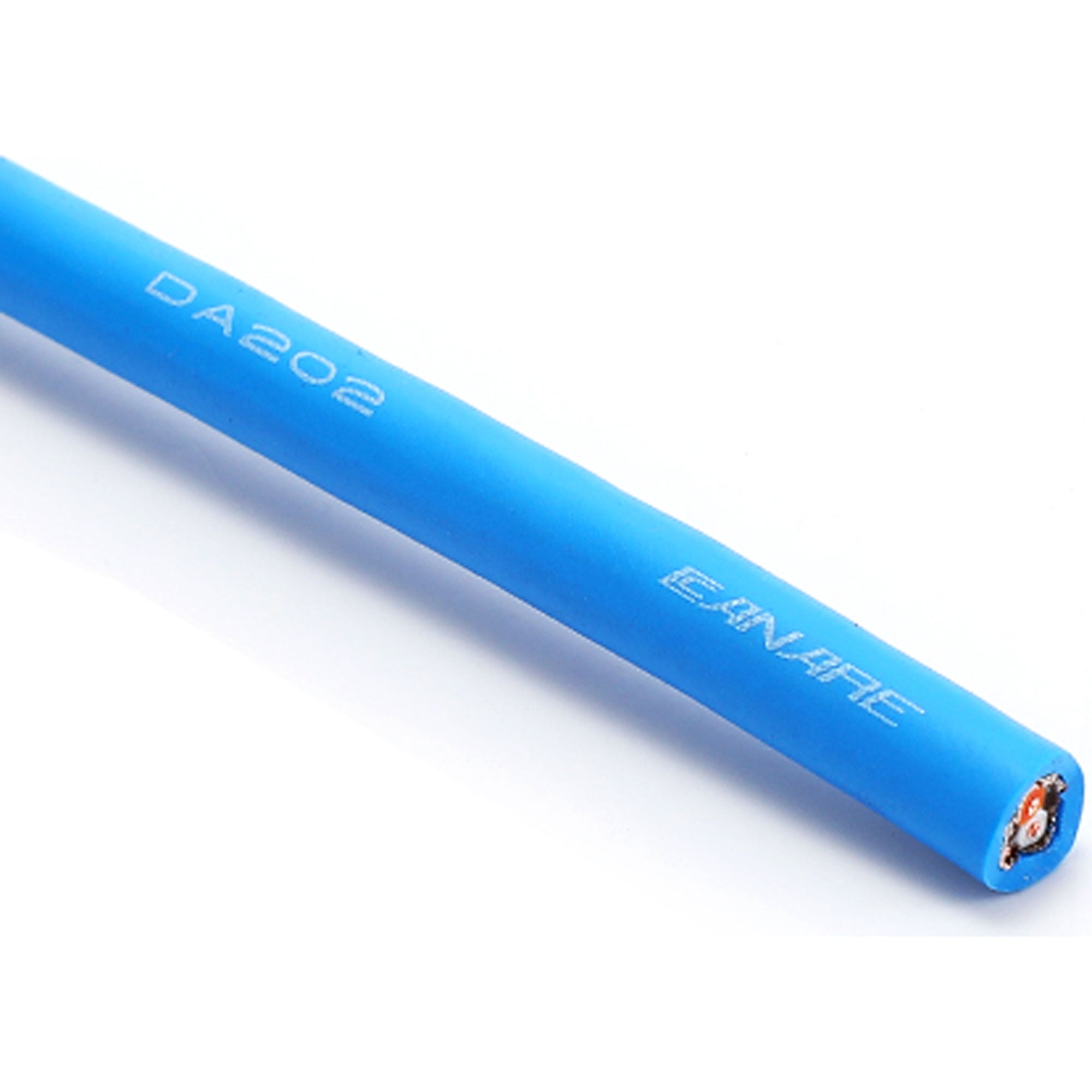

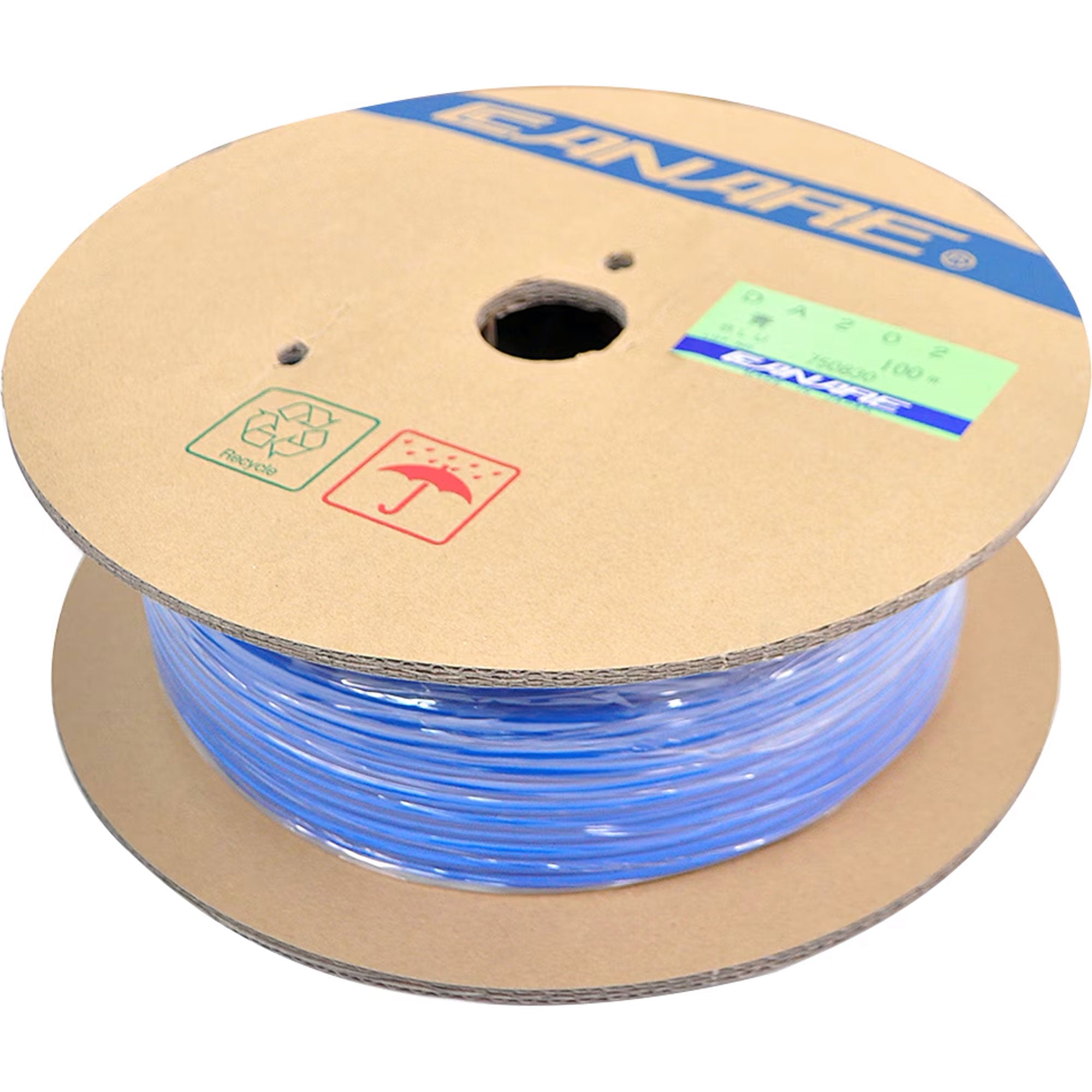

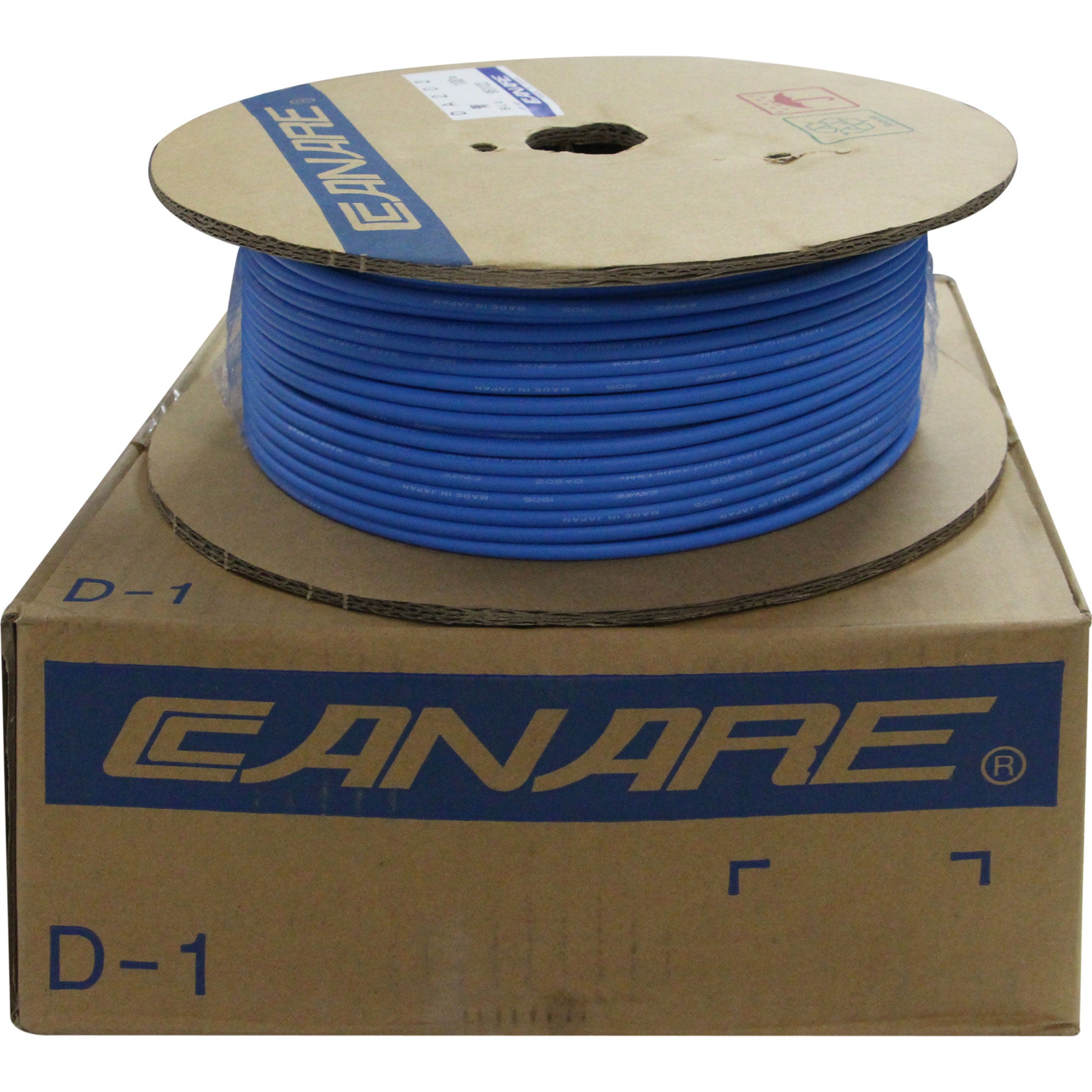

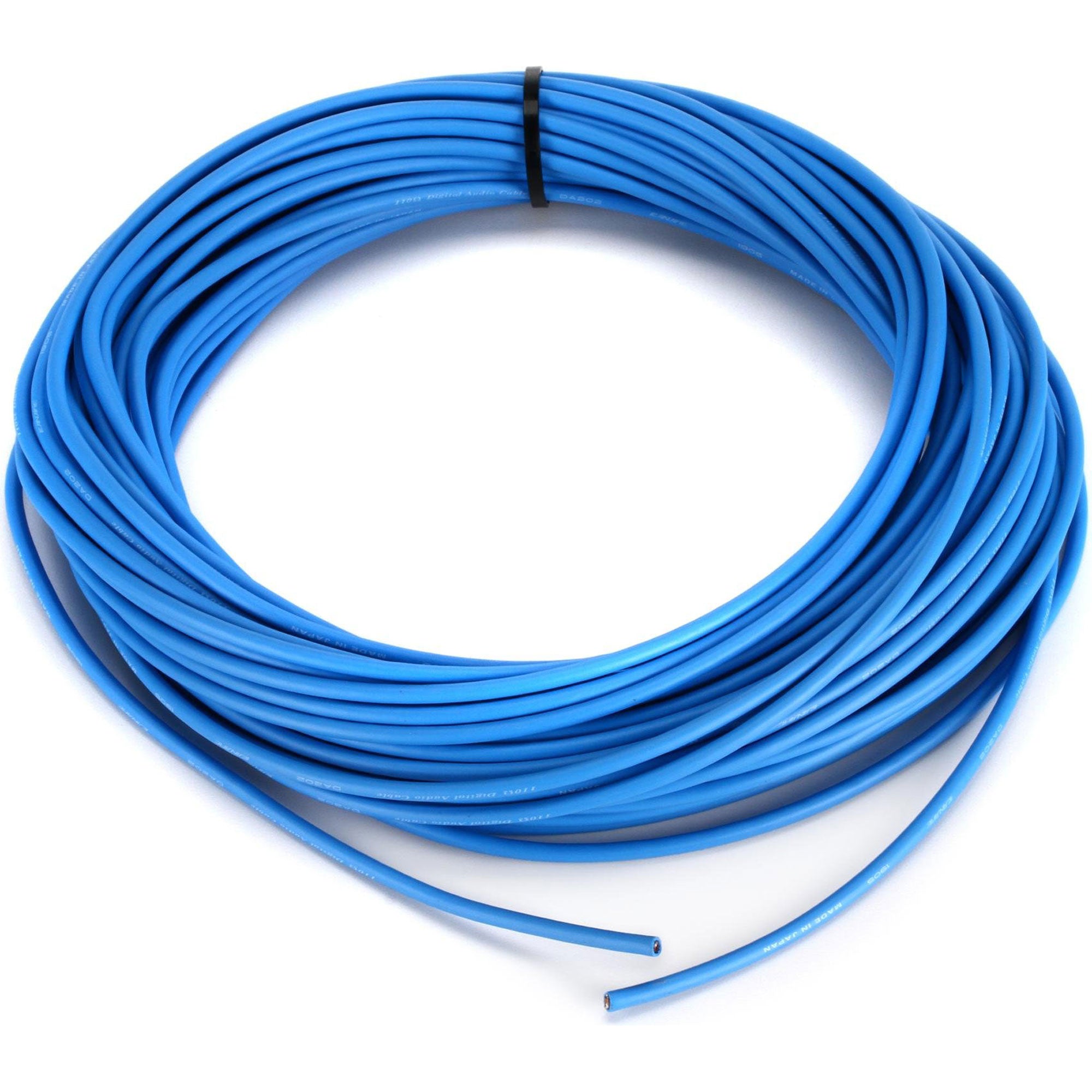

Canare DA202 110 Ohm AES/EBU Digital Audio Cable (Blue, 328'/100m)

110 Ohm AES/EBU Digital Audio Cable, 25 AWG - Full 328'/100m Roll

Mini version of DA206. 25 AWG conductors allow use with common IDC Punch Down Block, Digital Audio "110 ohm Type" Patchbays. Integral Drain Wire for easy ground wiring. Maximum recommended AES/EBU Length: 590ft (180meters). Jacket color: BLUE.

Features:

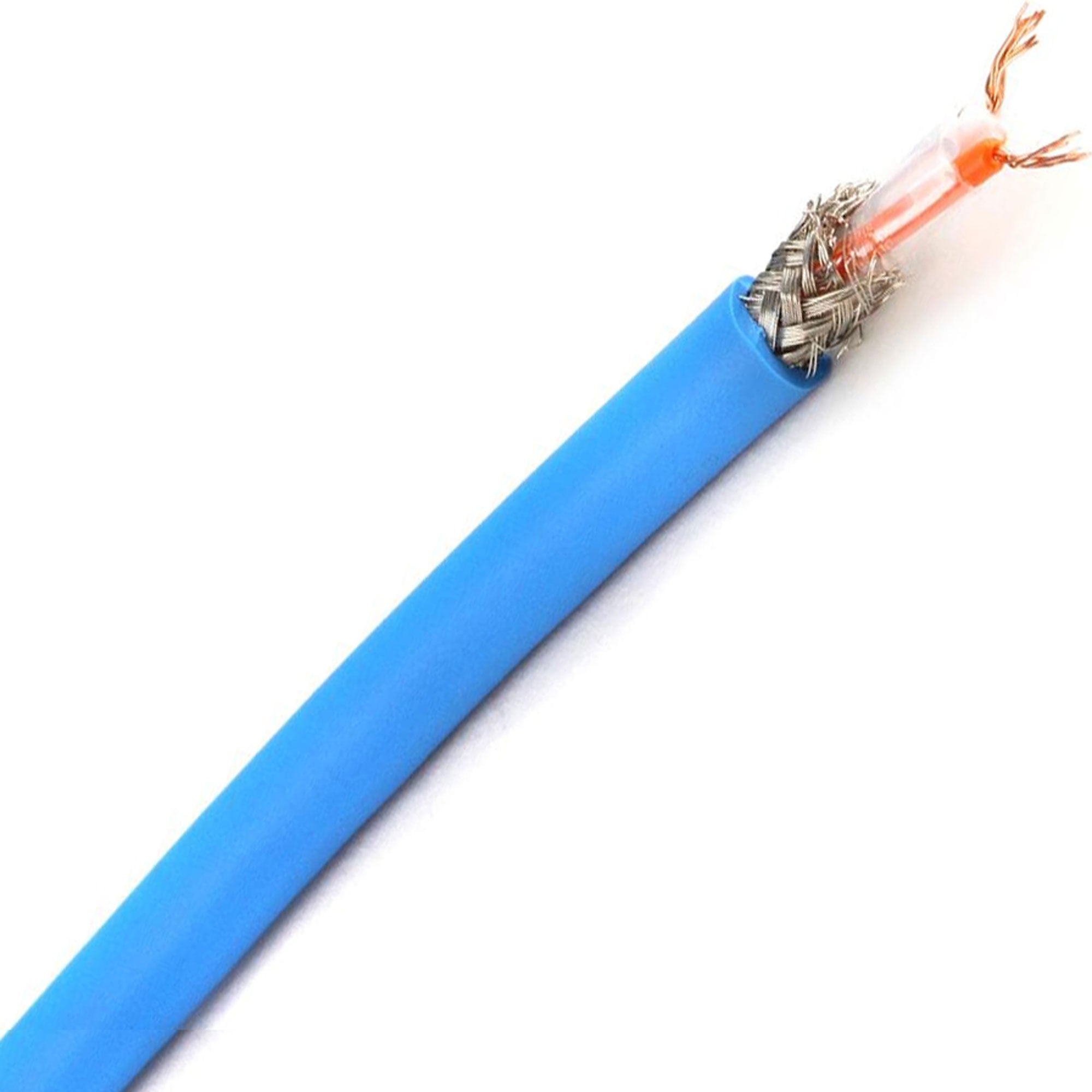

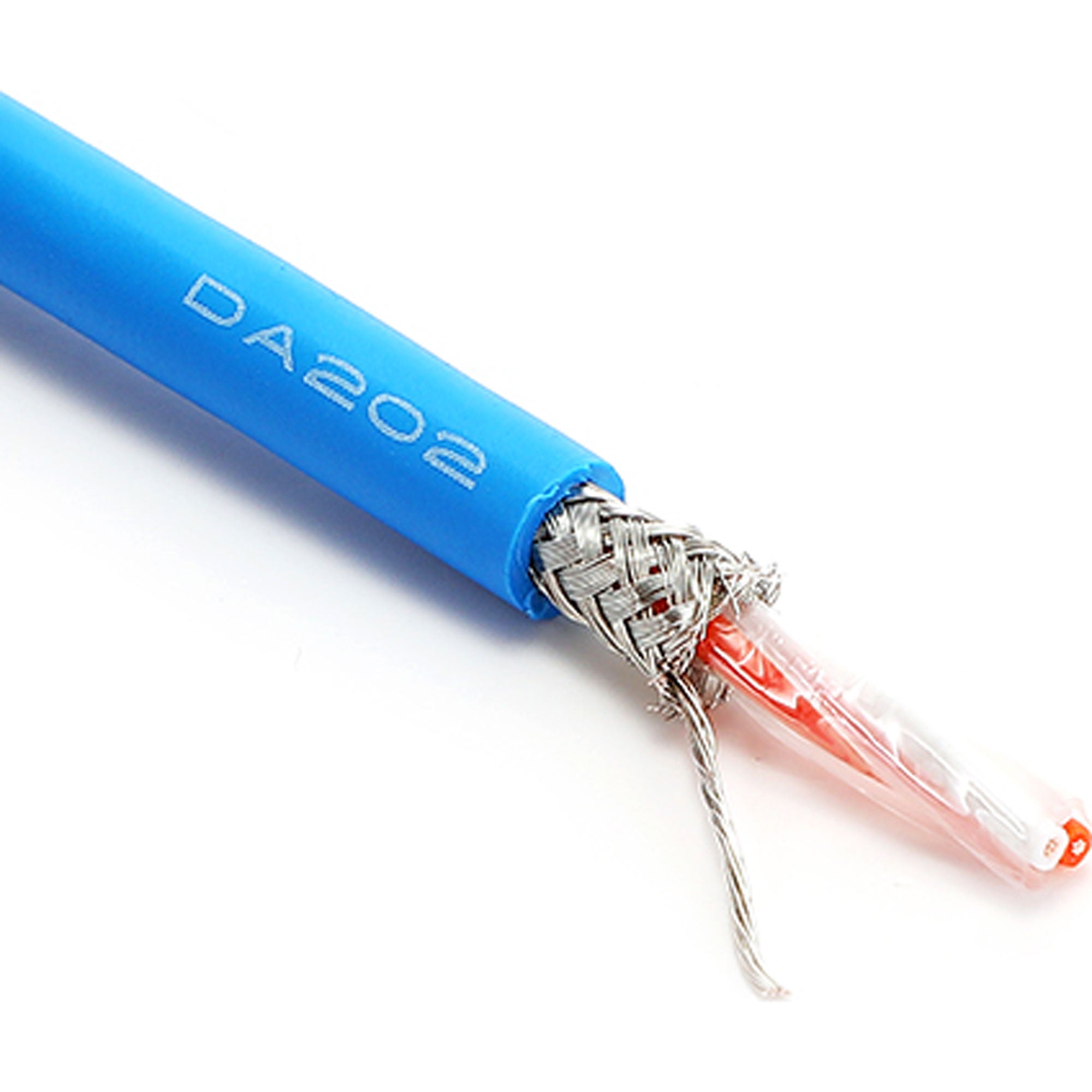

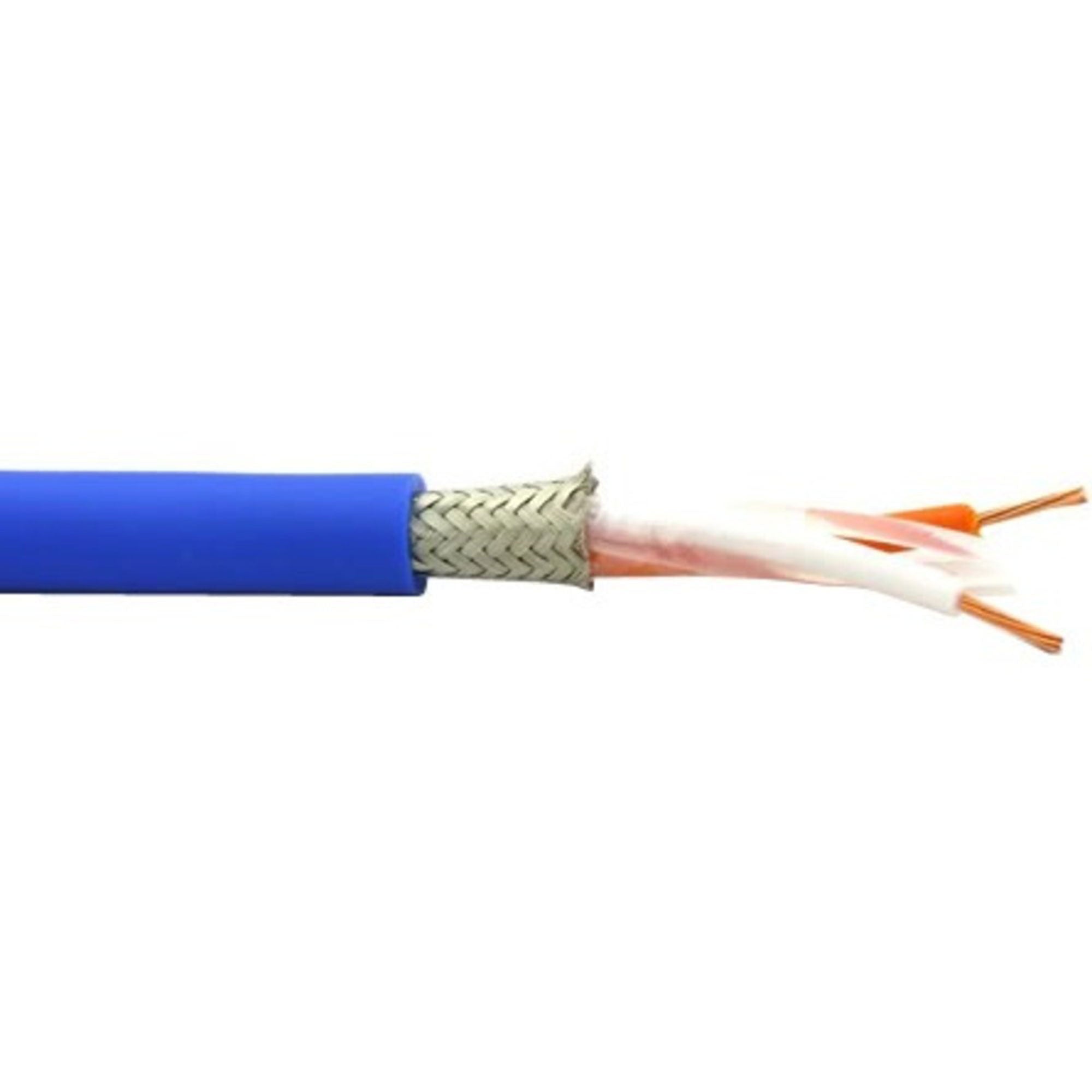

• Twisted Pairs with Braid Shield
• Special PE Filter Rods maintain constant 110 ohm impedance

Specifications:

• MECHANICAL SPECIFICATIONS
• Std. Lng. ft. (m): 328 (100), 656 (200)
• Wt. Std. Lng. lbs. (kgs): 8 (4)
• Nom. O.D. in. (mm): .197 (5.0)
• PVC Jacket Nom. Thick. in. (mm): .034 (0.8)
• Brittle Point F° (C°): -56 (-49)
• No. of Cond.: 2 ORG WHT
• Insul. Type* Thick mil: IPE 16.9
• Cond-AWG (Qty./mil) Cross Sec. Area mm²: AC-#25 (7/7.09) 0.18
• Pitch of Quad in. (mm): - (32)
• Shield Coverage: >95% Braid
• ELECTRICAL PERFORMANCE
• Cond. D.C.R. ohm/1000ft (ohm/100m): <32.3 (<10.6)
• Shield D.C.R. ohm/1000ft (ohm/100m): <6.8 (<2.2)
• Nom. Cap. pF/ft (pF/m): - (45)
• Nom. Imp. ohm: 110
• Nom. Atten. @3MHz dB/100m: 5.0
