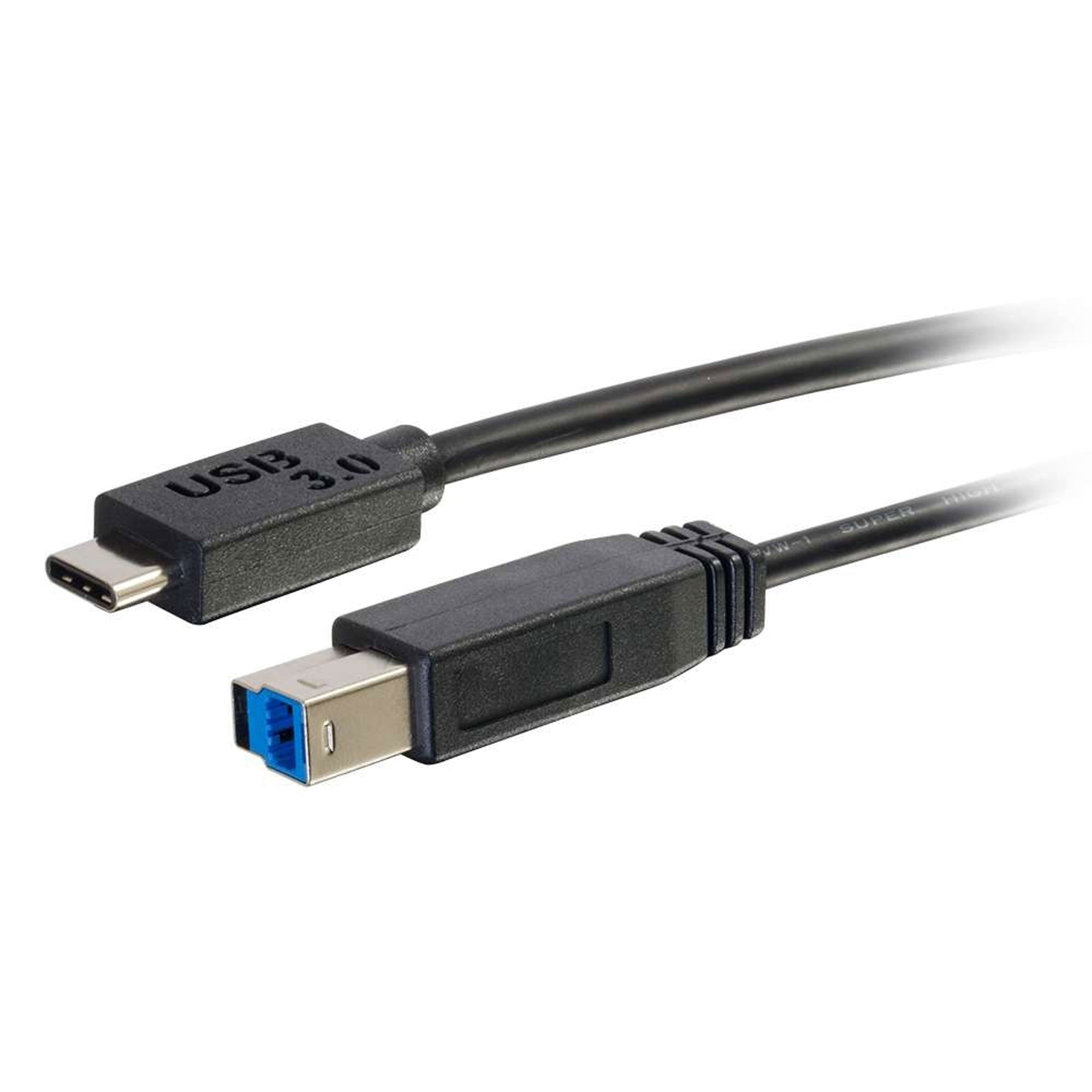

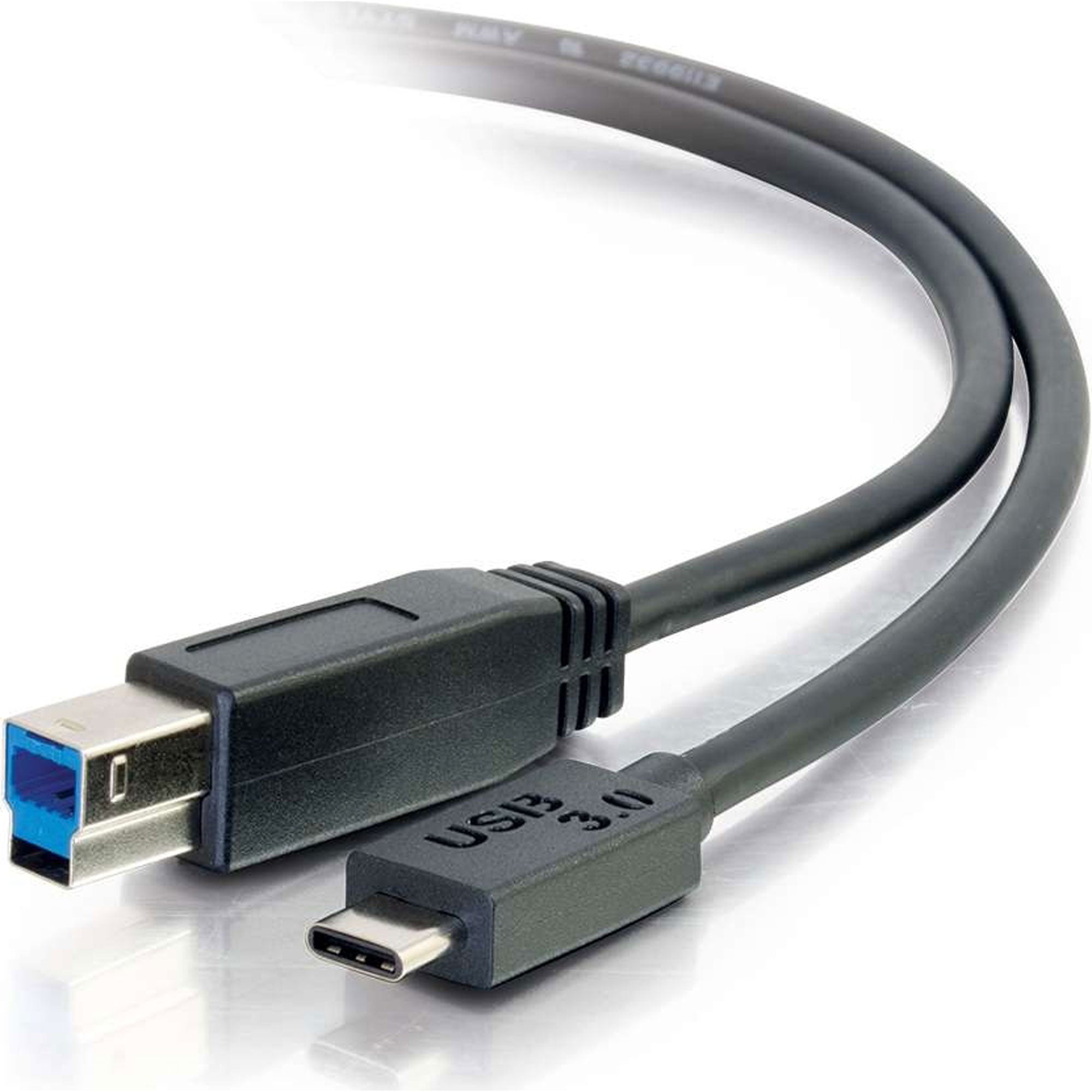

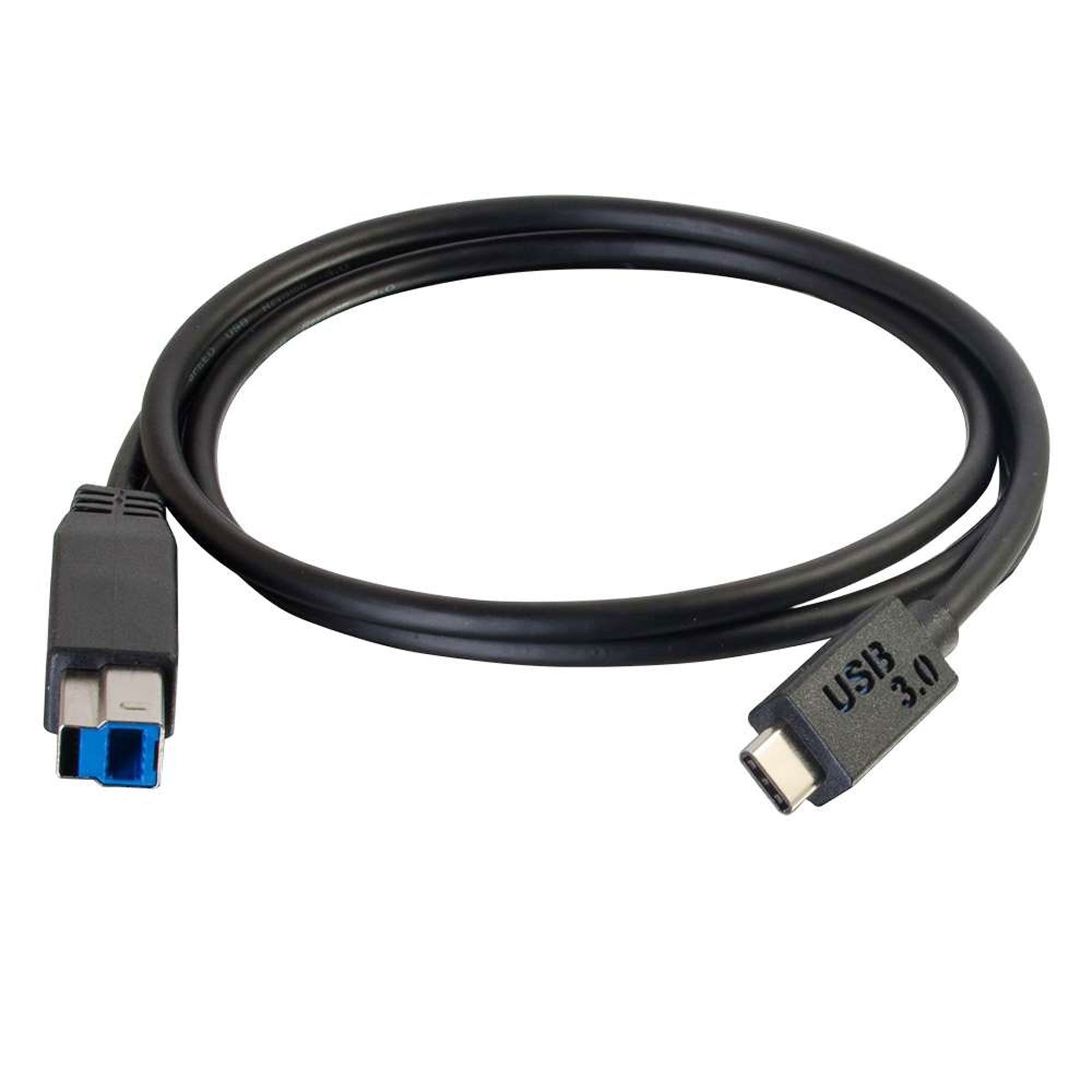

C2G 28865 USB-C Male to USB-B Male USB 3.1 (Gen1) Cable (3')

Connect a USB-B Device to a USB Type-C Port on a Laptop, Desktop Computer, Tablet, or Other Device

This USB 3.0 (USB 3.1 Gen 1) USB-C to USB-B cable is the perfect solution for connecting a hard drive, hub, or other device that has a USB B port to a computer, tablet or other device that has a USB Type-C port for USB 3.0 (USB 3.1 Gen 1) communication. The color coded USB Type-C connector allows this cable to be easily identified as a USB 3.0 (USB 3.1 Gen 1) cable and differentiated from other cables which may support a different feature set. The USB Type-C connector is smaller than traditional USB connector and features a symmetrical design which allows it to be easily connected on the first try. Additionally, the durability of the USB Type-C connector allows for up to 10,000 connection cycles. This cable supports a data rate up to 5Gbps for data transfer and sync with 5 volts and 1 amp of power for device operation and charging.

Note: This cable is designed to support USB 3.0 (USB 3.1 Gen 1) communication and features and is not able to support USB 3.1 Gen 2 Communication and features.

Features:

• Connect the USB-B port of a hard drive, hub or other device a USB Type-C port
• Designed to support USB 3.0 (USB 3.1 Gen 1) communication and features
• Backwards compatible with USB 3.0 devices
• Color coded blue and labeled to designate USB 3.0 (USB 3.1 Gen 1) feature support

Specifications:

• Color: Black
• Length: 3.00 Foot
• UPC: 757120288657
• Warranty: Lifetime
• Vendor: C2G
• Weight: 0.093 LB
• Electrical Characteristics
• Voltage Rating: 30V
• Dielectric Strength: AC-500V/1 Minute No Breakdown (EIA-364-20)
• Insulation Resistance: SR-PVC DC-500V 10MΩ/KM Min. at 20°C HDEP DC-500V 100MΩ/ KM Min. at 20°C (EIA-364-21)
• Conductor Resistance: 26AWG-148Ω/KM Max at 20°C / 28AWG-237Ω/KM Max at 20°C / 30AWG-376Ω/KM Max at 20°C / 32AWG-588Ω/KM Max at 20°C
• Physical Characteristics
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -25°C to 70°C
• Conductor 1 (x4)
• Material: Stranded Tinned Copper
• Size: 32AWG (7/0.80TC)
• Insulation: FM-PE+SKin
• Color: Pair 1 - Yellow/Blue (twisted pair) Pair 2 - Orange/Purple (twisted pair)
• Conductor 2 (x2)
• Material: Stranded Tinned Copper
• Size: 32AWG (7/0.80TC)
• Insulation: HD-PE
• Color: White/Green
• Conductor 3 (x2)
• Material: Stranded Tinned Copper
• Size: 26AWG (7/0.16TC)
• Insulation: HD-PE
• Color: Red/Black
• Drain Wire (x2)
• Material: Stranded Tinned Copper
• Size: 32AWG (7/0.80TC)
• Shield 1
• Material: Aluminum Wrap Coverage - 100%
• Shield 2
• Material: Braid 16/4/0.10TC
• Jacket
• Material: PVC
• Outer Diameter: 4.2mm

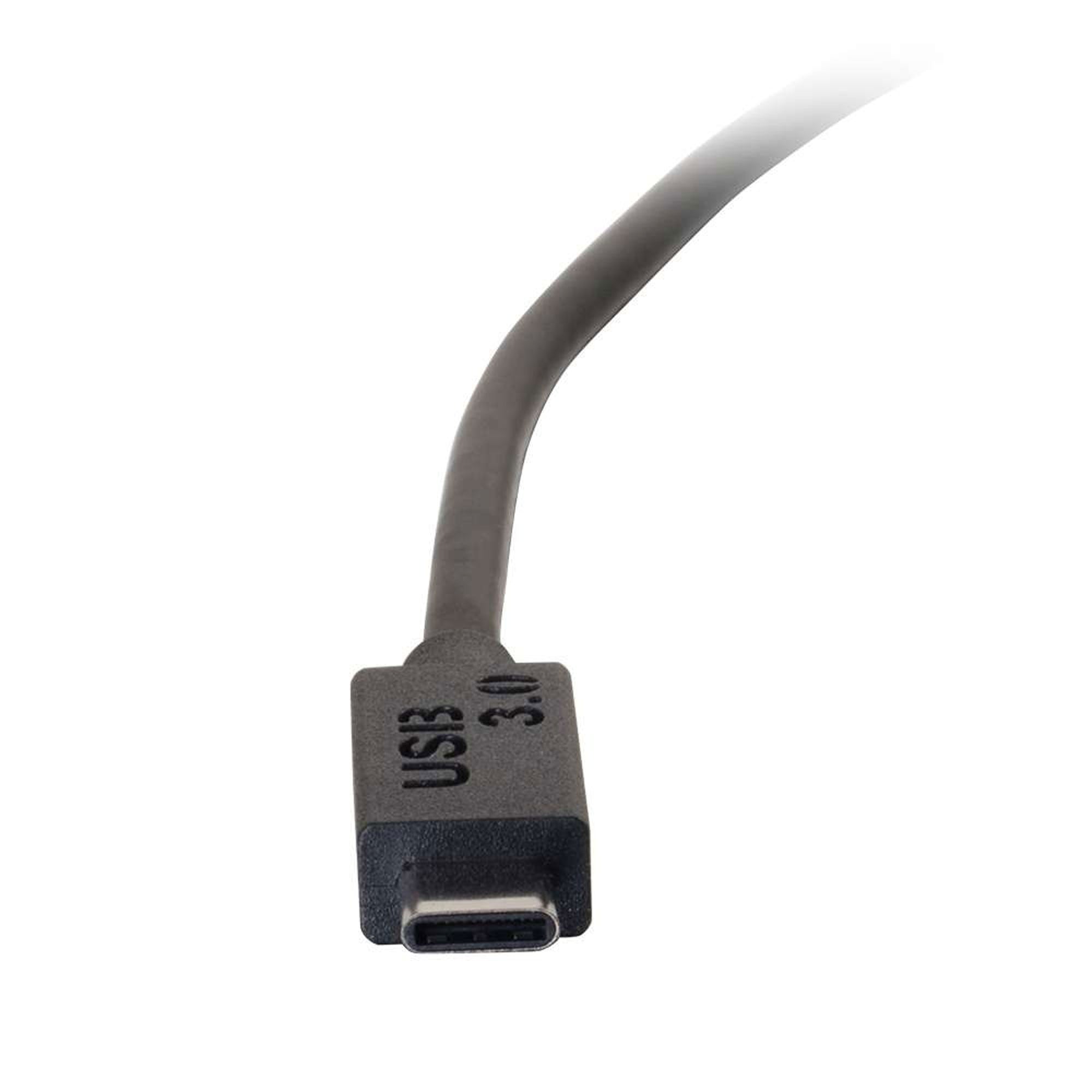

• USB 3.0 C Connector
• Gender: Male
• Insulation: Black
• Contact Material: Gold Flash
• Shell Material: Nickel Plated

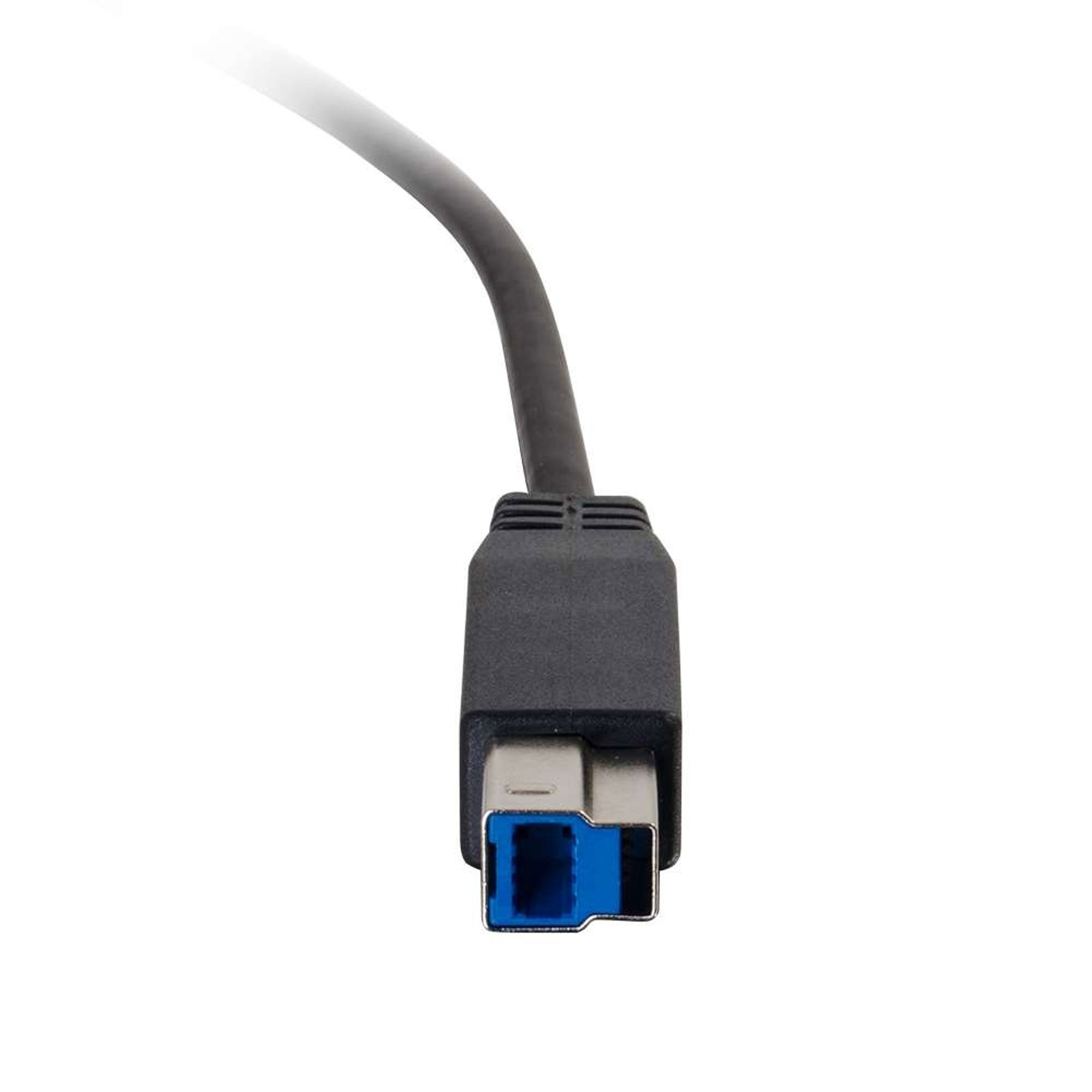

• USB 3.0 B Connector
• Gender: Male
• Insulation: Black
• Contact Material: Gold Flash
• Shell Material: Nickel Plated
• Hood Type
• Molded
